Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAUFACTURER AMADA
MODEL GEMINI FO3015
YEAR 2001
SERIAL NUMBER 07510097

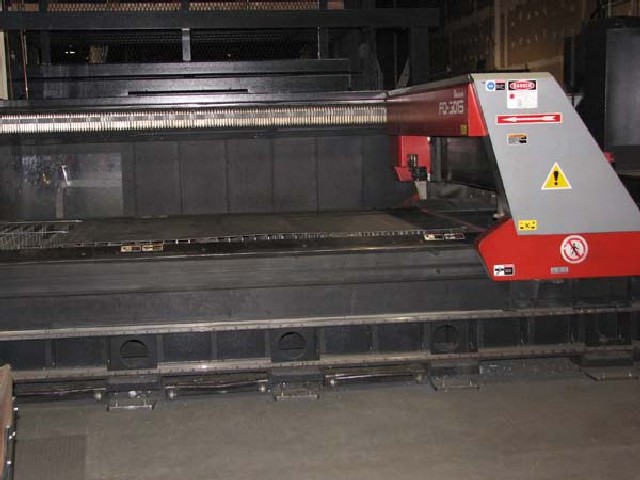

MACHINE POSITIONING DESIGN FLYING OPTIC MAX LASER CAPACITY 4000 WATTS

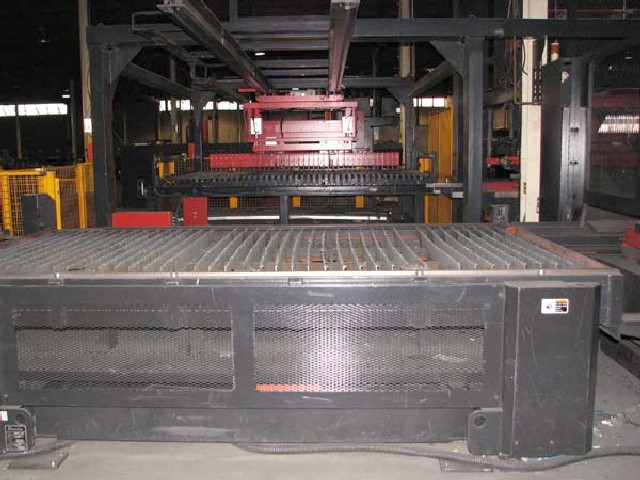

NUMBER OF PALLETS 2
PALLET SIZE 120" X 60"
Y-AXIS TRAVEL 122"
X-AXIS TRAVEL 61"
Z-AXIS TRAVEL 7.8"
RAPID TRAVERSE RATE 3,150 IPM
EQUIPPED WITH

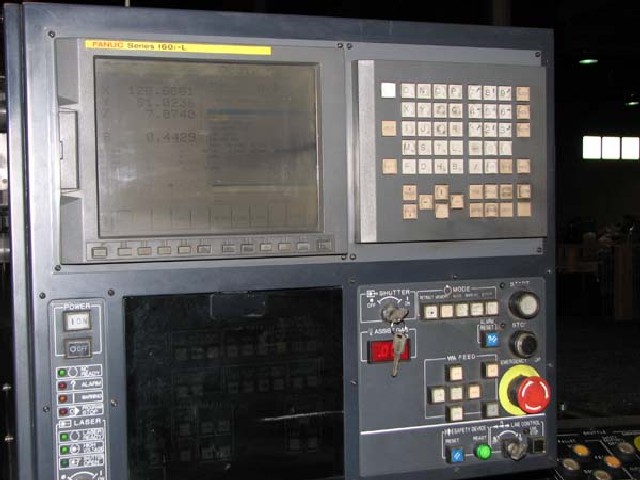

FANCU 16iL CNC CONTROL
X-AXIS DUAL DRIVE RACK AND PINION GANTRY

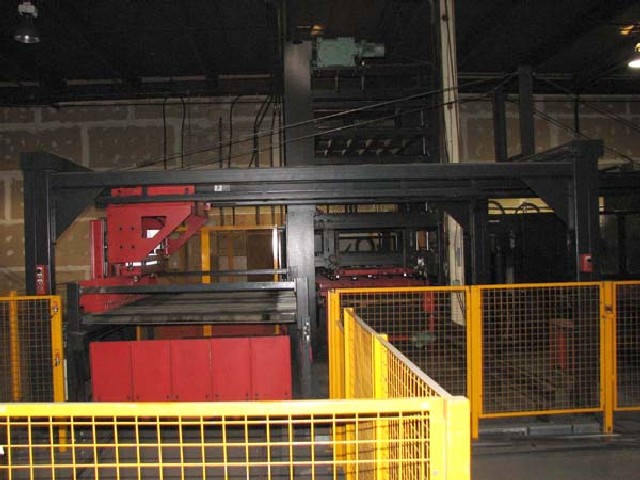

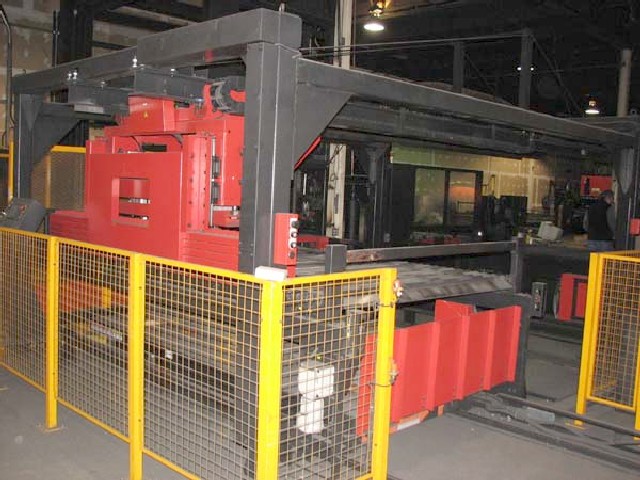

HIGH SPEED PALLET SHUTTLE SYSTEM
CAST IRON FRAME

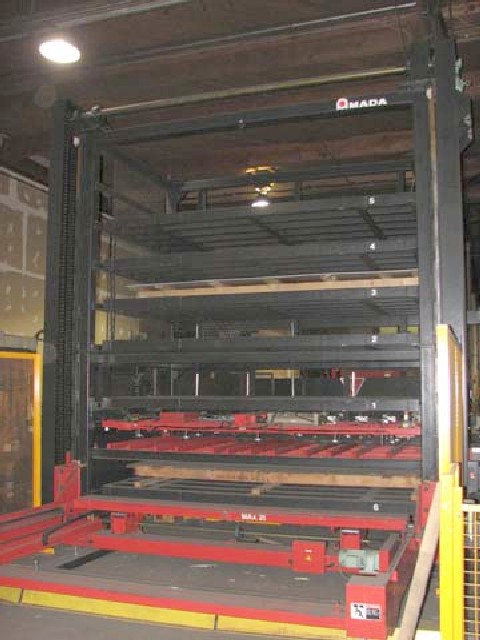

AMADA 6-SHELF AUTOMATED MATERIAL STORAGE TOWER WITH LOAD/UNLOAD CAPABILITY
NON-CONTACT CAPATIVE CUTTING HEAD
CHILLER UNIT
DUST COLLECTOR
APPROX. WEIGHT 30,000 LBS
