GENERAL SPECIFICATIONS

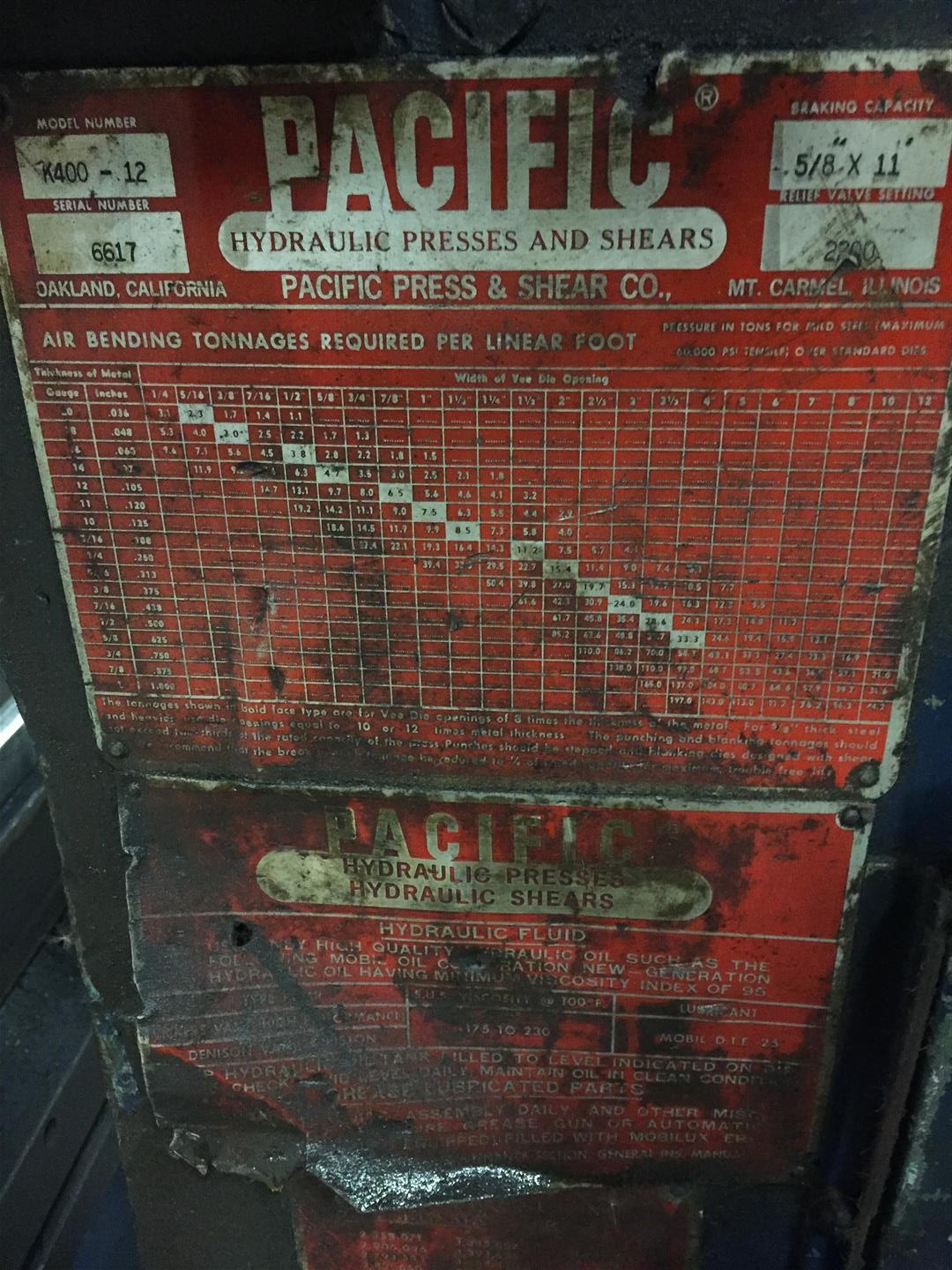

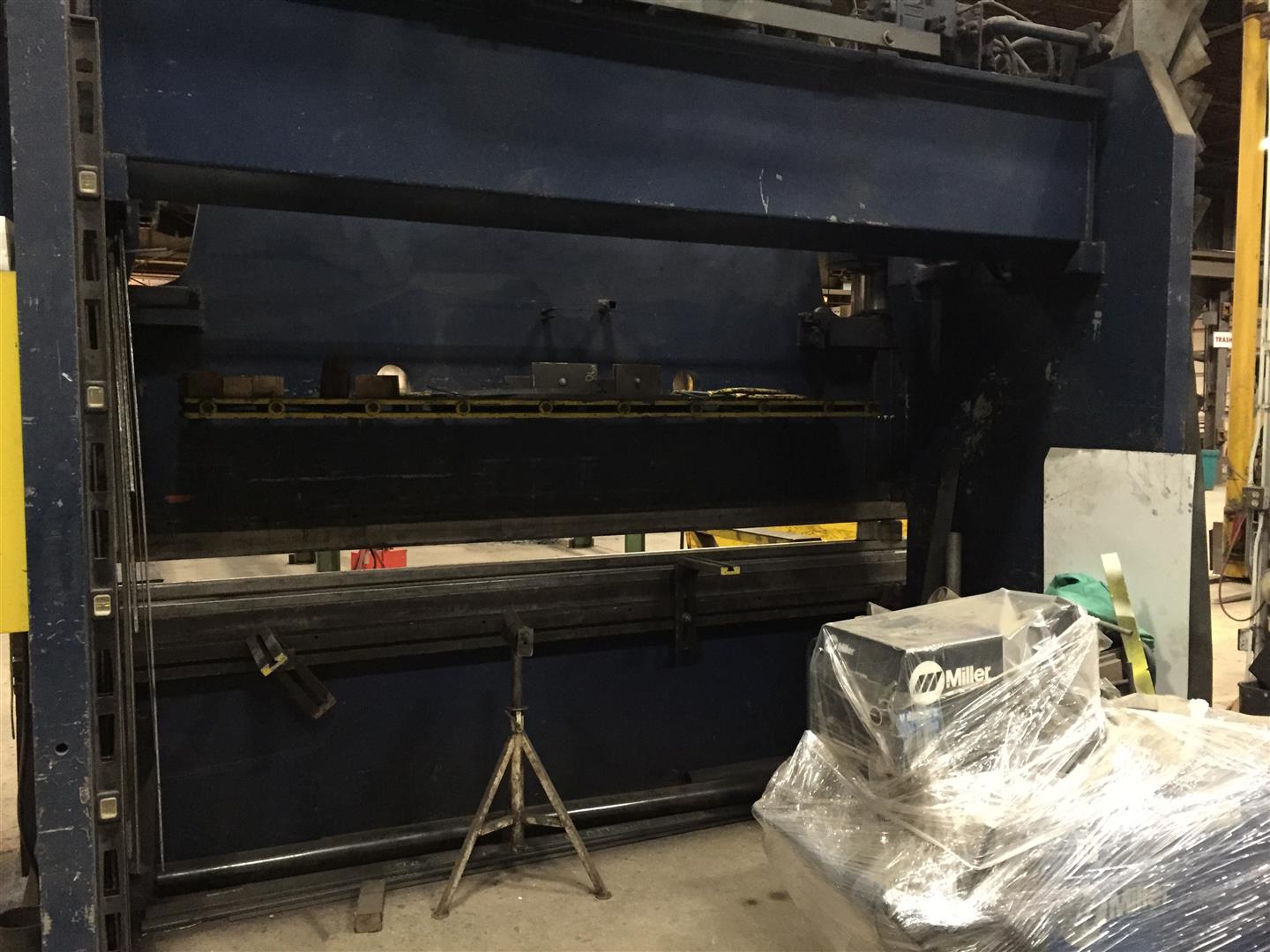

MANUFACTURER......................... PACIFIC
MODEL................................ K400-12
SERIAL NUMBER........................ 6617
AGE.................................. 1975
CAPACITY (TONS)...................... 400
LENGTH OF BED&RAM.................... 12'
DISTANCE BETWEEN FRAMES.............. 10'6"
RATED CAPACITY....................... 5/8" X 11'
MAX.STROKE........................... 12"
OPEN HEIGHT.......................... 20"
CLOSED HEIGHT........................ 8"
PLATEN WIDTH......................... 8"
THROAT DEPTH......................... 10"
THROAT HEIGHT........................ 15"
MAIN PUMP MOTOR...................... 30HP
APPROX.DEPTH BELOW FLOOR............. 25"
APPROX.OVERALL DIMENSIONS............
(L-R x F-B x H)...................... 12'x7'x10'
APPROX.SHIPPING WEIGHT(LBS).......... 40,000
WIRED 440V 3 PHASE 60 CYCLE
EQUIPPED WITH:

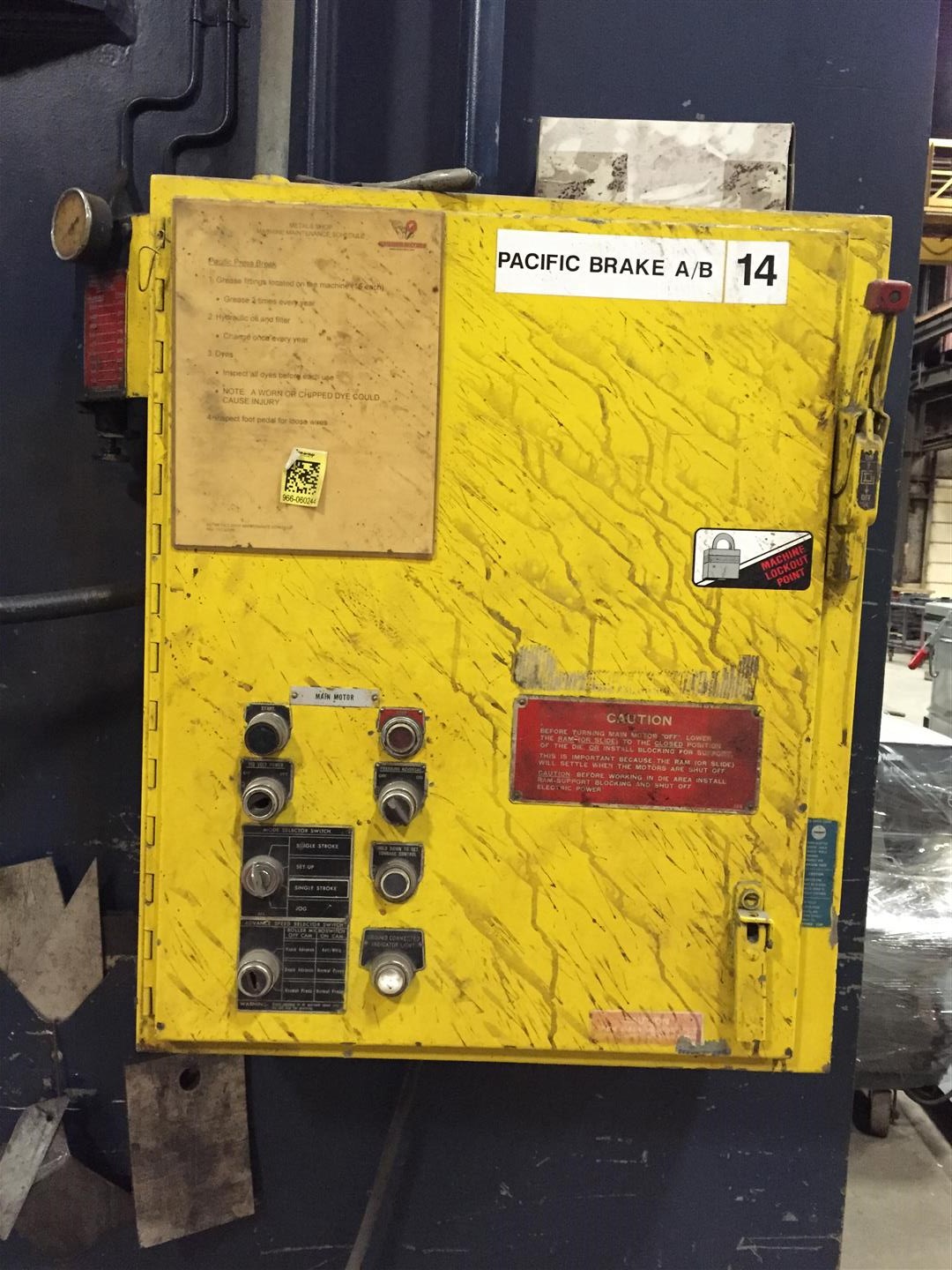

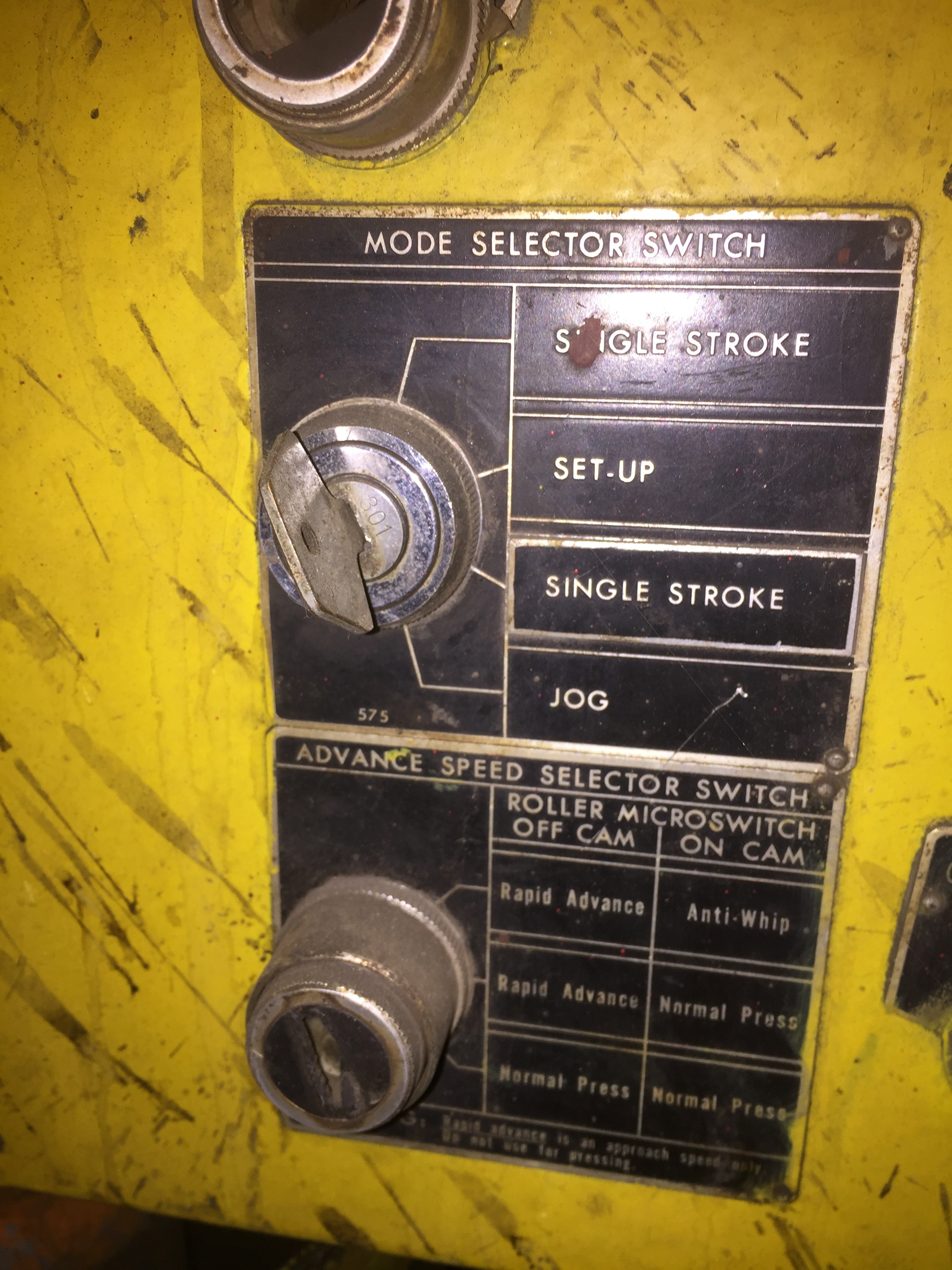

MODE SELECTOR SWITCH
SINGLE STROKE/SET-UP/SINGLE STROKE/JOG

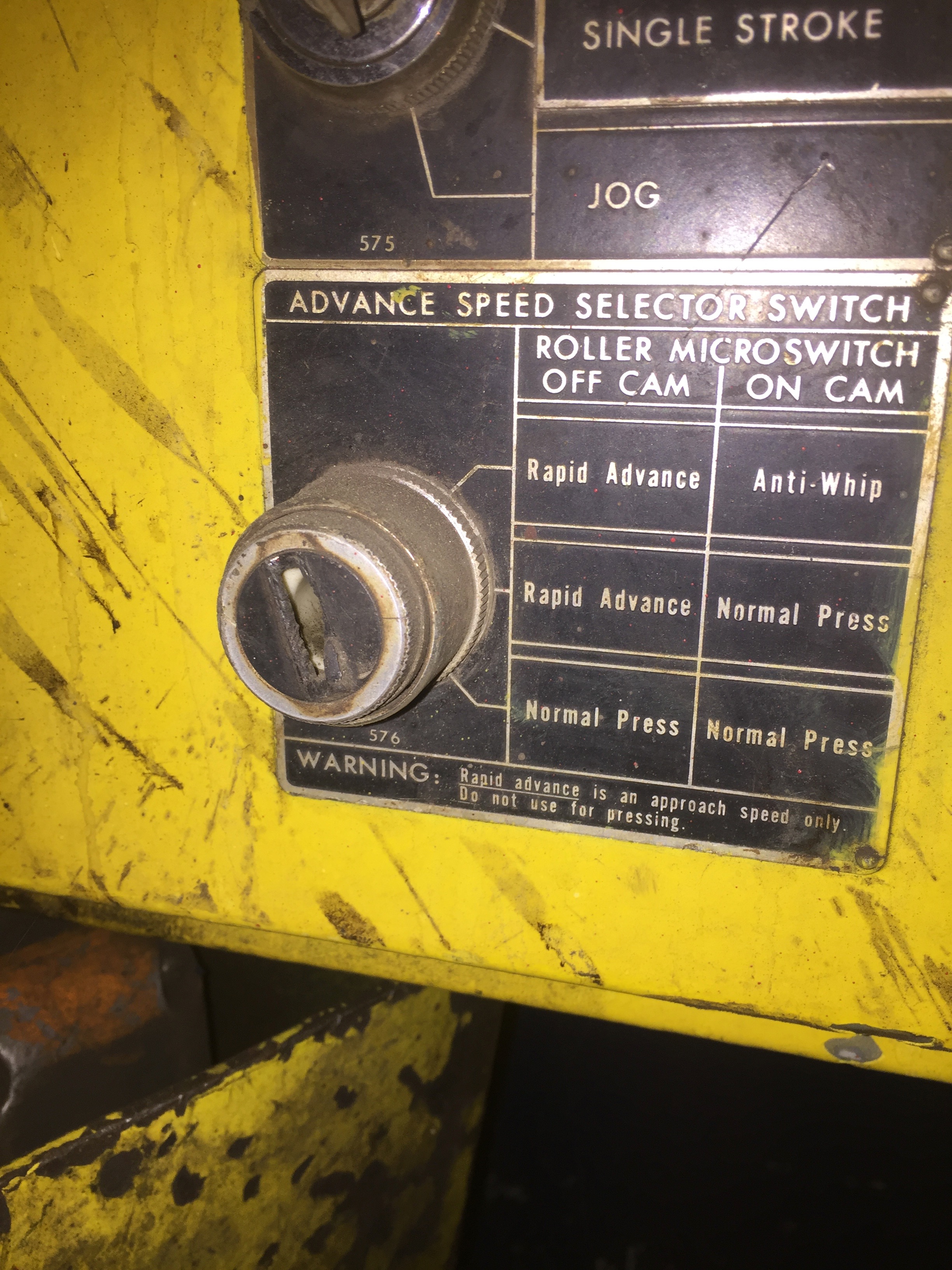

ADVANCE SPEED SELECTOR SWITCH
RAPID ADVANCE/ANTI-WHIP (VERY SLOW 10 IPM)
RAPID ADVANCE/NORMAL PRESS (20 IPM)
NORMAL PRESS/NORMAL PRESS (20 IPM)
