GENERAL SPECIFICATIONS

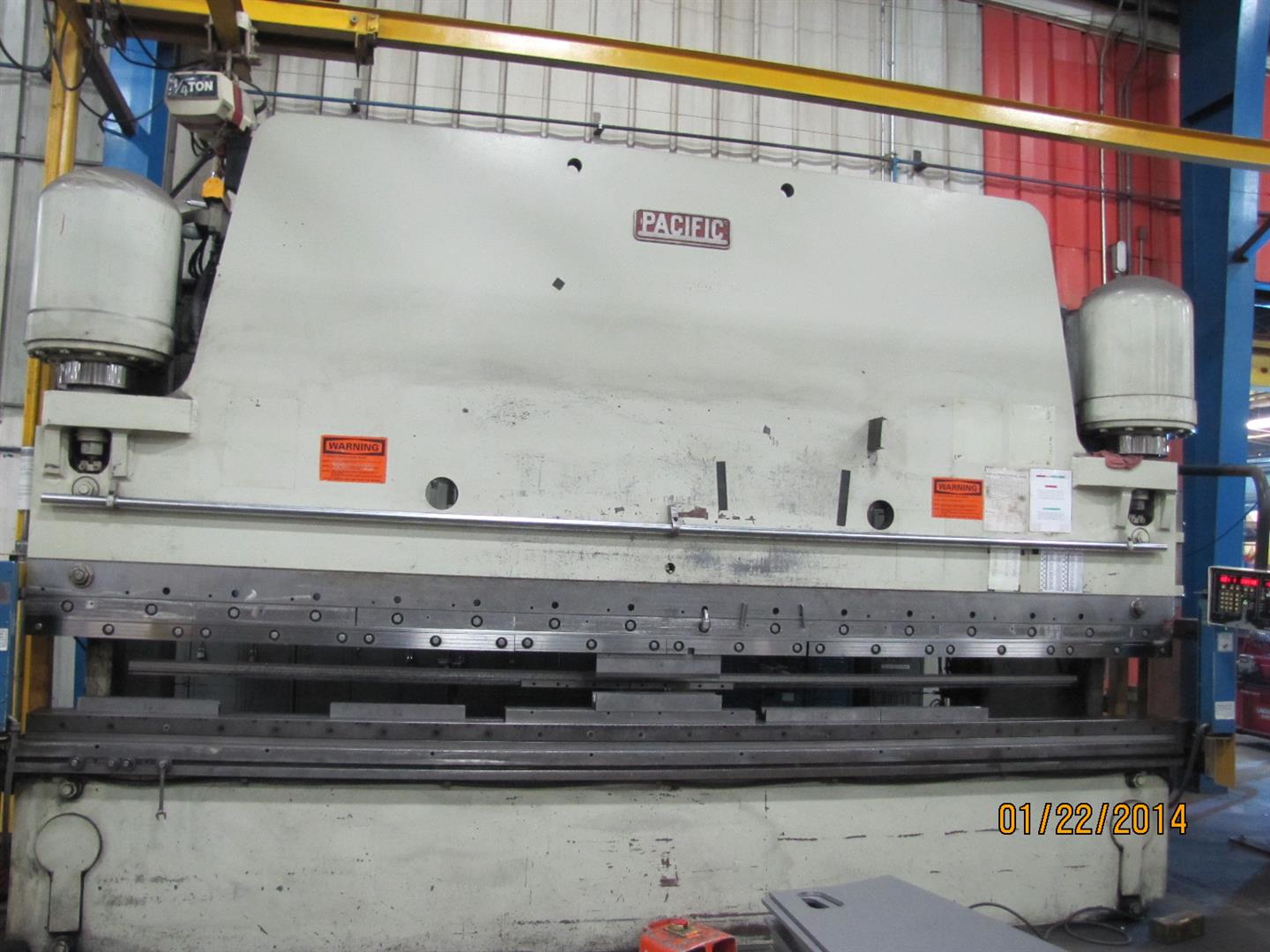

TYPE..........................................HYDRAULIC PRESS BRAKE
MODEL.........................................K400-16
CAPACITY (TONS)...............................400
LENGTH OF BED&RAM.............................16'
DISTANCE BETWEEN FRAMES.......................12'6"
MAX.STROKE....................................12"
OPEN HEIGHT...................................20"
CLOSED HEIGHT.................................8"
PLATEN WIDTH..................................10"
THROAT DEPTH..................................10"
THROAT HEIGHT.................................15"
APPROX.SPEEDS-ADVANCE.........................57IPM
APPROX.SPEEDS-PRESS...........................25IPM
APPROX.SPEEDS-RETURN..........................55IPM
MAIN PUMP MOTOR...............................40HP
APPROX.DEPTH BELOW FLOOR......................41"
APPROX.OVERALL DIMENSIONS (L-R x F-B x H).....17'x7'x10'
APPROX.SHIPPING WEIGHT(LBS)...................54,000

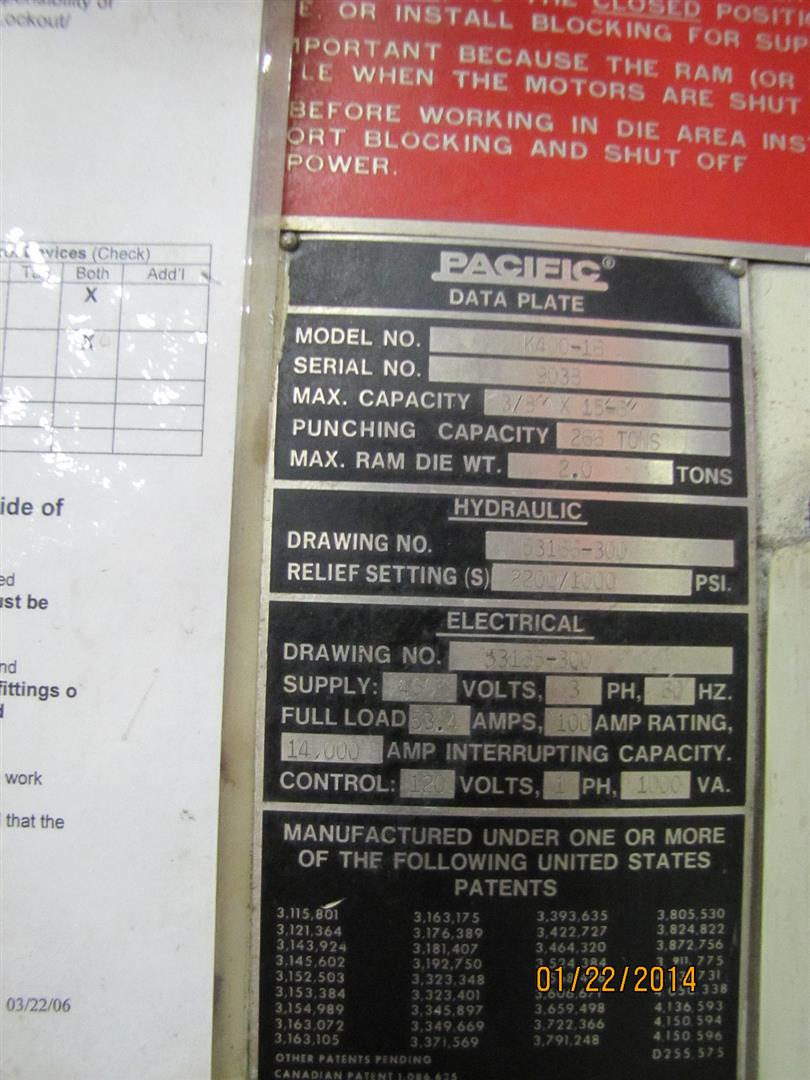

SERIAL NO.....................................9038
YEAR..........................................1981
EQUIPPED WITH:
WILA COMPENSATING DIE RAIL
AUTOMEC CNC1000 AUTO GAUGE SYSTEM
UNDER POWER IN PLANT
SPECIFICATIONS SUBJECT TO VERIFICATION
