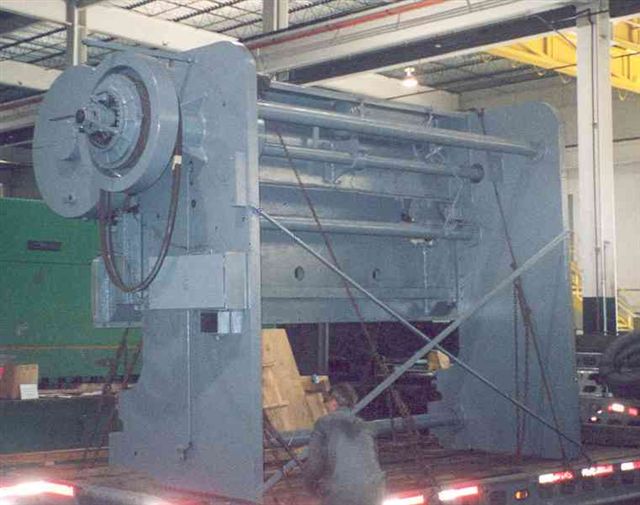

400 Ton, CLEARING, No. 240-12,THROAT DEPTH 14", STROKES PER MIN. 30,MECH.CLUTCH

GENERAL SPECIFICATIONS:
CAPACITY: MID STROKE-------------------------240 TONS
----------NEAR BOTTOM------------------------400 TONS
BENDING CAPACITY-----------------------------1/2" x 12'
---------------------------------------------3/8" x 16'
DISTANCE BETWEEN HOUSINGS--------------------12' - 6"
OVERALL BENDING LENGTH-----------------------16' - 6"
STROKE OF RAM--------------------------------4"
MOTORIZED RAM ADJUSTMENT---------------------6"
THROAT DEPTH---------------------------------14"
SHUT HEIGHT: DIE SPACE-----------------------12"
STROKES PER MINUTE---------------------------30

EQUIPPED WITH:
2' HORN (LEFT SIDE)
AIR COUNTER BALANCE
MECHANICAL CLUTCH
AUTOMATIC LUBRICATION
GEARS RUN IN OIL
PIT REQUIRED 16-1/2"
MAIN MOTOR------------------------------------20 HP TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
