Specifications
Equipped With
No. Tons..........400

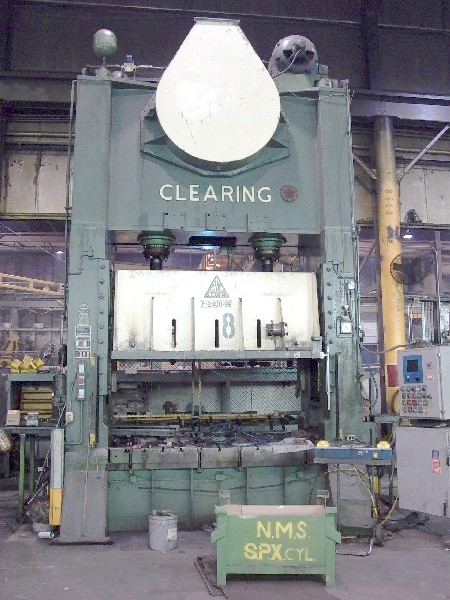

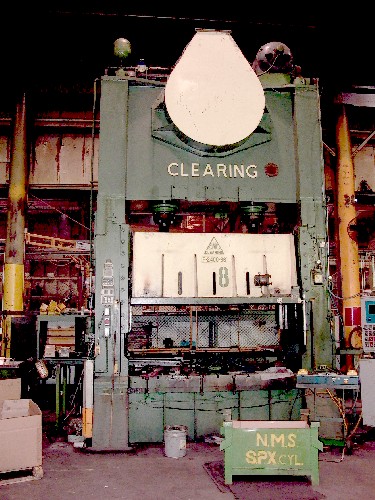

Manufacturer......Clearing
Model No..........F-2400-96
TONNAGE..................................400
BED SIZE.................................60" X 96"
STROKE...................................18"
SHUT HEIGHT (STROKE DOWN/ADJ UP).........36"
STROKES PER MIN..........................14
WINDOW SIZE..............................29" WIDE X 12" HIGH
POWER SLIDE ADJUSTMENT...................10"
EQUIPPED WITH
AIR CLUTCH AND BRAKE REBUILT 2002

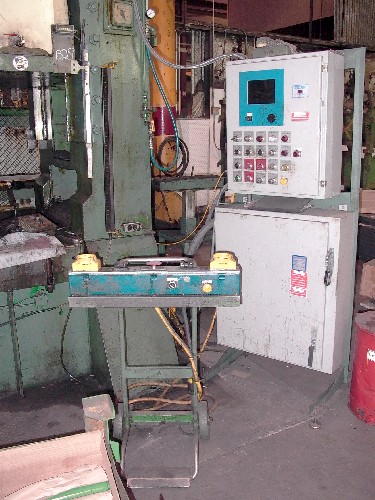

TRIAD PRESS CONTROLS ADDED 2000
AIR COUNTER BALANCE CYLINDER TO SLIDE
PNEUMATIC DIE CUSHIONS
TIE ROD CONSTRUCTION
MAIN MOTOR 40 HP @1200 RPM
