Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.................. STEELMAN BAKE OVEN
MODEL......................... 454 ETC
TYPE.......................... ELECTRIC CONVECTION
SERIAL NUMBER................. 78196
AGE........................... 1973

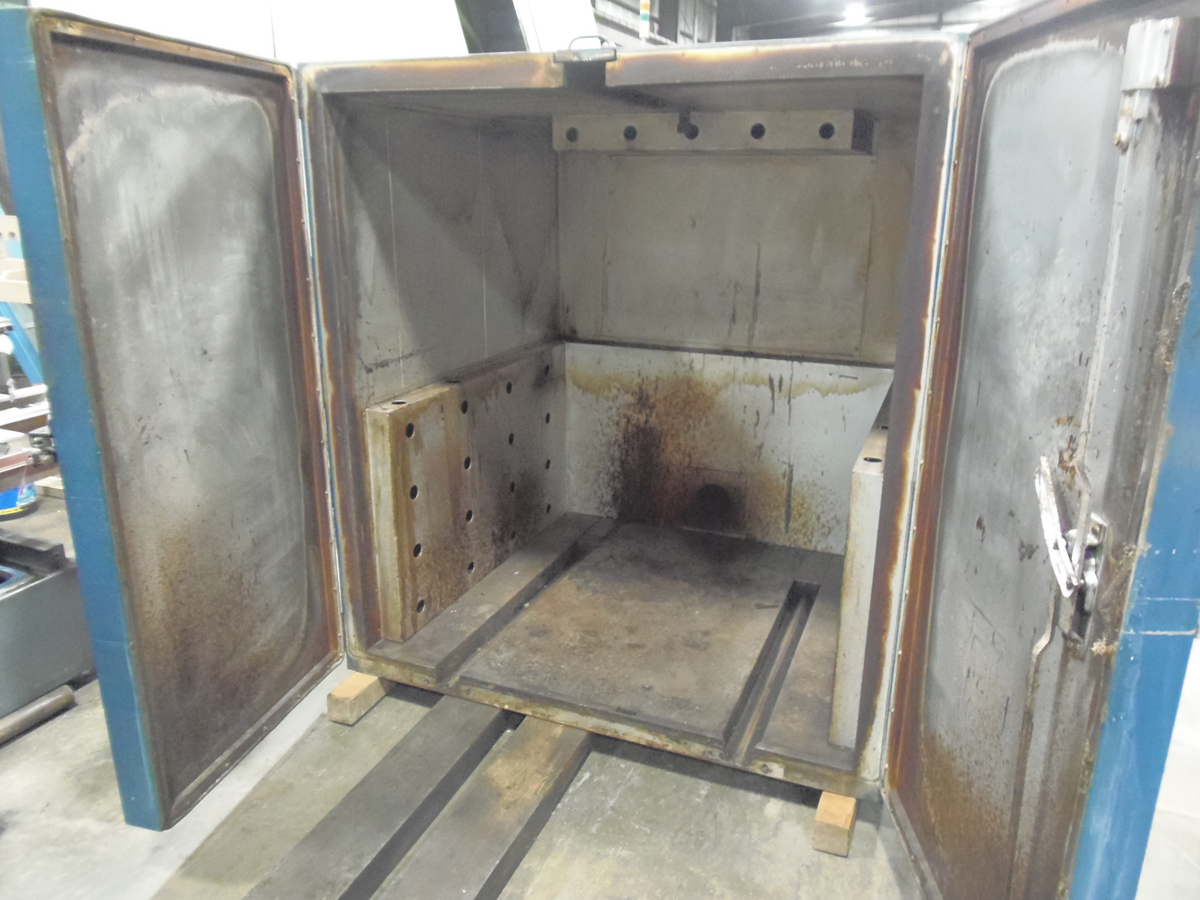

INSIDE DIMENSIONS............. 53"W X 57"D X 61"H
OVEN VOLUME................... 133 CUBIC FEET
DOOR OPENING.................. 60"W X 65"H
3 SHELF CART SIZE............. 42"W X 42"D X 39"H
MAX. TEMPERATURE.............. 450 DEGREE
ELECTRICS..................... 29.4KW
MAIN VOLTAGE.................. 240 3/60

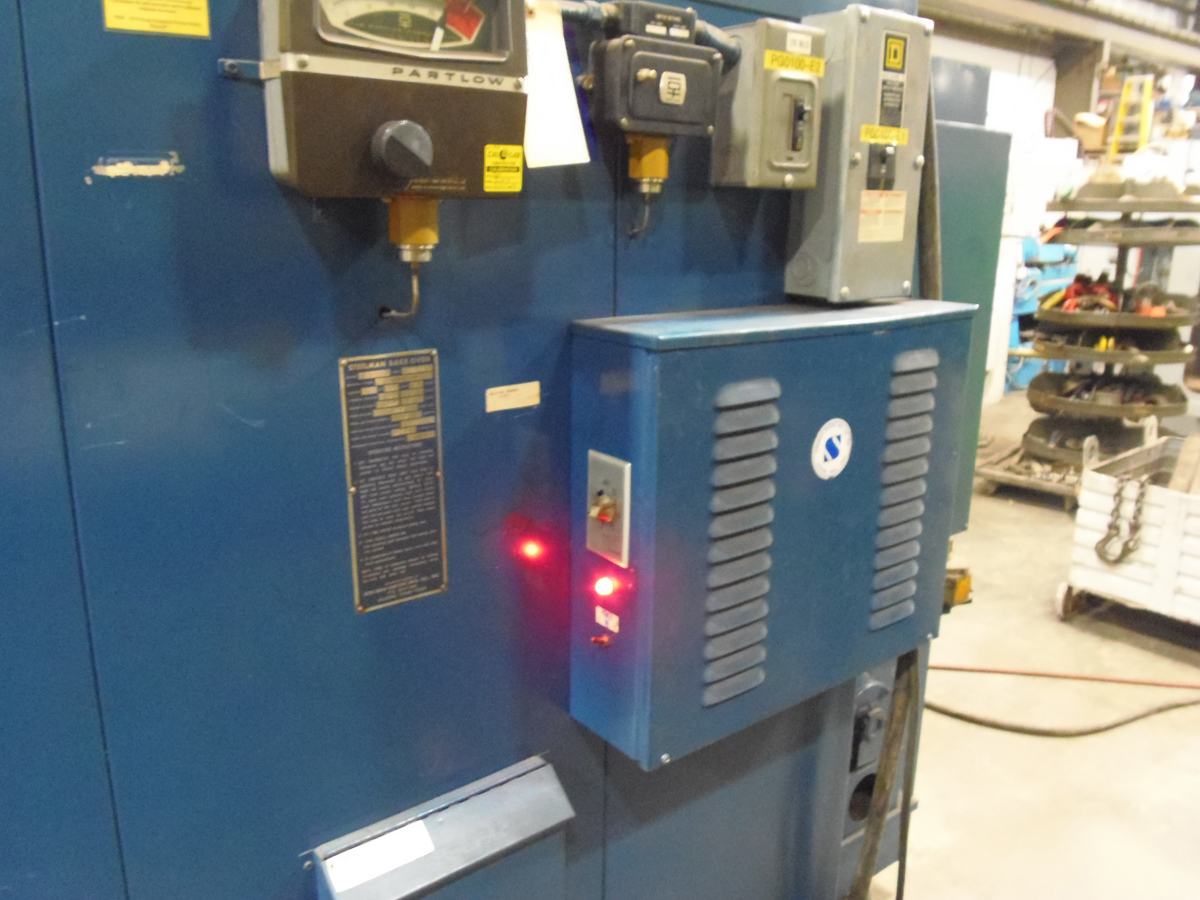

CONTROL VOLTAGE............... 120 SINGLE PHASE
FRESH AIR PURGE INTERVAL...... 2 MINUTES
FRESH AIR PURGE VOLUME........ 244 CFM
MAX GALLONS OF SOLVENT PER BATCH = .17
OVERALL DIMENSIONS............ 6'W X 8'D X 6 1/2'H
INCLUDES
3 SHELF CART ON WHEELS
EXTRA 4' OF TRACK TO RUN THE CART OUTSIDE THE FURNACE
