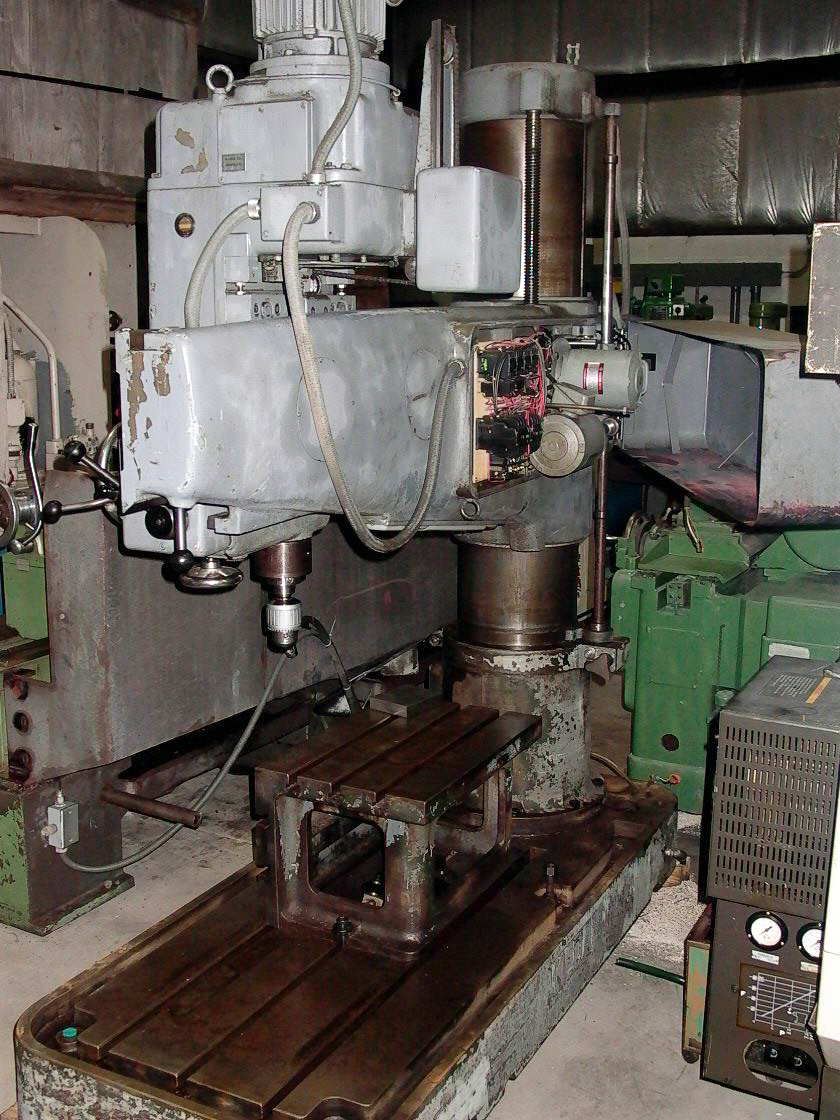

4' X 13" IKEDA RM1375, 1500 RPM, 7.5 HP, #5MT, BOX TABLE, 1980

GENERAL SPECIFICATIONS:
MANUFACTURER IKEDA
MODEL RM1375
SERIAL# 80338
AGE APPROXIMATELY 1980

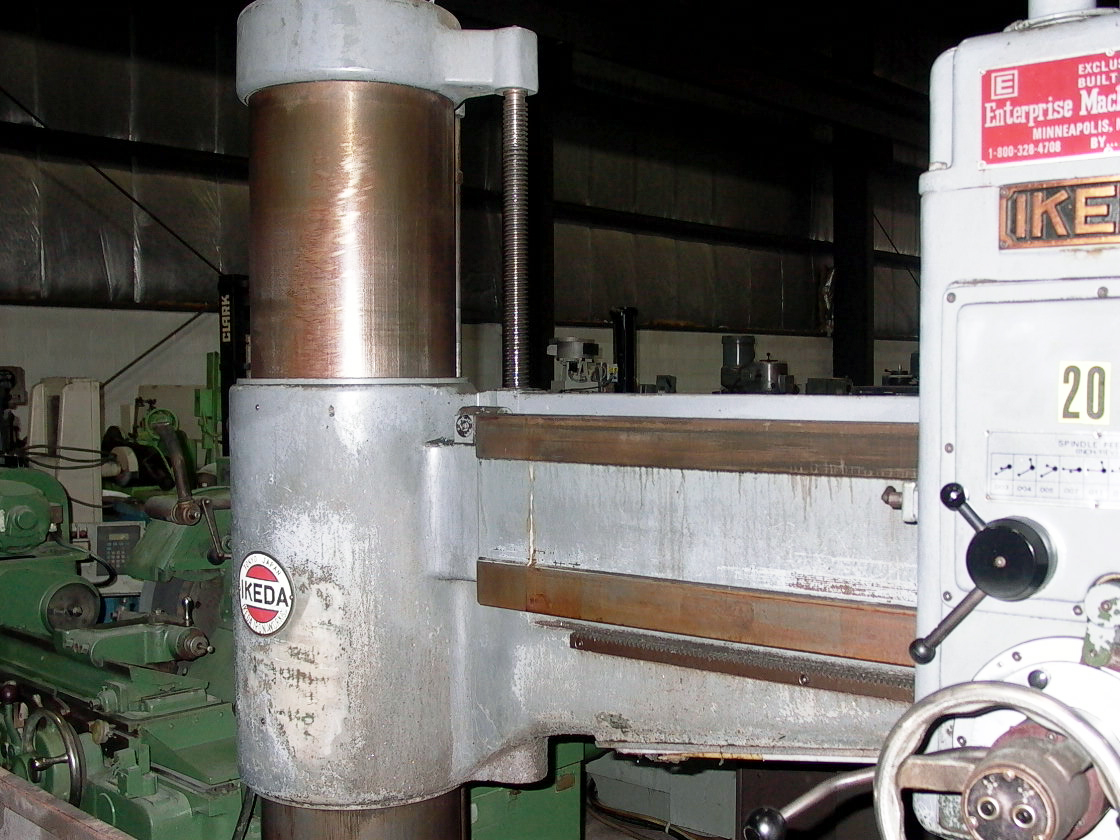

ARM LENGTH 4'6"

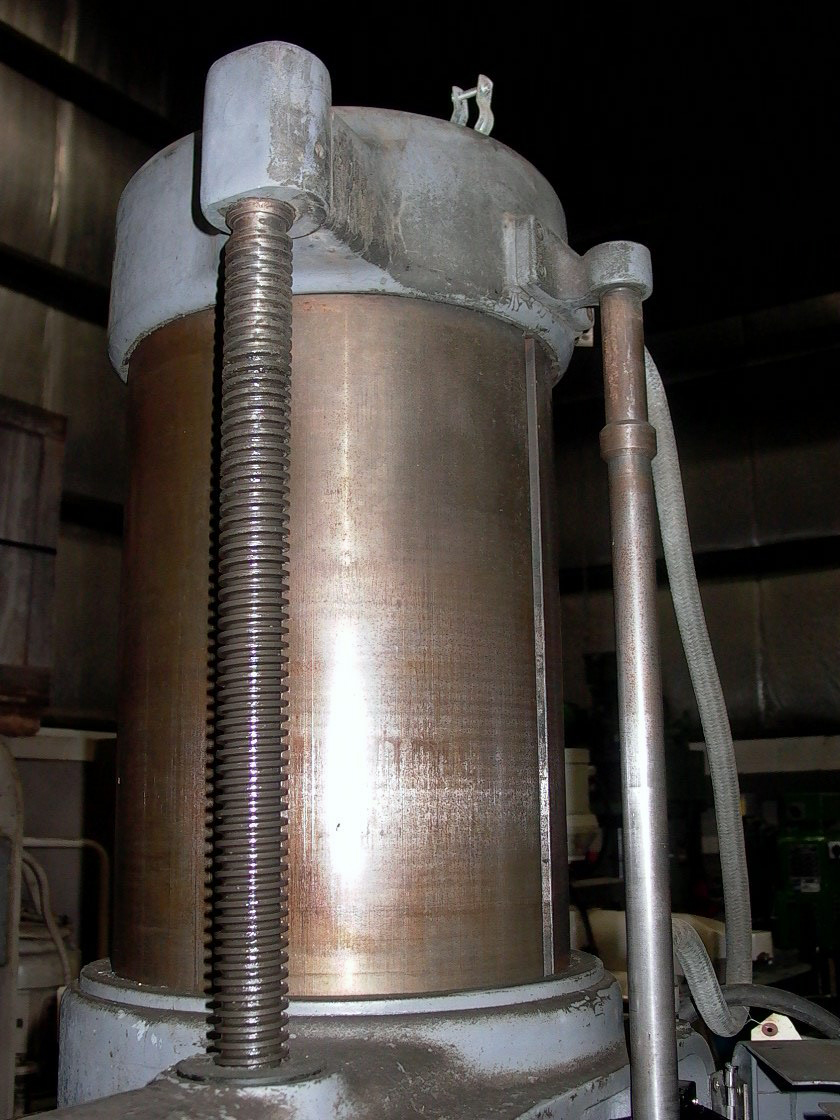

COLUMN DIAMETER 13"
DRILL CAPACITY 2.5" (STEEL)
TAP CAPACITY 2" (STEEL)
COLUMN TO SPINDLE CENTER DISTANCE 10" TO 53.5"
SPINDLE TO BASE DISTANCE 12.5" TO 54.5"
SPINDLE STROKE 14.5"
WORKING SURFACE OF BASE 57" X 36"
BASE HEIGHT 8.5"
SPINDLE TAPER #5 MT
SPINDLE HP 7.5 HP
SPINDLE SPEEDS 30 TO 1500 RPM (12)
SPINDLE FEEDS .003 TO .040 IPR (9)
WEIGHT APPROX 8000 LBS

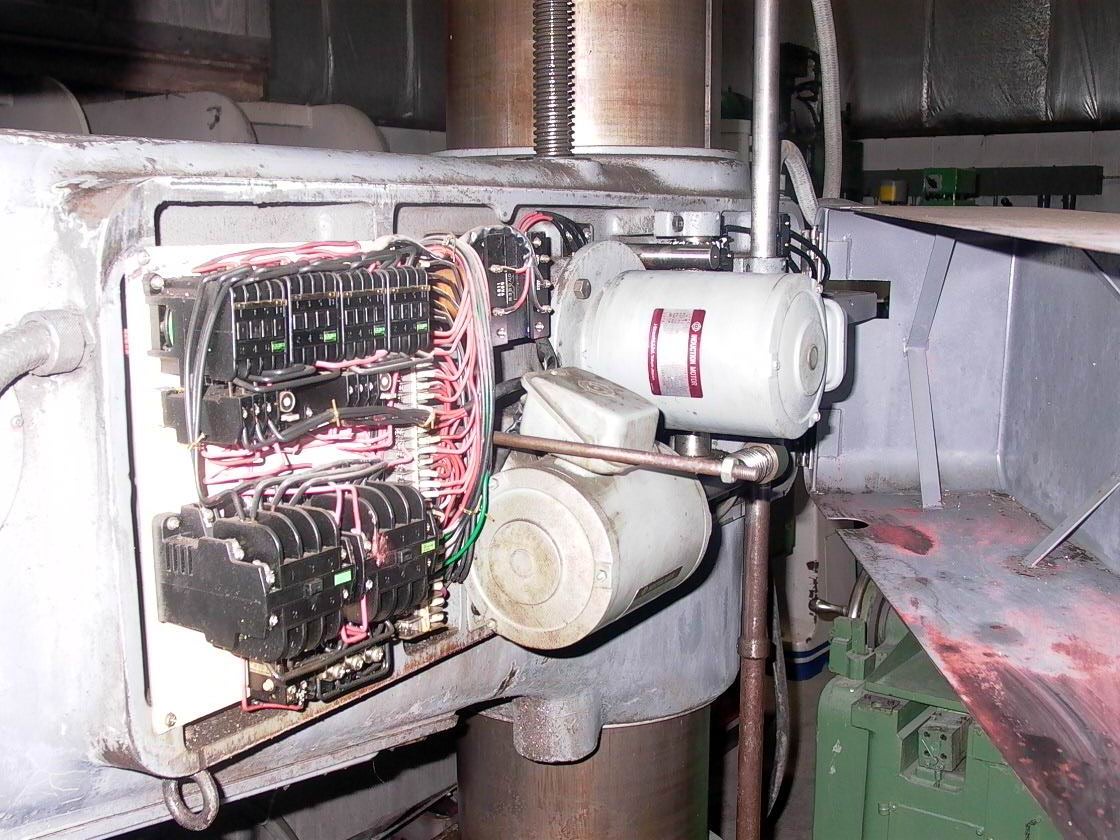

ELECTRICS 220/60/3

EQUIPPED WITH:

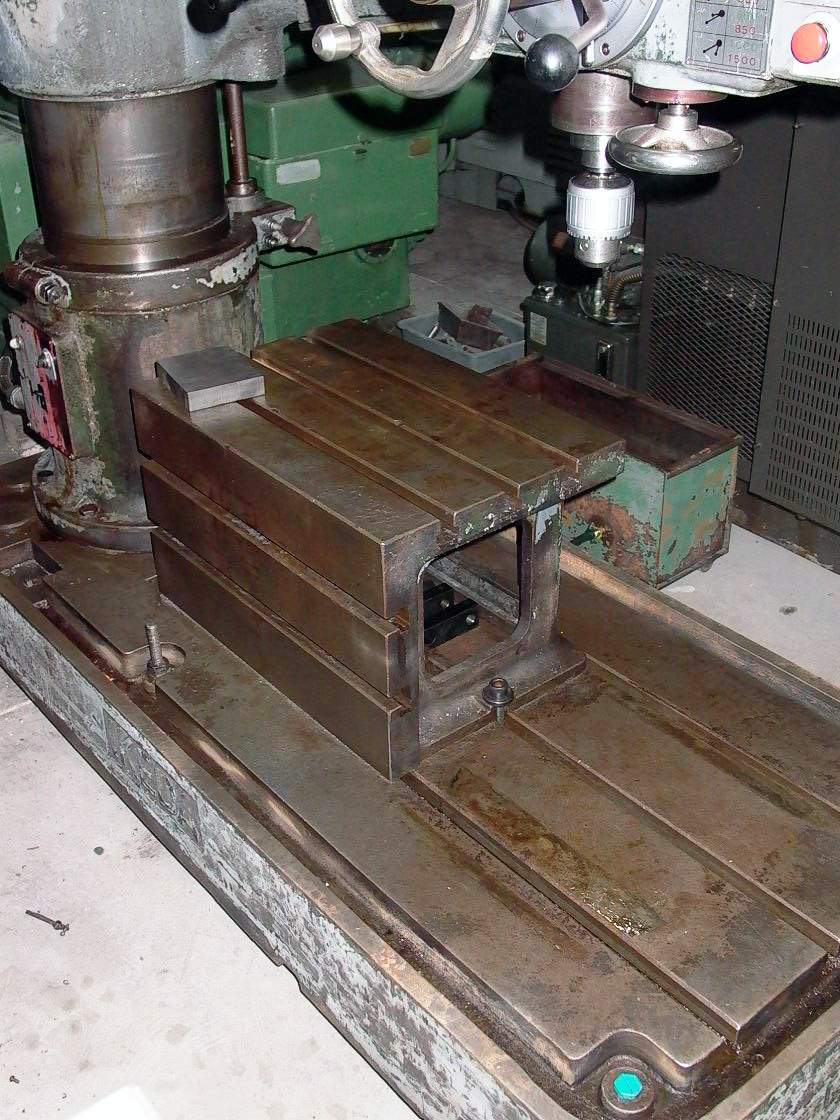

BOX TABLE
