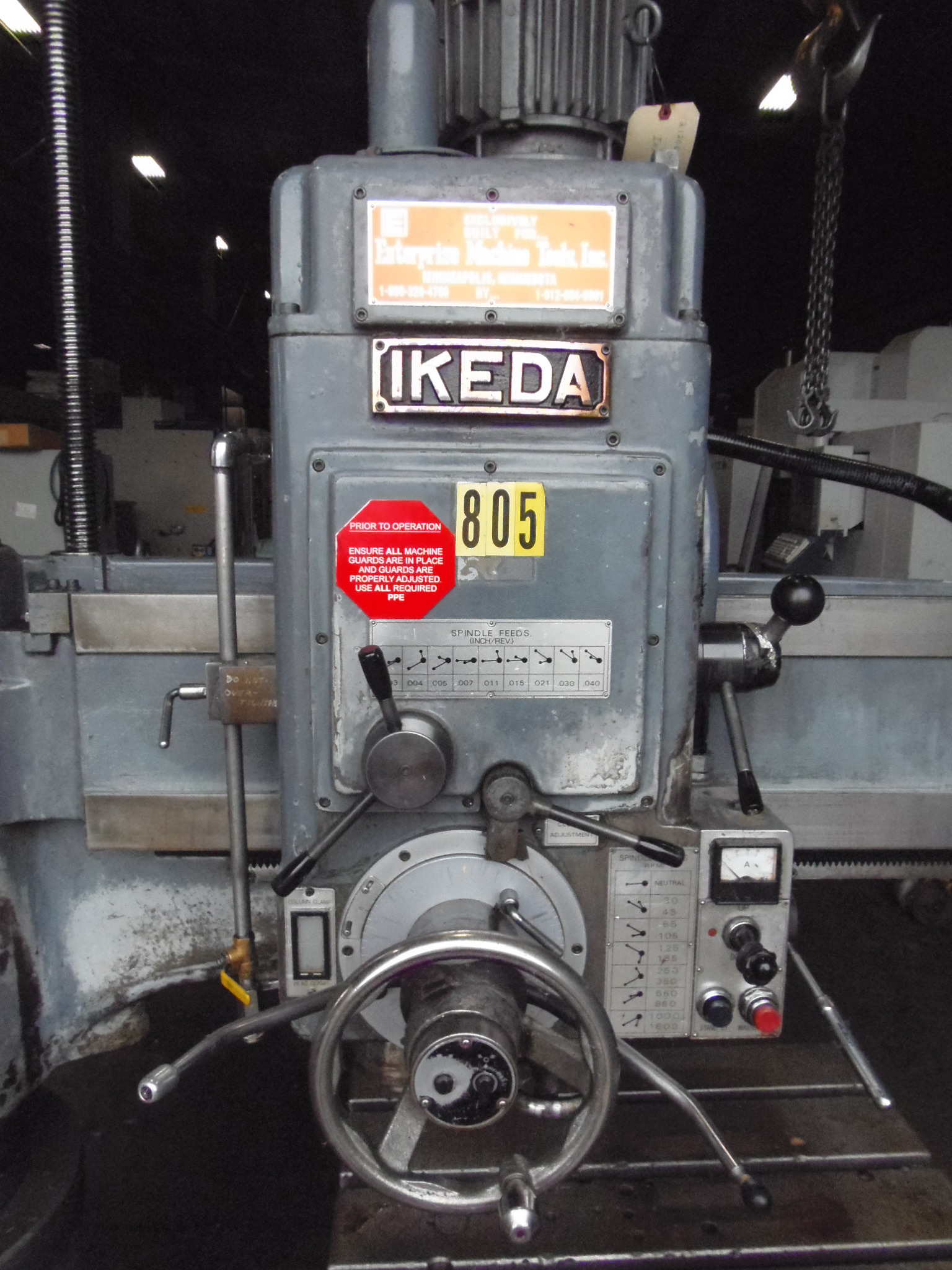

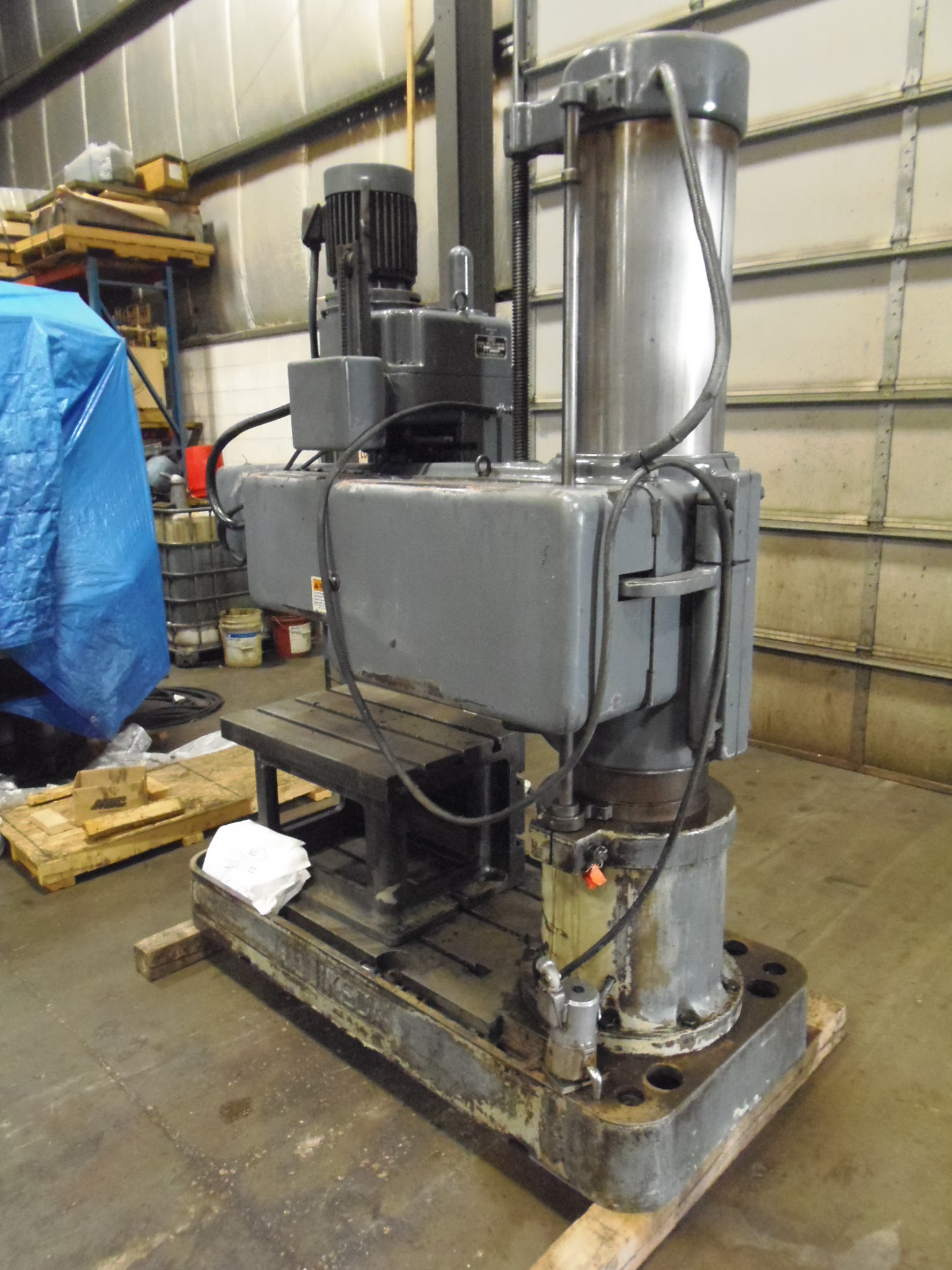

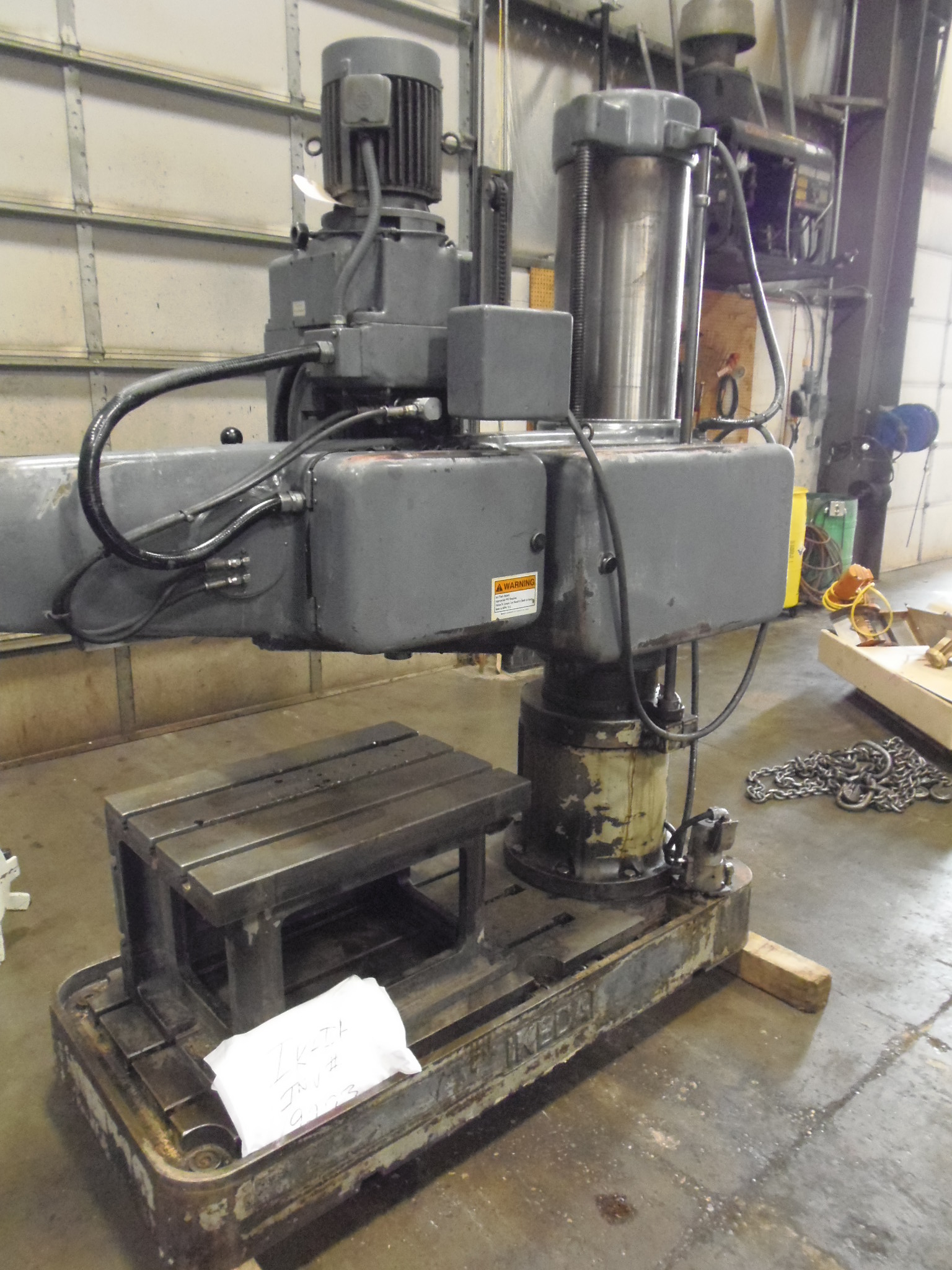

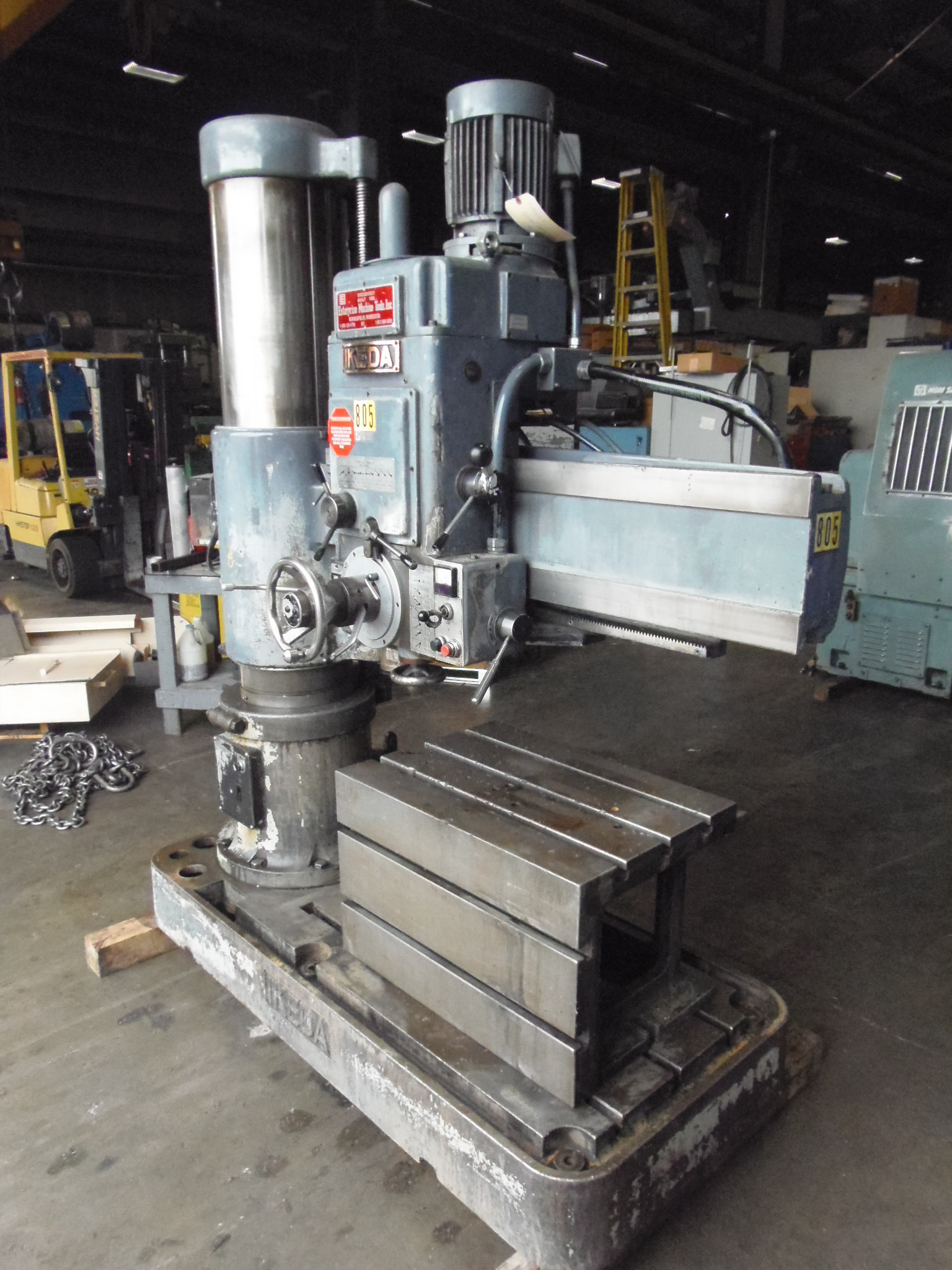

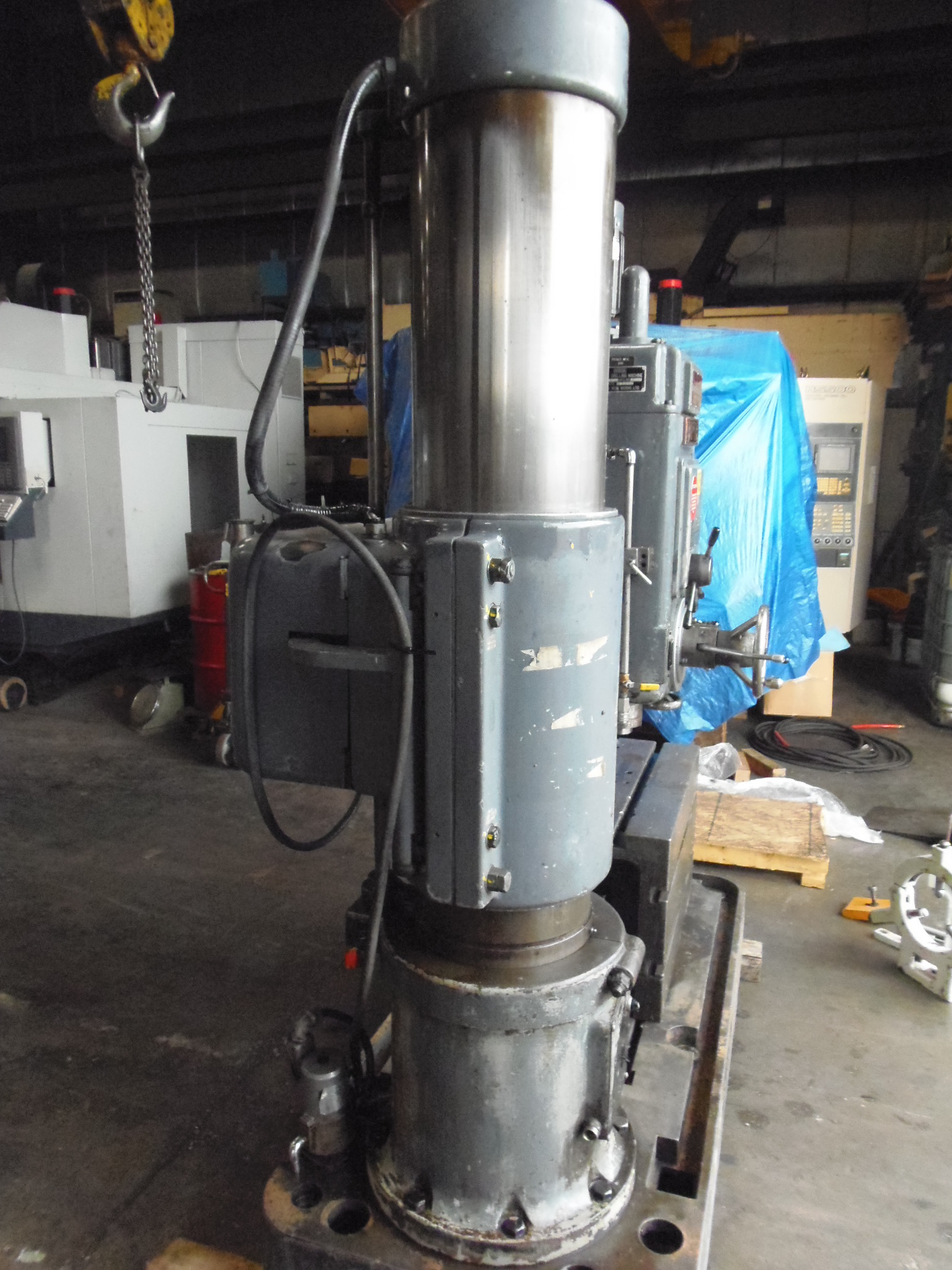

4' x 13", IKEDA RM-1175, 1500 RPM,PWR CLAMPING, BOX TABLE, 1983

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY---------------------------1982
SERIAL NUMBER-------------------------------82061
ARM LENGTH----------------------------------48"
COLUMN DIAMETER-----------------------------13-5/8"
MOTORS: SPINDLE-----------------------------7.5 HP
--------ARM ELEVATION-----------------------1-1/3 HP
--------MOTOR FOR THE CLAMPING--------------1/6 HP
USABLE SPACE OF BASE------------------------50" x 34"
SPINDLE SPEED (12)--------------------------30-1500 RPM
SPINDLE FEEDS-------------------------------.003"=.040"/REV
SPINDLE TAPER-------------------------------NO. 5 MT
STROKE OF SPINDLE---------------------------14-1/2"
OVERALL DIMENSIONS APPROXIMATELY------------34" x 74" x 91"H
WEIGHT APPROXIMATELY------------------------7,040 LBS.

EQUIPPED WITH:
BOX TABLE
POWER CLAMPING
POWER ELEVATION

NOTE: MACHINE VISE NOT INCLUDED
