Specifications
Equipped With
GENERAL SPECIFICATIONS:

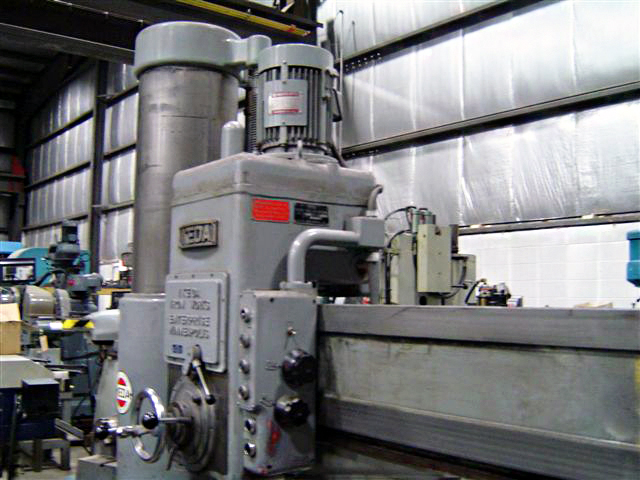

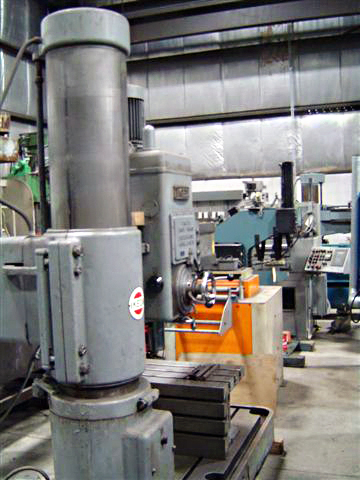

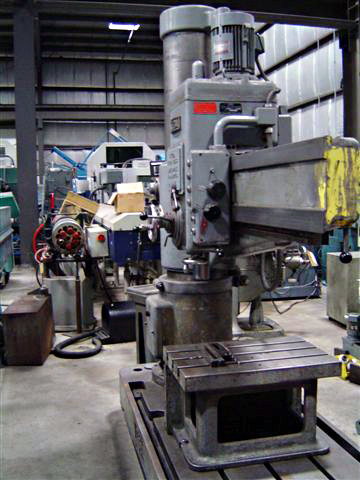

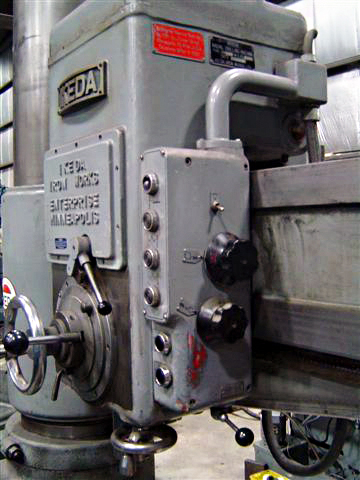

MANUFACTURER.............................. IKEDA
MODEL..................................... RM-1300
SERIAL #.................................. 69221
NEW APPROXIMATELY......................... 1967
ARM LENGTH................................ 50"
DIST. SPINDLE C/L TO COLUMN FACE: MIN..... 10-3/4"
MAX....................................... 54-1/2"
DIST. SPINDLE TO BASE: MIN................ 15-1/4"
MAX....................................... 56-3/4"
WORKING SURFACE OF BASE................... 57-1/4" X 36"
TRAVEL: HEAD ON ARM (LONGITUDINAL)........ 43-3/4"
ARM ON COLUMN (VERTICAL).................. 29-1/2"
COLUMN DIAMETER........................... 13"
DRILLING CAP. (MILD STEEL)................ 2-1/2"
TAPPING CAP. (MILD STEEL)................. 1-3/4"
SPINDLE: TRAVEL........................... 12"
DIAMETER.................................. 3-5/8"
SPEEDS (12)............................... 30-1440 RPM
FEEDS (4)................................. 0.004"-0.21"/REV.
TAPER..................................... NO. 5 MT
MOTOR..................................... 5 HP 3/60
OVERALL DIMENSIONS (APPROX.).............. 86" X 44" X 93"H
WEIGHT (APPROX.).......................... 7,700 LBS.
EQUIPPED WITH:
POWER CLAMPING TO ARM AND HEAD
POWER ELEVATION OF ARM
BOX TABLE
COOLANT PUMP
NOTE: THE CLAMPING COLLAR ON THIS MACHINE HAS BEEN WELDED
