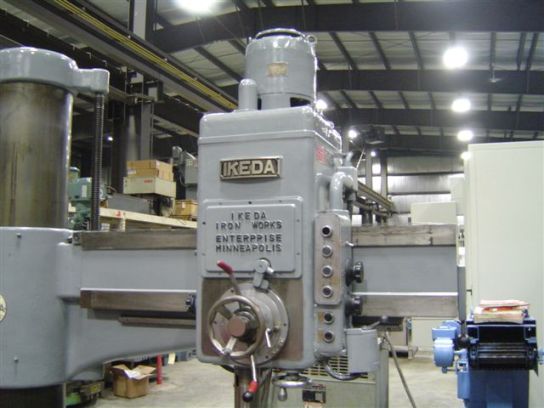

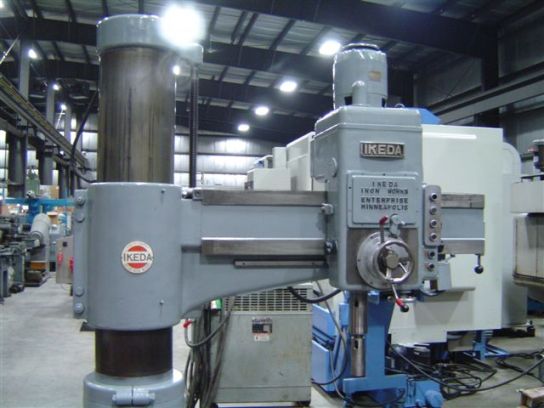

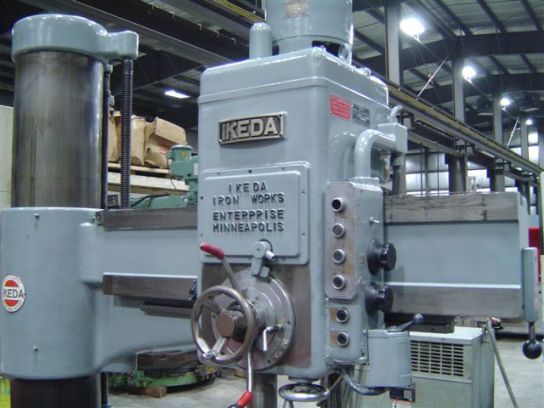

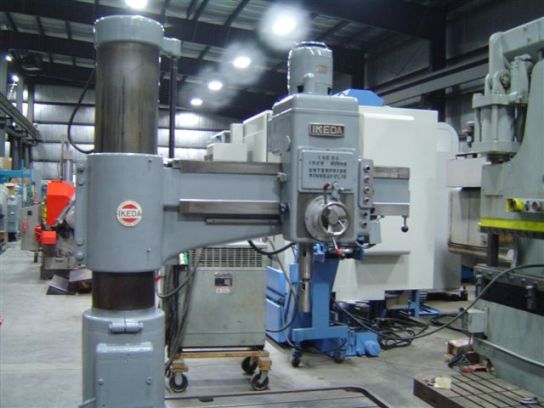

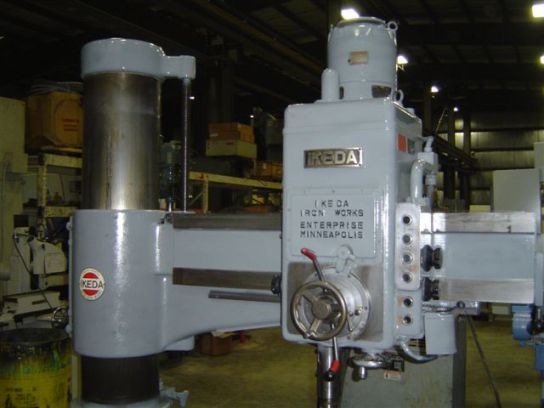

4' X 13" IKEDA MDL RM-1300, 1967, 5 HP, ,#5MT, PWR CLAMP, 1440 RPM, PWR ELEV,

GENERAL SPECIFICATIONS:
MANUFACTURER.............................. IKEDA
MODEL..................................... RM-1300
SERIAL #.................................. 66173
NEW APPROXIMATELY......................... 1967
ARM LENGTH................................ 50"
DIST. SPINDLE C/L TO COLUMN FACE: MIN... 10-3/4"
MAX... 54-1/2"
DIST. SPINDLE TO BASE: MIN............... 15-1/4"
MAX............... 56-3/4"
WORKING SURFACE OF BASE................... 57-1/4" X 36"
TRAVEL: HEAD ON ARM (LONGITUDINAL)....... 43-3/4"
ARM ON COLUMN (VERTICAL)......... 29-1/2"
COLUMN DIAMETER........................... 13"
DRILLING CAP. (MILD STEEL)................ 2-1/2"
TAPPING CAP. (MILD STEEL)................. 1-3/4"
SPINDLE: TRAVEL........................... 12"
DIAMETER......................... 3-5/8"
SPEEDS (12)...................... 30-1440 RPM
FEEDS (4)........................ 0.004"-0.21"/REV.
TAPER............................ NO. 5 MT
MOTOR..................................... 5 HP 3/60
OVERALL DIMENSIONS (APPROX.).............. 86" X 44" X 93"H
WEIGHT (APPROX.).......................... 7,700 LBS.

EQUIPPED WITH:
POWER CLAMPING TO ARM AND HEAD
POWER ELEVATION OF ARM
