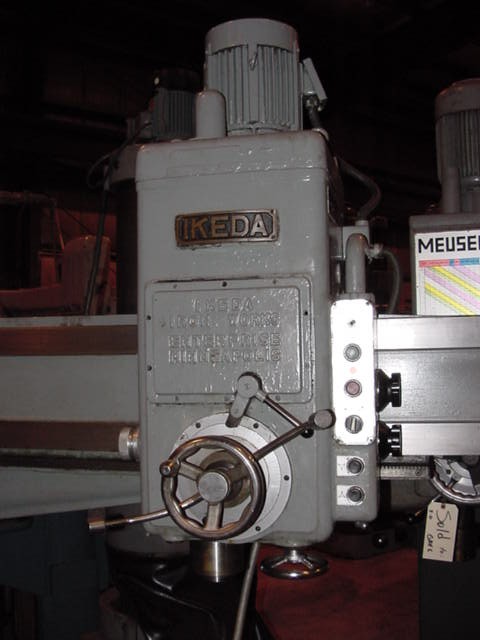

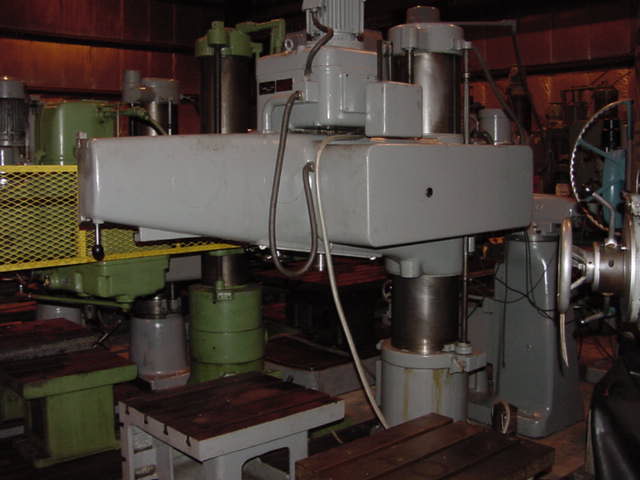

GENERAL SPECIFICATIONS:
SERIAL 80262
NEW APPROXIMATELY 1980
ARM LENGTH 50"
DISTANCE SPINDLE C/L TO COLUMN FACE MIN. 10-3/4"
MAX. 54-1/2"
DISTANCE SPINDLE TO BASE MIN. 15-1/4"
MAX. 56-3/4"
WORKING SURFACE OF BASE 57-1/4" X 36"
LONGITUDINAL TRAVEL OF HEAD ON ARM 43-3/4"
VERTICAL TRAVEL OF ARM ON COLUMN 29-1/2"
COLUMN DIAMETER 13"
DRILLING CAPACITY MILD STEEL 2-1/2"
TAPPING CAPACITY MILD STEEL 1-3/4"
SPINDLE TRAVEL 12"
SPINDLE DIAMETER 3-5/8"
SPINDLE SPEEDS (12) 30-1440 RPM
SPINDLE FEEDS (4) 0.004"-0.21"/REV.
SPINDLE TAPER NO. 5 MT
MOTOR 5 HP 3/60
OVERALL DIMENSIONS APPROXIMATELY 86" X 44" X 93" H
WEIGHT APPROXIMATE 7700 LBS.
EQUIPPED WITH:

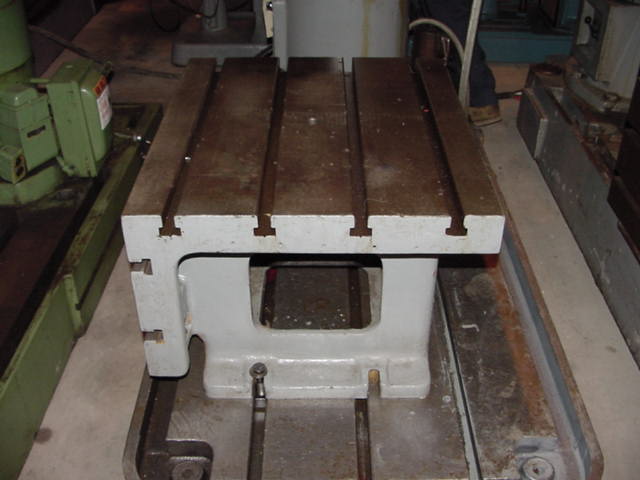

18" X 26-1/2" X 16" HIGH PLAIN BOX TABLE
POWER CLAMPING TO ARM AND HEAD
POWER ELEVATION OF ARM
COOLANT PUMP AND PIPING
