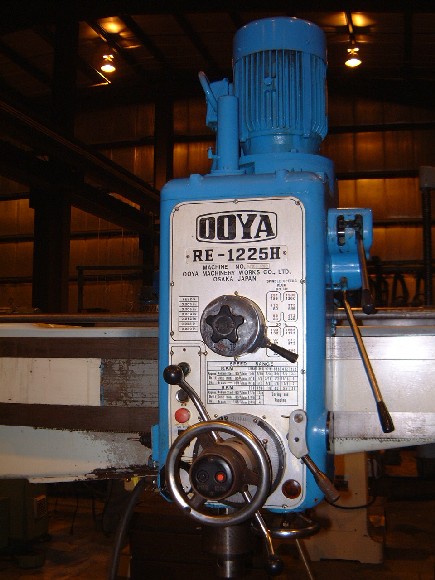

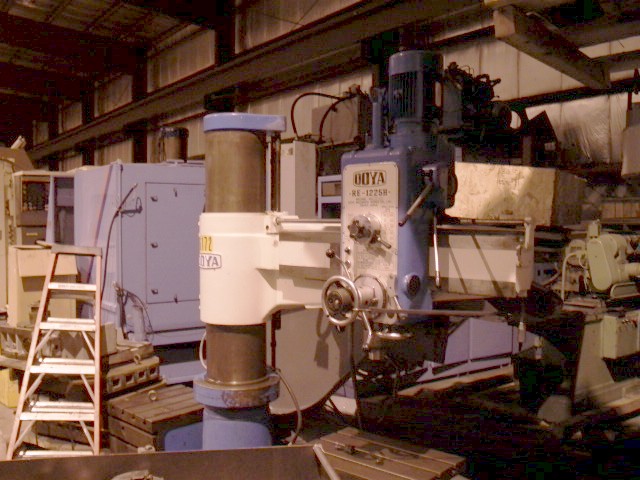

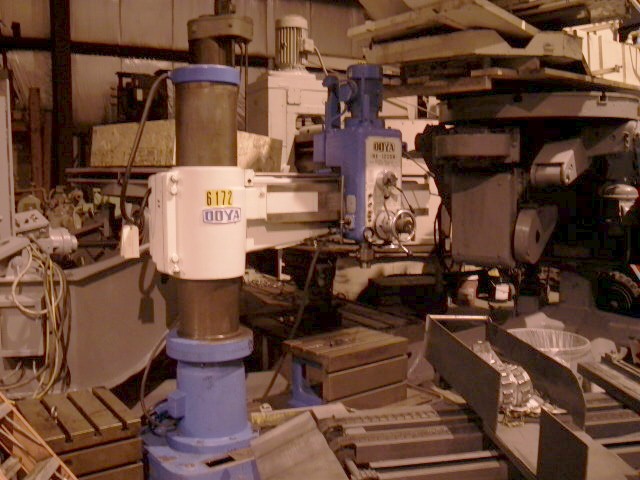

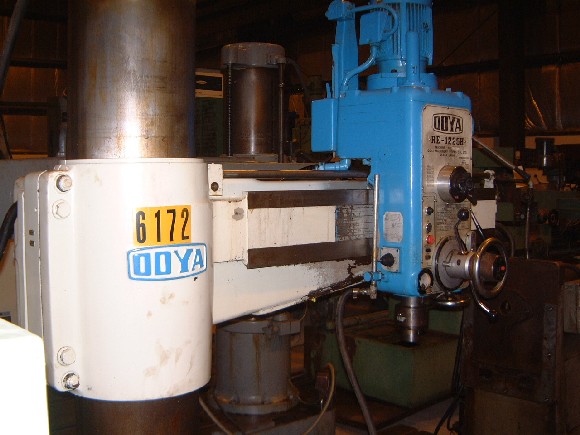

4' x 12" OOYA MDL RE-1225H, #5 MT TAPER, 5 HP, TILTING BOX TABLE, 25-5/8" VERT ARM TRVL

GENERAL SPECIFICATIONS:
MANUFACTURER OOYA
MODEL RE-1225H
NEW (APPROX.) 1978
ARM LENGTH 4'
COLUMN DIAMETER 12"
DIST. COLUMN SURFACE TO SPDL CNTR (MAX.) 49-3/8"
DIST. COLUMN SURFACE TO SPDL CNTR (MIN.) 11-5/8"
DISTANCE BASE TO SPINDLE (MAX.) 51-3/4"
DISTANCE BASE TO SPINDLE (MIN.) 13"
VERTICAL TRAVEL OF ARM 25-5/8"
TAPER #5 MT
FEEDS (6) .003" - .039"
DRILLING OPERATION (STEEL) 2-1/4"
DRILLING OPERATION (CAST IRON) 4"/7-1/8"
MAIN DRIVE MOTOR 5 HP
ELECTRICAL 220/440/3 PH/60
WEIGHT (APPROX.) 6,000 LBS.
DIMENSI0NS (APPROX.) 80"LR x 35"FB x93"H

EQUIPPED WITH:
TILTING BOX TABLE
