Specifications
Equipped With
GENERAL SPECIFICATIONS:

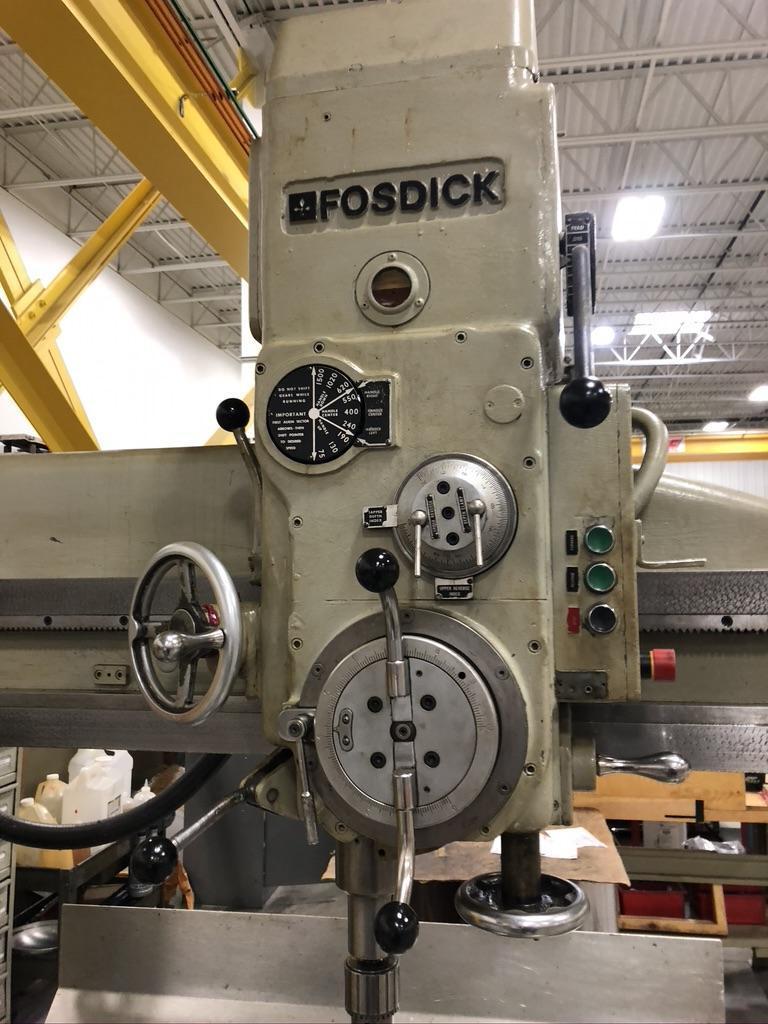

MANUFACTURER.......................... FOSDICK
MODEL................................. 4' SENSITIVE
SERIAL NUMBER......................... 20613
ARM LENGTH............................ 4'
HEAD TRAVEL........................... 38"
QUILL TRAVEL.......................... 10"
QUILL FEEDS........................... .002, .004, .007, .010
TABLE SIZE............................ 24" X 48"
NUMBER OF T-SLOTS..................... 3
TABLE VERTICAL TRAVEL................. 16"
MAX. TABLE TO SPINDLE FACE............ 23.5"
COLUMN DIAMETER....................... 12"
RPM RANGE............................. 75 - 1500
SPINDLE TAPER......................... 3 MT
COLUMN HEIGHT......................... 79"
MAX. MACHINE HEIGHT................... 95"
SPINDLE HORSE POWER................... 5
APPROXIMATE SHIPPING WEIGHT........... 5,000 LBS.
Current Voltage....................... 220 volts
CONDITION............................. EXCELLENT
EQUIPPED WITH:
TAPPING CYCLE
POWER ELEVATION
POWER CLAMP
BUILT IN T-SLOTTED TABLE
COOLANT
MANUAL
