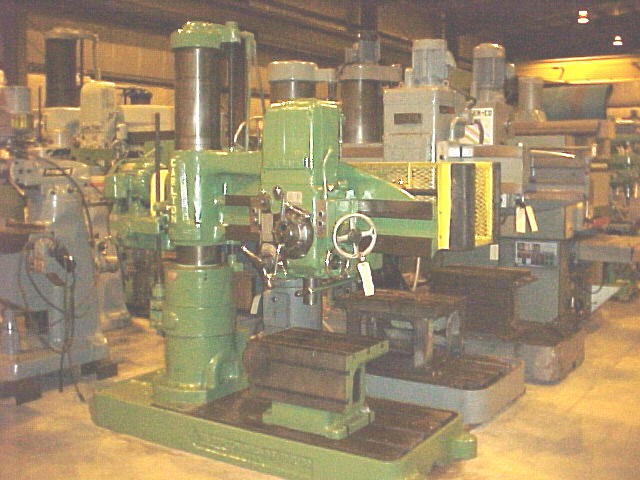

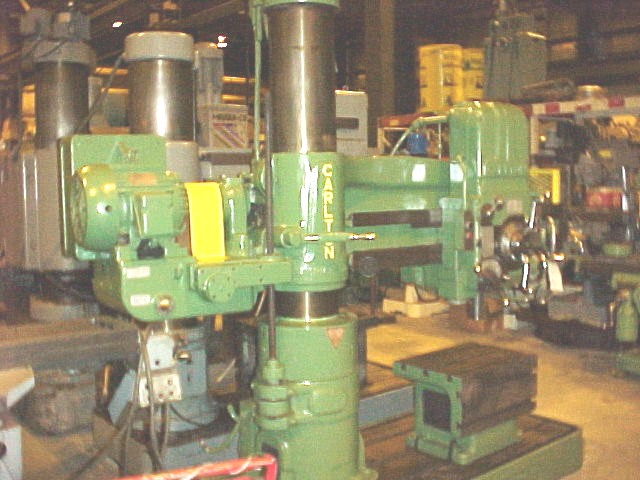

4' X 11" CARLTON #1A, BOX TABLE, NO. 4 MT, 7.5 HP, BOX TABLE, 1961, POWER ELEVATION

GENERAL SPECIFICATIONS:
SERIAL # 1A-3700
NEW APPROXIMATELY 1961
COLUMN DIAMETER 11"
LENGTH OF ARM 4'
SPINDLE SPEEDS (12) 60 TO 1500 RPM
FEEDS (6) .004" TO .025"
SPINDLE TAPER NO. 4 MT
MAX. DISTANCE SPINDLE TO BASE 53"
VERTICAL TRAVEL OF SPINDLE IN HEAD 12"
MOTOR 7.5 HP 220/440/3/60
WEIGHT APPROXIMATELY 9,400 LBS

EQUIPPED WITH:
POWER ELEVATION
BOX TABLE
