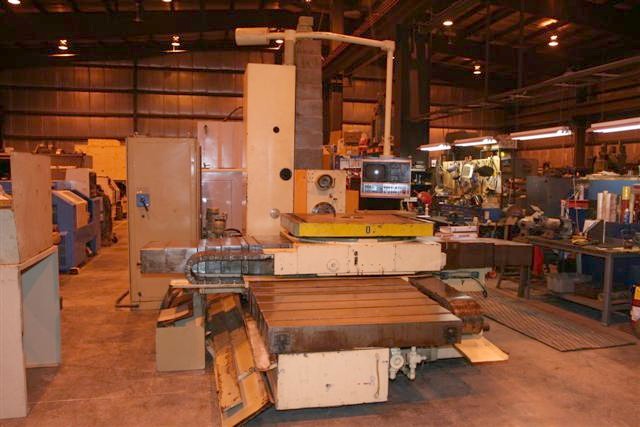

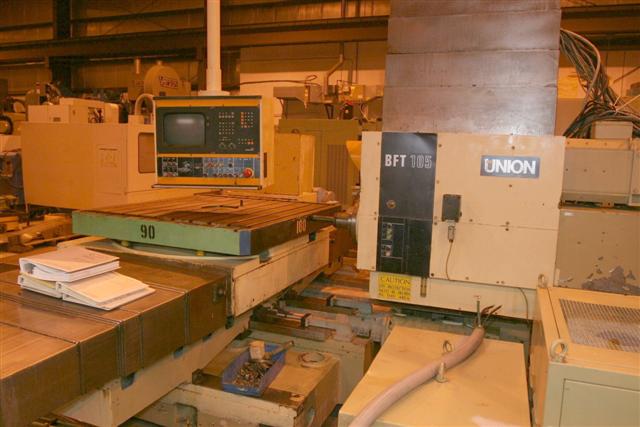

4" UNION BFT 105, 50 TAPER, X-69", Y-49", Z-49", SPINDLE 19", 34 HP, HEIDENHAIN TNC 355 CTRL, 48" x 54" ROTARY TBL, 1990

GENERAL SPECIFICATIONS:
MANUFACTURER UNION
MODEL BFT-105
NEW (APPROX.) 1989
SPINDLE DIAMETER 4"
SPINDLE TAPER NO. 50
SPINDLE SPEEDS (INF.VARIABLE,3 RANGES) 4 - 2500 RPM
X (CROSS) TRAVEL 69"
Y (VERTICAL) TRAVEL 49"
Z (SADDLE) TRAVEL 49"
W (SPINDLE) TRAVEL 19"
FEED RANGE .07-197 IPM
RAPID TRAVERSE (X,Y, Z) 393 IPM
RAPID TRAVERSE W 197 IPM
RAPID TRAVERSE B (TABLE ROTATION) 3.2 RPM
SPINDLE MOTOR 34 HP

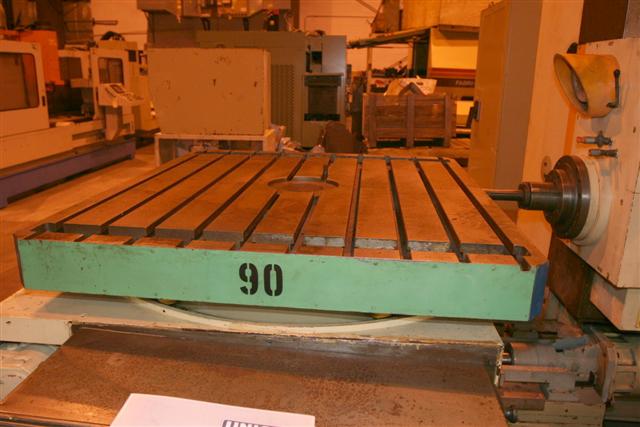

TABLE TYPE ROTARY
MAX TABLE LOAD 8818 LBS
TABLE SIZE 48" x 54"
INDEXING POSITIONS 360,000

EQUIPPED WITH:

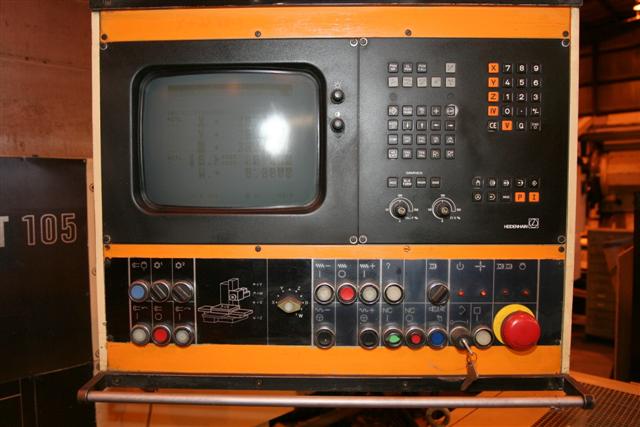

HEIDENHAIN TNC 355 CNC CONTROL
FULL WAY COVERS. TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
