Specifications
Equipped With
GENERAL SPECIFICATIONS
AGE-1978

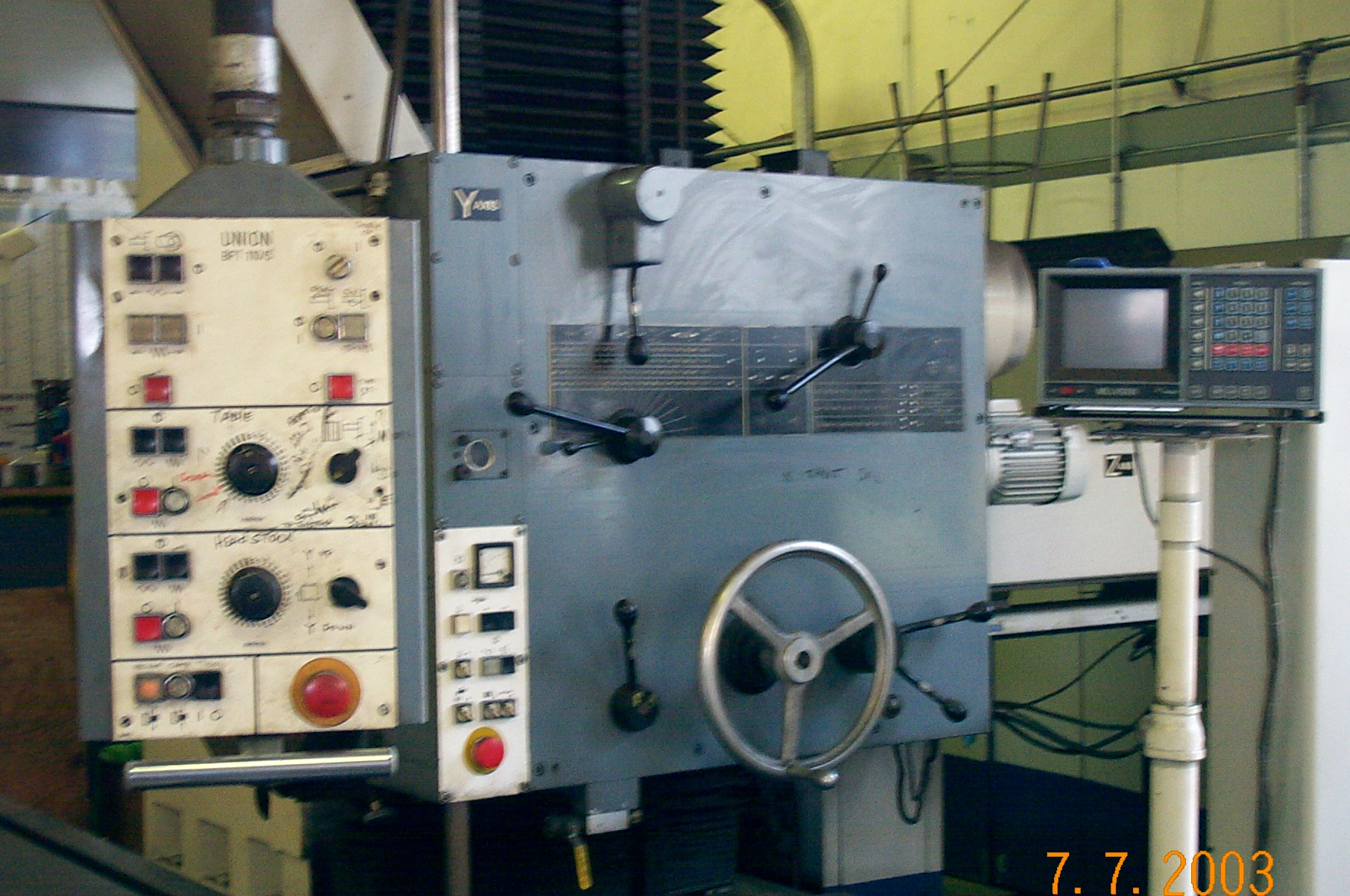

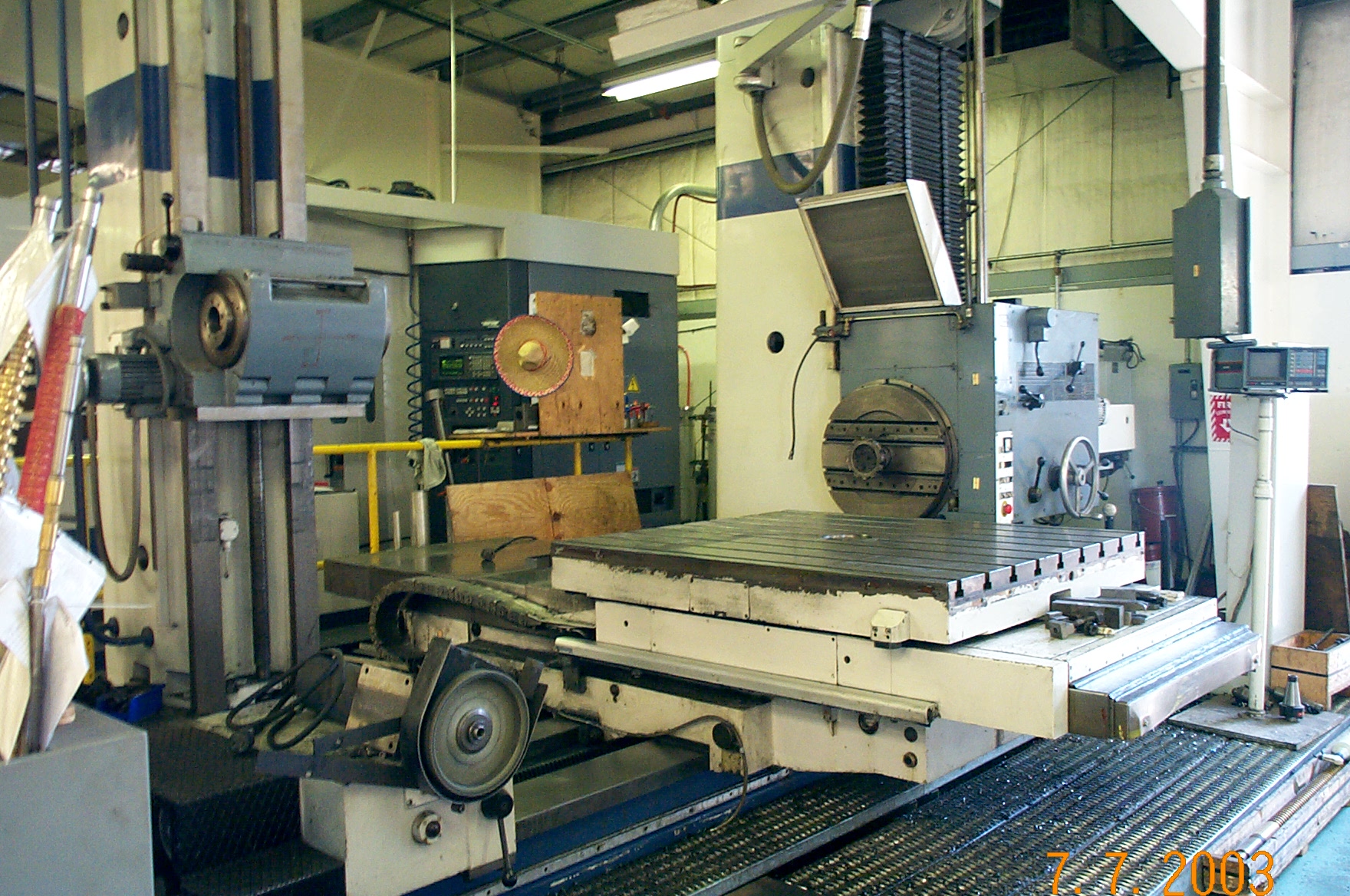

MODEL BFP 160/2
SPINDLE SIZE.........................4"
SPINDLE TAPER........................50 Taper
RPM RANGE............................5.6-1120 RPM
MOTOR HORSEPOWER.....................35hp
TRAVELS
x travel............................. 49.8"
y travel............................. 63.6
z travel.............................53.05
w travel(saddle).....................19.6"
TABLE SIZE...........................55"x63"
EQUIPPED WITH:
1 DEGREE INDEXING
Dimensions= 21-1/2'L x 12-1/2'W x 13'H
WEIGHT= 52,000 LBS

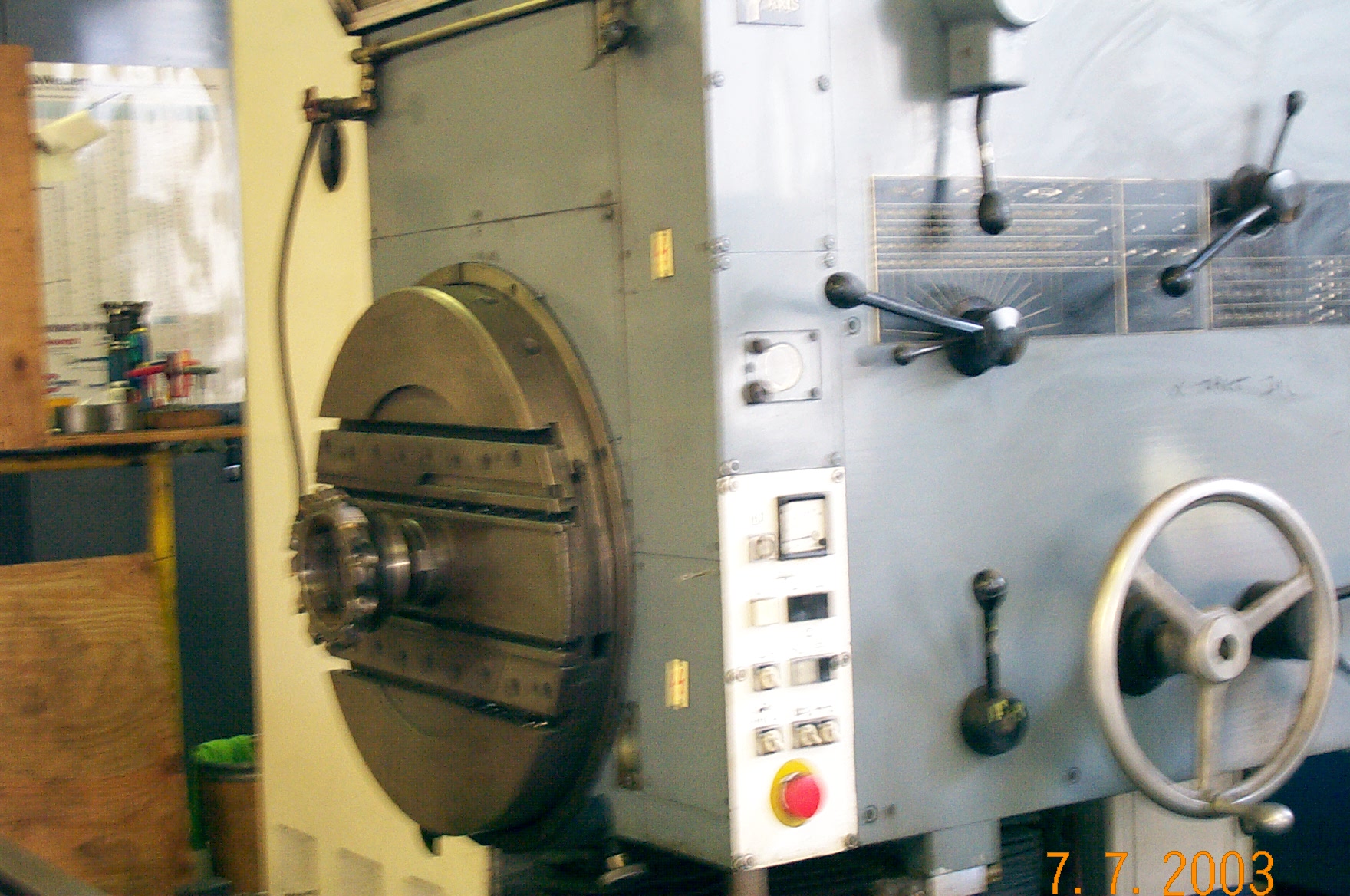

FACING HEAD
POWER ROTARY TABLE
END SUPPORT
RIGHT ANGLE HEAD
ASSORTED TOOL HOLDERS

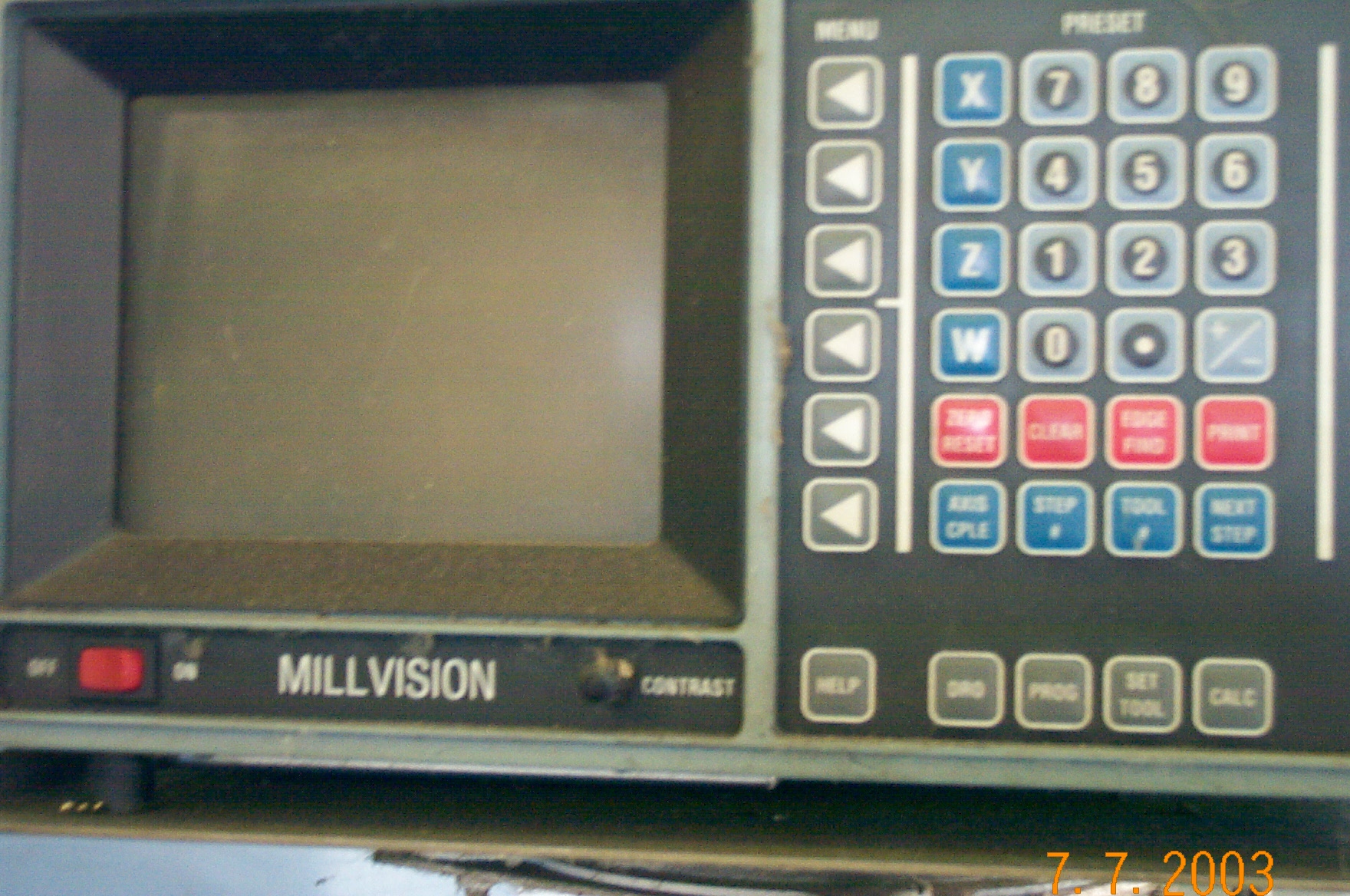

MILLVISION PROGRAMMABLE DIGITAL READOUT (X,Y,Z,W)
