Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER NOMURA
MODEL B-100SR
AGE APPROXIMATELY 1981
SERIAL# 3722
SPINDLE DIAMETER 4"
TABLE SIZE 45" X 50"
TRAVELS (CROSS) 56"
(LONGITUDINAL) 40"
(VERTICAL) 50"
SPINDLE TRAVEL 26"
SPINDLE TAPER W/ POWER DRAW BAR ASA #50
MAX TABLE LOAD 9900 LBS
SPINDLE SPEEDS 21 - 1200 RPM
SPINDLE FEEDS (DC VARIABLE) .24-62 IPM
MILLING FEEDS (DC VARIABLE) .40-100 IPM
RAPID ROTATION OF ROTARY TABLE 1.3
RAPID TRAVERSE OF SPINDLE 80 IPM
RAPID TRAVERSE OF HEADSTOCK
TABLE & SADDLE 130 IPM
SPINDLE MOTOR 20/25HP AC
RAPID TRAVERSE & FEED MOTOR 3HP/5HP
HYDRAULIC CLAMPING MOTOR 1 HP
HEADSTOCK LUBRICATION MOTOR 1/2 HP
HYDROSTATIC LUBRICATION MOTOR 1/2 HP
OVERALL DIMENSIONS 124"W X 180"L X 127"H
WEIGHT APPROXIMATELY 28,600 LBS
EQUIPPED WITH:

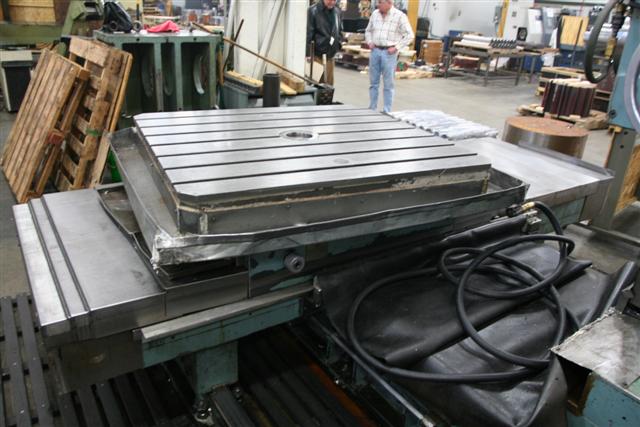

POWER ROTARY TABLE

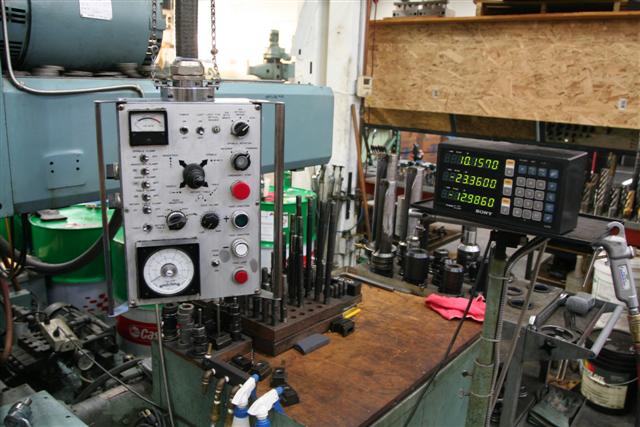

3 AXIS D.R.O.
POWER DRAW BAR
