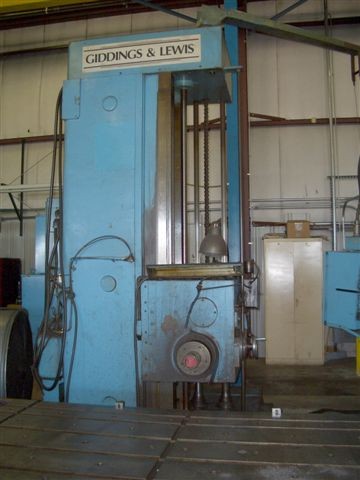

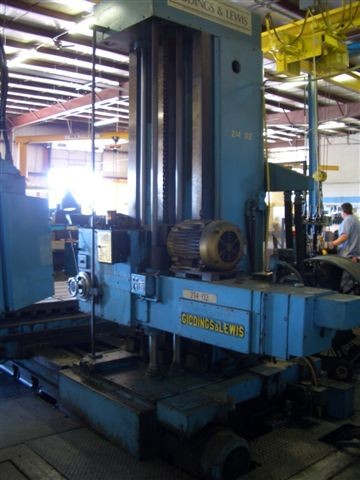

4" GIDDINGS & LEWIS, MDL PMC-4, NMTB 50 TAPER, 20HP, 60" VERT., 72" CROSS, 36"IN/OUT, 30" SPDL, 1970

GENERAL SPECIFICATIONS:
MANUFACTURER GIDDINGS & LEWIS
MODEL PMC-4
NEW (APPROX.) 1970
SPINDLE DIAMETER 4"
SPINDLE MOTOR 20 HP
SPINDLE TAPER NMTB 50
VERTICAL TRAVEL 60"
CROSS TRAVEL 72"
IN & OUT TRAVEL 36"
SPINDLE TRAVEL 30"

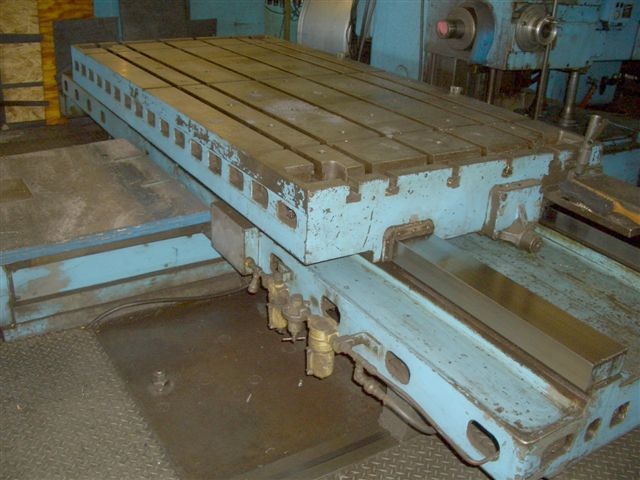

TABLE SIZE 36" x 74"
SPINDLE SPEEDS 6.9 - 1320 RPM
WEIGHT (APPROX.) 60,000 LBS.
DIMENSIONS (APPROX.) 180"RL x 117" FB x 155"H

EQUIPPED WITH:

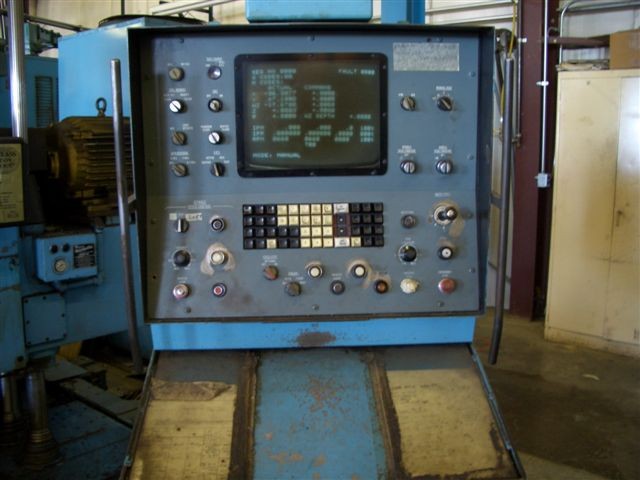

G & L CONTROL #400 (RETROFIT MID 80'S) POINT TO POINT
HANSEN LUBRI-COOL SPINDLE CHILLER
POWER DRAW BAR
HARDENED WAYS

PRICE IS "WHERE IS"
