Specifications
Equipped With
GENERAL SPECIFICATIONS:

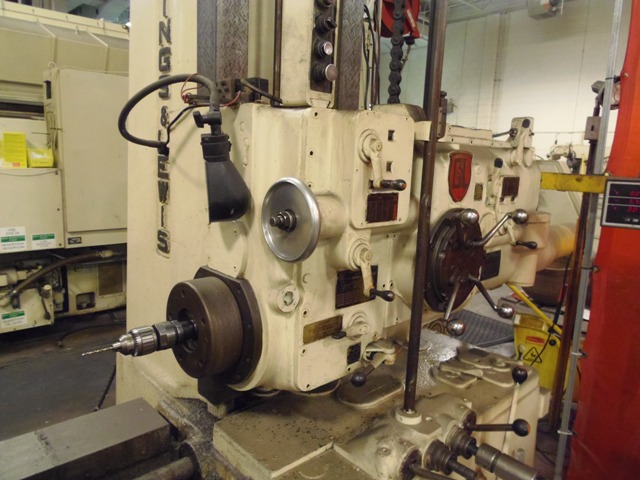

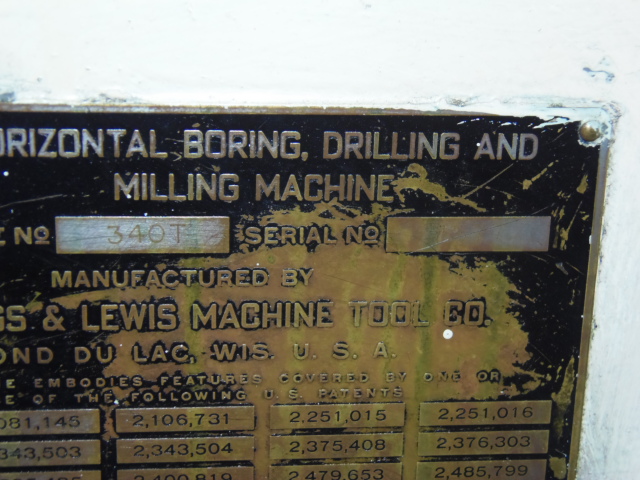

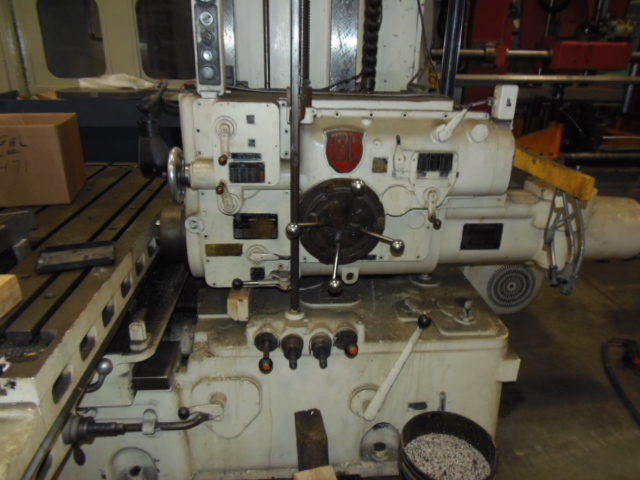

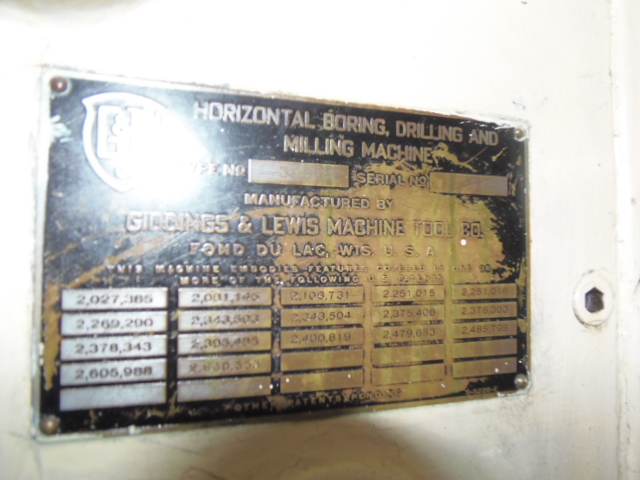

MANUFACTURER........................... GIDDING & LEWIS
MODEL.................................. 340T
SERIAL................................. #7377
AGE APPROXIMATELY...................... 1942
SPINDLE DIAMETER....................... 4"

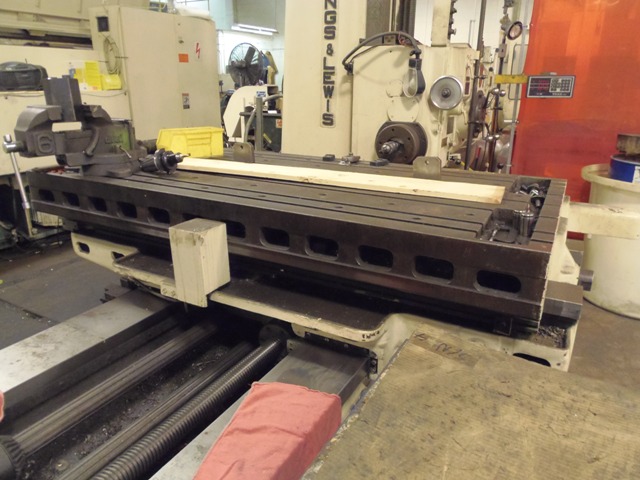

TABLE SIZE............................. 48" X 72"
X TRAVEL............................... 72"
Y TRAVEL (VERTICAL).................... 48"
Z TRAVEL (IN AND OUT).................. 60"
W TRAVEL............................... 30"
SPINDLE MOTOR.......................... 15 HP
SPEED MAIN SPINDLE..................... 7.5 - 450 RPM
HIGH SPEED SPINDLE..................... 25-1500 RPM
SPINDLE TAPER.......................... #5 MT
FEEDS MAIN............................ .005-.250 IPR
HIGH SPEED SPINDLE.................... .001-.060 IPR
EQUIPPED WITH:

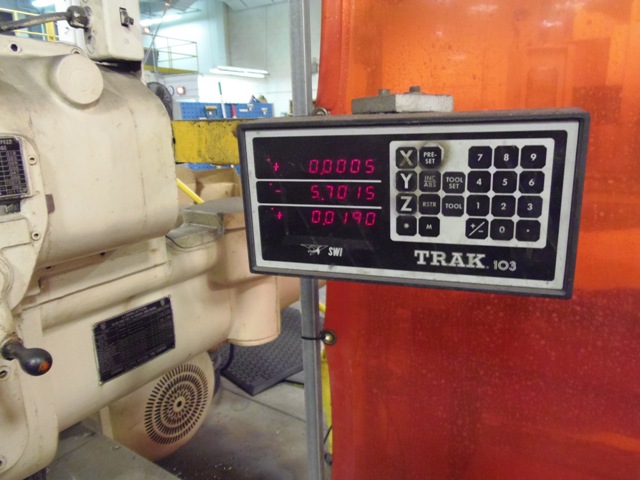

3 AXIS D R O
U S A ELECTRICS
