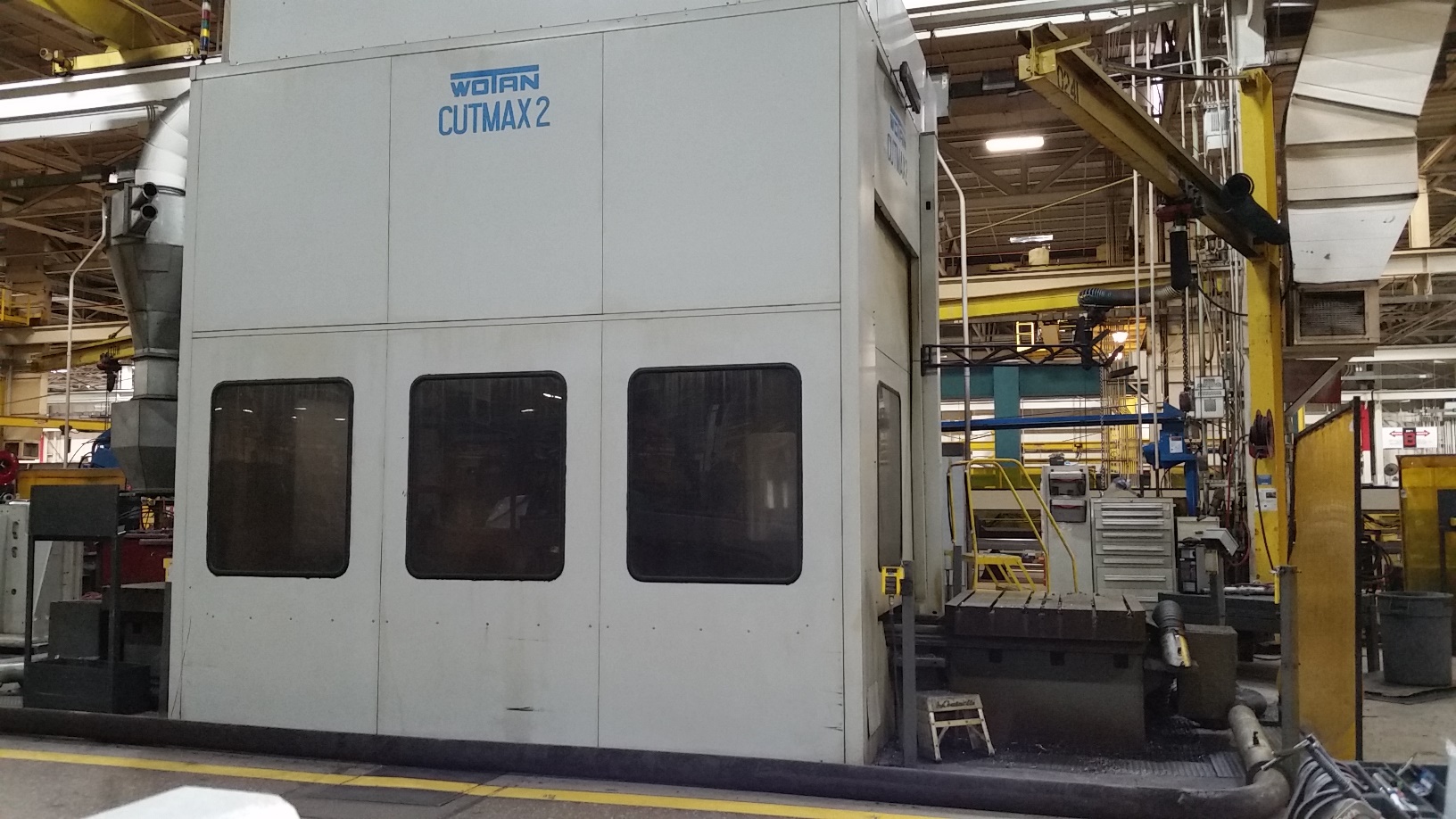

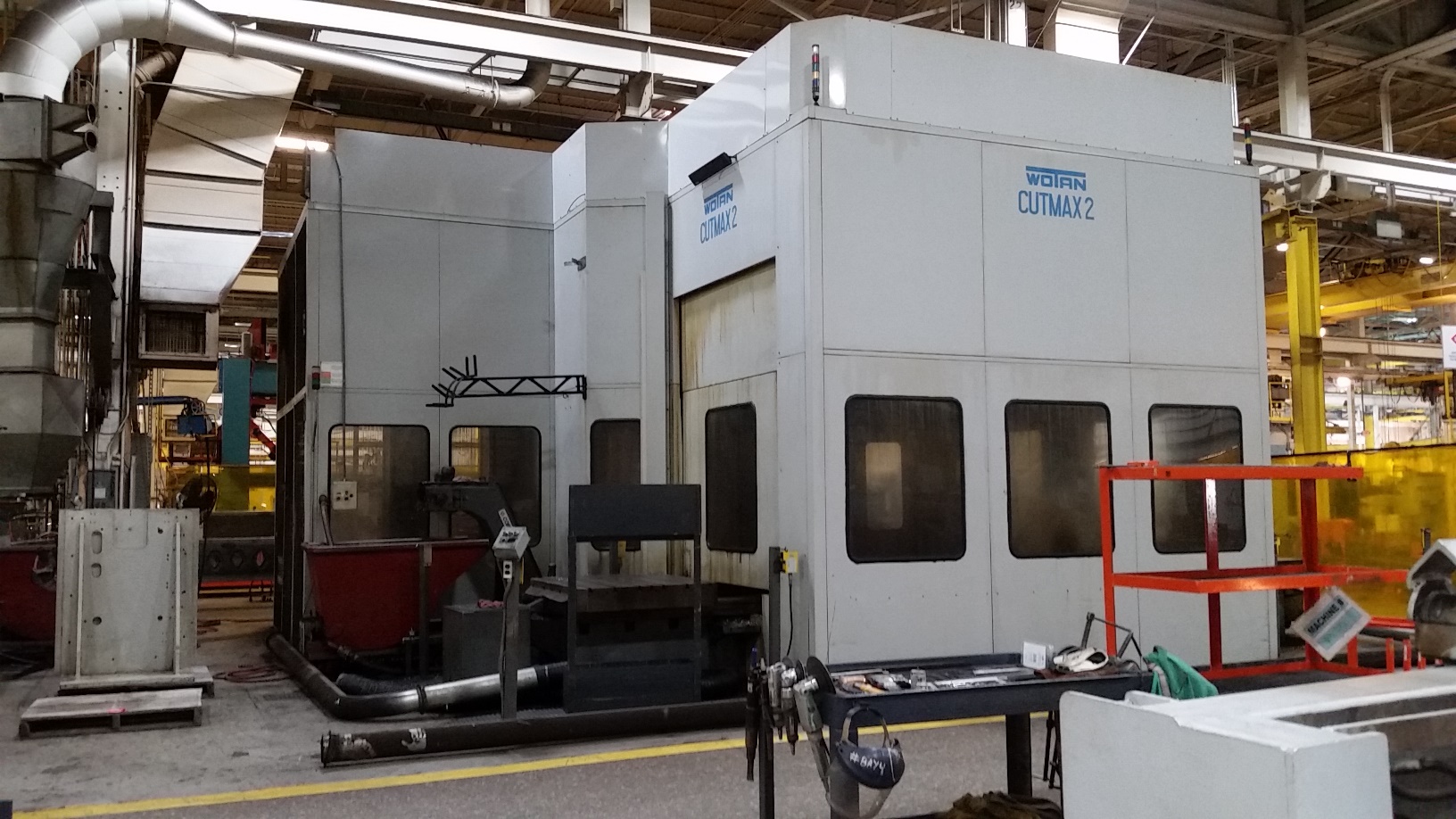

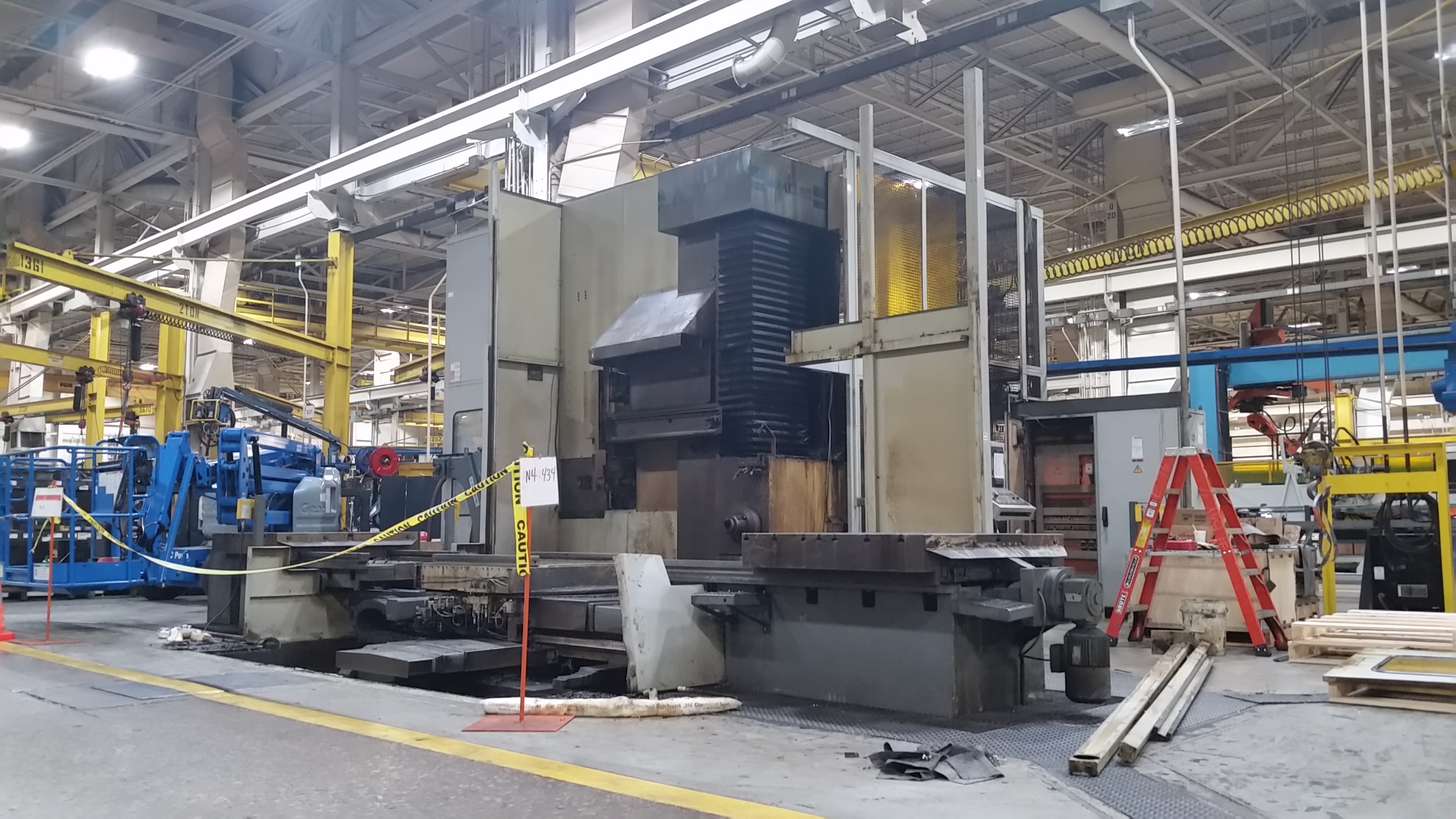

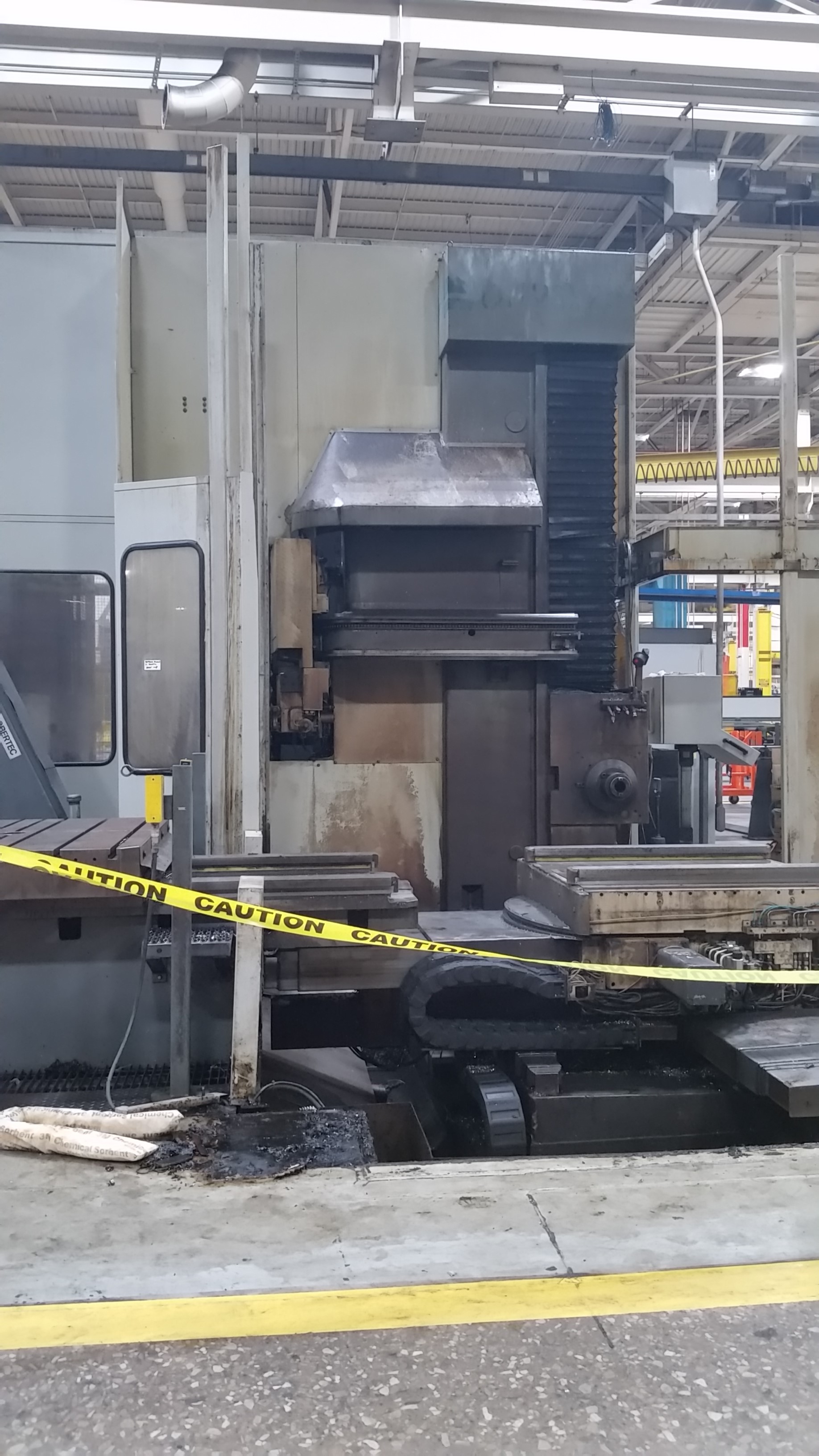

4.75" WOTAN CUTMAX II, DUAL 55 X 63 PALLETS, 71 LONG. X 67 VERT. X 53 IN/OUT X 24 QUILL, 240 ATC, THRU SPINDLE COOLANT, 4 TH AXIS, 3000 RPM, 41 HP, SIEMENS 840C CONTROL, 1996

GENERAL SPECIFICATIONS:
MANUFACTURER......................... WOTAN
MODEL................................ CUTMAX 2
NEW (APPROX.)........................ 1996
SERIAL............................... 50173

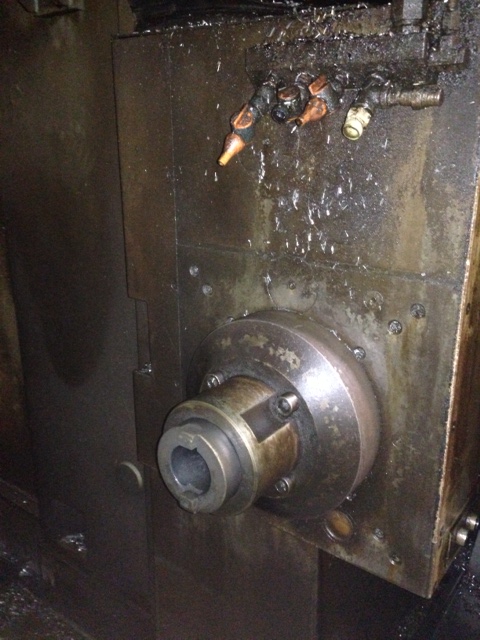

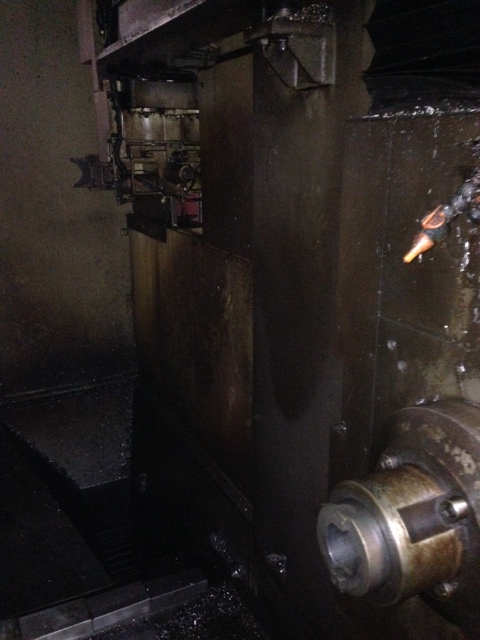

SPINDLE DIAMETER..................... 4.75" (120mm)
TAPER IN SPINDLE..................... #50 CAT

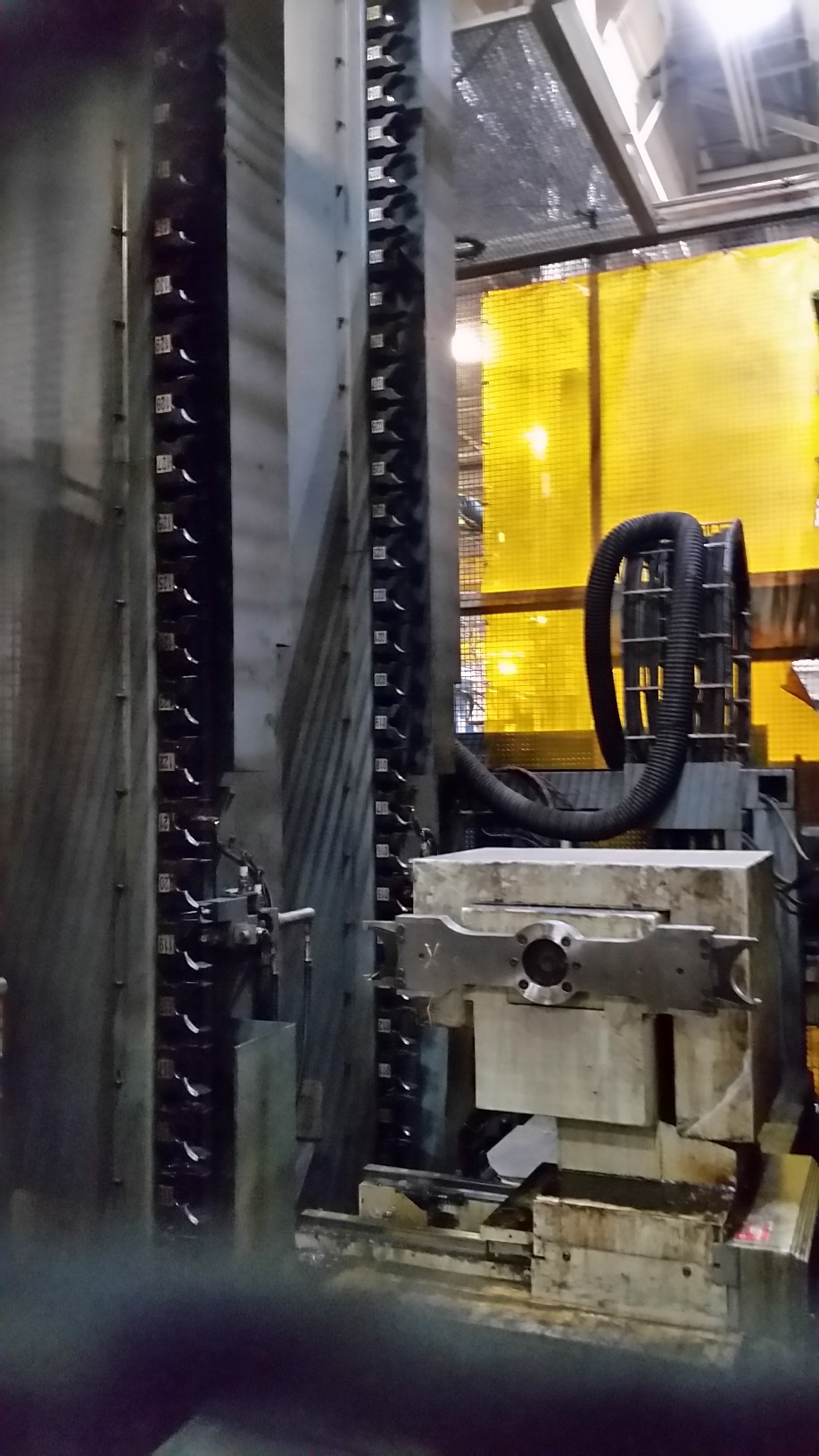

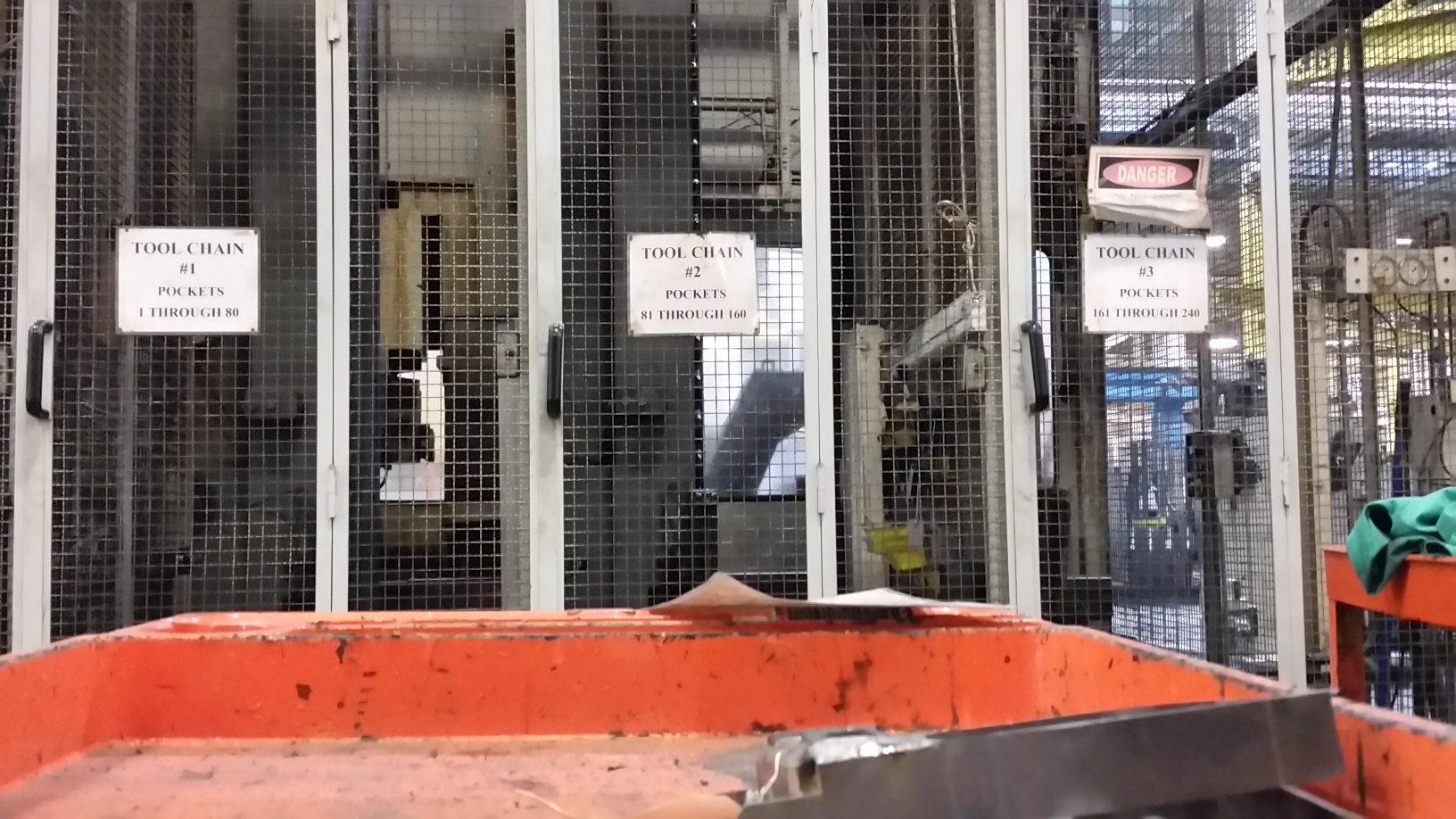

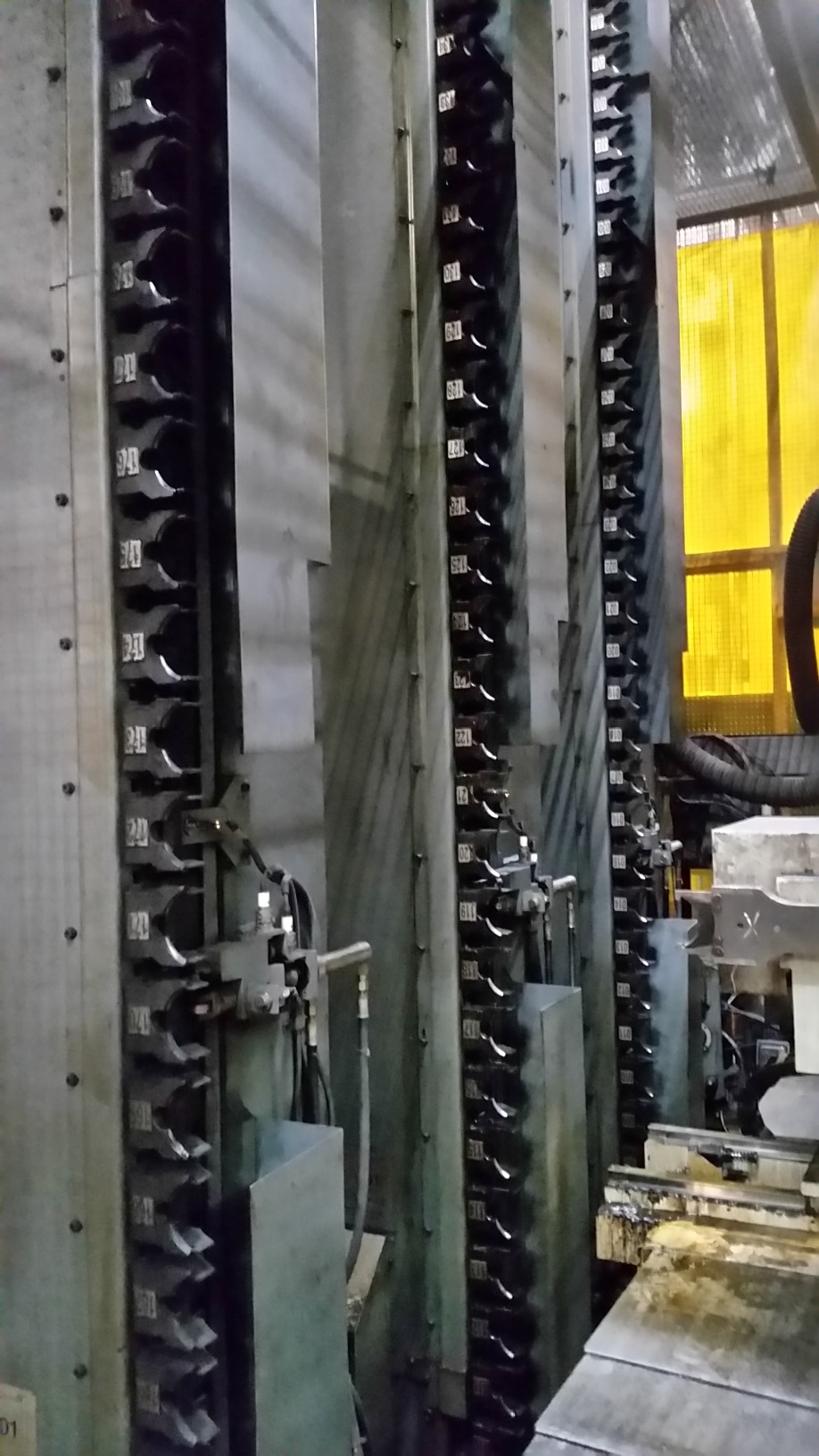

TOOLCHANGER CAPACITY................. 240
MAX TOOL WEIGHT...................... 77 LBS
Y TRAVEL (VERTICAL HEAD)............. 67"
  BALLSCREW MOVEMENT WITH LINEAR SCALE FEEDBACK
X TRAVEL (TABLE CROSS)............... 71"
  BALLSCREW MOVEMENT WITH LINEAR SCALE FEEDBACK
Z TRAVEL (COLUMN).................... 53"
  BALLSCREW MOVEMENT WITH LINEAR SCALE FEEDBACK
W TRAVEL (SPINDLE)................... 23.6"
  BALLSCREW MOVEMENT WITH ROTARY ENCODER FEEDBACK
RAPID AND MAX. FEED SPEED............ 400 IPM
SPINDLE SPEEDS....................... 20 - 3000 RPM (3 RANGES)

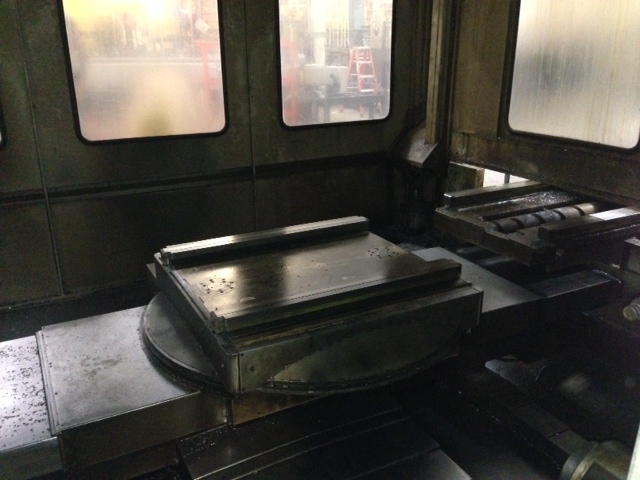

ROTARY TABLE SIZE.................... 55" x 63"
ROTATION POSITIONS................... 360,000 (FULL 4TH AXIS)
ROTATION SPEED....................... 2.5 RPM
WEIGHT CAPACITY...................... 13,000 LBS
MAX/CONTINUOUS SPINDLE MOTOR......... 41 HP
CURRENT VOLTAGE...................... 480/3/60

EQUIPPED WITH:

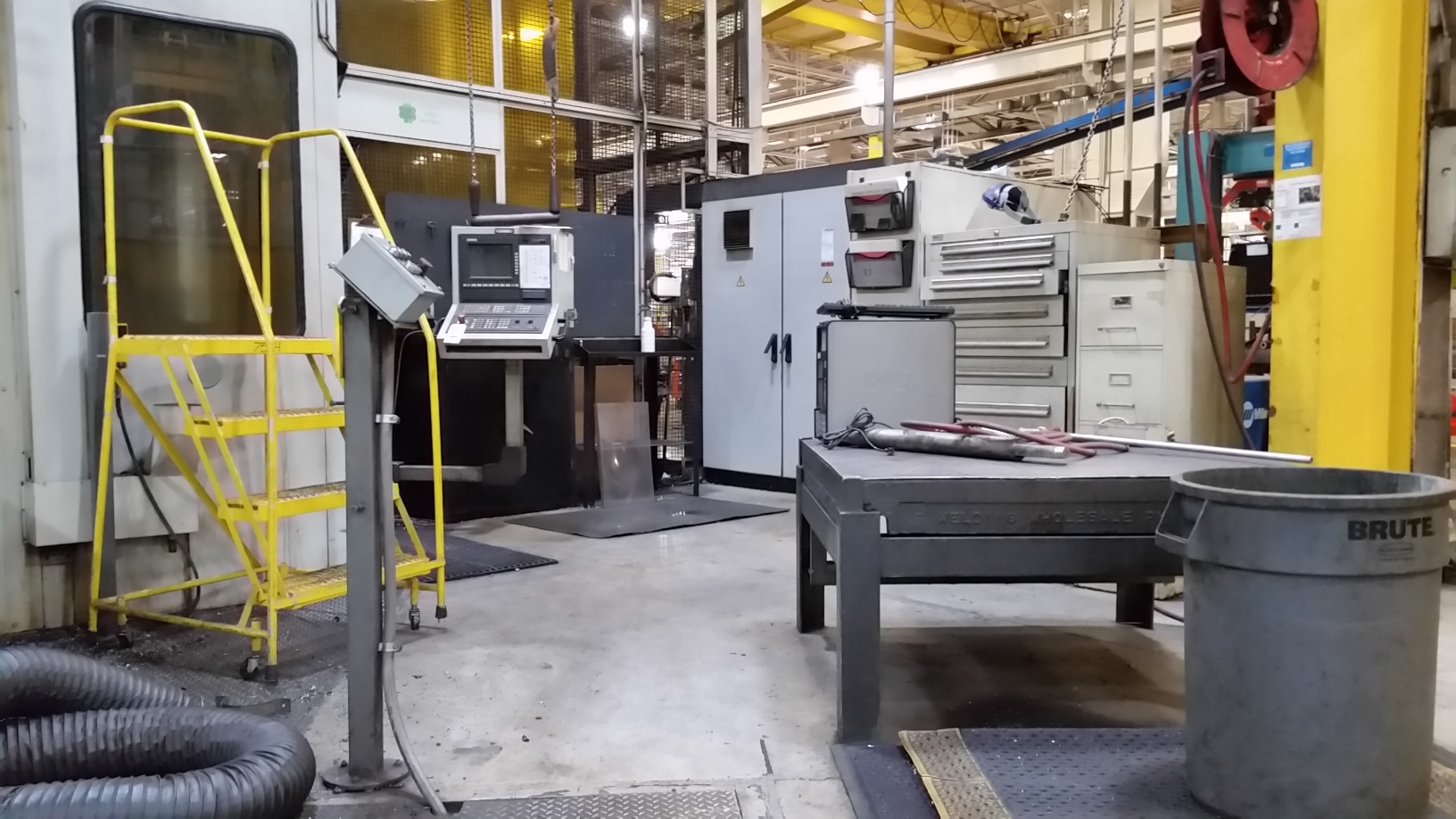

SIEMENS 840c CONTROL

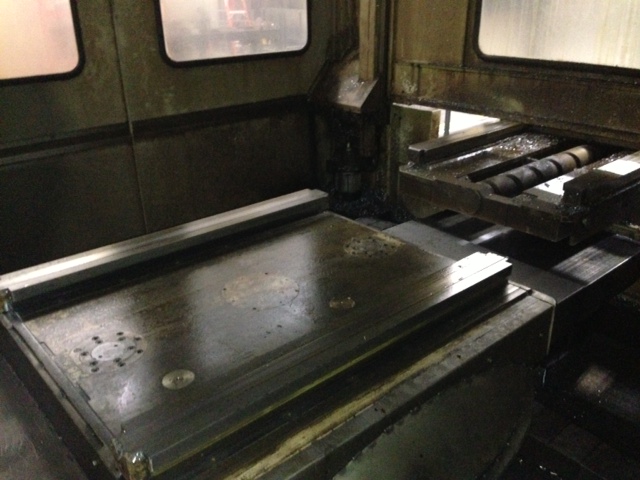

DOUBLE PALLET SHUTTLE SYSTEM
THRU SPINDLE COOLANT
TOOL MONITORING SYSTEM
RENISHAW INSPECTION PROBE
APPROX. 50 TOOL HOLDERS WITH TOOLING

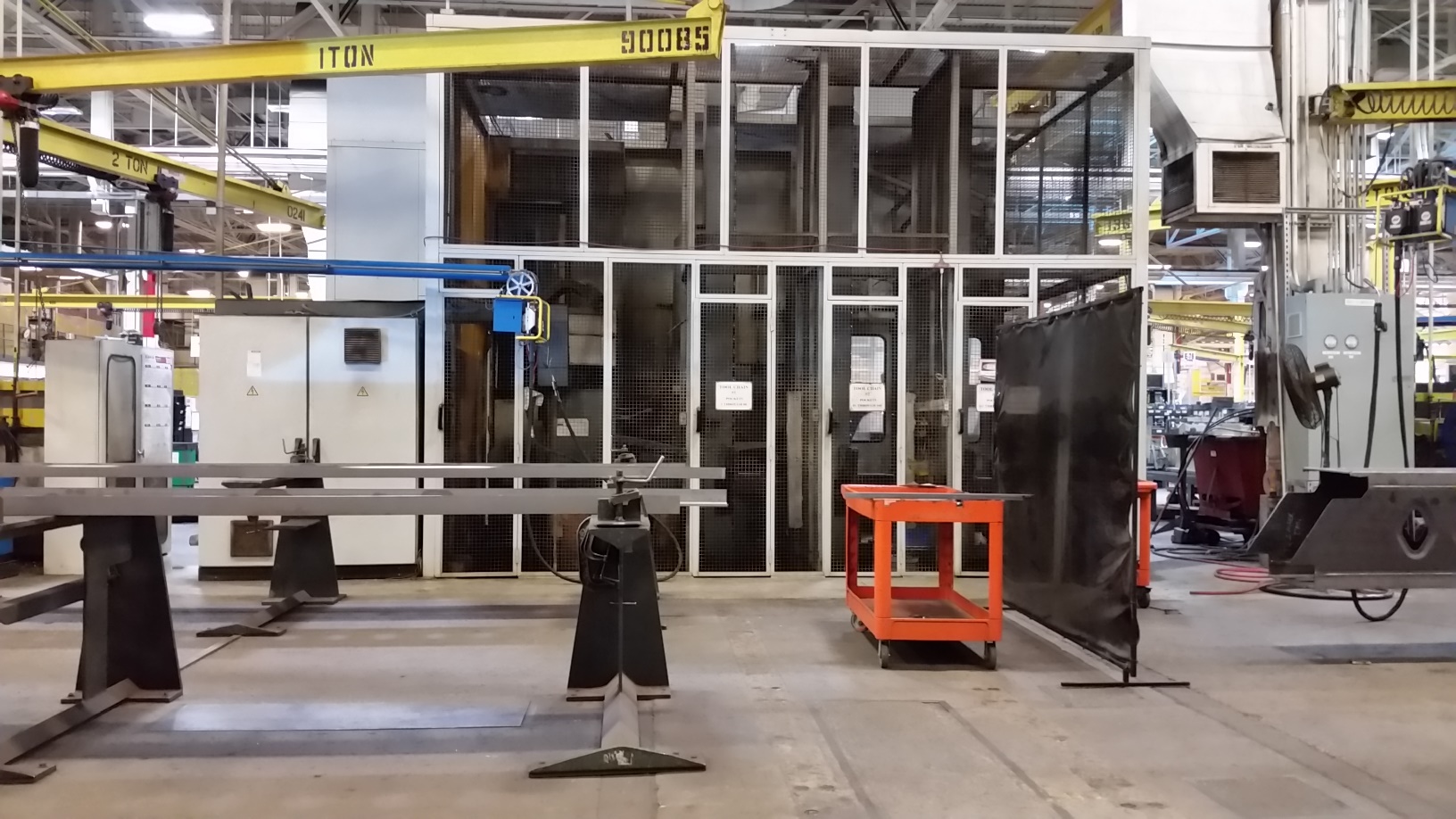

FULL ENCLOSURE
SPINDLE CHILLER
BALL SCREWS
POWER DRAW BAR
TELESCOPING WAY COVERS
CHIP CONVEYOR
LARGE AMOUNT OF MANUALS AND PRINTS

** AS IS, LOADED ON TRUCK **

SPECIFICATIONS SUBJECT TO VERIFICATION
