GENERAL SPECIFICATIONS:

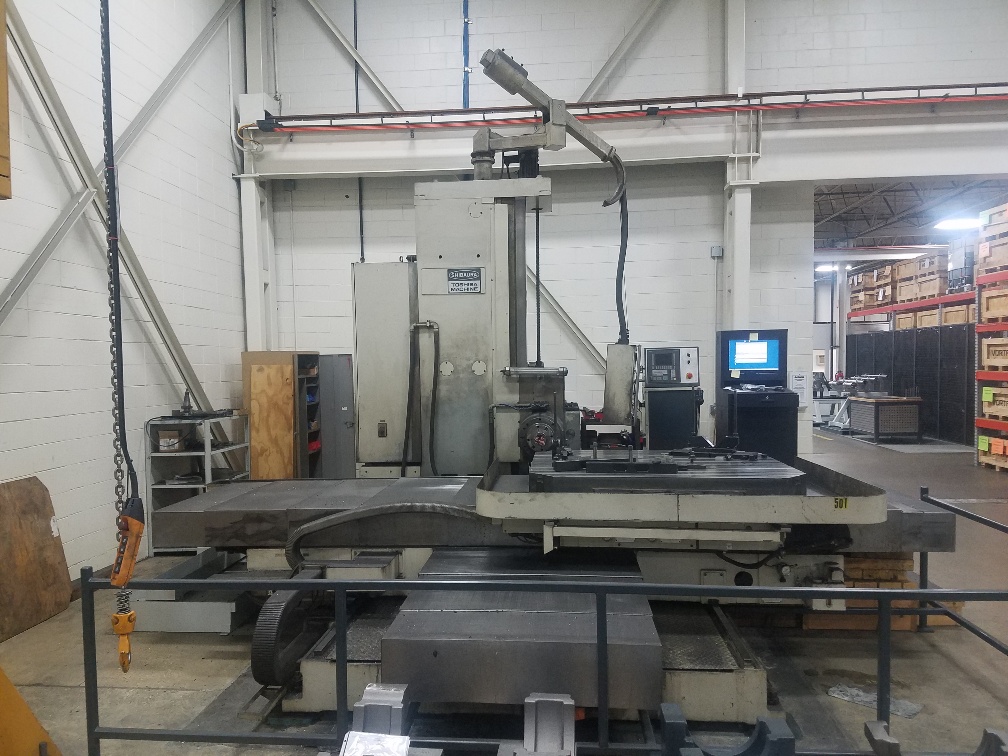

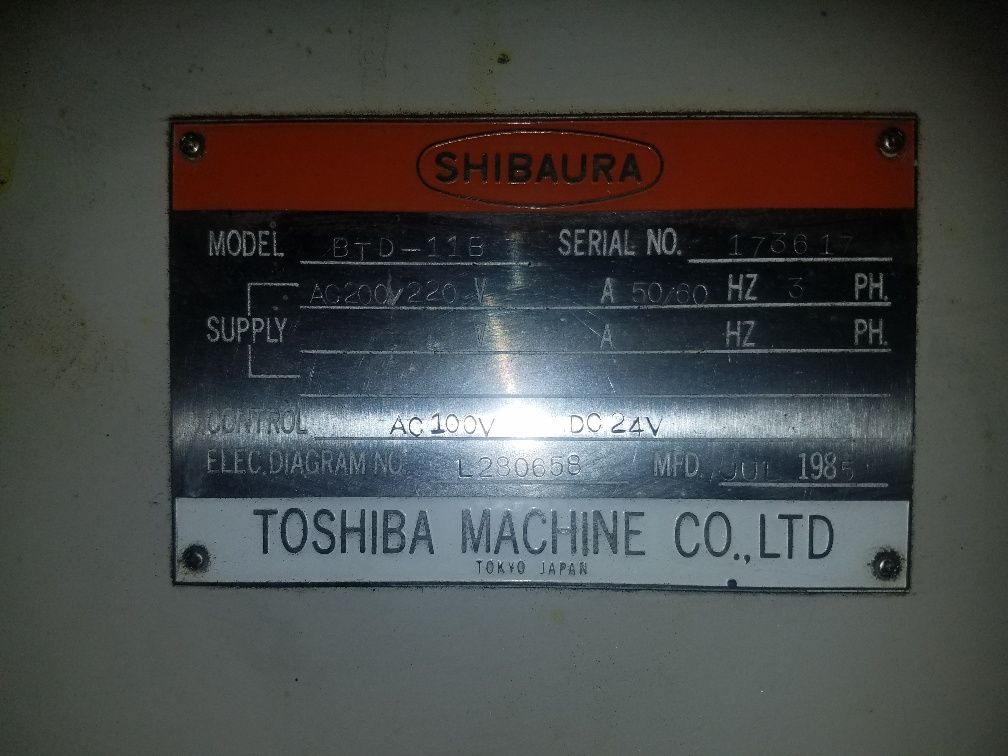

MAKE.................. TOSHIBA

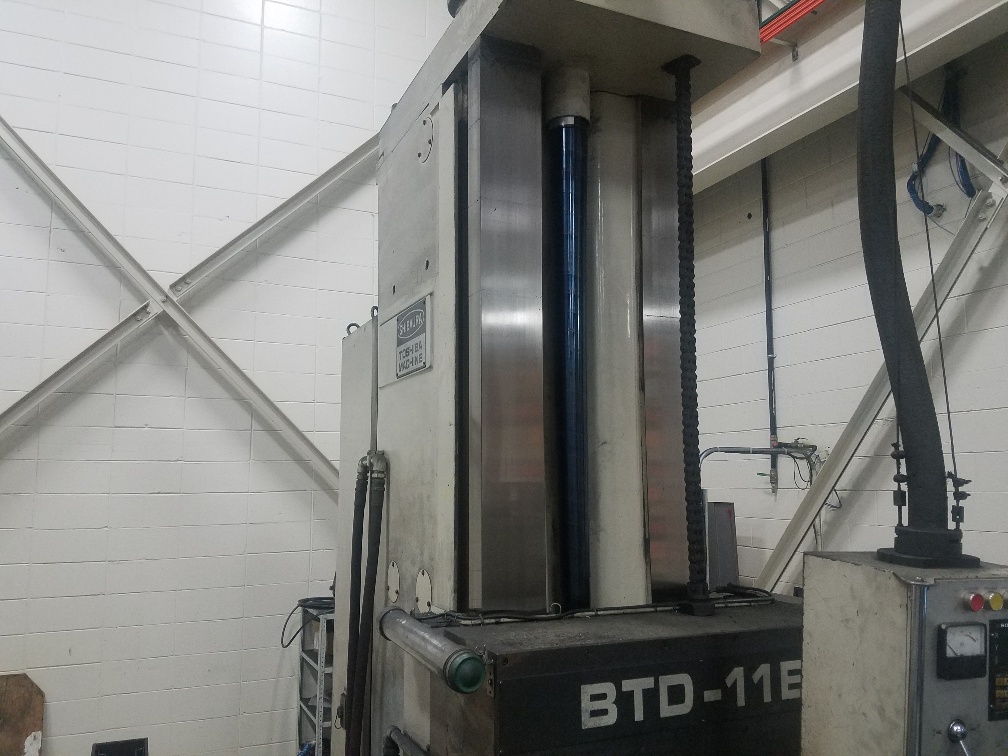

MODEL................. BTD-11B.R3
SERIAL NUMBER......... 142170
AGE................... 1985
TRAVELS (X)........... 79"
TRAVELS (Y)........... 59"
TRAVELS (Z)........... 51"
TRAVELS (W)QUILL...... 24"
SPINDLE TAPER......... 50
SPINDLE SPEEDS........ 8-1600 RPM
SPINDLE MOTOR......... 20 HP
EQUIPPED WITH:
SIEMENS 840D CNC UPDATED CONTROL (2017)
- Only the CNC and PLC were changed. Majority of cabinet and machine wiring was un-touched

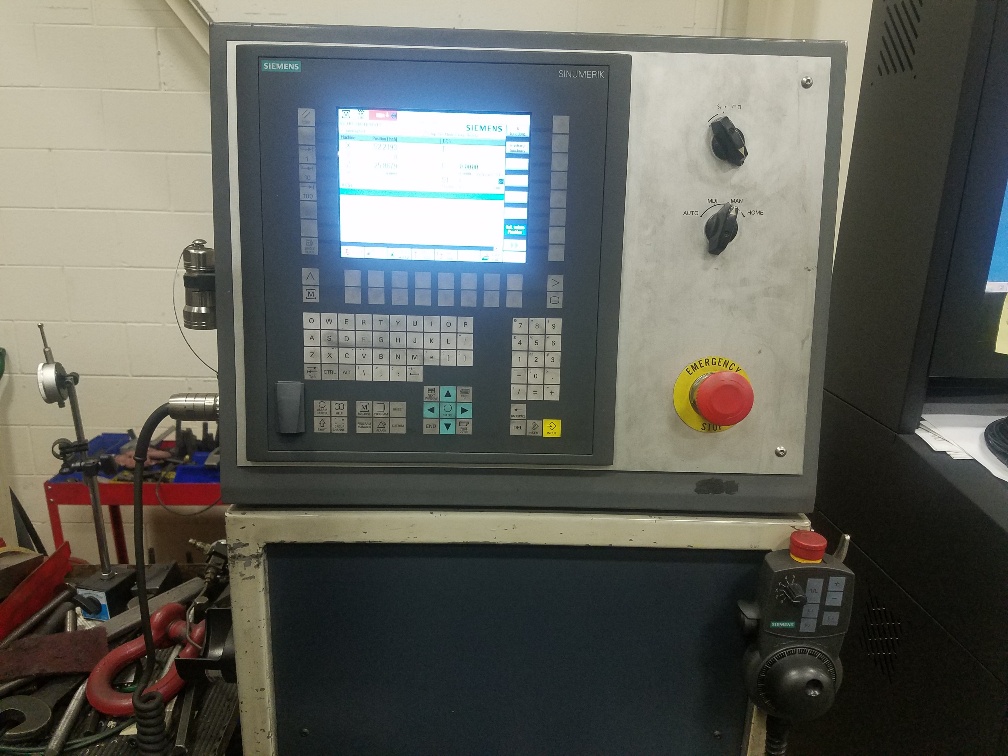

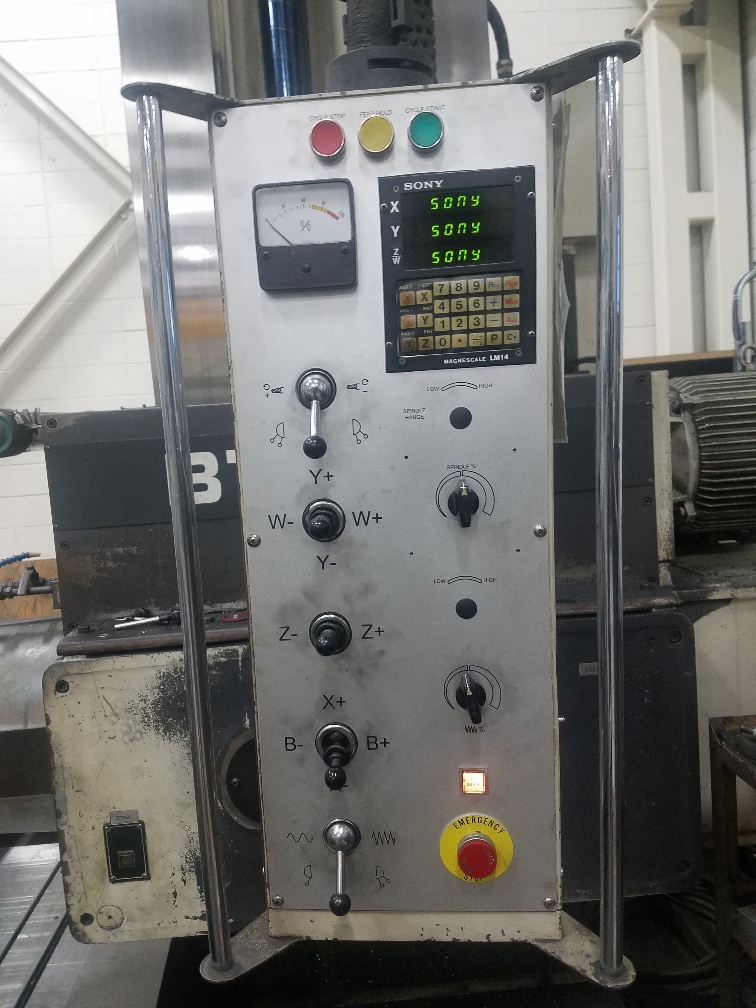

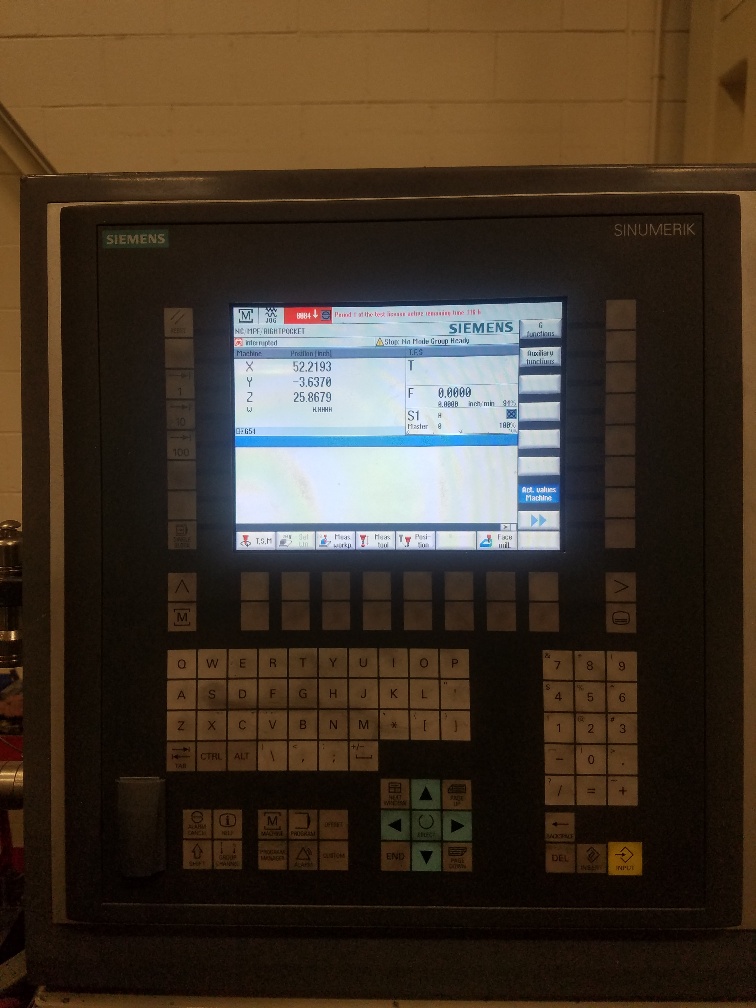

- Siemens 840D CNC, OP8 operators console, Siemens remote handwheel - Existing Toshiba operators pendant still functional for manual operation

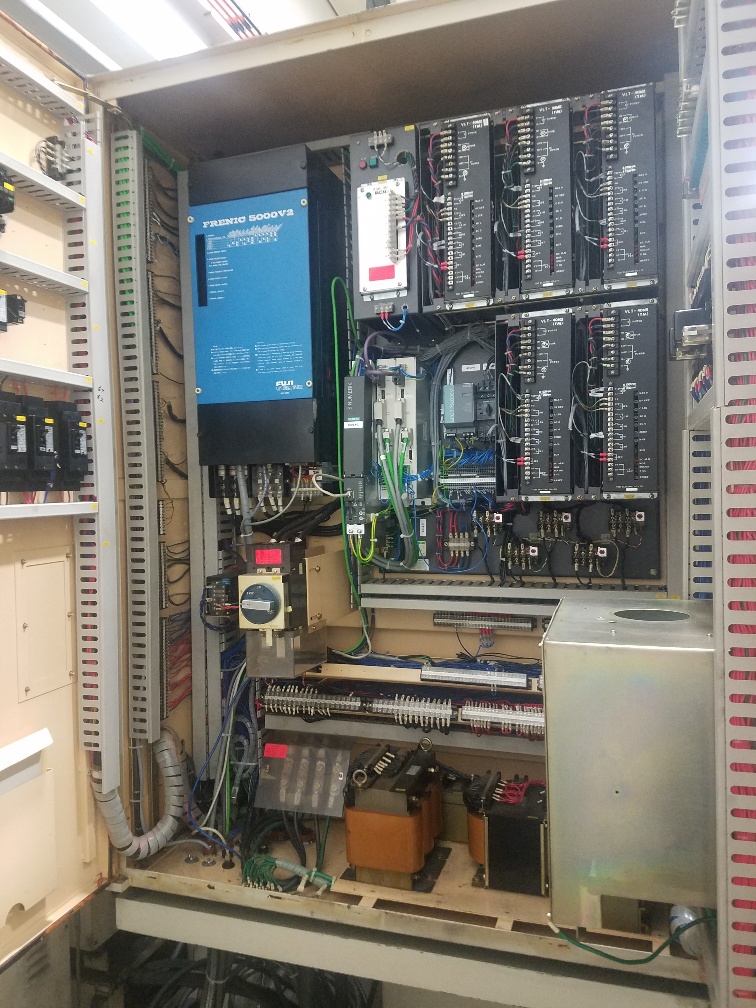

- Servos, drives, scales, machine wiring were not changed – all factory original
- Toshiba can still service the majority of the machine with factory schematics and manuals
- Siemens (Elk Grove Village, IL ) can service the machine control
- Major mechanical maintenance was performed during 2017 update.
SPECIFICATIONS SUBJECT TO VERIFICATION
