GENERAL SPECIFICATIONS:

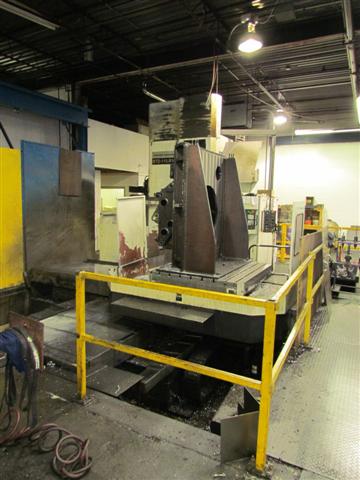

MANUFACTURER.................... TOSHIBA
MODEL........................... BTD-110R16
AGE............................. 2006
SPINDLE DIAMETER................ 4.33"
SPINDLE TAPER................... 50
SPINDLE HORSEPOWER.............. 40 HP
MAX RPM......................... 3000 RPM
ROTARY TABLE SIZE............... 55.1" X 63"
TRAVELS X...................... 78.7"
Y...................... 59"
Z...................... 19.7"
TOOL CHANGER CAPACITY........... 38 TOOLS
EQUIPPED WITH:

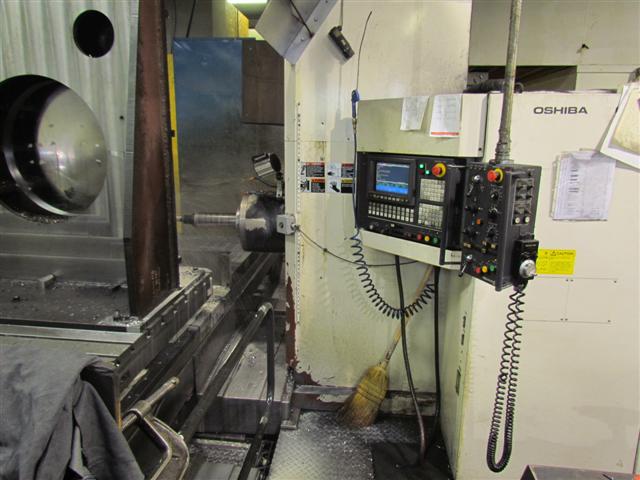

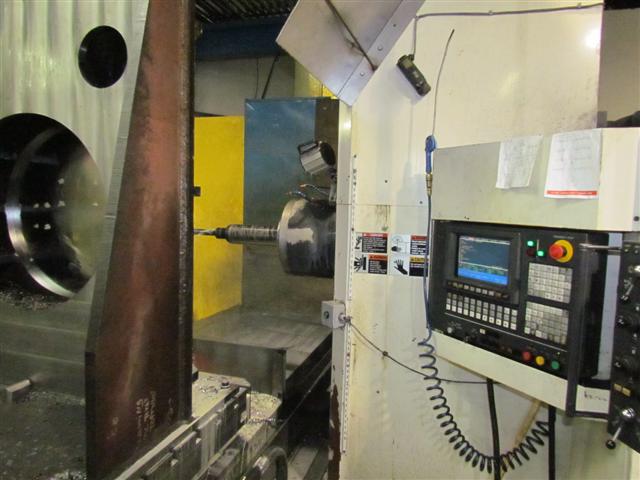

TOSNUC 888 CNC CONTROL WITH CRT AND CANNED CYCLES
THRU SPINDLE COOLANT
CHIP CONVEYOR

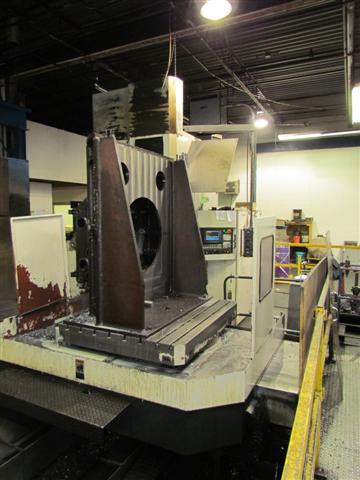

BUILT IN 4TH AXIS ROTARY TABLE
CHIP AND SPLASH ENCLOSURE AROUND TABLE
CAN BE INSPECTED UNDER POWER
SPECIFICATIONS SUBJECT TO VERIFICATION
