Specifications
Equipped With
GENERAL SPECIFICATIONS:

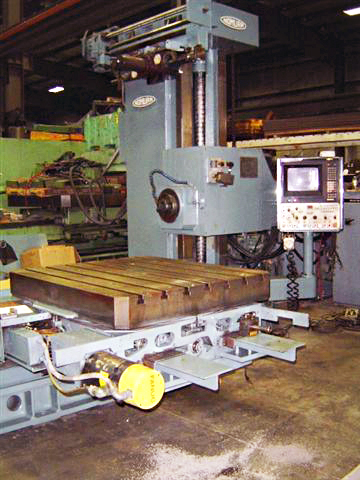

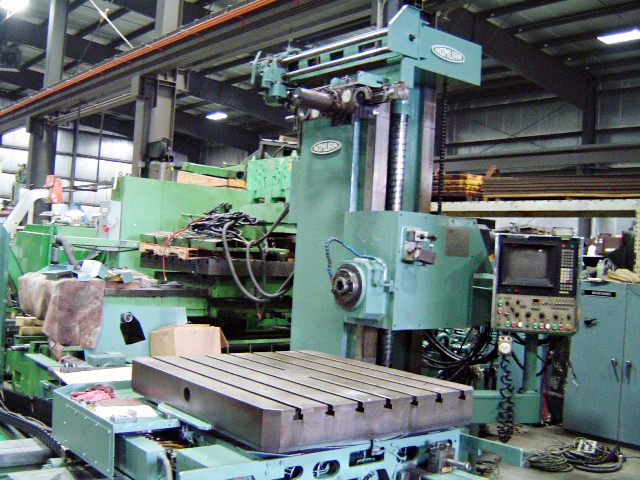

Manufacturer.......................... Nomura
Model................................. B-110 SR
Serial#............................... 4391
Age (Year)............................ 1987
Spindle size.......................... 4.33" Diameter
Spindle Taper......................... Cat 50
Spindle Travel........................ 26"
Spindle Motor......................... 20 HP
Speeds (2 Ranges)..................... 10 - 1,500 RPM
Vertical Headstock Travel............. 49.25"

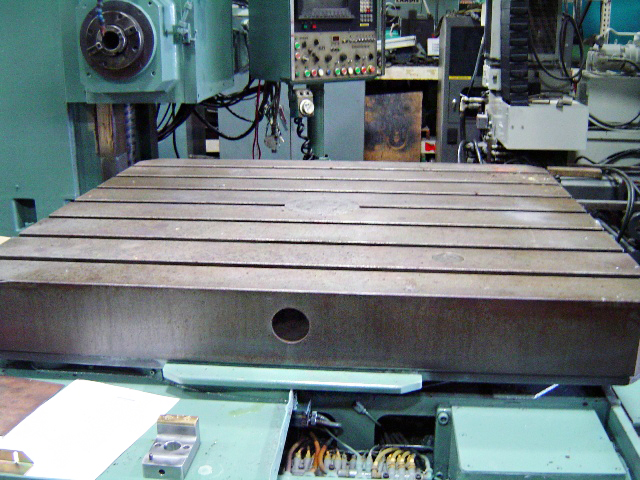

Built-in Rotary Table Size............ 45" x 50"
Table Indexing........................ 90 Degree
Table Load............................ 11,000 Lbs.
Cross Travel.......................... 63"
Longitudinal Saddle Travel............ 39"
Rapids; X,Y,W......................... 283"/Min.

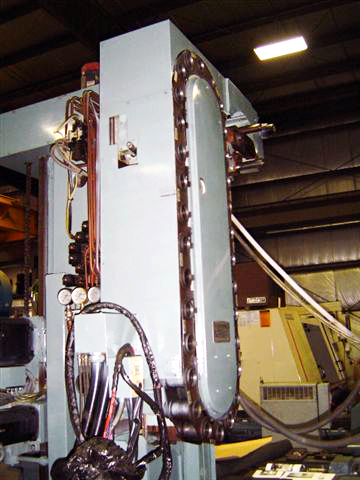

Number of Tools....................... 30 Station ATC
Axis Drives........................... ac fanuc motors
Table rotation........................ dc fanuc motor
Electrics: 220 volts / 60hz / 3 phs. 200 amp service:
Machine weight........................ 33,000 lbs
EQUIPPED WITH:

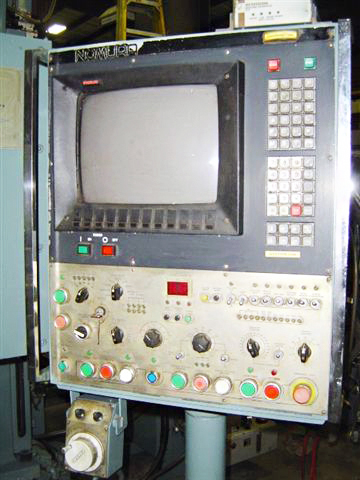

Fanuc 11-M CNC w/ 14" Color CRT
Renishaw Probe Ready
SPECIFICATIONS SUBJECT TO VERIFICATION
