Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.................... TOSHIBA
MODEL........................... BTD-200QE
AGE............................. 1997

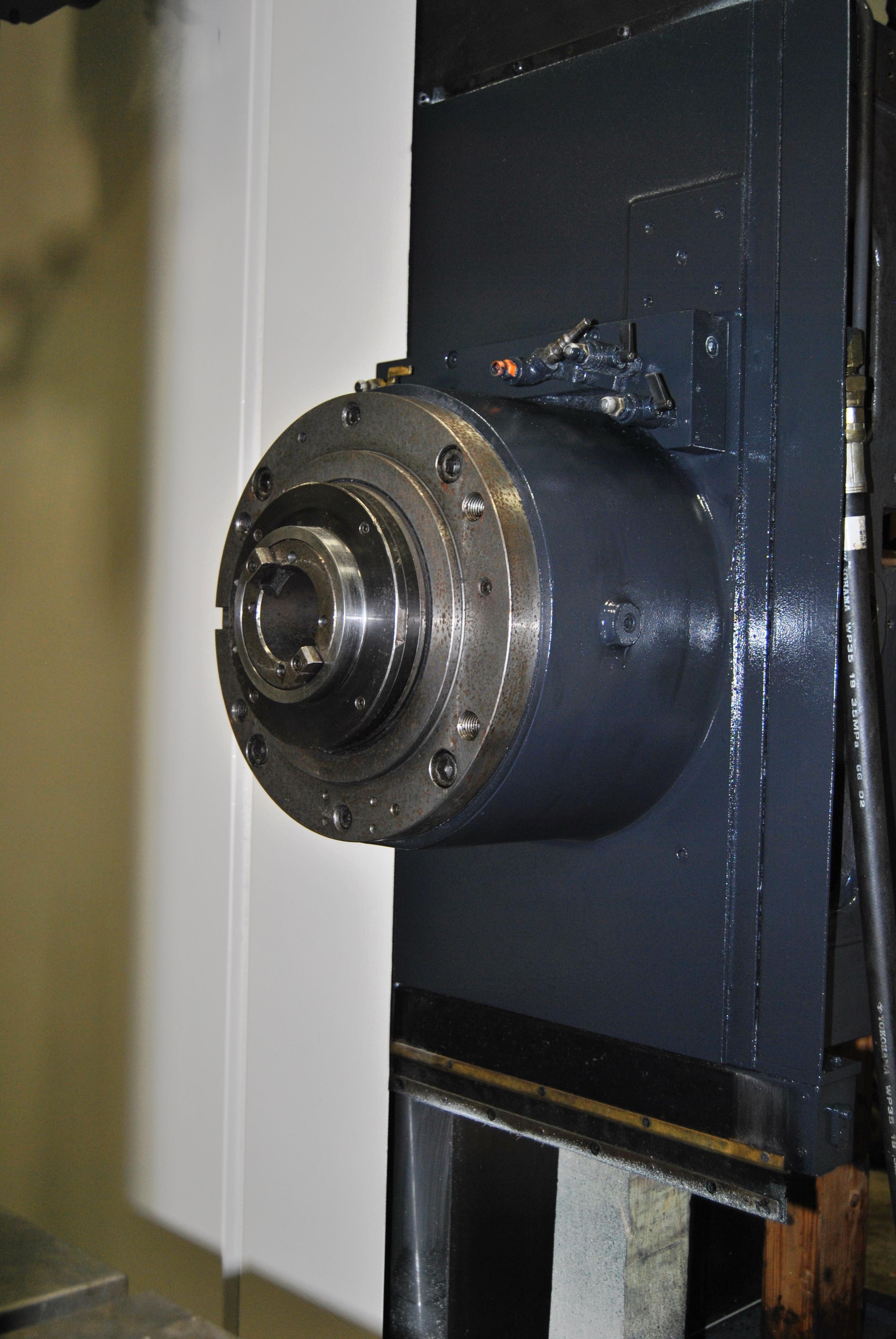

SPINDLE DIAMETER................ 4.33"
QUILL DIAMETER.................. 7.87"
SPINDLE TAPER................... 50
MAX RPM......................... 1,600 RPM
HORSEPOWER...................... 15/20 HP
ROTARY TABLE SIZE............... 40" X 40" (B AXIS)
TRAVELS X...................... 39"
Y...................... 31.5"
Z...................... 27.6"
W...................... 15.7"

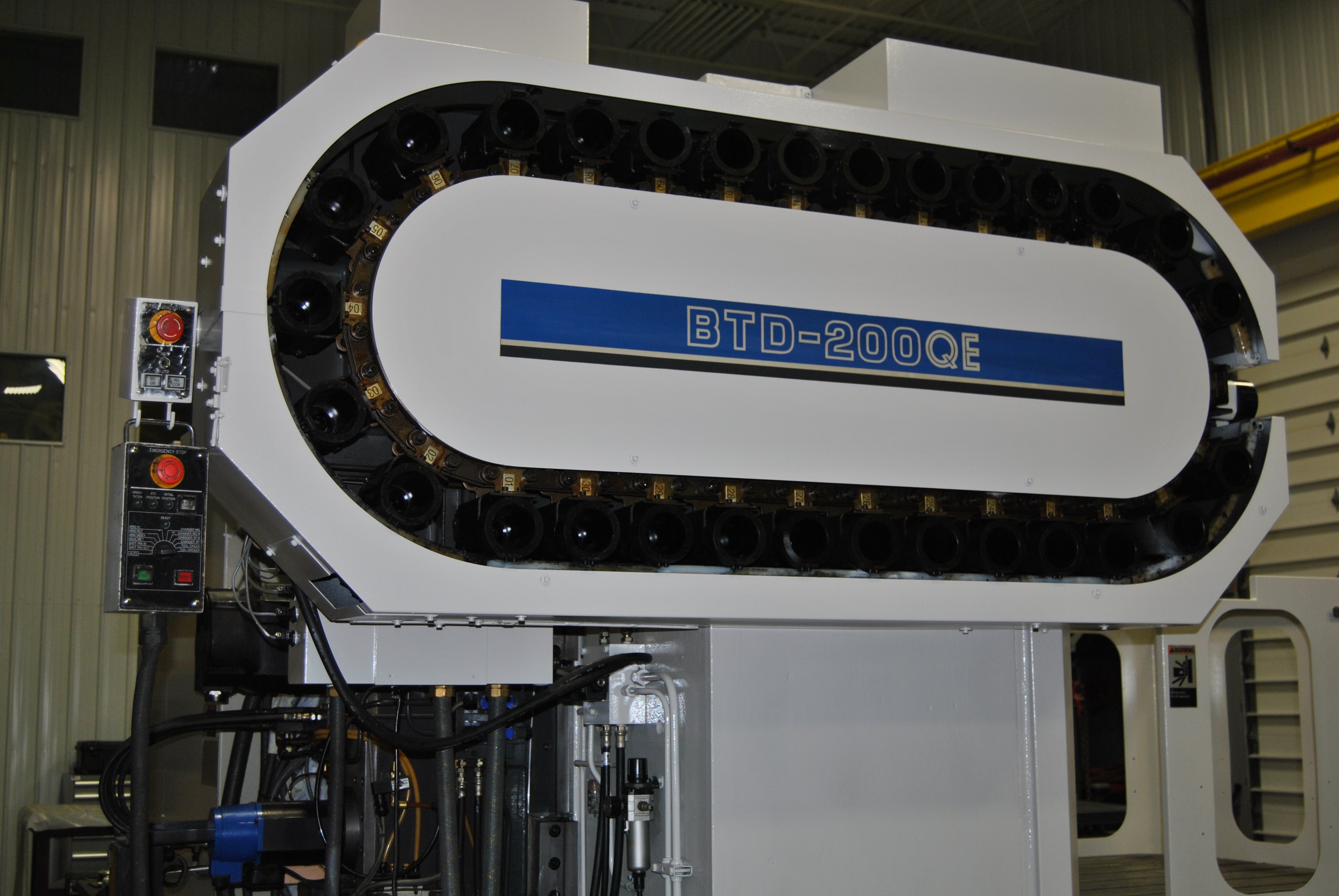

TOOL CHANGER CAPACITY........... 30 TOOLS
EQUIPPED WITH:

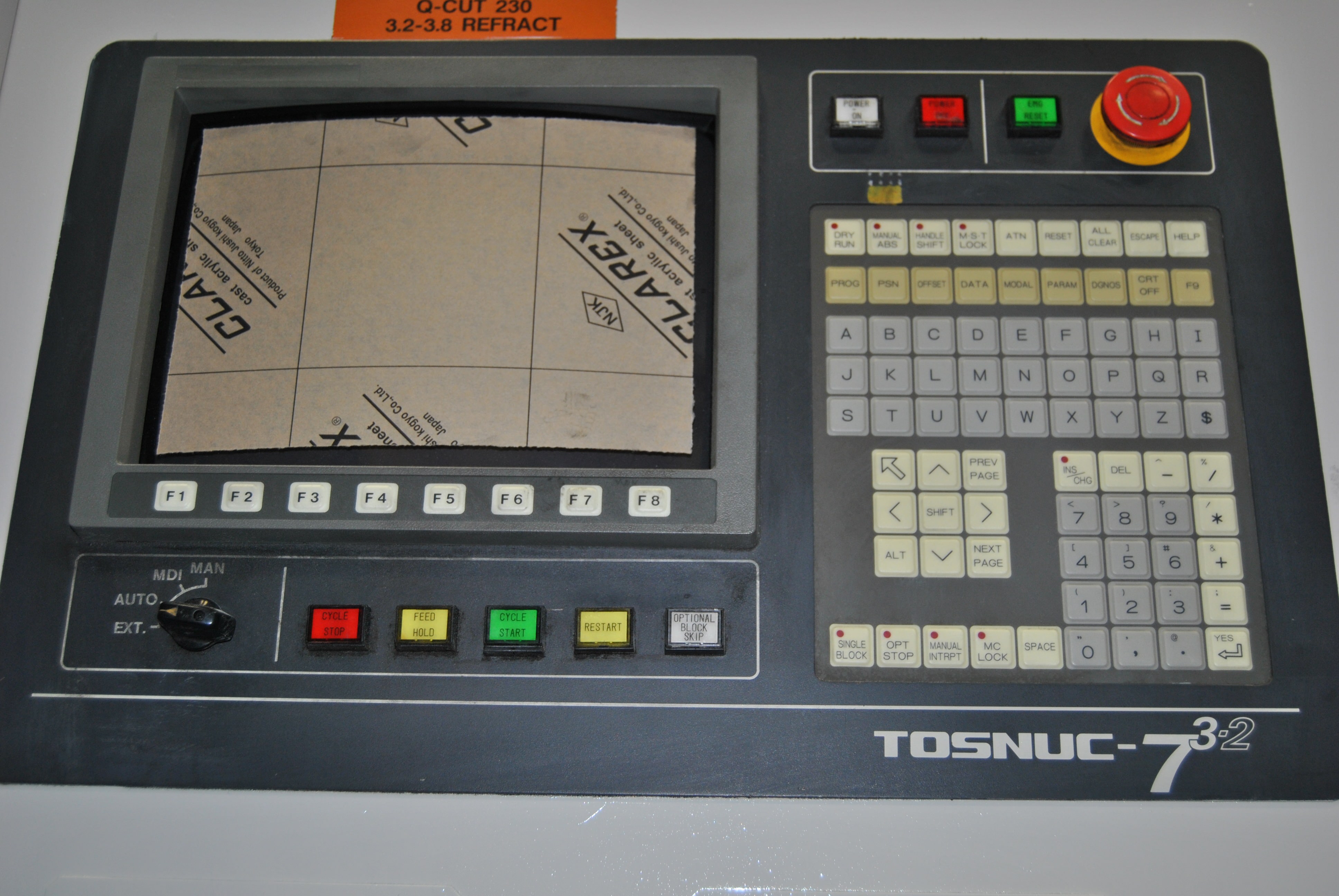

TOSNUC 777.2-32 BIT CNC CONTROL WITH CRT AND CANNED CYCLES
FLOOD COOLANT

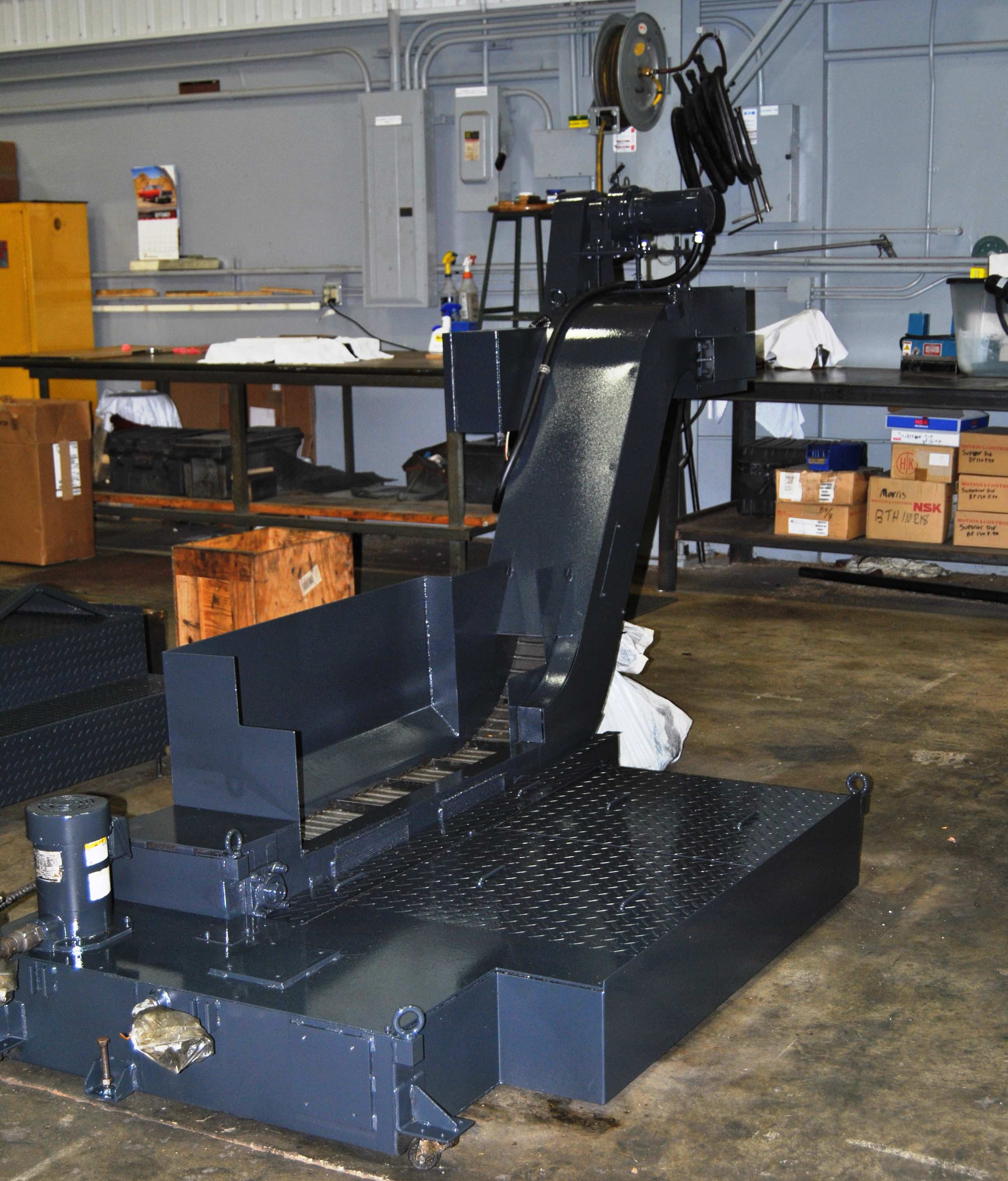

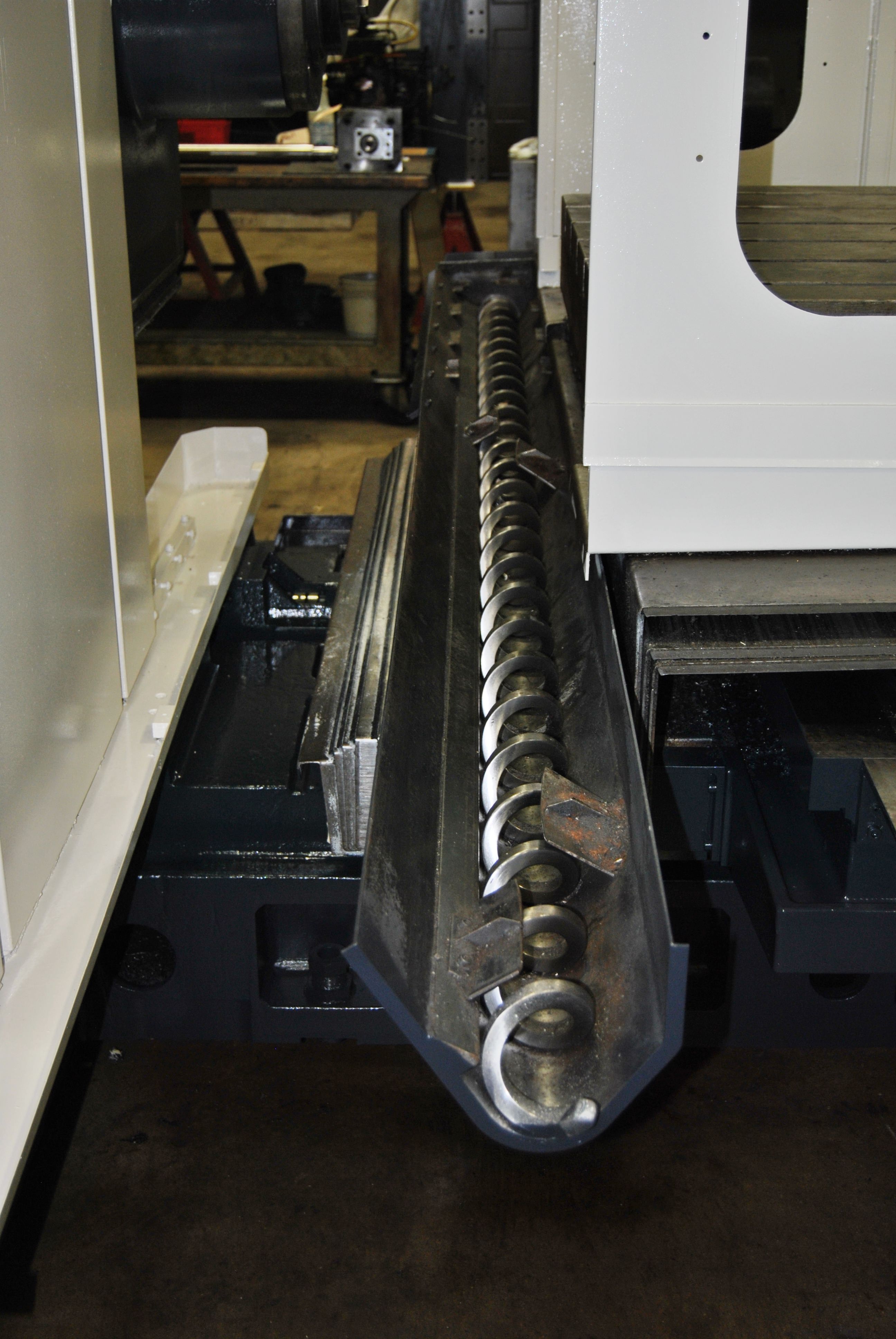

CHIP CONVEYOR
CAN BE INSPECTED UNDER POWER
SPECIFICATIONS SUBJECT TO VERIFICATION
