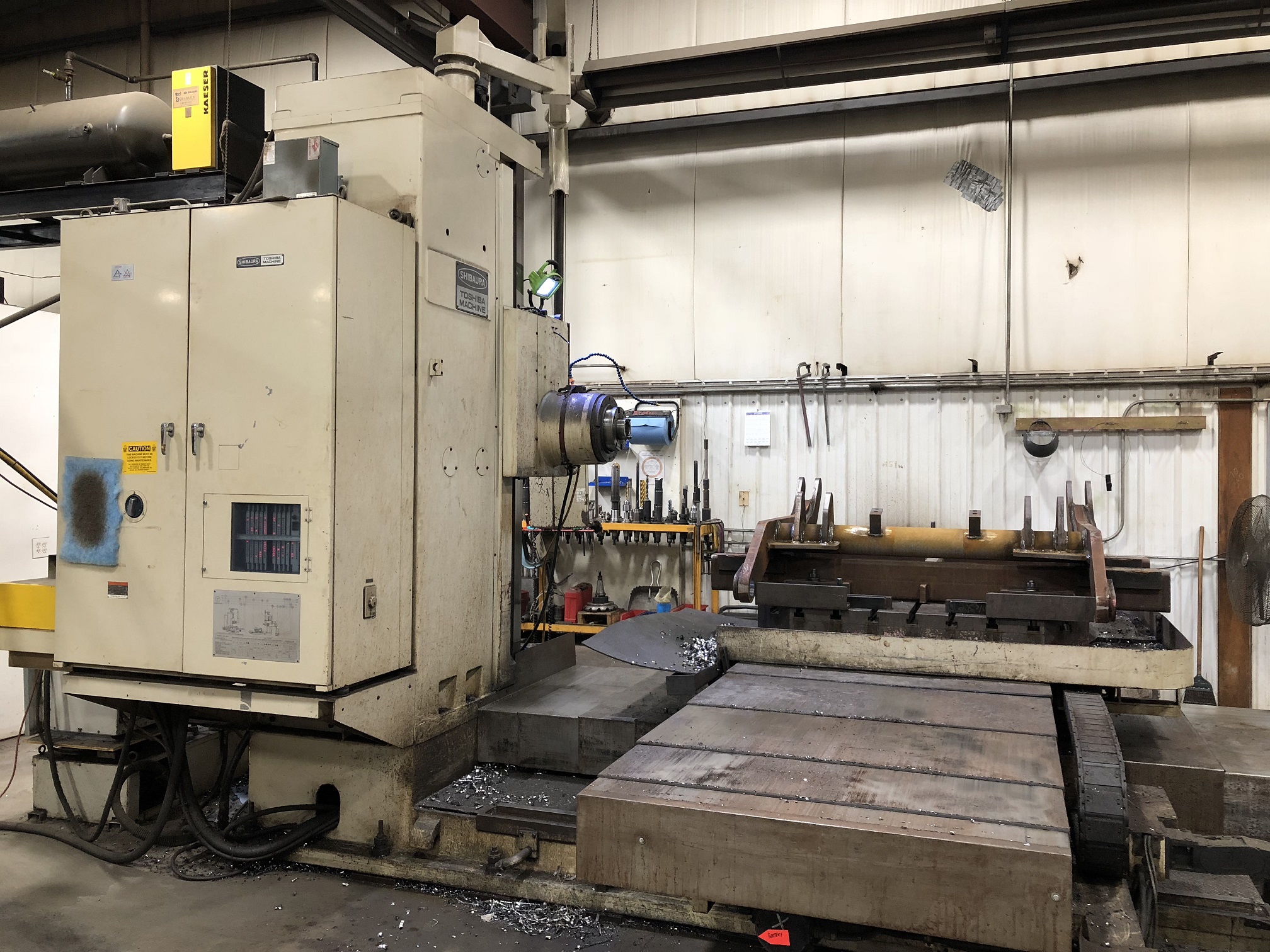

GENERAL SPECIFICATIONS:

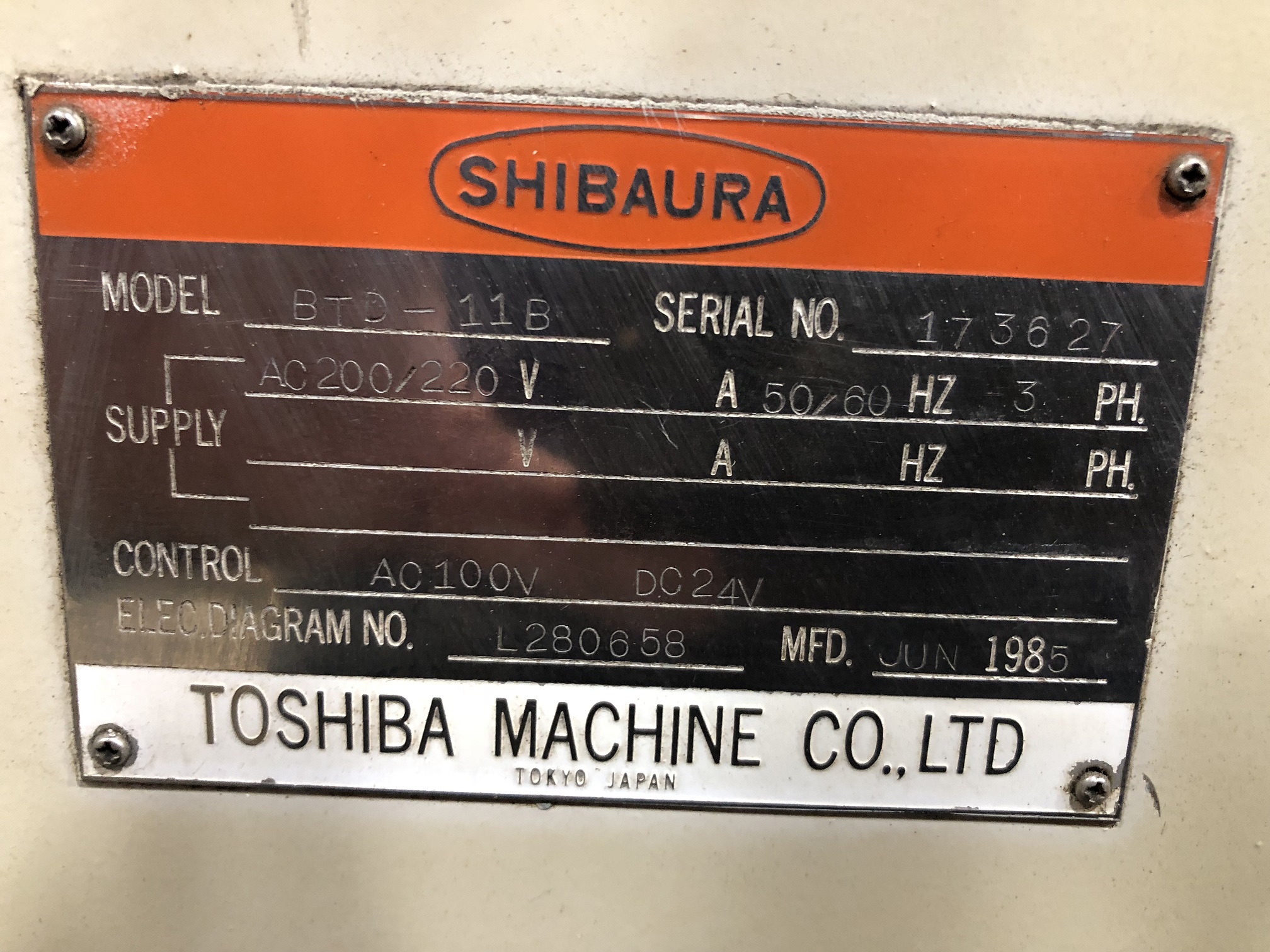

MANUFACTURE........................... TOSHIBA
MODEL................................. BTD-11B-R3
SERIAL NUMBER......................... 173627
NEW................................... 1985

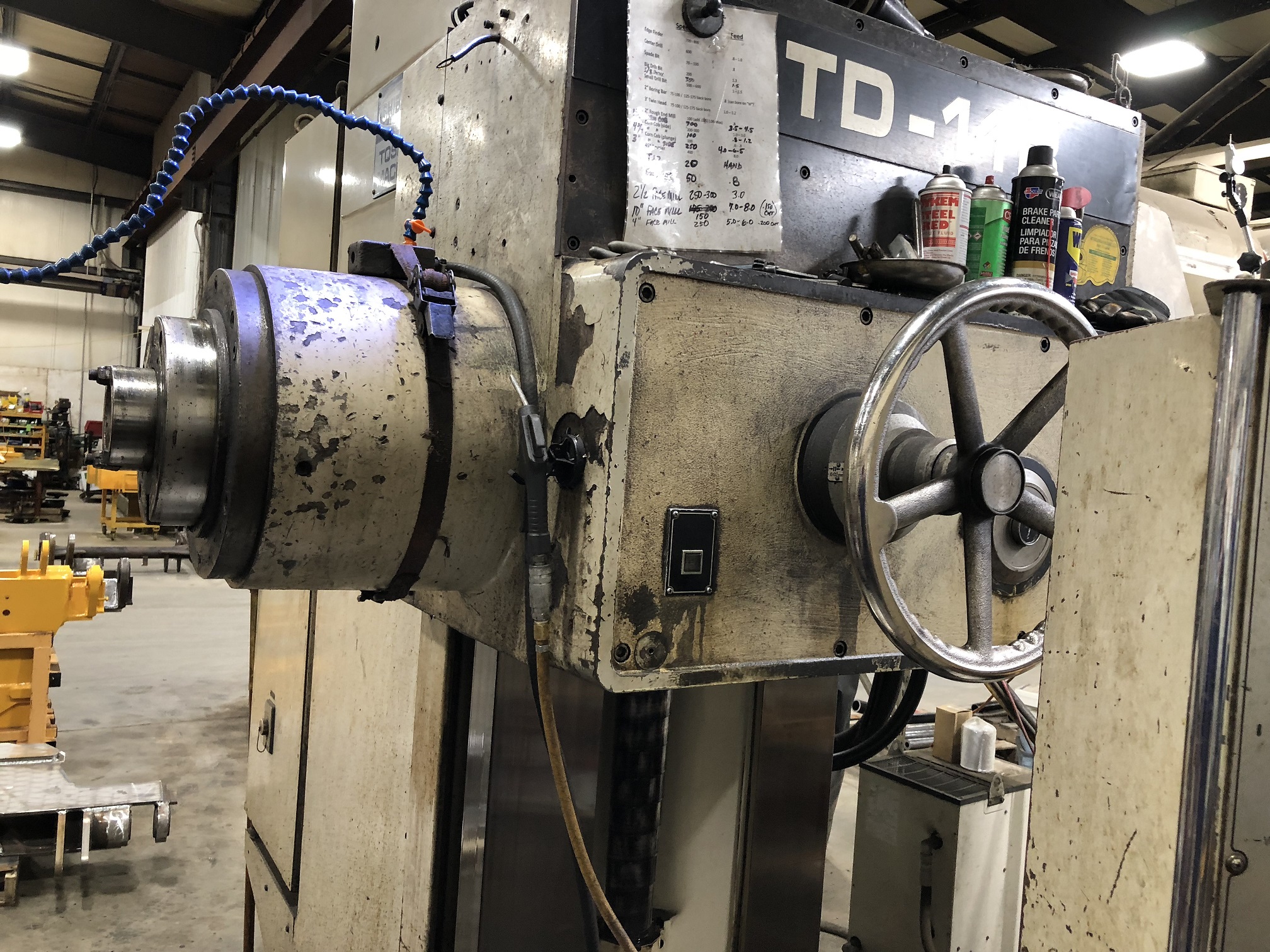

SPINDLE DIAMETER...................... 4.30"
X-TRAVEL.............................. 78"
Y-TRAVEL.............................. 59"
Z-TRAVEL.............................. 59"
W-TRAVEL.............................. 24"
TABLE SIZE............................ 55" x 63"
TABLE LOAD............................ 13,892 LBS.
TAPER................................. CAT 50
SPINDLE SPEEDS........................ 5 - 1,000 RPM
LOW RANGE.......................... 5 - 250 RPM
HIGH RANGE......................... 20 - 1,000 RPM
SPINDLE HP............................ 18.5/25 HP
FEED RATES............................ 0.10-78.7 IPM
RAPID FEED............................ 126 IPM
WEIGHT (APPROX.)...................... 42,000 LBS.
DIMENSIONS (APPROX.) 231" x 227" x 173"H
EQUIPPED WITH:

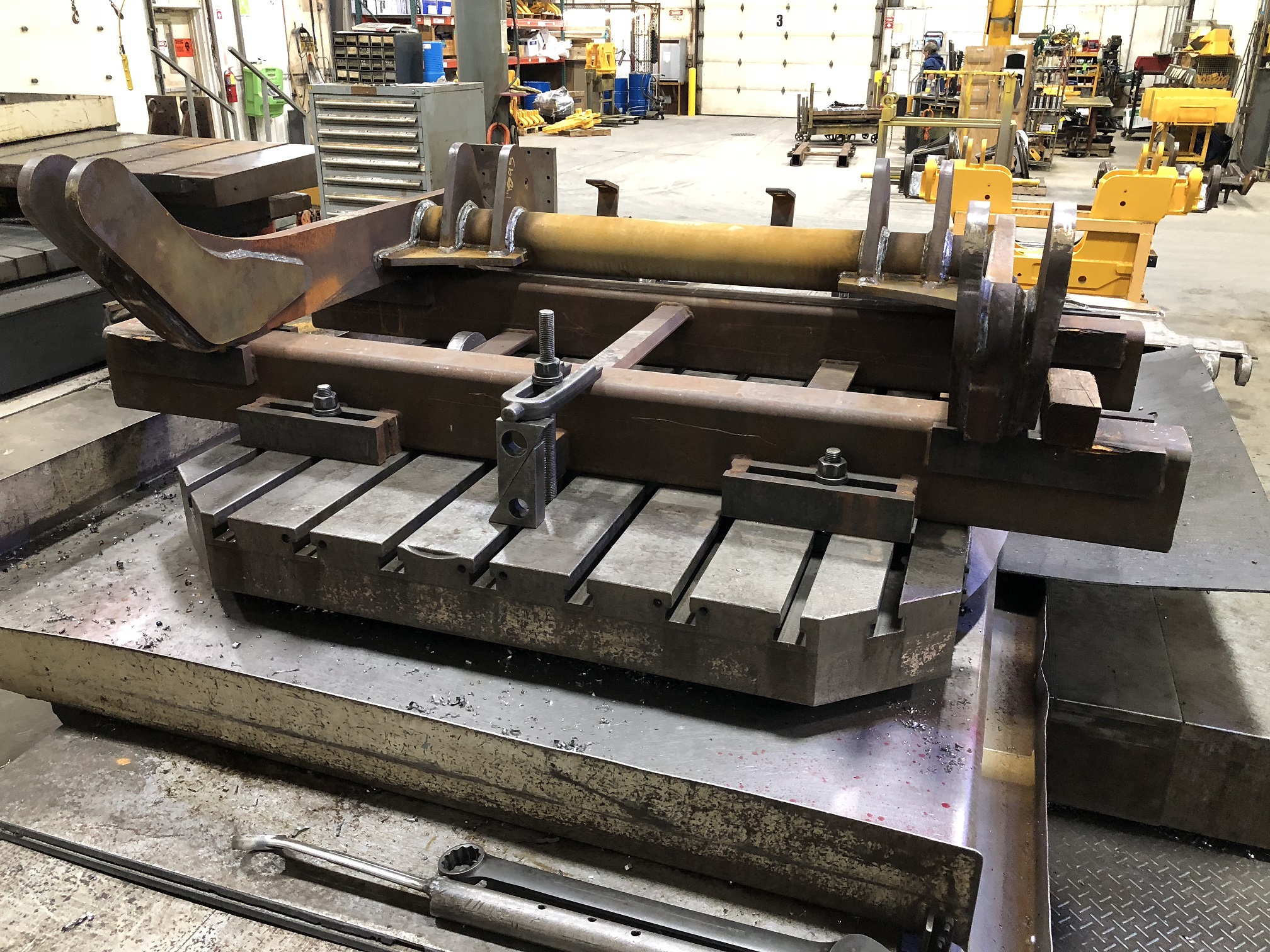

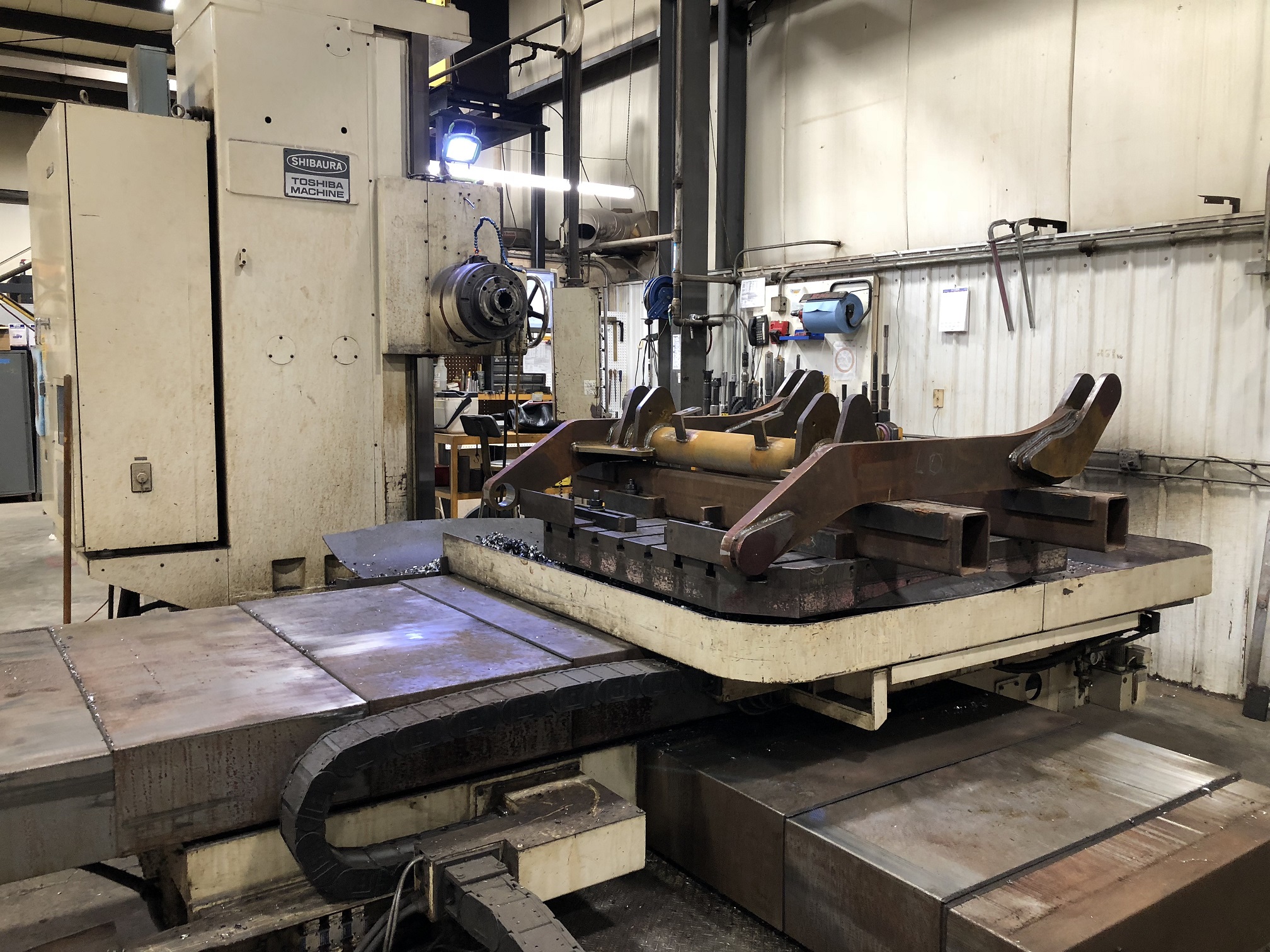

90 DEG. SHOT PIN ROTARY TABLE
POWER DRAW BAR

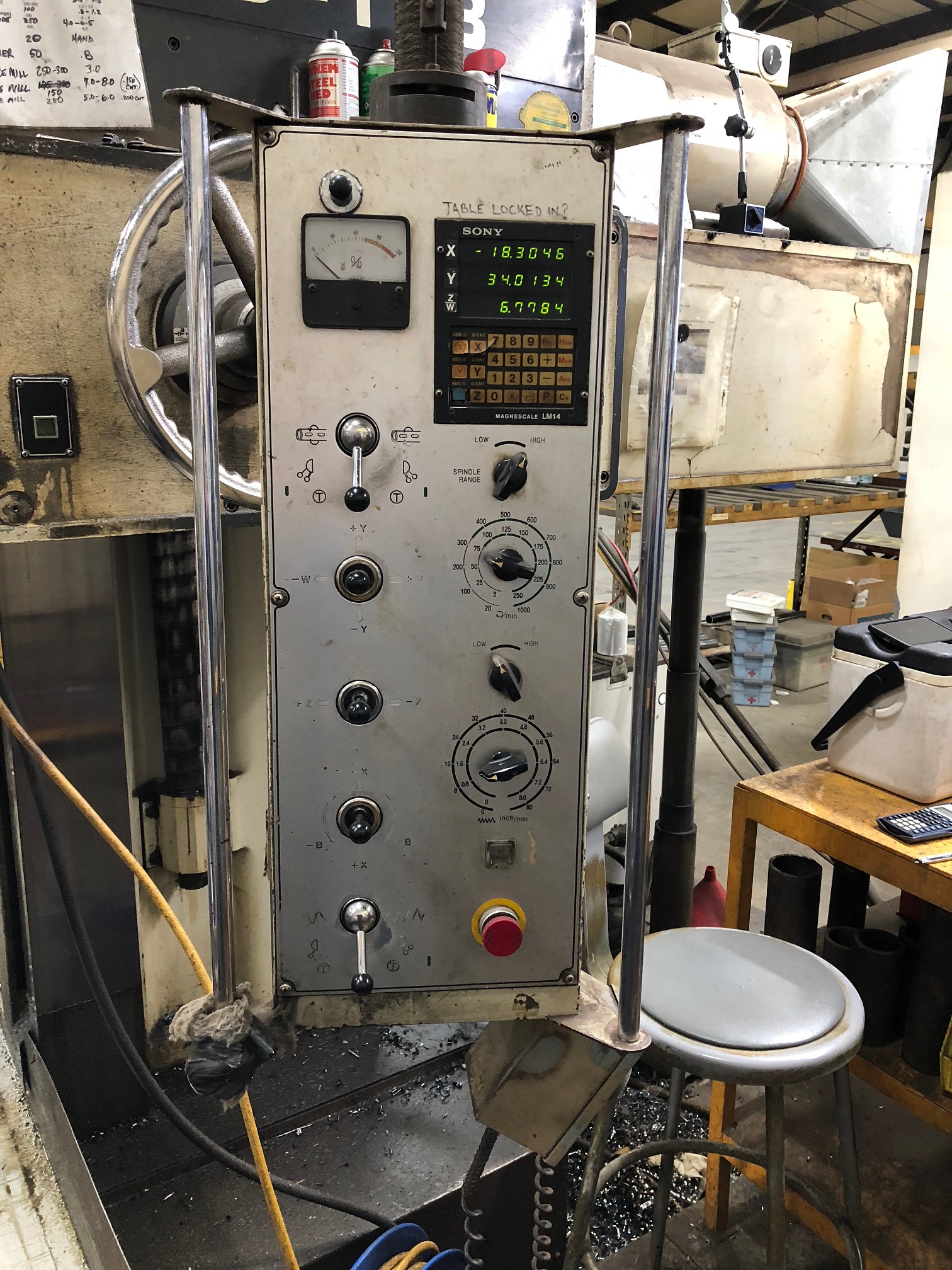

SONY 3 AXIS DIRECT READING DIGITAL READOUTS

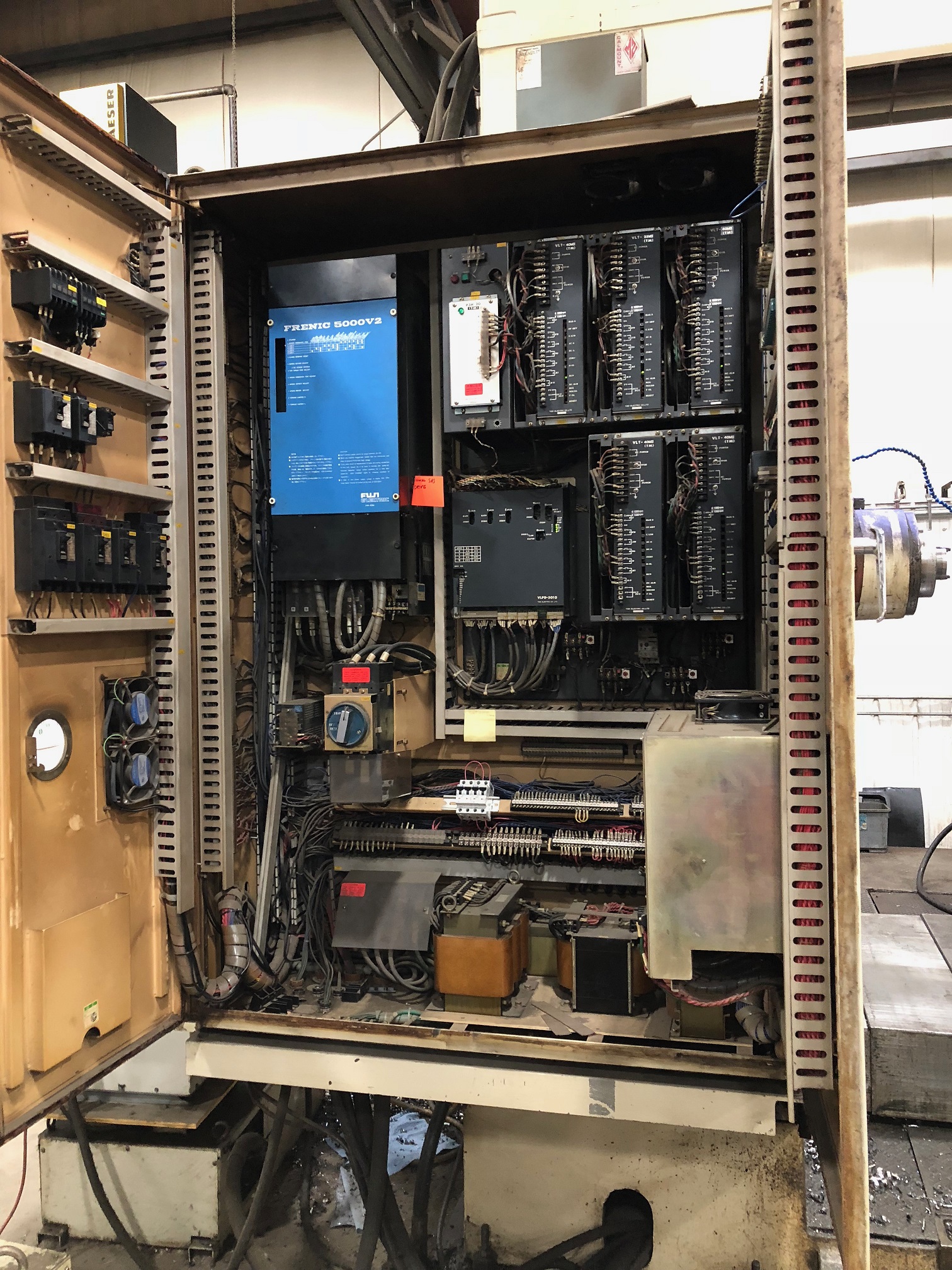

BALLSCREWS WITH DC SERVO DRIVES
WIRED FOR 220V 3 PHASE, CAN BE RUN 440 WITH TRANSFORMER.
COOLANT TANK

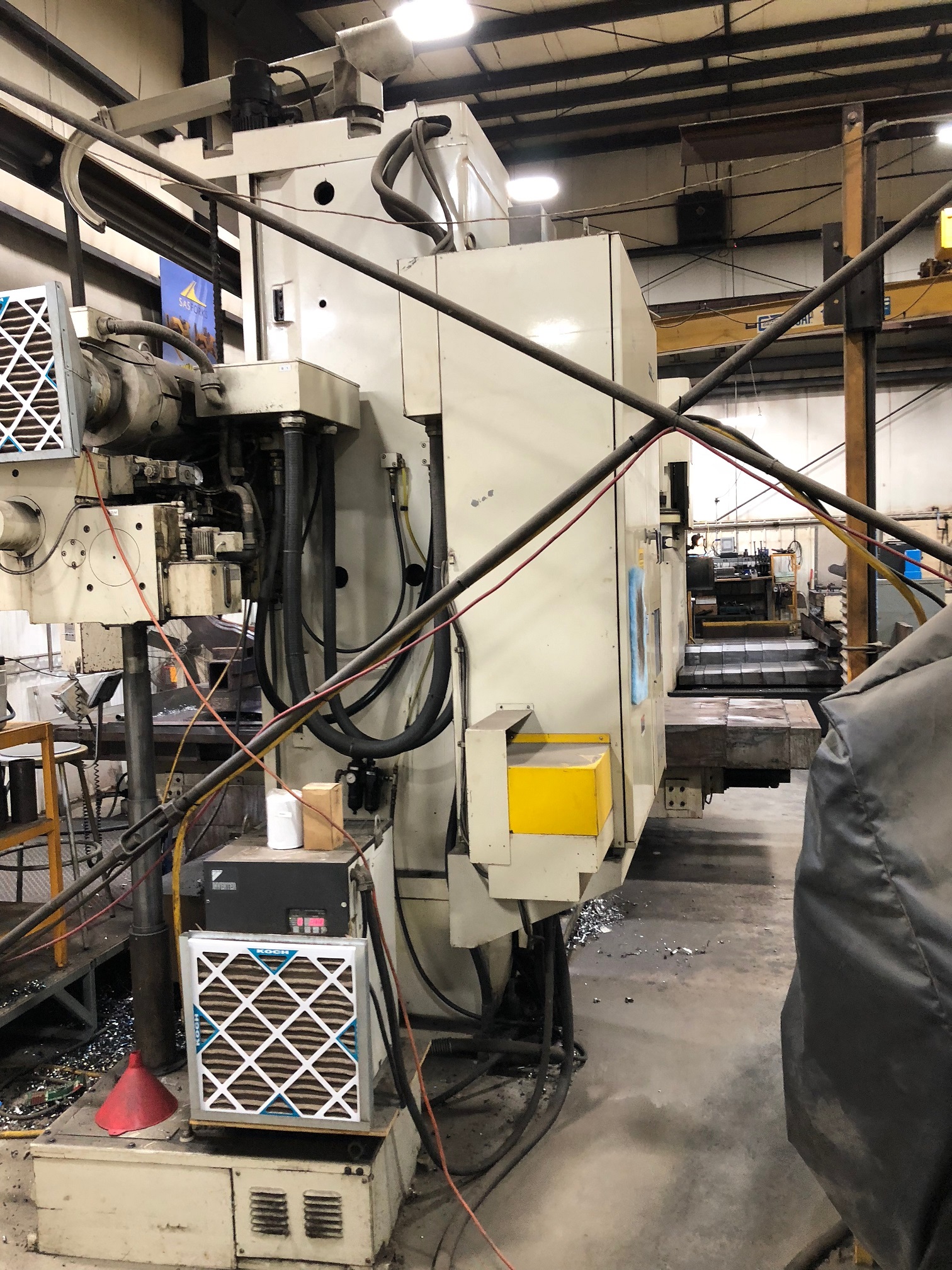

CHILLER
