Specifications
Equipped With
GENERAL SPECIFICATIONS:

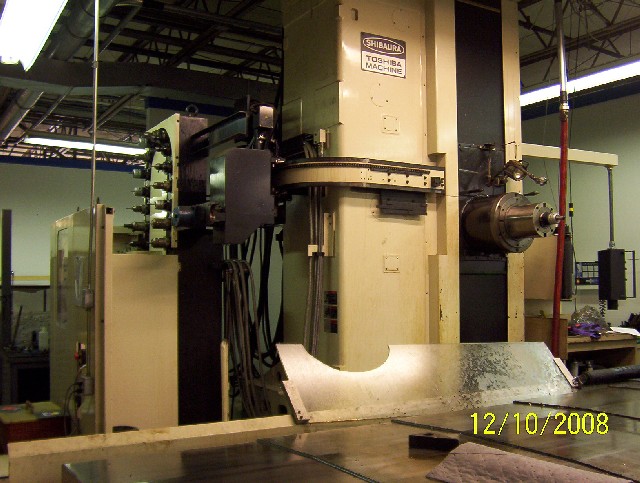

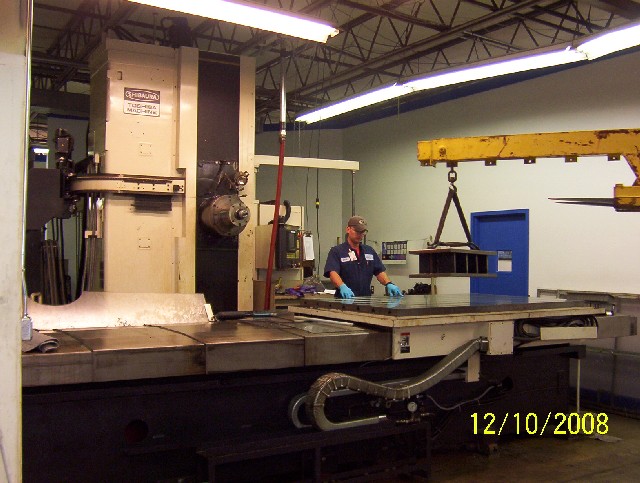

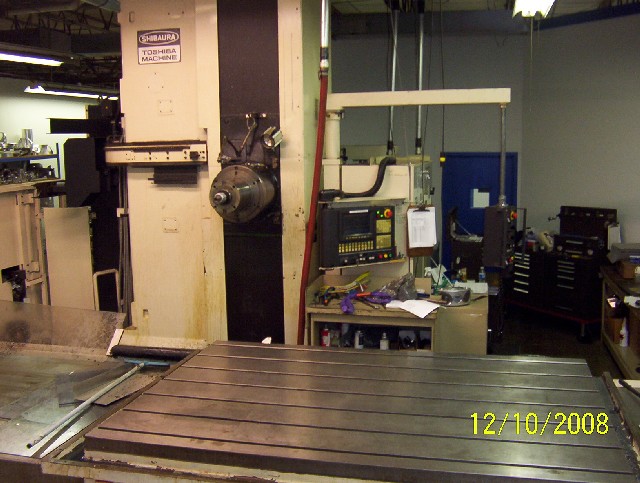

MANUFACTURER TOSHIBA
MODEL BP-110.P20
SERIAL 130263-1998
NEW (APPROX.) 1999
SPINDLE DIAMETER 4.33"
QUILL DIAMETER 9"
SPINDLE TAPER NO. 50
MAX SPINDLE SPEEDS 3000 RPM
X (CROSS) TRAVEL 100"
Y (VERTICAL) TRAVEL 65"
SADDLE TRAVEL 45"
SPINDLE TRAVEL 20"
TABLE TYPE PLAIN
TABLE SIZE 55 X 80
TABLE LOAD CAPACITY 40,000 LBS
TOOLCHANGER CAPACITY 38 TOOLS
RAPID TRAVERSE RATE 480 IPM
SPINDLE MOTOR 30/22 HP
FLOOR SPACE 182" FB X 311" LR X 219" H
EQUIPPED WITH:

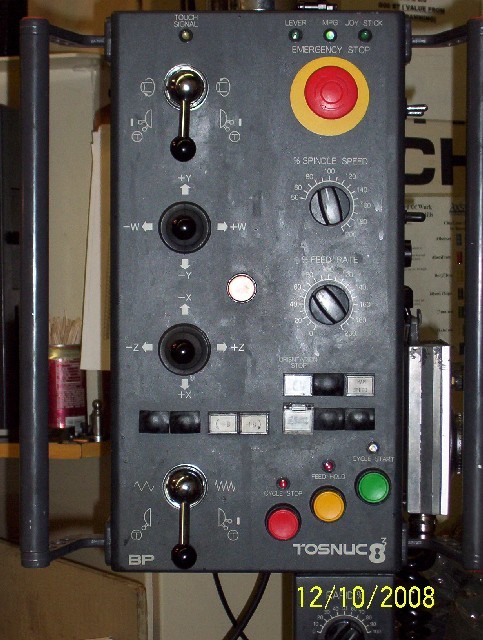

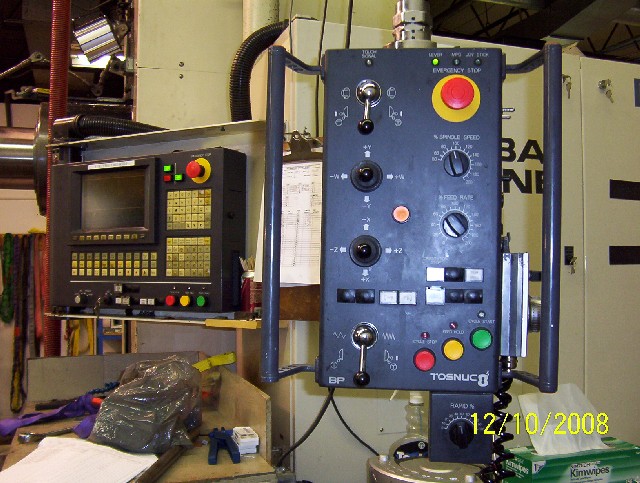

TOSNUC 888 CNC CONTROL

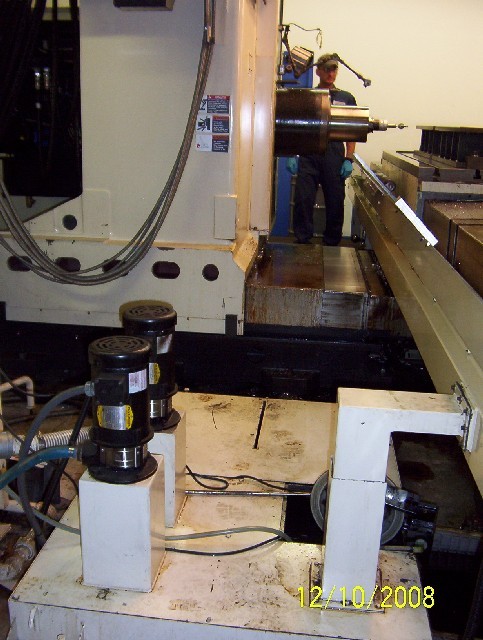

THRU SPINDLE AND FLOOD COOLANT
WIRED FOR 4TH AXIS ROTARY TABLE

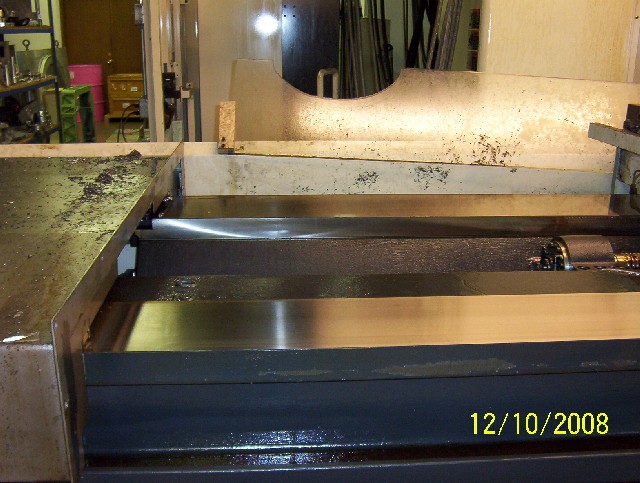

FULL WAY COVERS
CHIP CONVEYOR
TEACHING FUNCTION
HELICAL INTERPOLATION
FIXTURE OFFSETS
EXCEPTIONAL CONDITION FROM A AEROSPACE TOOLROOM TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
