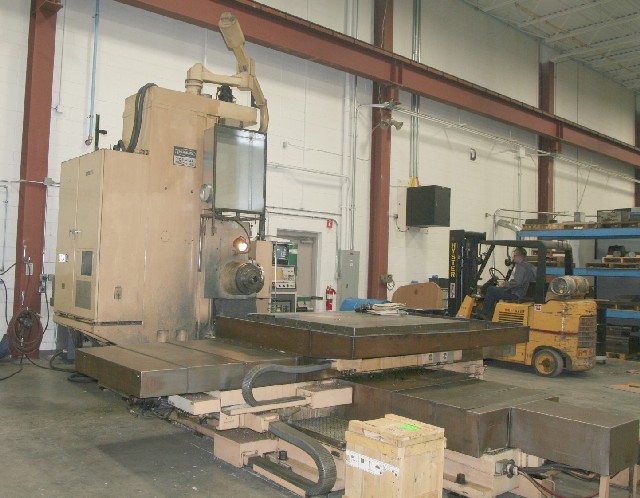

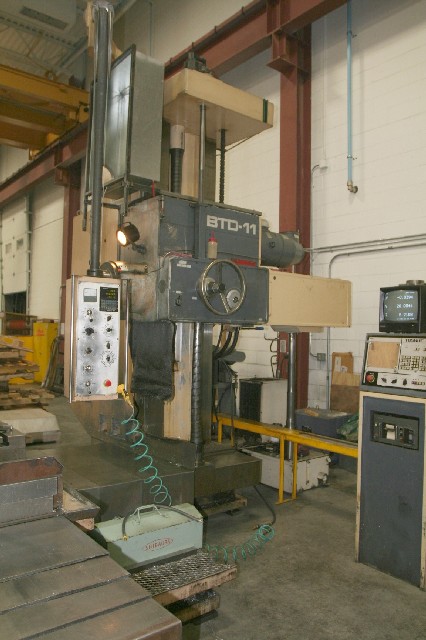

4.3" TOSHIBA, 0-1000 RPM, TOSNUC 2 CNC CONTROL, 55 X 63 ROTARY TABLE, 71 X 59 X 57 X 25 TRAVELS, 1983

GENERAL SPECIFICATIONS:

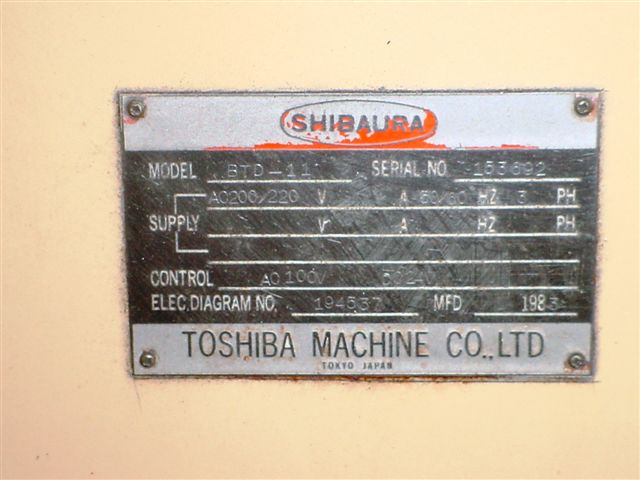

MANUFACTUER TOSHIBA

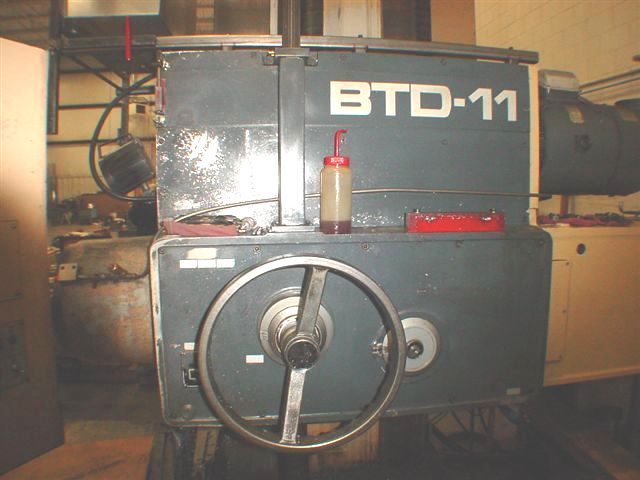

MODEL BTD-11
NEW (APPROX.) 1983

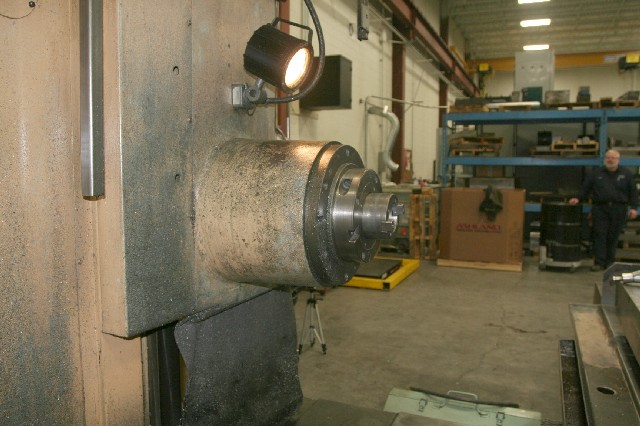

SPINDLE DIAMETER 4.30"
X-TRAVEL (CROSS) 71"
Y-TRAVEL (VERTICAL) 59"
Z-TRAVEL (SADDLE) 57"
W-TRAVEL (SPINDLE) 24"
TABLE SIZE 55" x 63"
TABLE LOAD 13,860 LBS.

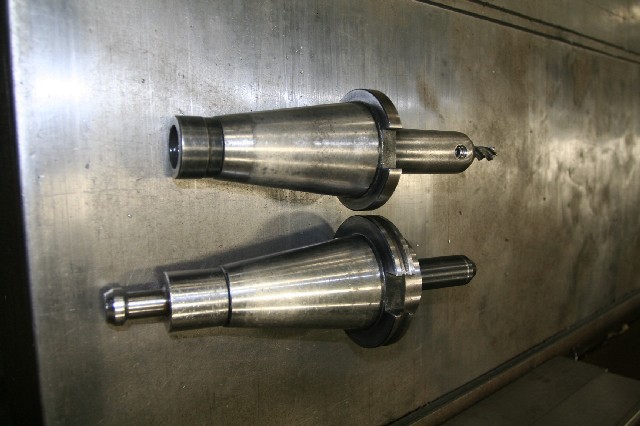

TAPER 50
SPINDLE SPEEDS (2 RANGES) 0 - 1000 RPM
SPINDLE HP 15 HP
ELECTRICS 220V/3PH
WEIGHT (APPROX.) 41,800 LBS.
DIMENSIONS (APPROX.) 231" x 227" x 173"H

EQUIPPED WITH:

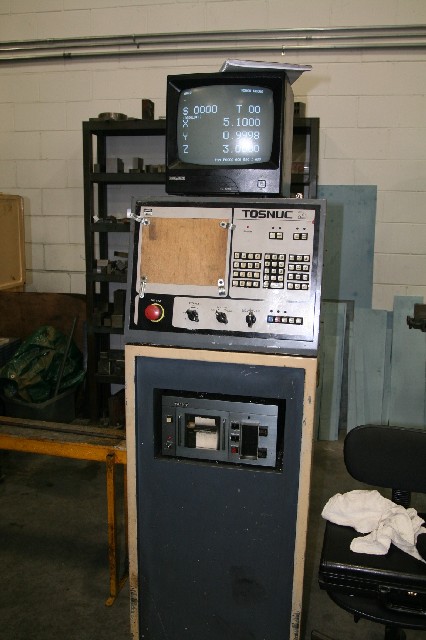

TOSNUC 2 CONTROL WITH CRT

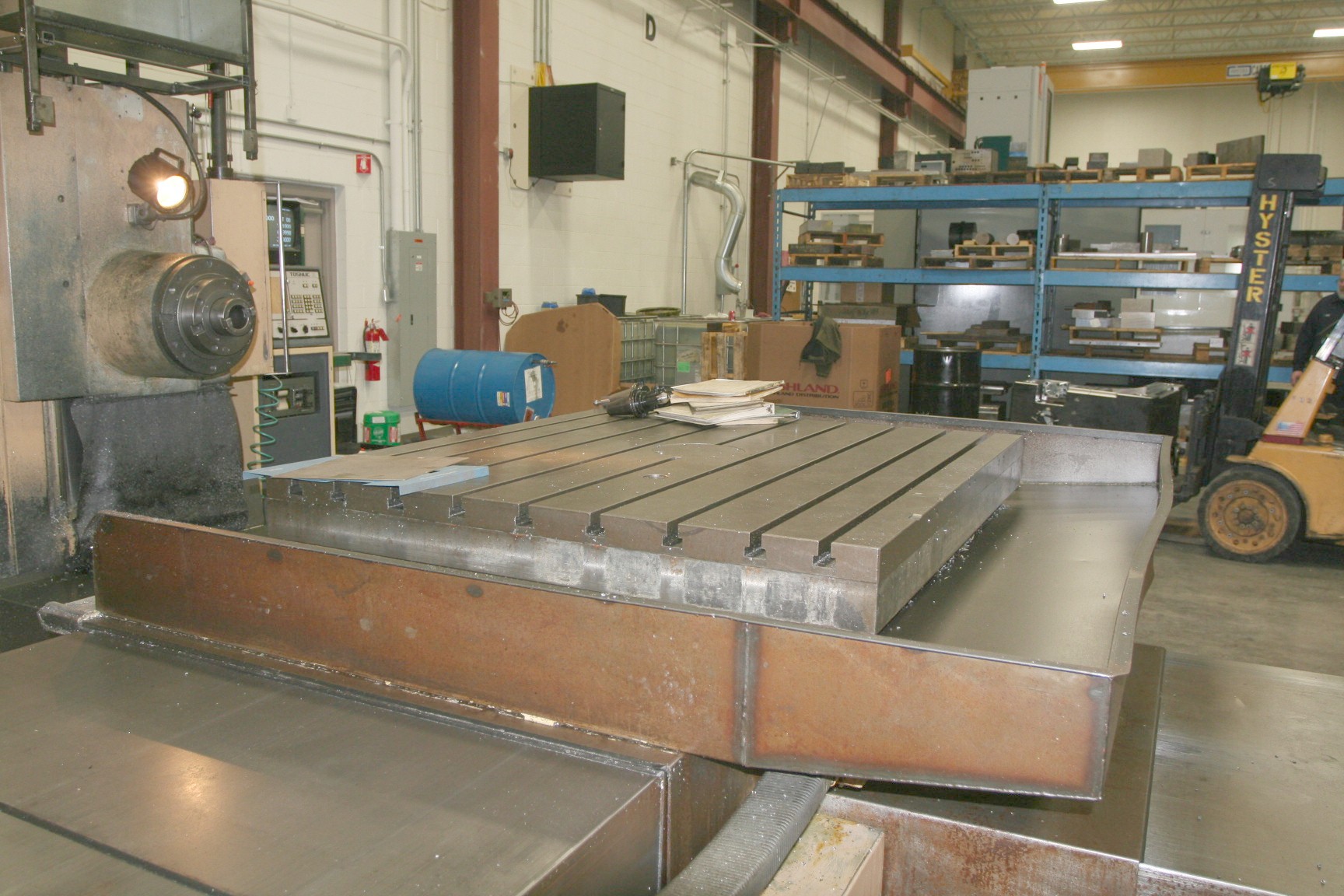

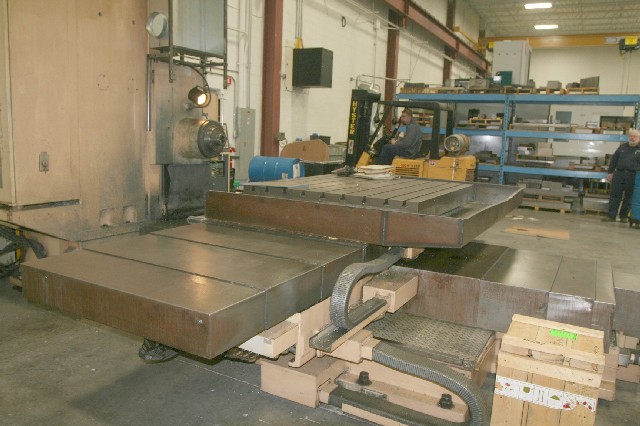

90 DEG. SHOT PIN ROTARY TABLE
POWER DRAW BAR
CHIP CONVEYOR
COOLANT TANK
WAY COVERS
