Specifications
Equipped With
GENERAL SPECIFICATIONS:

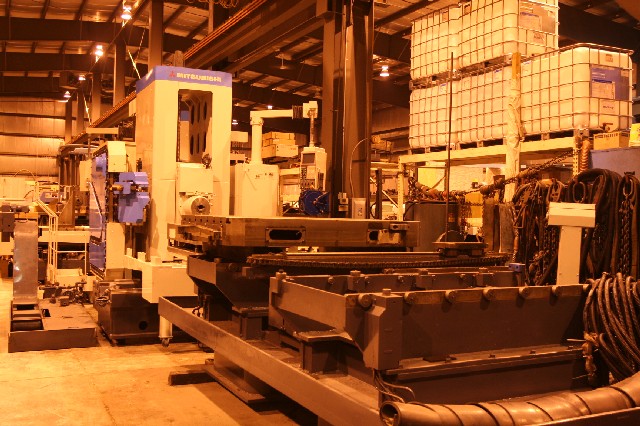

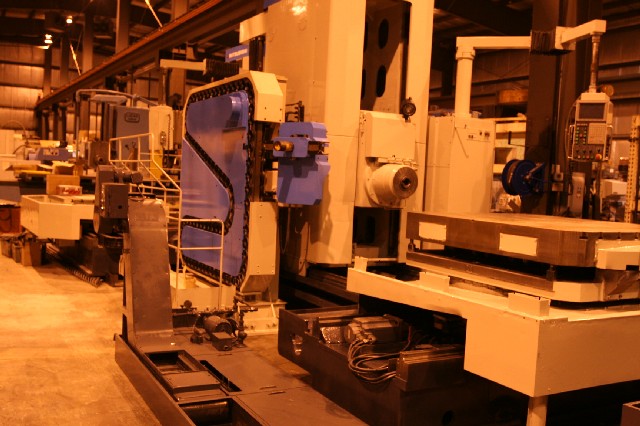

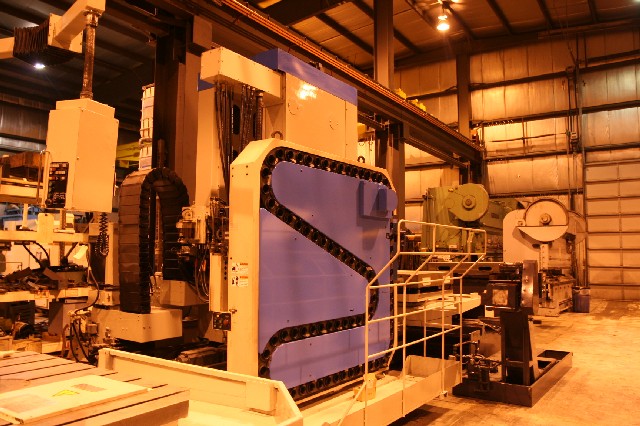

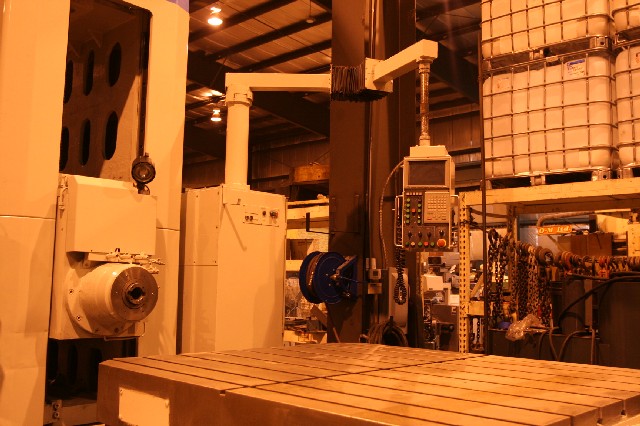

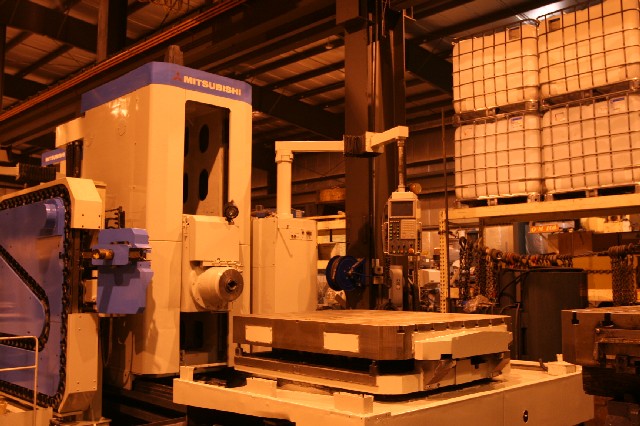

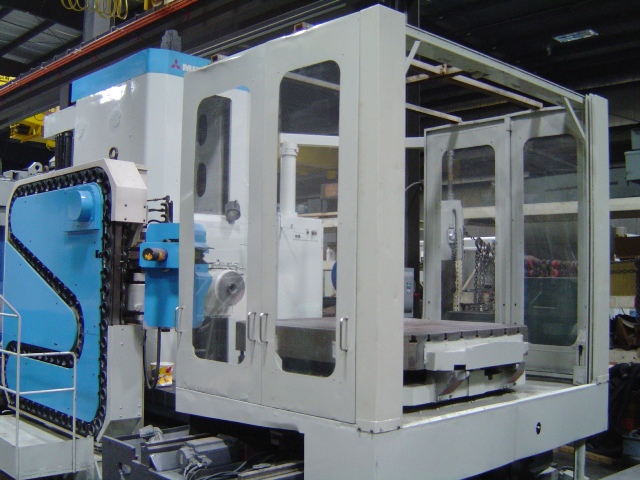

MANUFACTURER MITSUBISHI
MODEL M-HT11/1416
SERIAL NUMBER G61530
NEW (APPROX.) 1997
SPINDLE DIAMETER 4.3"
SPINDLE TAPER #50 CAT
VERTICAL TRAVEL OF HEADSTOCK 59.1"
CROSS TRAVEL OF TABLE 78.7"
SADDLE TRAVEL (IN & OUT) 59.1"
SPINDLE TRAVEL (IN & OUT) 19.7"
SPINDLE SPEED 10 - 2500 RPM
PALLET SIZE 55.1" x 63"
TABLE ROTATION (B AXIS) 360,000 POSITIONS
SPINDLE DRIVE 30 HP
AUTOMATIC TOOLCHANGER CAP. 80 TOOLS
SPINDLE TAPER 50
TABLE CAPACITY 17,600 LBS.
WEIGHT (APPROX.) 67,980 LBS.
OVERALL HEIGHT 157"
EQUIPPED WITH:
2 PALLET SHUTTLE

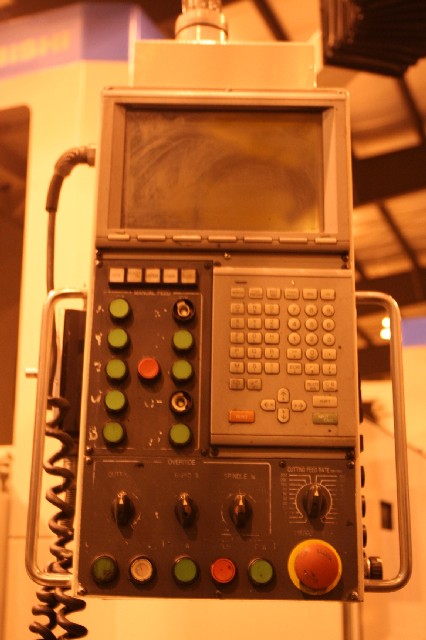

MITUSBISHI MELDAS 520M CNC CONTROL
SET OPTION B, THERMAL DISPLACEMENT COMPENSATION, MIRROR IMAGE, GRAPHICS, PLAYBACK PROGRAM
THRU SPINDLE AND FLOOD COOLANT
CHIP CONVEYOR
WORK PIECE MEASURING TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
