Specifications
Equipped With
GENERAL SPECIFICATIONS:

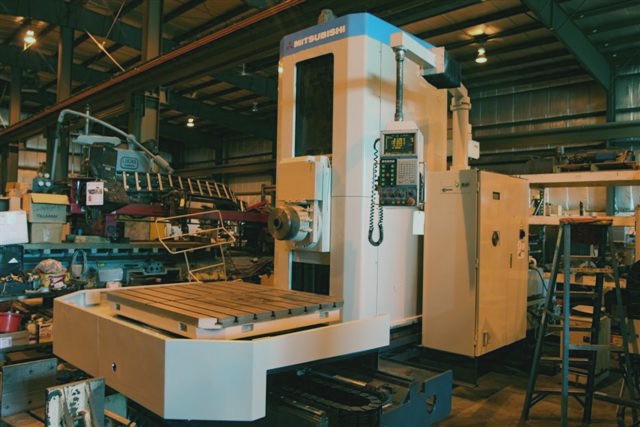

MANUFACTURER MITSUBISHI
MODEL M-HT11/1416
NEW (APPROX.) 1997
SERIAL NUMBER G51130
SPINDLE DIAMETER 4.3"
SPINDLE TAPER #50 CAT
VERTICAL TRAVEL OF HEADSTOCK 59.1"
CROSS TRAVEL OF TABLE 78.7"
SADDLE TRAVEL (IN & OUT) 59.1"
SPINDLE TRAVEL (IN & OUT) 19.7"
SPINDLE SPEED 10 - 2500 RPM
TABLE SIZE 55.1" x 63"
TABLE ROTATION (B AXIS) 360,000 POSITIONS
SPINDLE DRIVE 30 HP

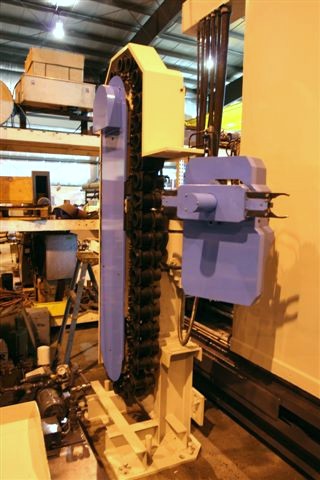

AUTOMATIC TOOLCHANGER CAP. 40 TOOLS
SPINDLE TAPER 50
TABLE CAPACITY 17,600 LBS.
WEIGHT (APPROX.) 67,980 LBS.
EQUIPPED WITH:

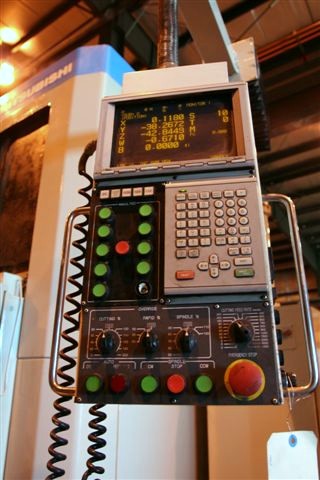

MITUSBISHI MELDAS 520M CNC CONTROL
SET OPTION B, THERMAL DISPLACEMENT COMPENSATION, MIRROR IMAGE, GRAPHICS, PLAYBACK PROGRAM
THRU SPINDLE AND FLOOD COOLANT
CHIP CONVEYOR
WORK PIECE MEASURING TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
