Specifications
Equipped With
MACHINE SPECIFICATIONS:

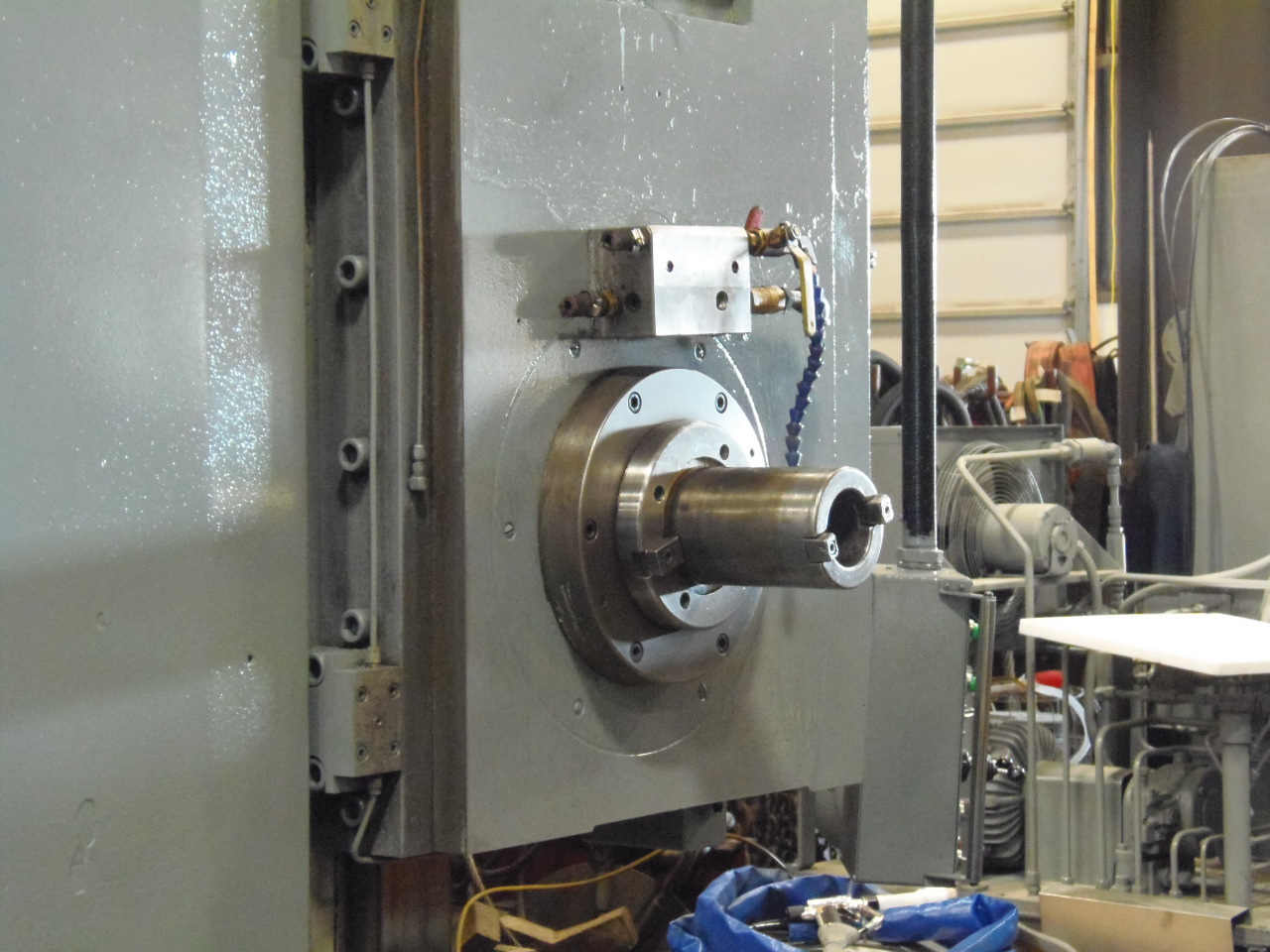

Spindle
diameter............................... 4.33"
Spindle
taper.................................. NMTB 50
Spindle speeds (16)............................ 12
- 1200 RPM

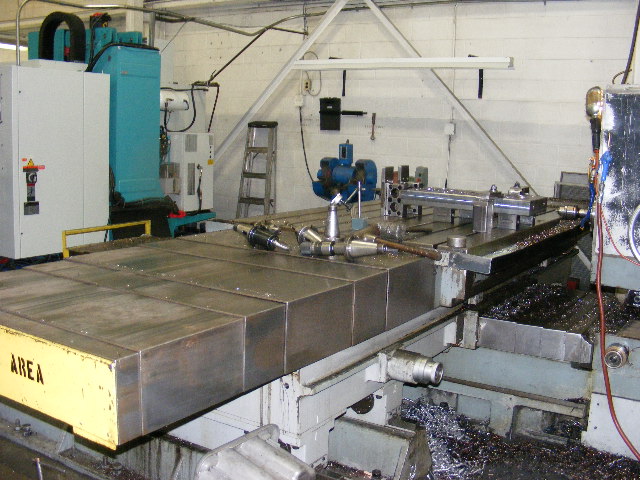

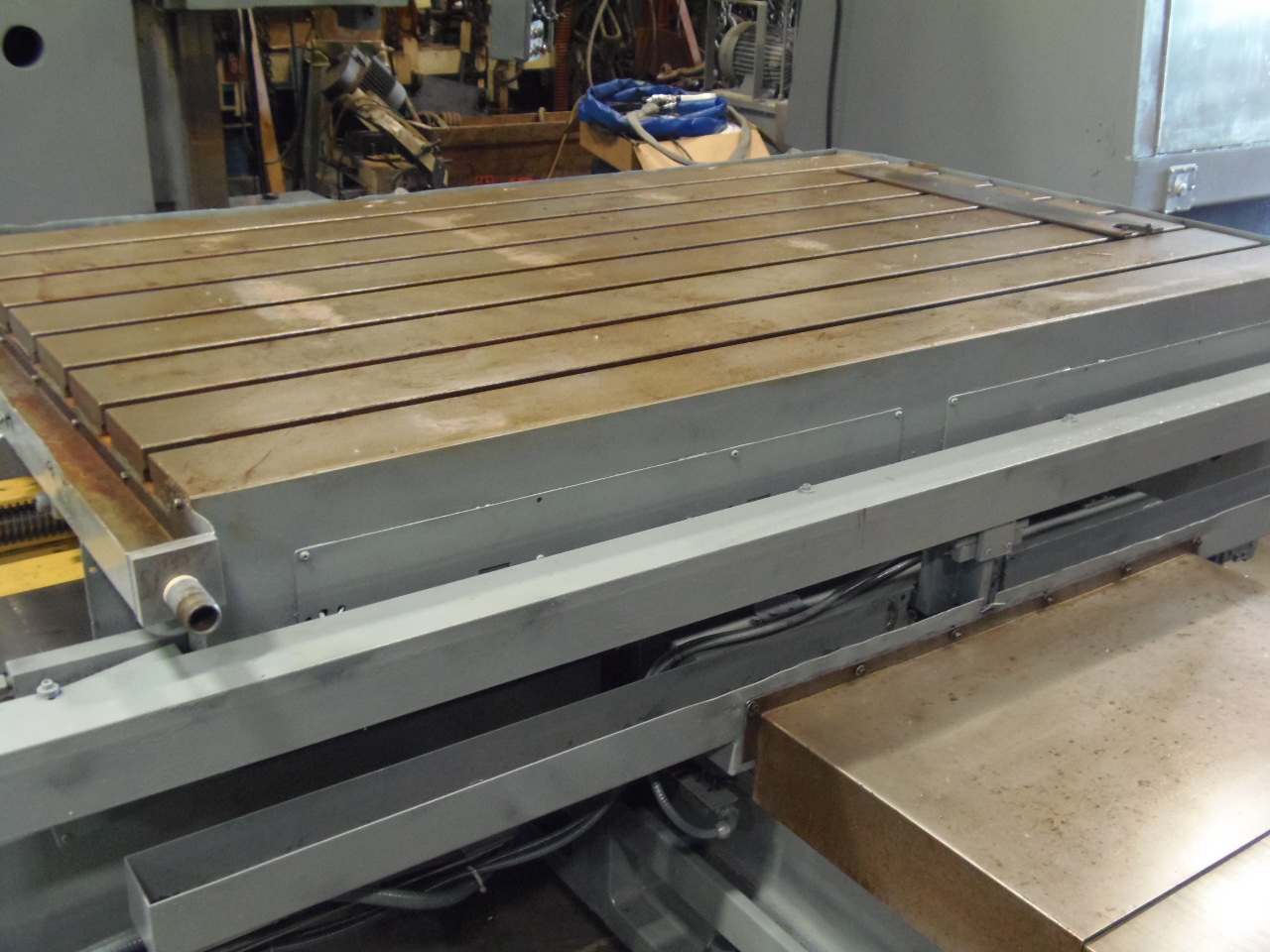

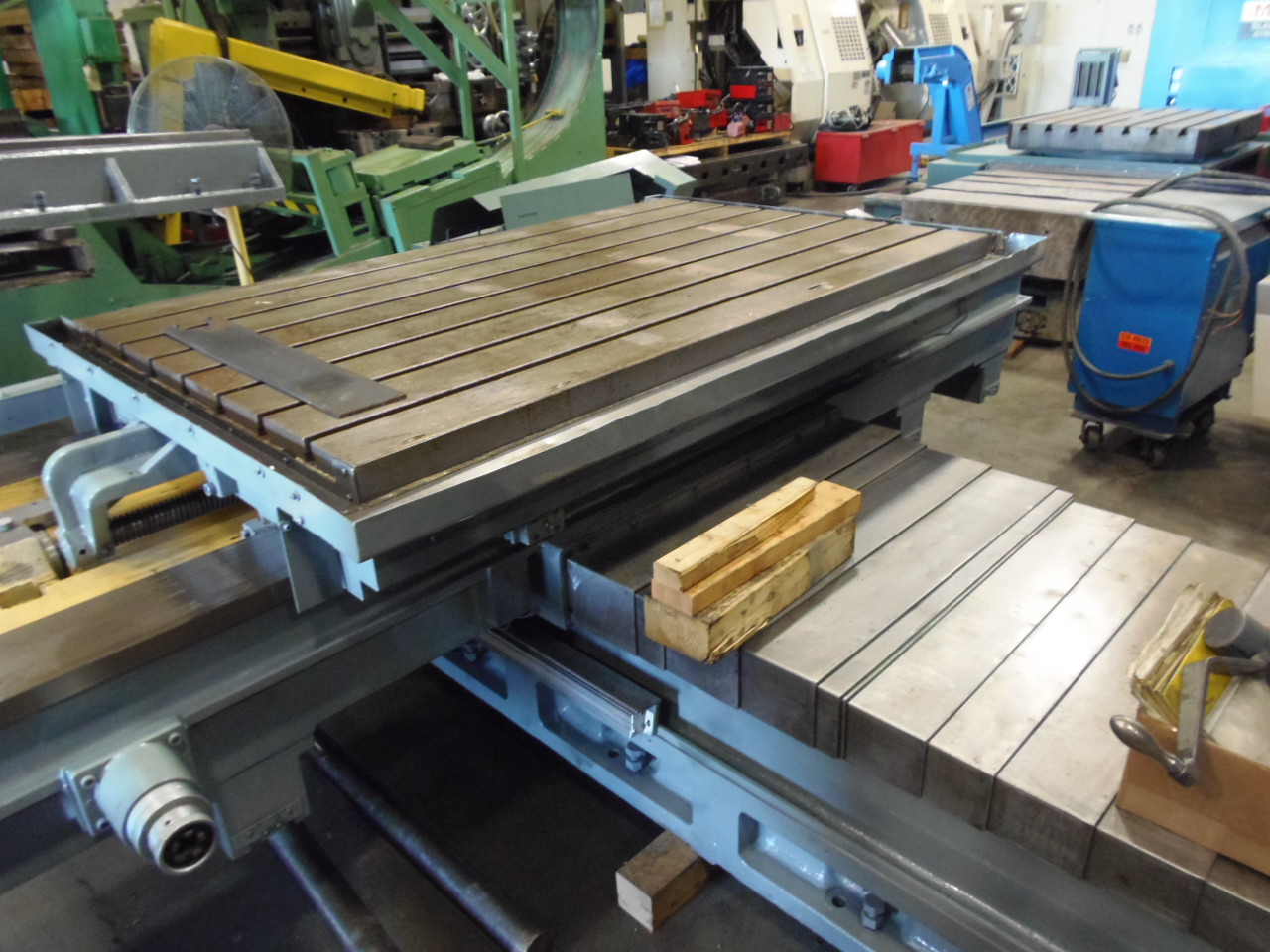

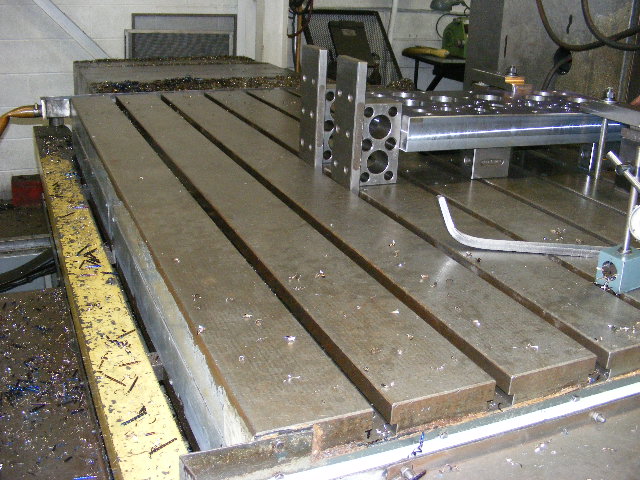

Table
size..................................... 49" x
78.7"
Table load capacity............................
13,200 Lbs.
Travel -
cross................................. 84"
Travel -
vertical.............................. 72"
Travel -
longitudinal.......................... 59"
Travel -
spindle............................... 31.5"
Feeds -
boring (16)............................ 0.001 - 0.2
in/rev
Feeds - milling (16)...........................
0.25 - 48 in/rev
Feeds -
rapid.................................. 100 ipm

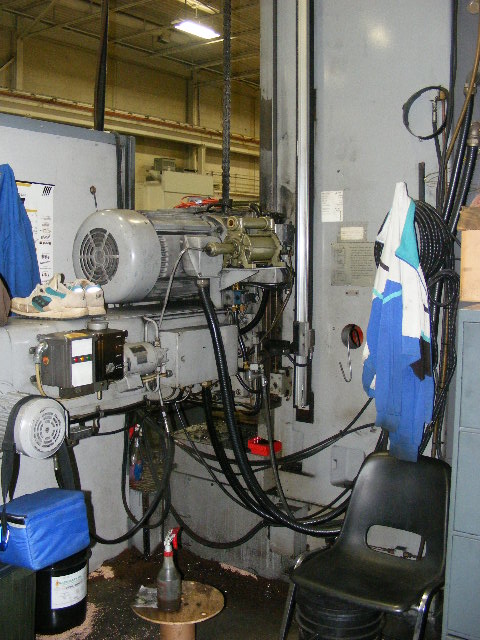

Main
motor..................................... 20
HP
Floor space LxWxH.............................. 229" x
207" x 157"
Approximate
weight............................. 58,000
Lbs
Equipped with:

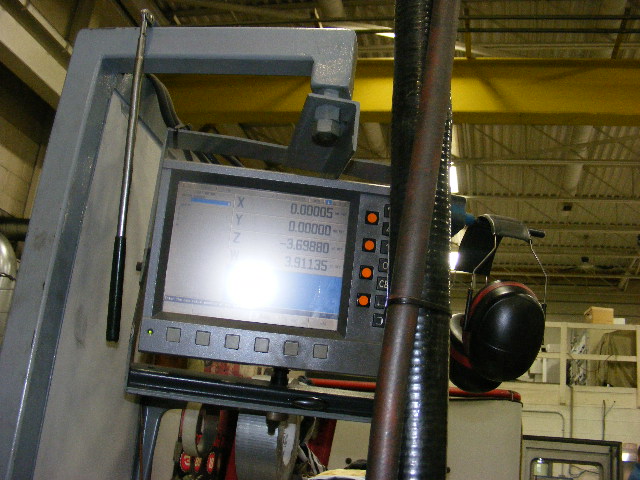

-4 axes Heidenhain DRO

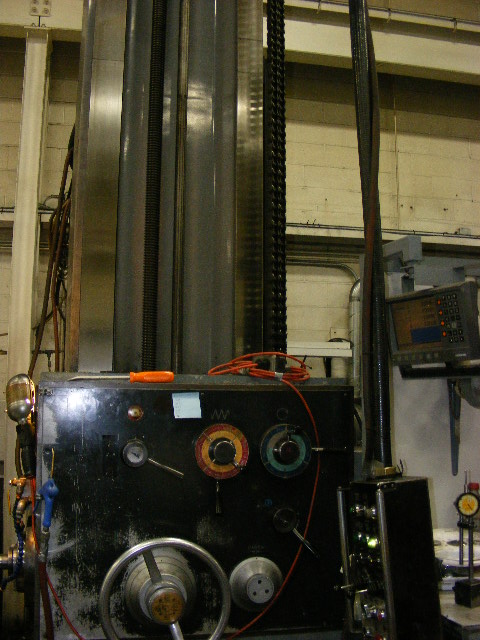

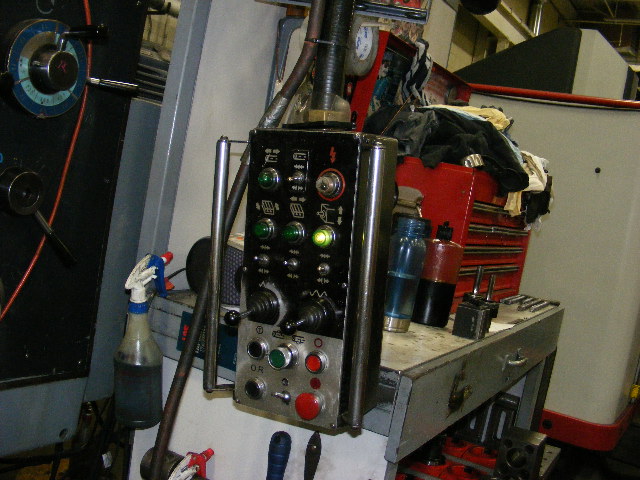

-Pendant
control
-Power drawbar
-Coolant tank
