Specifications
Equipped With
GENERAL SPECIFICATIONS:

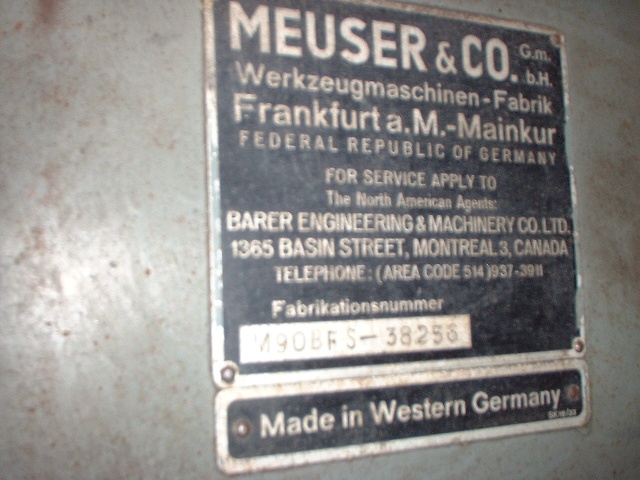

MANUFACTURER........................ MEUSER
MODEL............................... M90BFS-38256
SPINDLE DIAMETER.................... 4.25"
SPINDLE TAPER....................... MT#6
SPINDLE MOTOR....................... 15HP

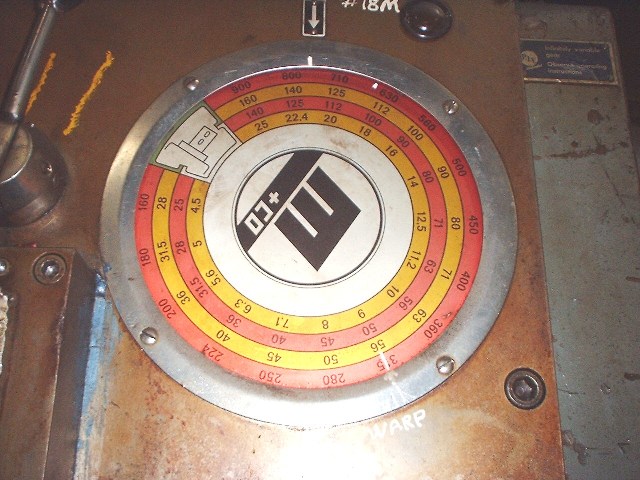

SPINDLE SPEEDS...................... 4.5 - 900 RPM
TRAVELS (X)......................... 60"
(Y)......................... 44"
(Z)......................... 37"
(W)......................... 70" APPROXIMATELY
FEED RATE........................... .0004 - 46 FPM
ELECTRICS........................... 480 VOLTS
EQUIPPED WITH:

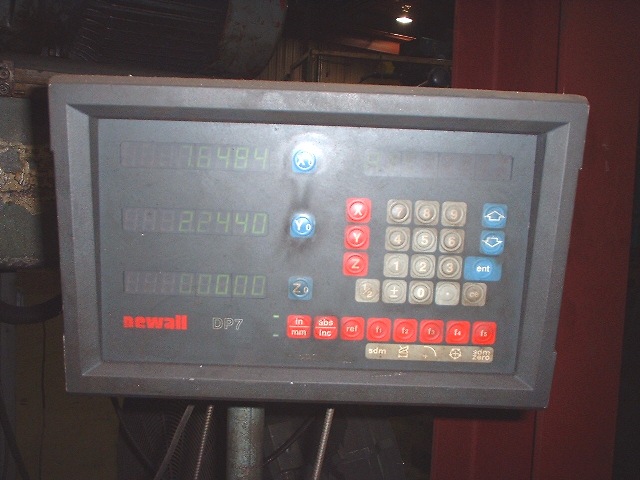

NEWALL DP7 READOUTS (3 AXIS)
30" FACING HEAD
OUTBOARD SUPPORT W/ 4.25" BORE
50 TAPER QUICK CHANGE TOOL HOLDER

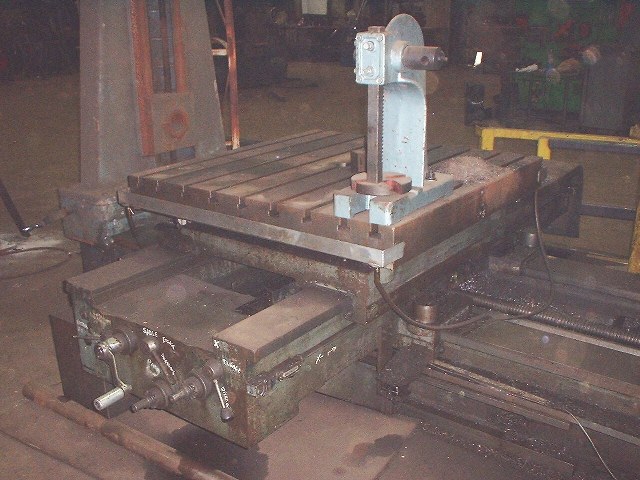

47" X 47" ROTARY TABLE
** PRICE AS IS, WHERE IS **
