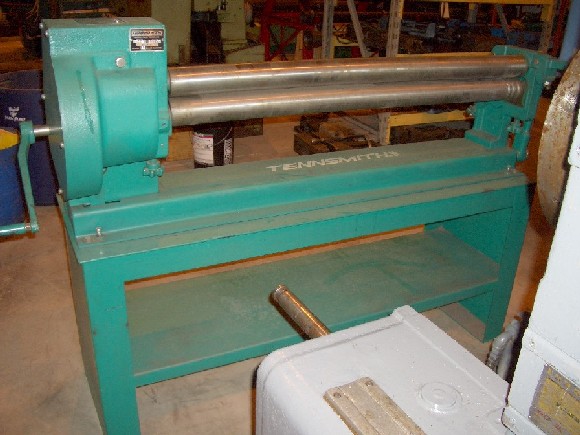

4' 16 GA. TENNSMITH, MDL SR48, 48" LENGTH, 3" DIA., ADJ. LOWER ROLL, MANUAL DROP END, 1998

GENERAL SPECIFICATIONS:
MANUFACTURER TENNSMITH
MODEL SR48
SERIAL # 16572
NEW (APPROX.) 1998
MAX. FORMING LENGTH 48"
CAPACITY (MILD STEEL) 16 GA.
ROLL DIAMETER 3"
MIN. FORMING RADIUS 1.5"
WIRE GROOVES 3/8", 1/2" & 5/8"
GEARING RATIO 4:1
WEIGHT (APPROX.) 1,100 LBS.

EQUIPPED WITH:
OPTIONAL STAND

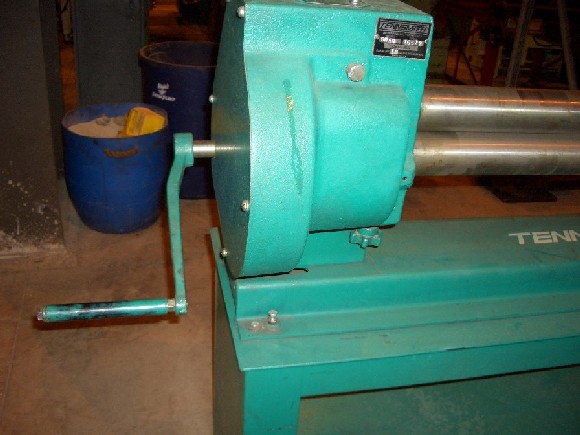

MANUAL DROP END
ADJUSTABLE LOWER ROLL
