Specifications
Equipped With
GENERAL SPECIFICATIONS:

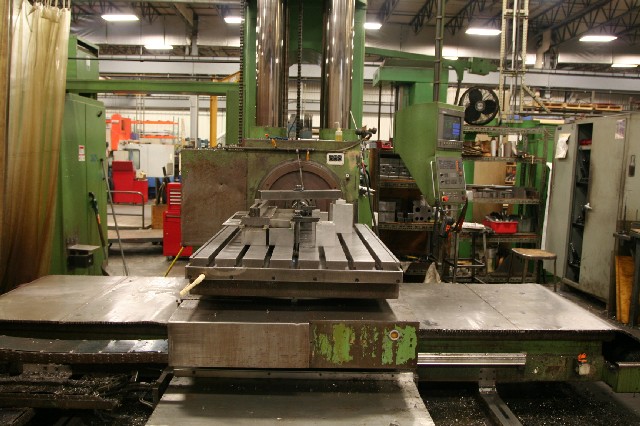

MANUFACTURER..................... SCHARMANN
MODEL............................ FB-100
AGE.............................. 1972/1999
SERIAL NUMBER.................... 144198
SPINDLE DIAMETER................. 4" (100MM)
SPINDLE TAPER.................... NO. 50
SPINDLE SPEEDS (INF.VARIABLE).... 65-1050 RPM
X (CROSS) TRAVEL ................ 75.8" (1925 MM)
Y (VERTICAL) TRAVEL.............. 45.8" (1163 MM)
SADDLE TRAVEL.................... 52.1" (1323 MM)
SPINDLE TRAVEL................... 22.5" (571 MM)
SPINDLE MOTOR.................... 20 HP
TABLE SIZE....................... 37" x 51"(940 MM X 1295 MM)
INDEXING POSITIONS............... 360,000
OVERALL HEIGHT................... 11' (3352 MM)
EQUIPPED WITH:
REFURBISHED AND RETROFITTED IN 1999

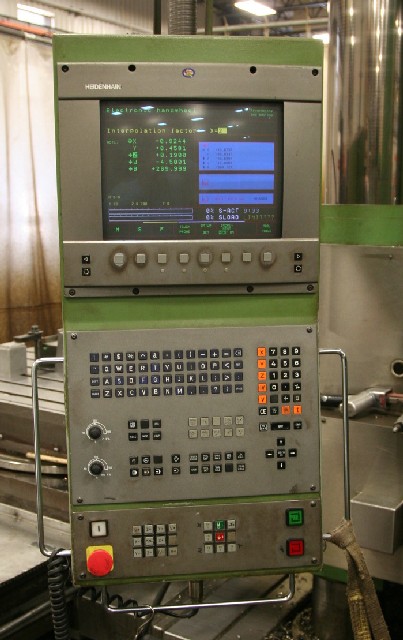

HEIDENHAIN TNC 426 CB CONTROL RETROFITTED IN 1999
INTERACTIVE GRAPHICS
CONVERSATIONAL PROGRAMMING
3 AXIS SIMULTANEOUS
NESTING AND SUBROUTINES
NUMEROUS CANNED CYCLES
FULL WAY COVERS
PENDENT CONTROL
POWER DRAW BAR
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
