39" Gidding & Lewis, Model VTC-1000, NEW 2010, FIXED RAIL, RAM, 25 ATC, SIEMENS 840D CONTROL, PROBE, CHIP CONVEYOR

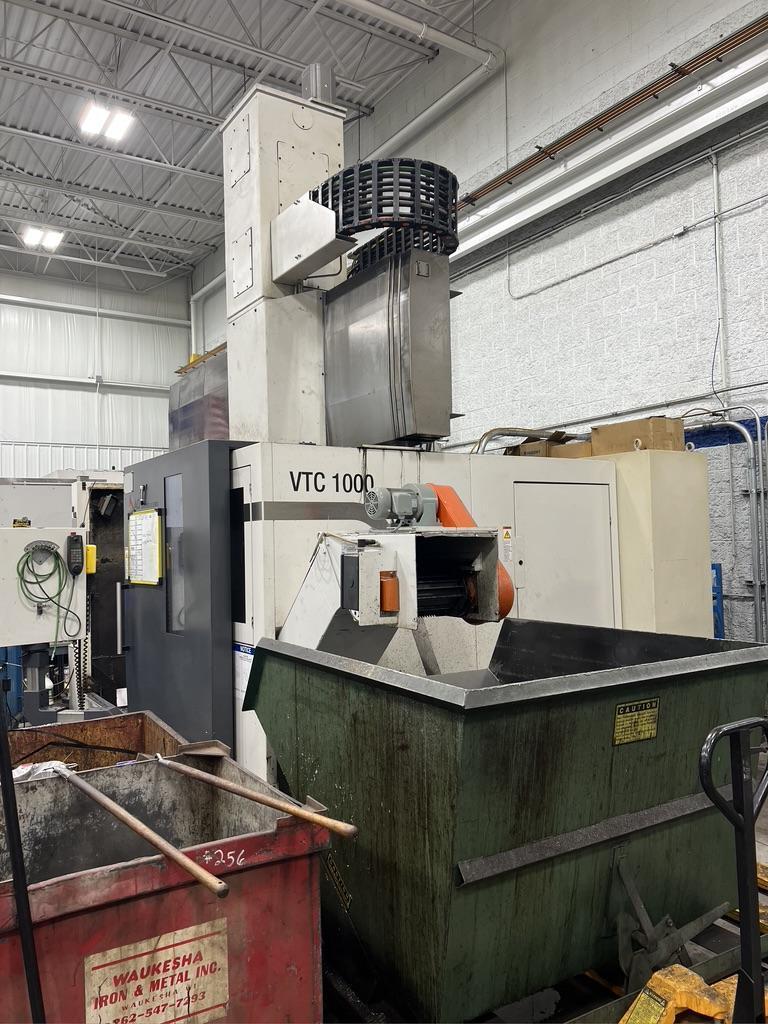

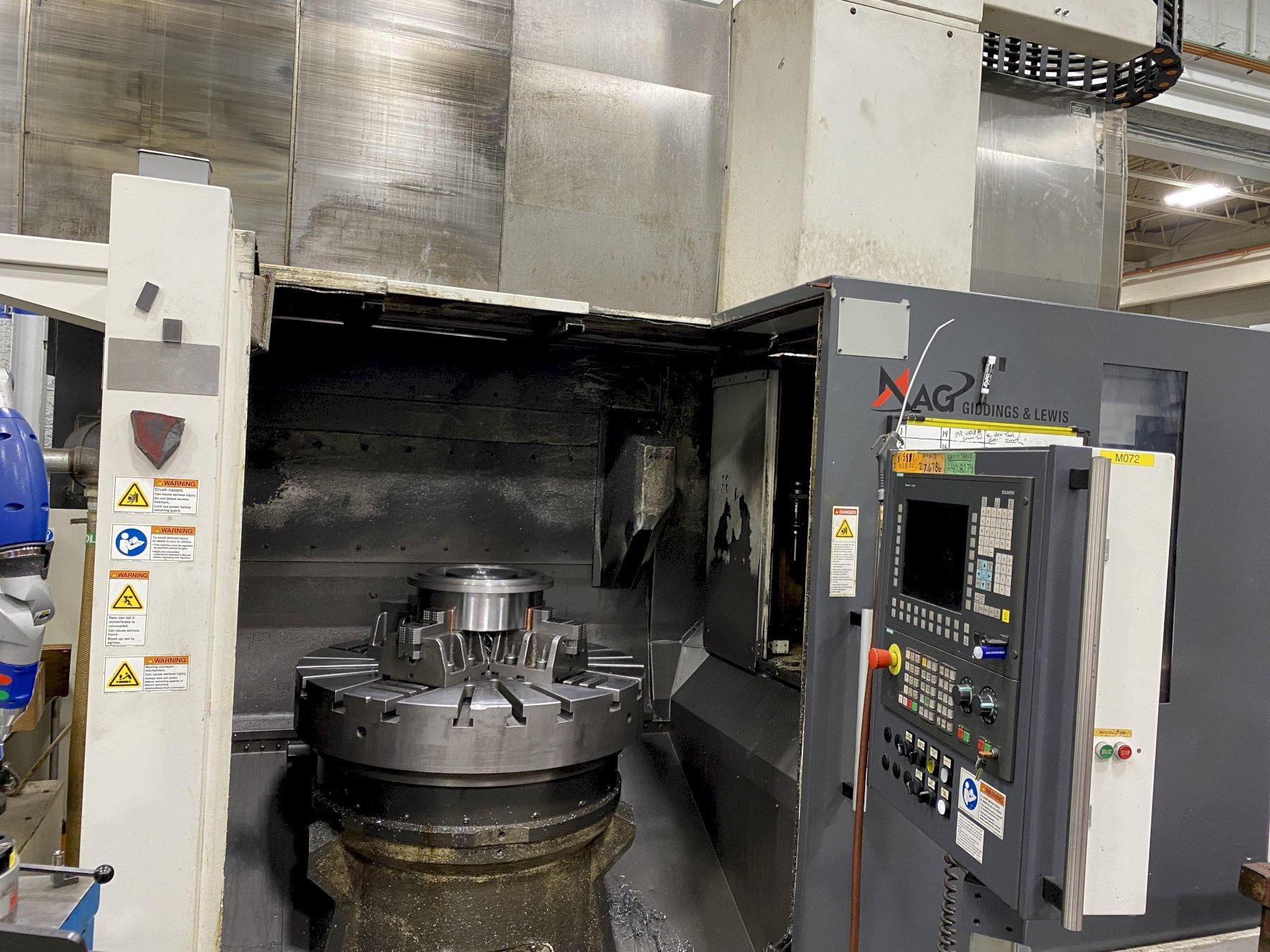

2010 G&L VTC-1000 CNC (Fixed Rail) Vertical Turning Center

SN : 523-0002

Spindle Direction: Vertical

CNC Type: Siemens CNC Control

Chuck Size (in.) 39.400"

Max. Swing: 51.180"

Turning Diameter 39.37"

Max Height from Top of Spindle to Bottom of Ram 46.65"

Ram Travel (Z-Axis) 29.53"

Horizontal Travel (X Axis) -

Right of Center - 33.07"

Left Of Center - 14.57"

Rapid Traverse - 787 IPM

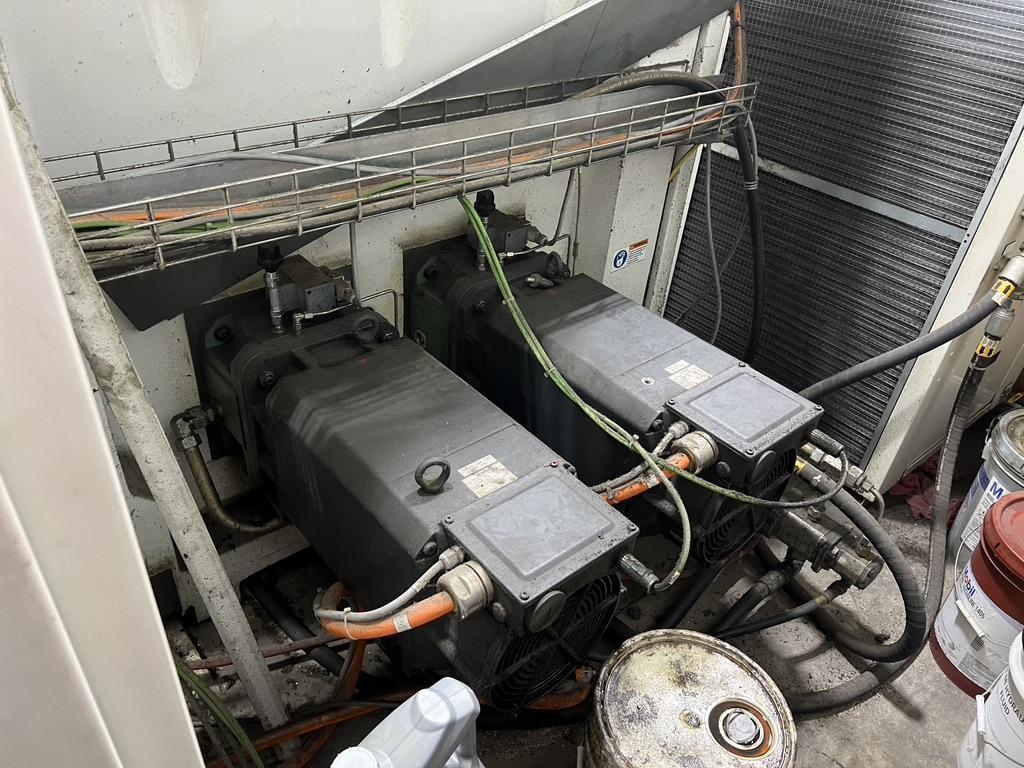

Table Drive Motor - 75 HP

SINGLE SPINDLE

# of Main Spindles: 1

Main Spindle: rpm: 750

TOOLING

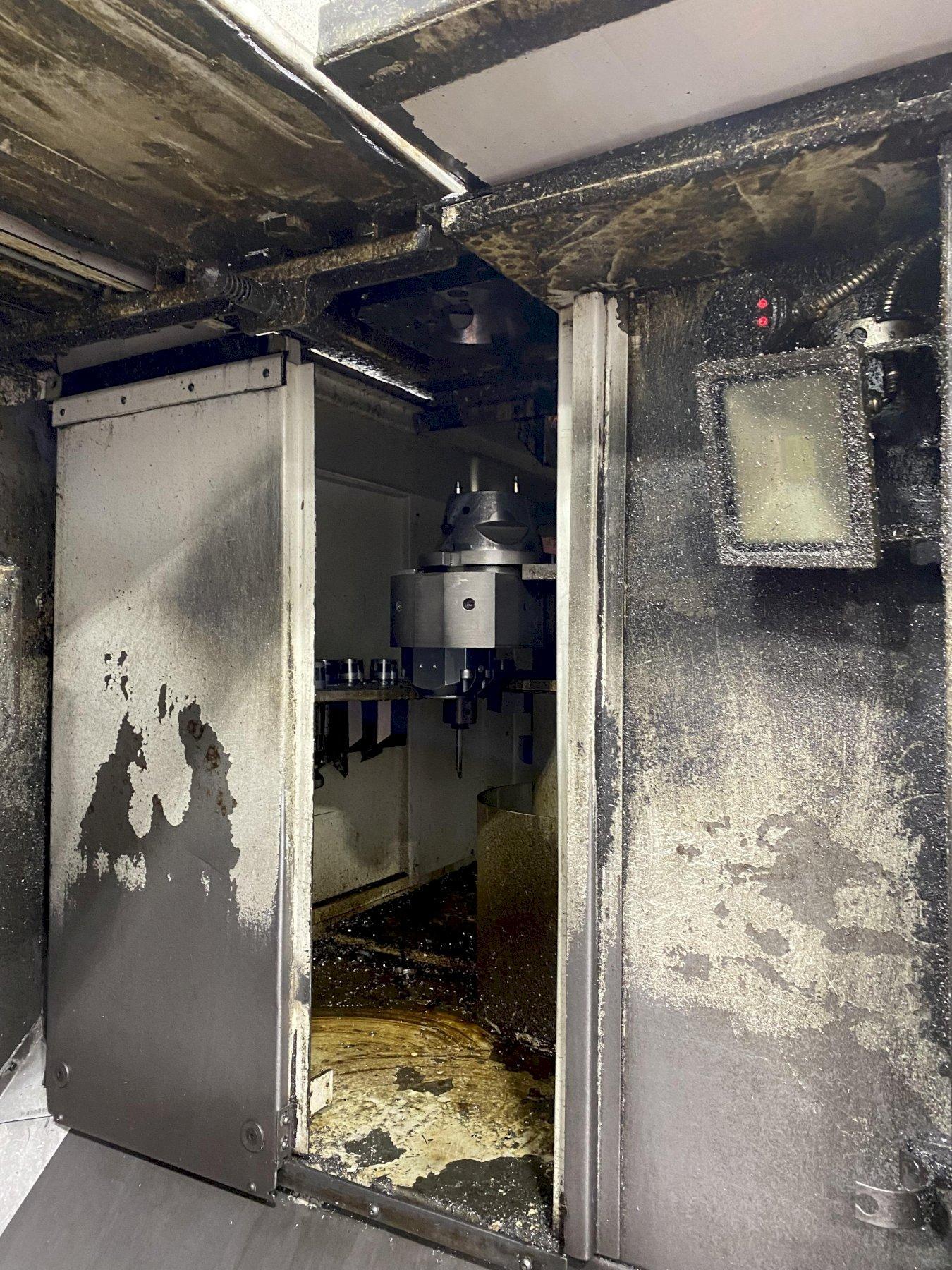

Primary Tool Carrier: ATC

Max Tools 25

Travel Max Feed Rapid Rate

X1 Std. 33.000 in. 787 ipm

Z1 Std. 29.500 in. Opt. 49.20 in. 787 ipm

WEIGHTS AND MEASURES

Length 173 in.

Width 165 in.

Height 197 in.

Weight 65,000 lbs.

Options -

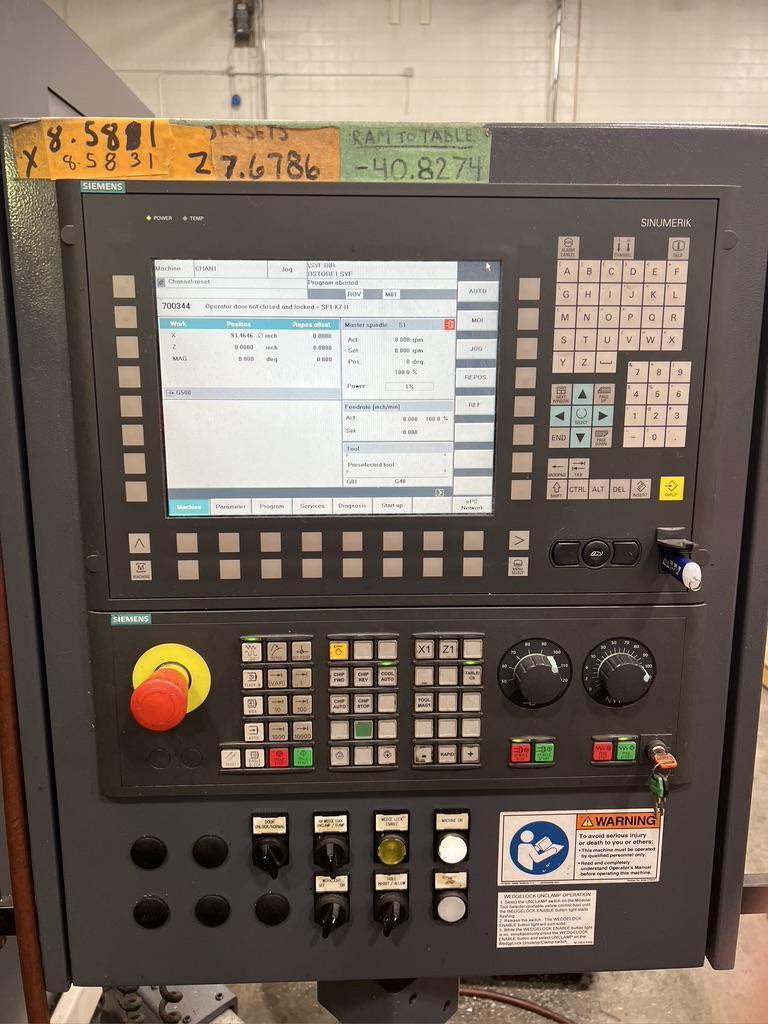

Siemens SINUMERIK 840D CNC Control

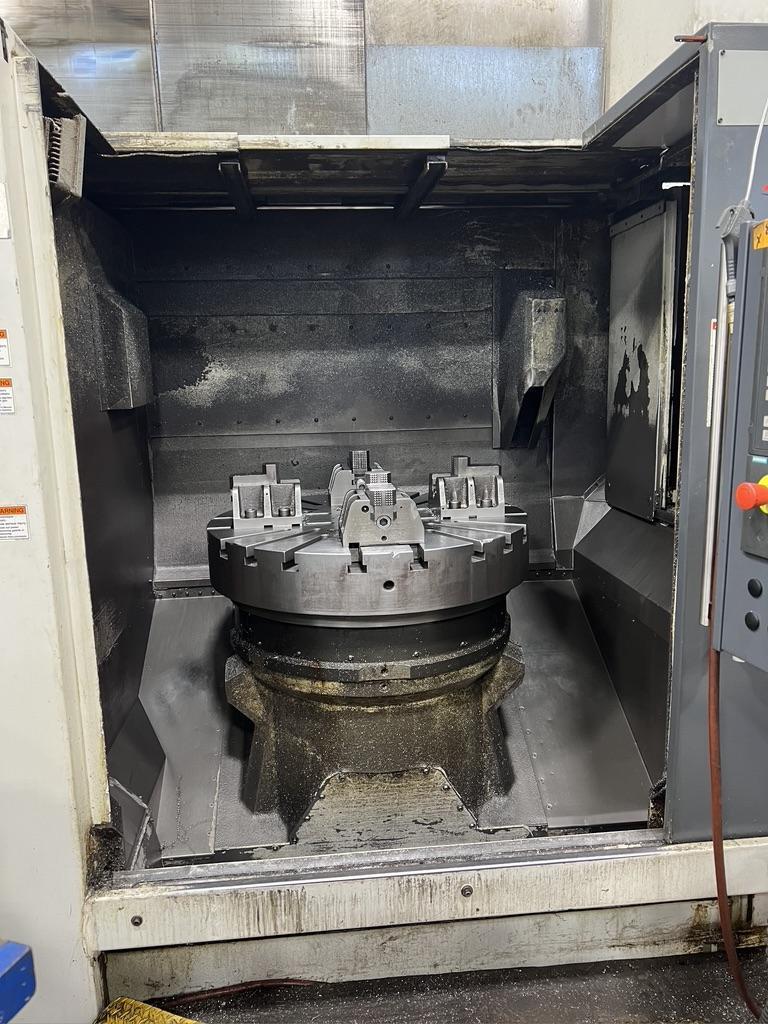

39” 4-Jaw Chuck

New Chip Conveyor installed in 2020

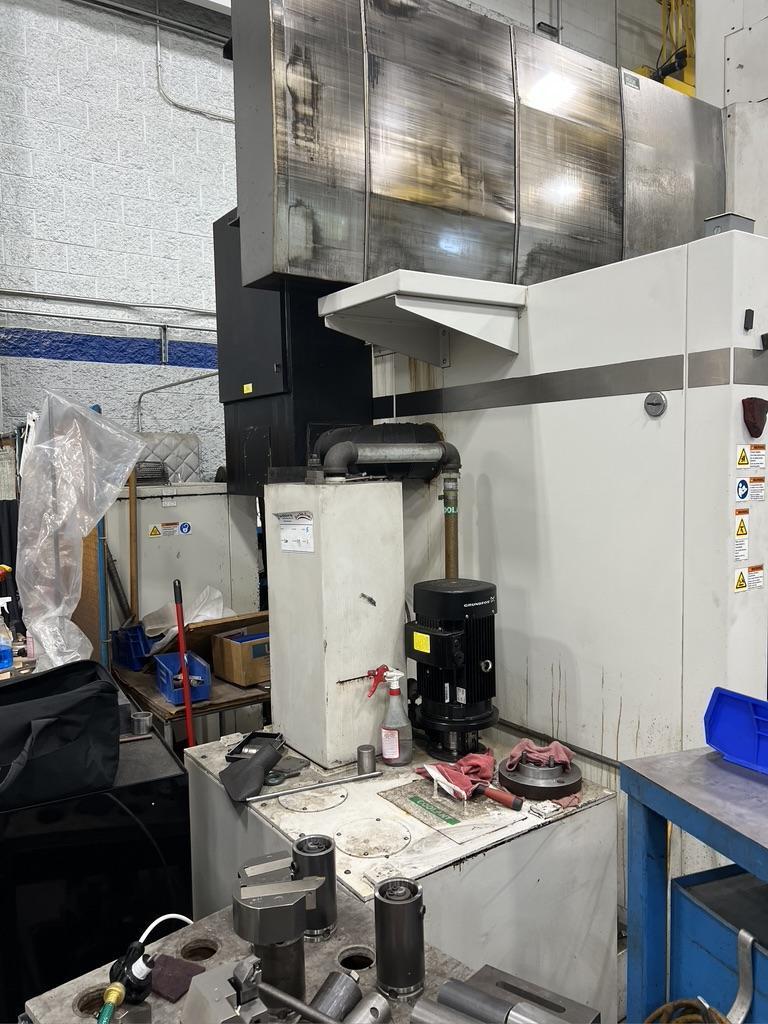

Flood Coolant through the Ram

Tool Probe

Part Probe RMP60M

Remote Hand Held Operator Station with Digital Readout and MPG
