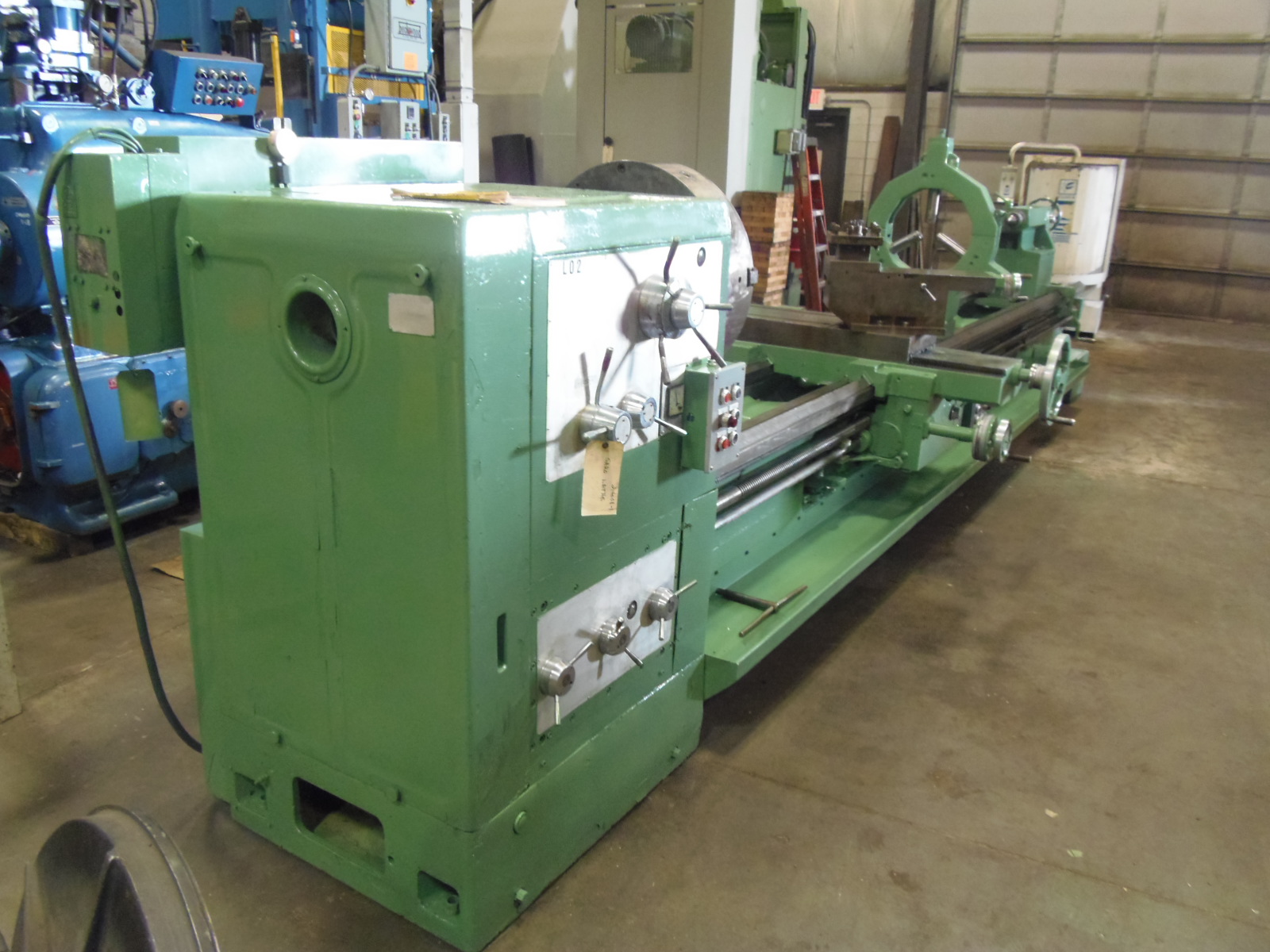

GENERAL SPECIFICATIONS:

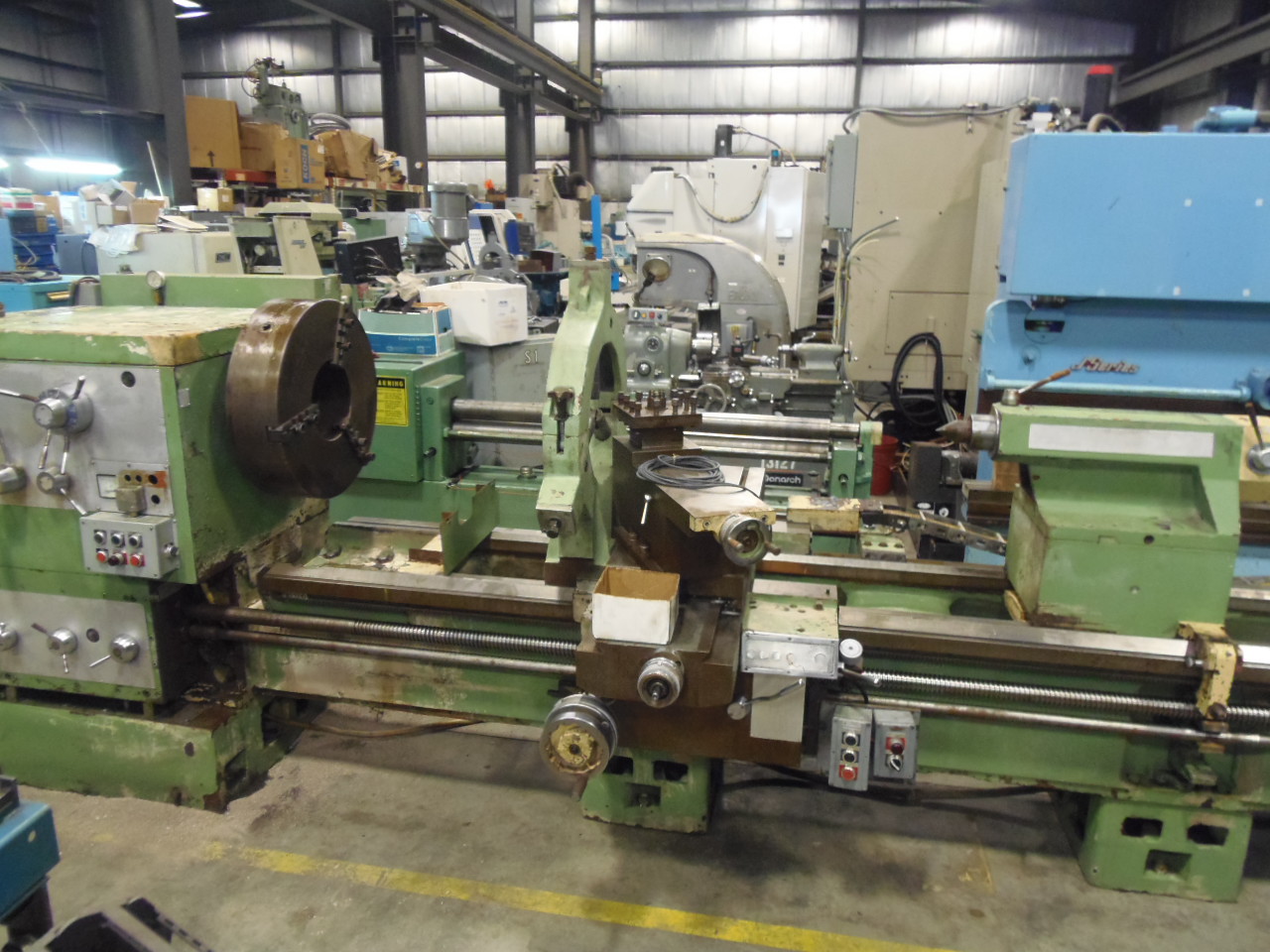

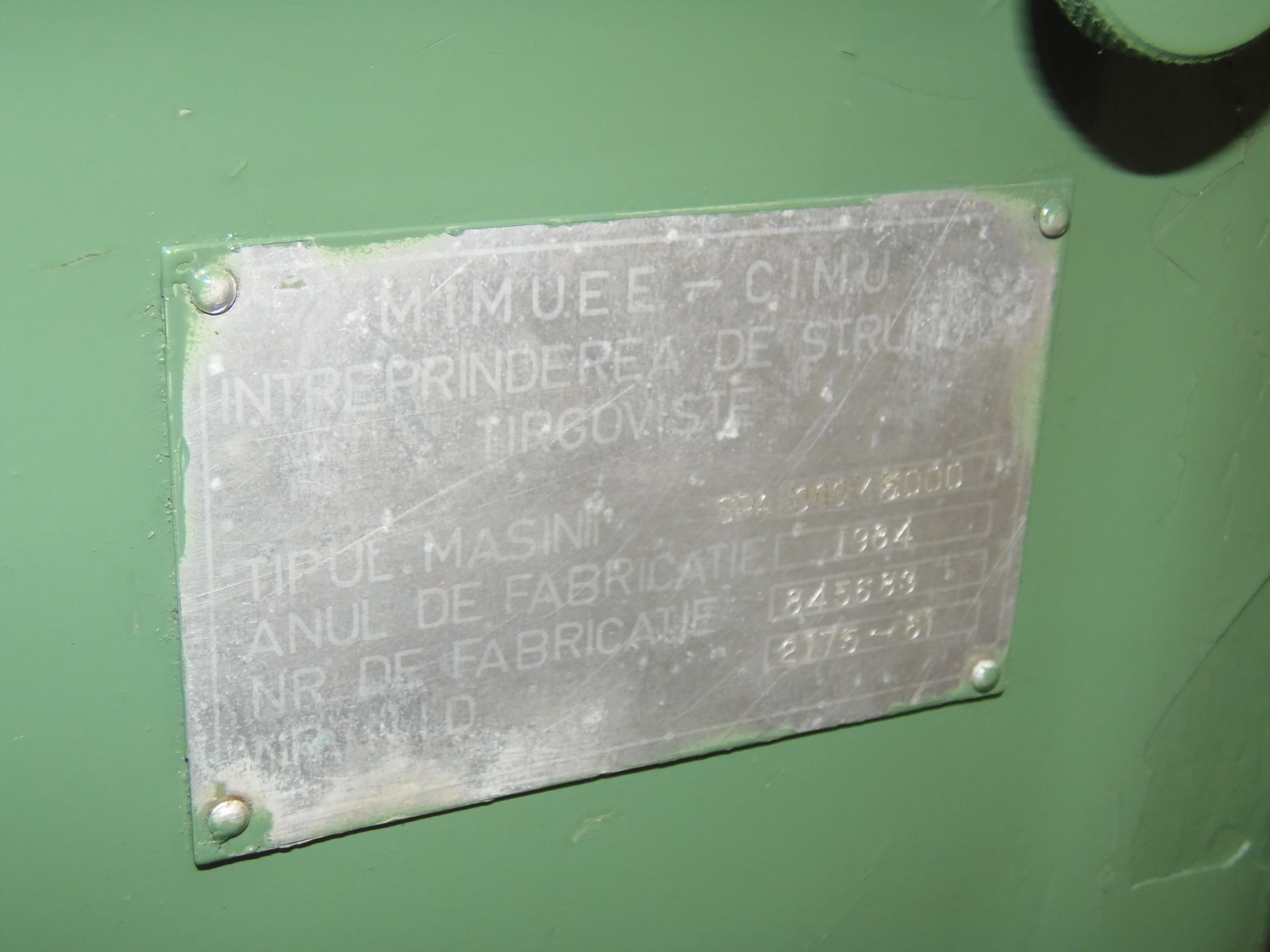

MAKE........................... SARO
MODEL.......................... SPA1000X5000
SERIAL NUMBER.................. 845683
NEW............................ 1984
SWING.......................... 40" (1000 MM)
SWING IN GAP................... 49.25"

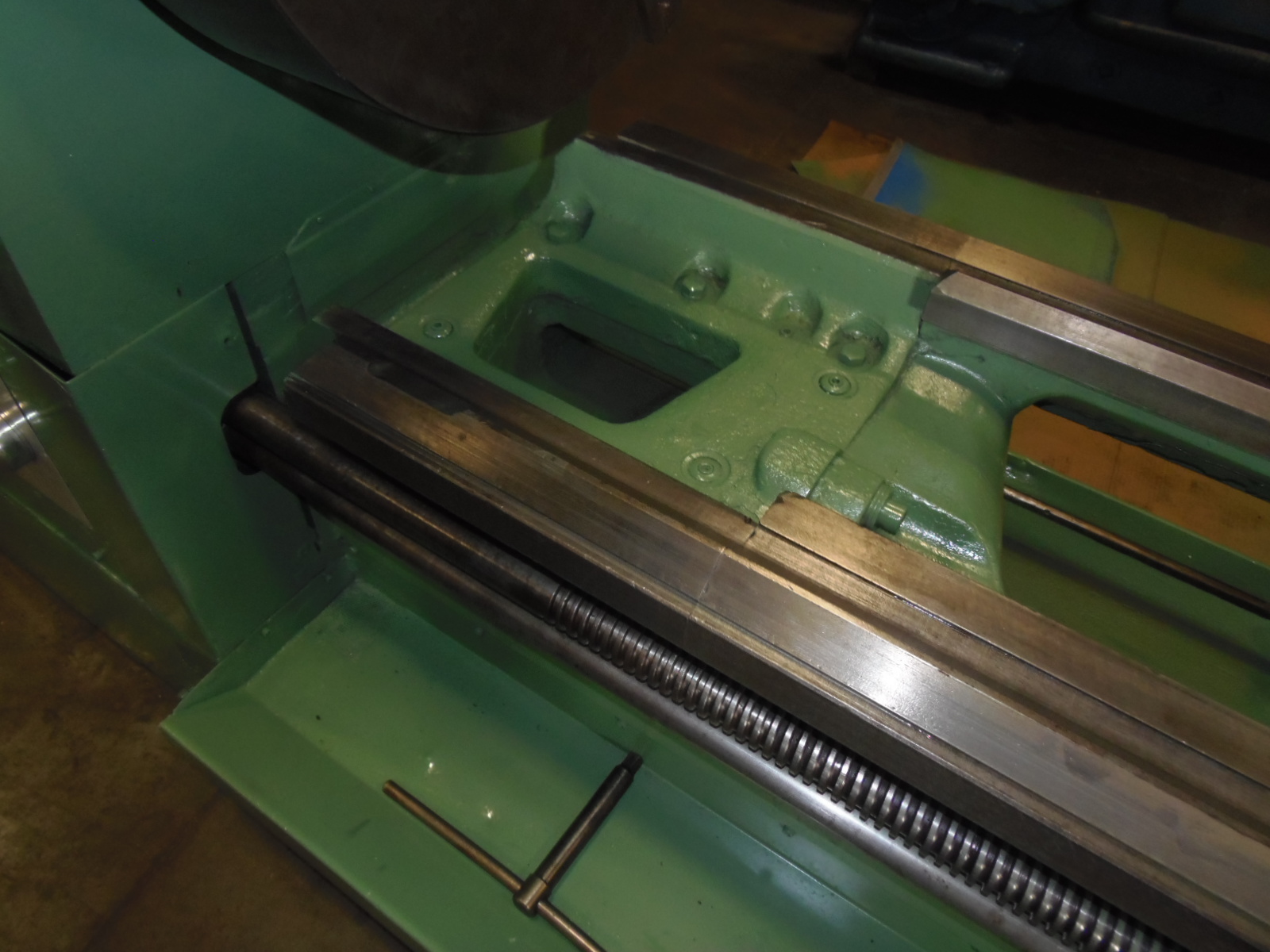

LENGTH OF GAP.................. 11.75"
SWING OCS...................... 24.5"

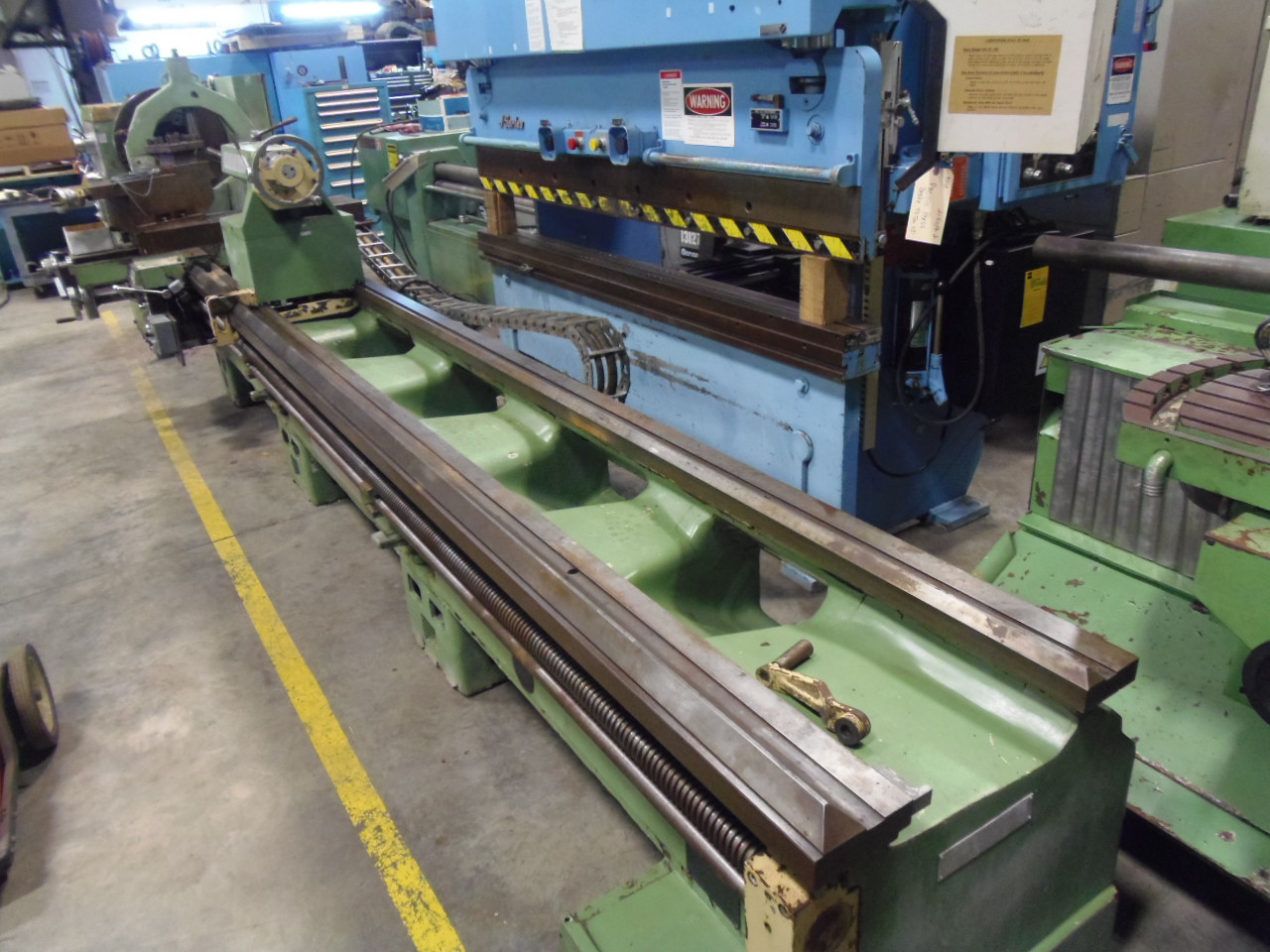

DIST. BTWN. CENTERS............ 196" (5000 MM)

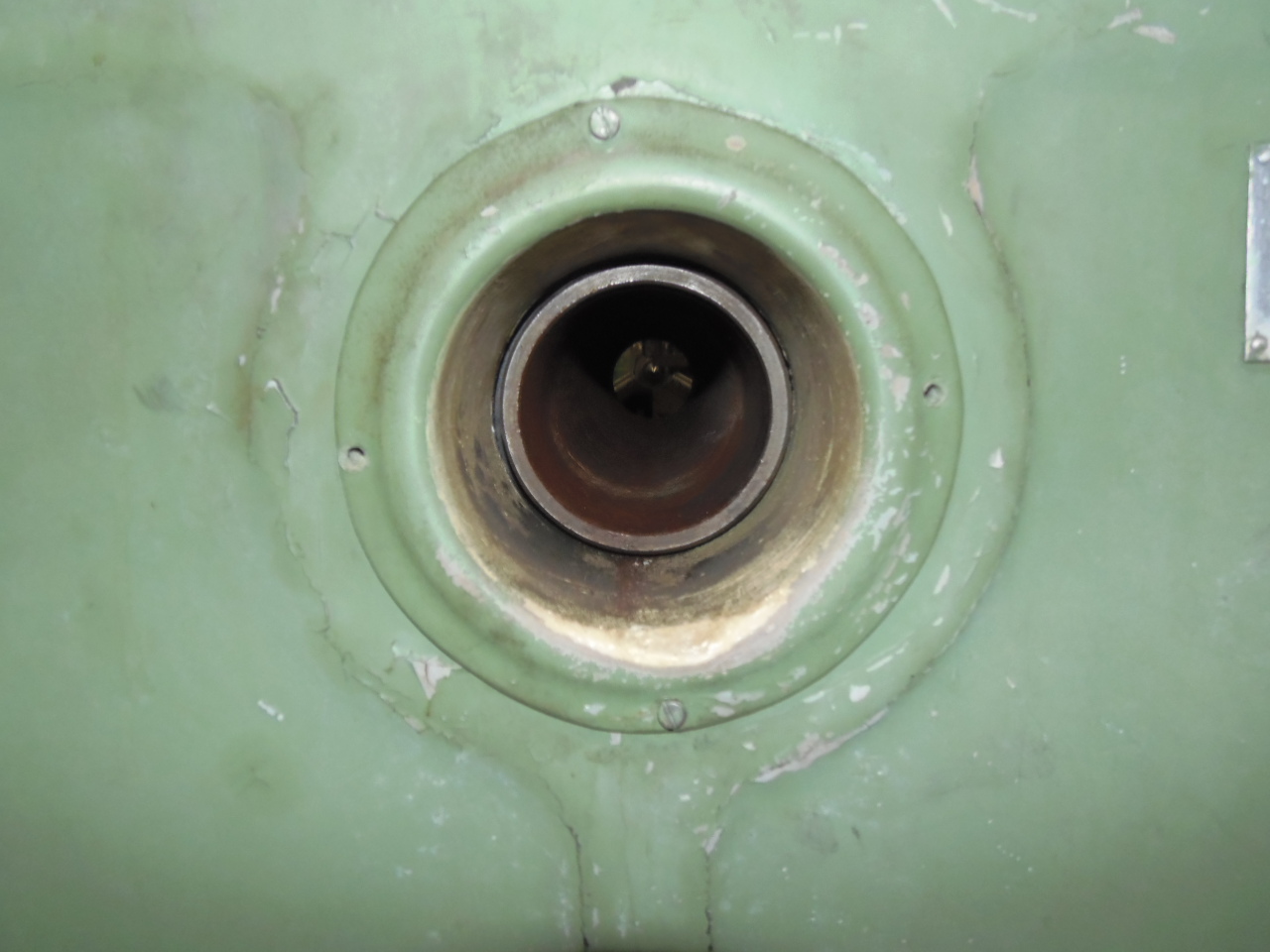

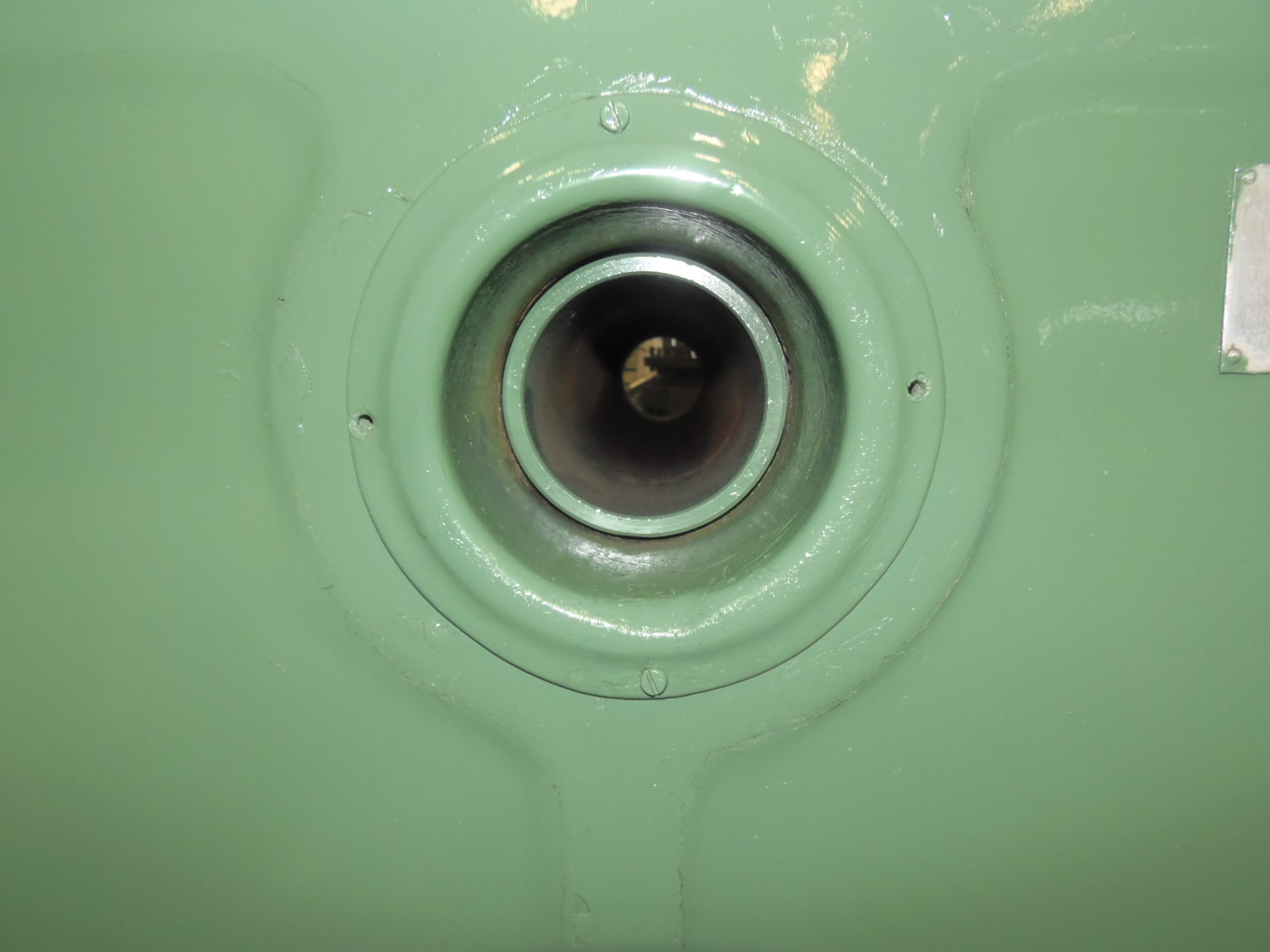

SPINDLE BORE................... 4.125"
GAP SIZE....................... 12"

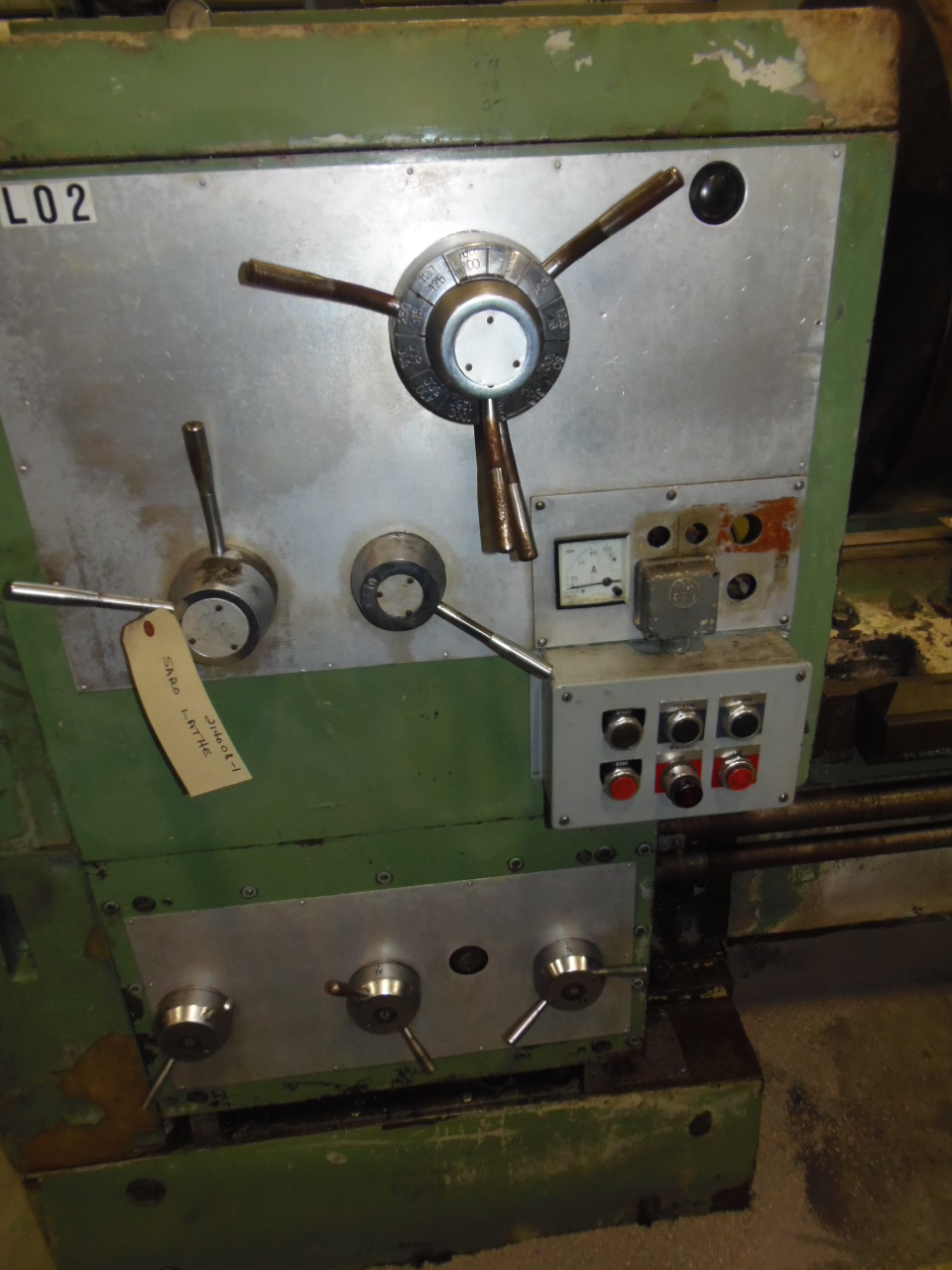

SPEEDS (23).................... 8-1250 RPM
RANGE OF LONG. FEEDS
MM/REV...................... 0.056 - 10
IN/REV...................... 0.022 - 0.397
RANGE OF CROSS FEEDS
MM/REV...................... 0.0186 - 3.33
IN/REV...................... 0.00073 - 0.13123
NUMBER OF METRIC THREADS....... 43
RANGE OF METRIC THREADS........ 1 - 170 MM
NUMBER OF WHITWORTH THREADS.... 42
RANGE OF WHITWORTH THREADS..... 80 - 1/4 PITCH/INCH
NUMBER OF MODULE THREADS....... 39
RANGE OF MODULE THREADS........ 0.5 - 80 MODULES
NUMBER OF DIAMETRAL THREADS.... 40
RANGE OF DIAMETRAL THREADS..... 160 - 1 T.P.I.
NUMBER OF ENGLISH THREADS...... 46
RANGE OF ENGLISH THREADS....... .03125 - 10"
DIAMETER OF TAILSTOCK QUILL.... 4"
TRAVEL OF TAILSTOCK QUILL...... 11.75"
QUILL TAPER.................... 6 MT

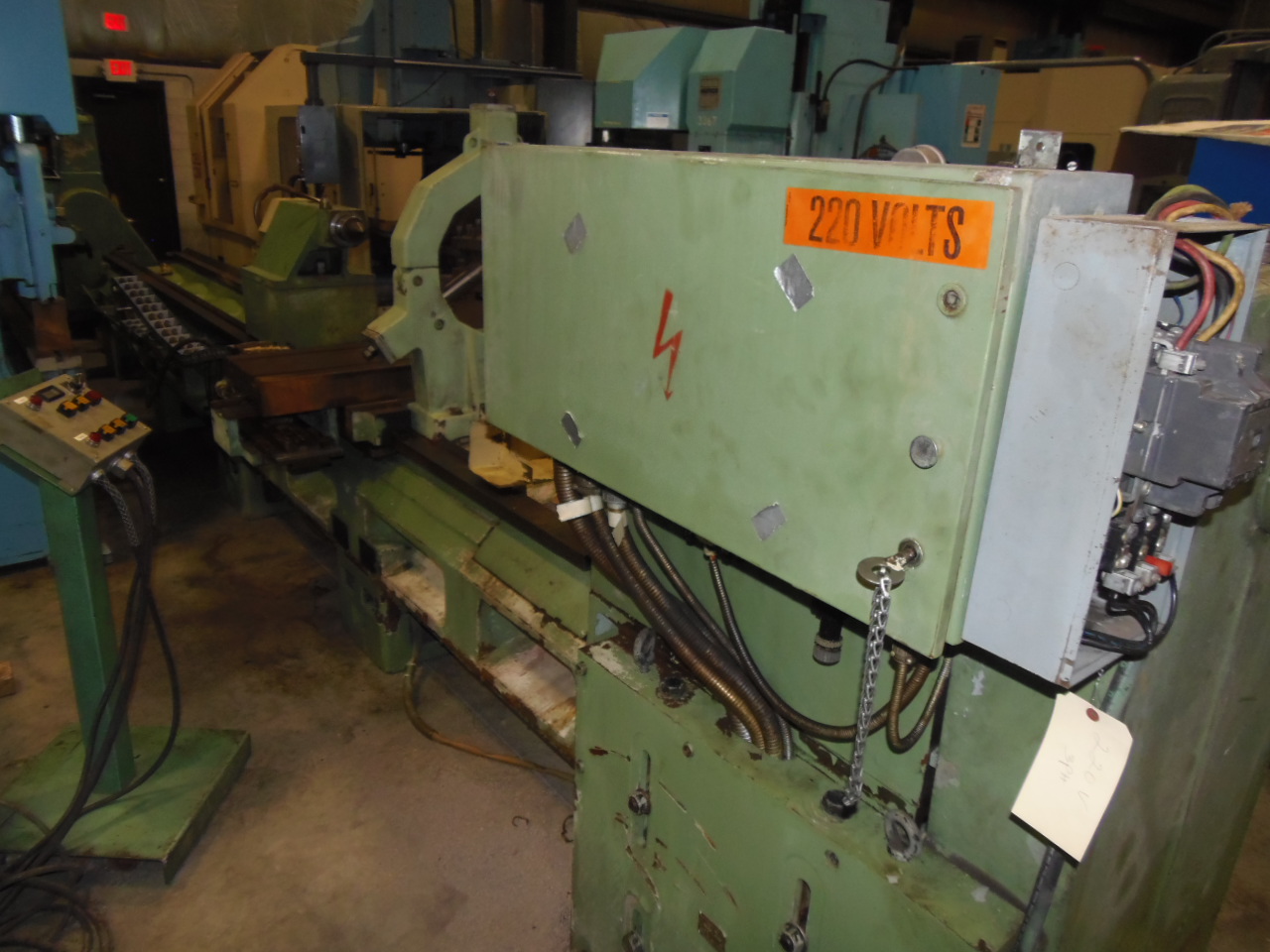

ELECTRICS............. 220V/3PH
EQUIPPED WITH:

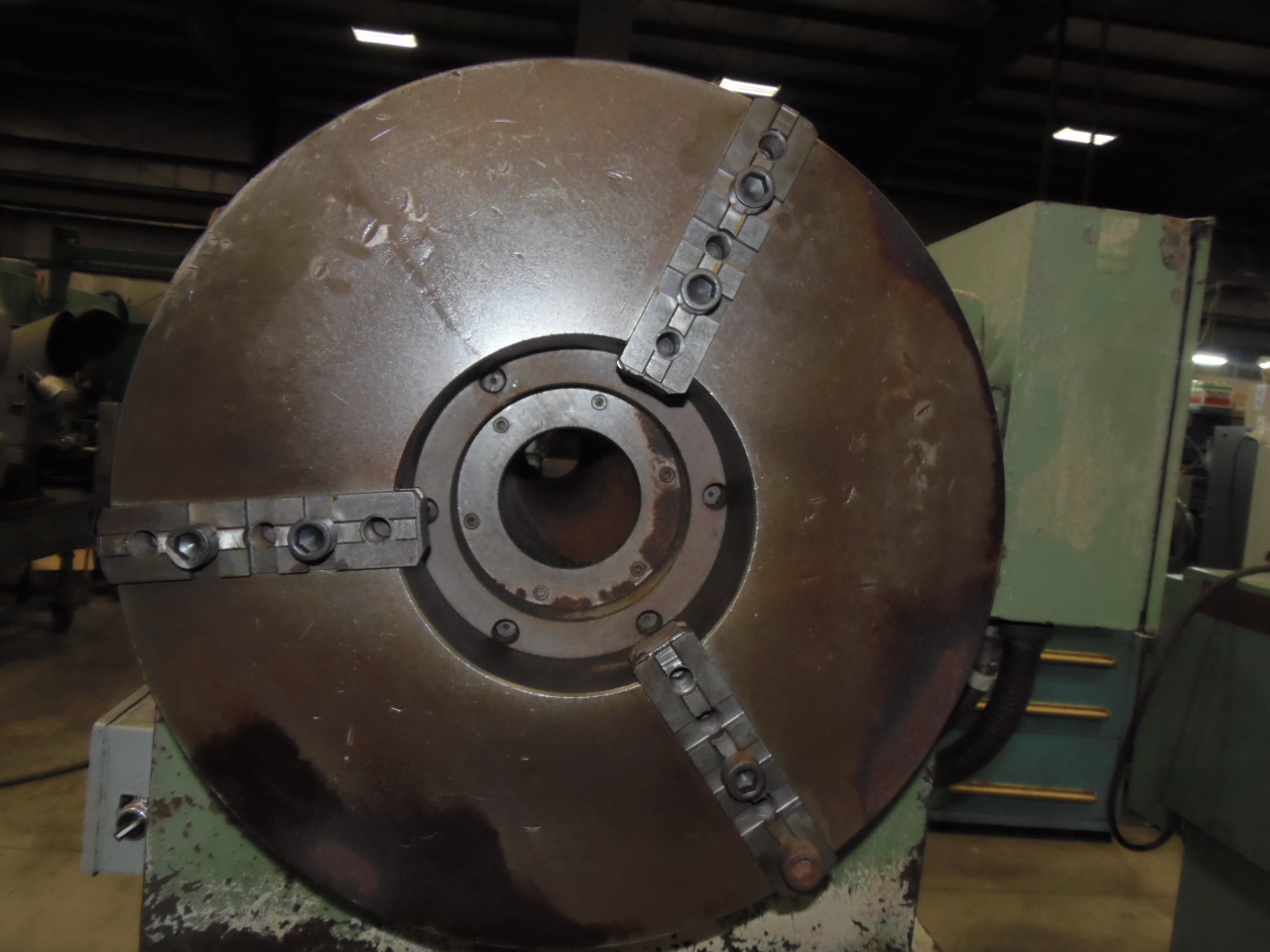

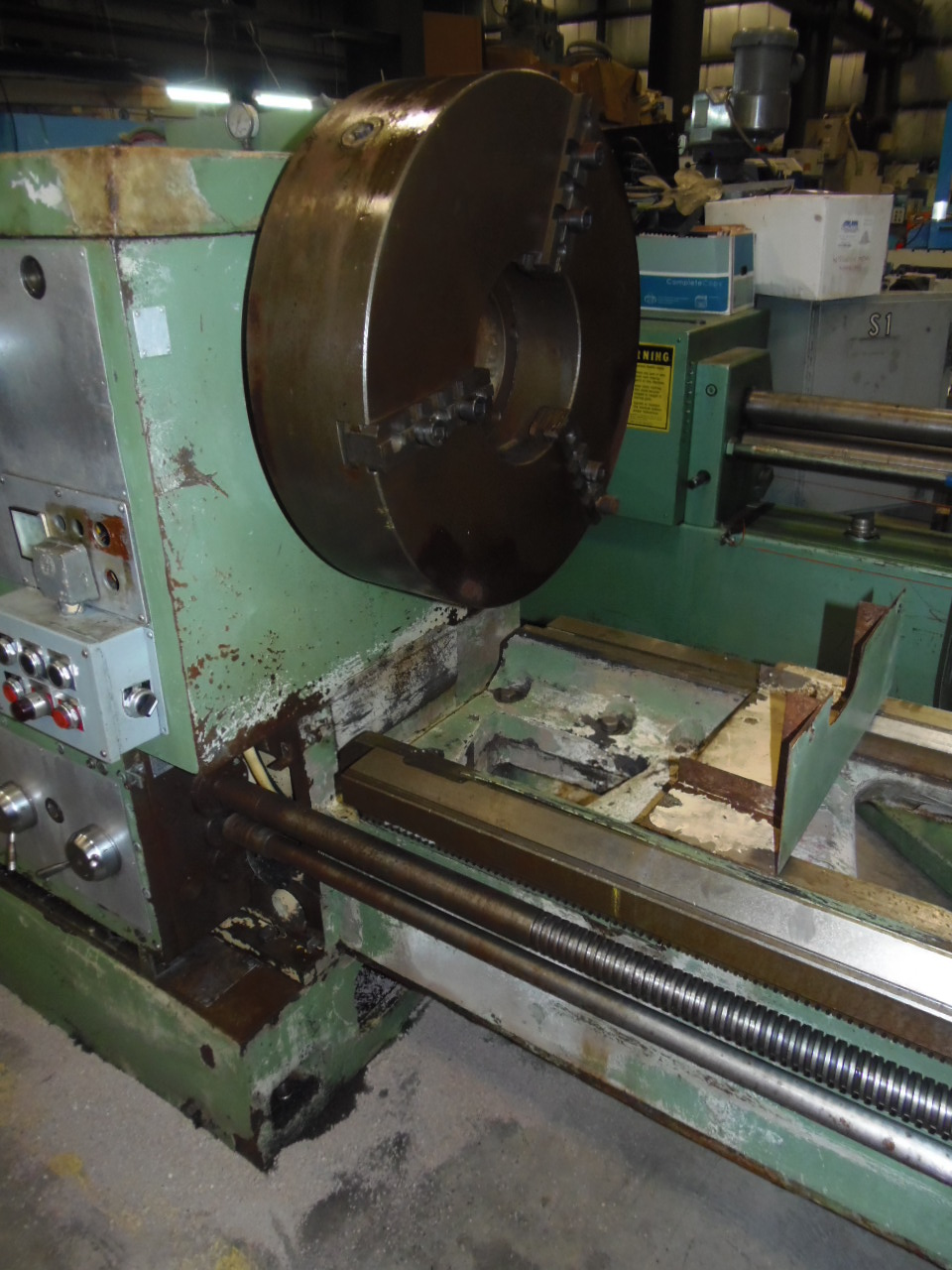

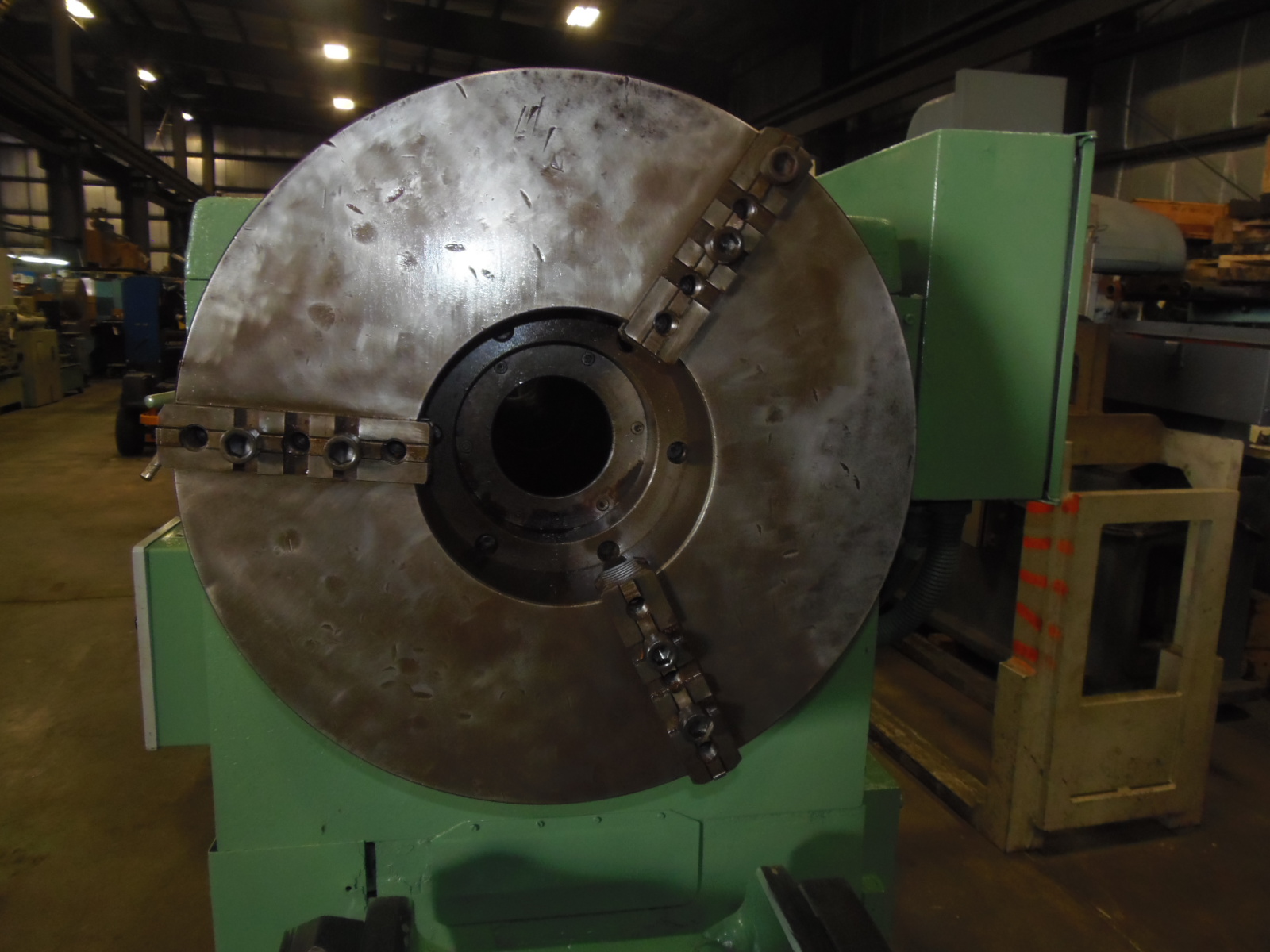

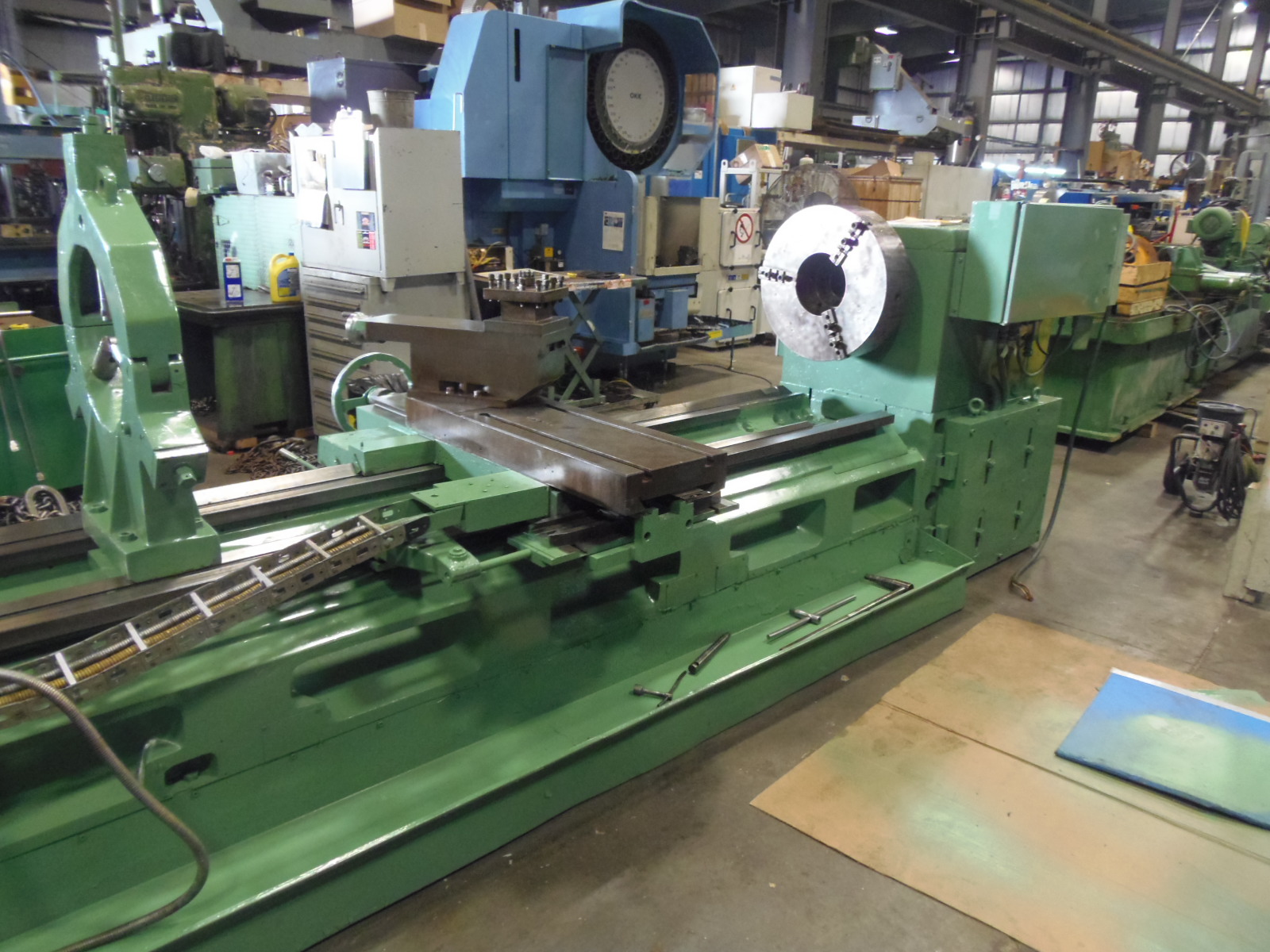

25" 3-JAW CHUCK

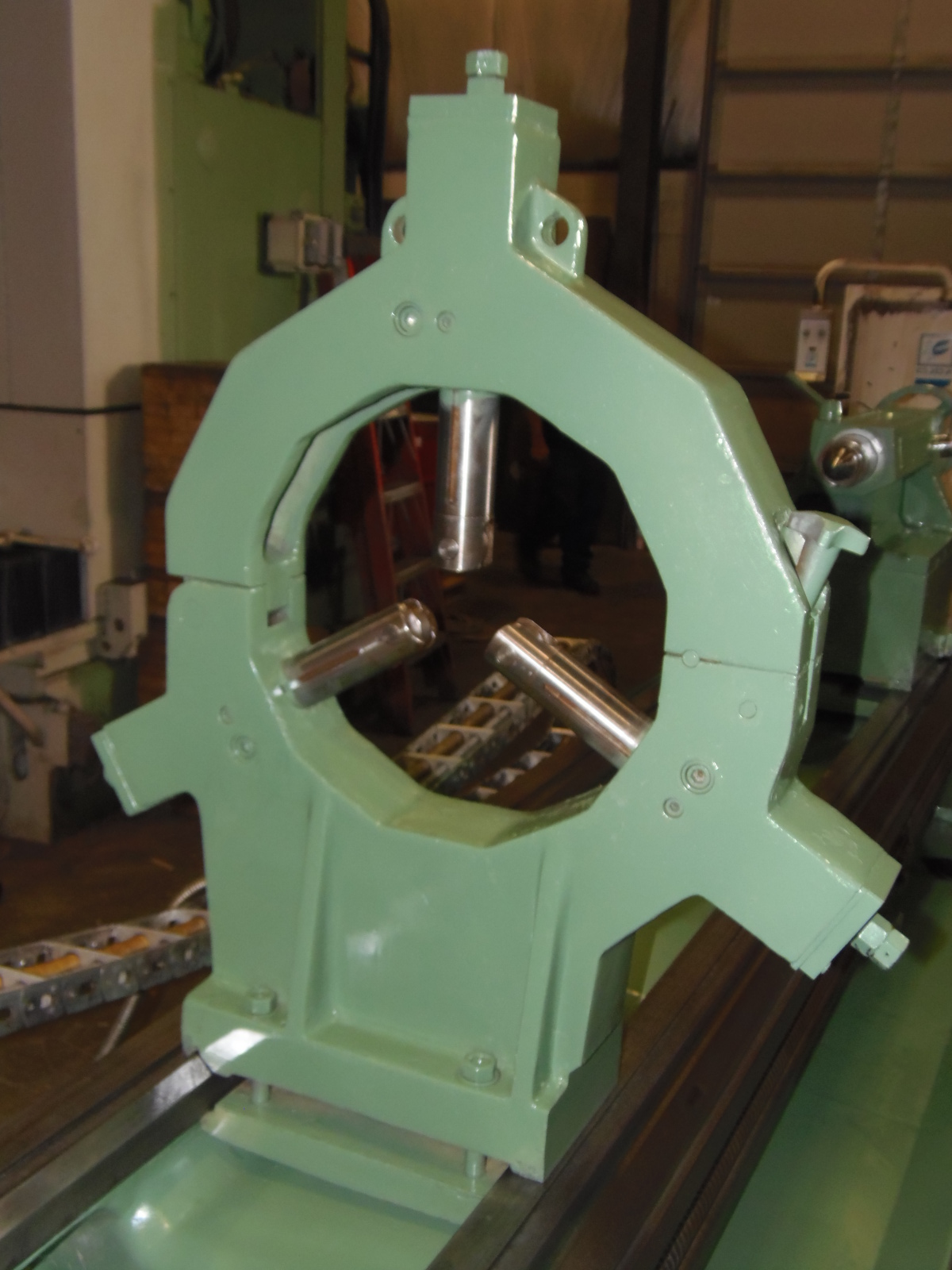

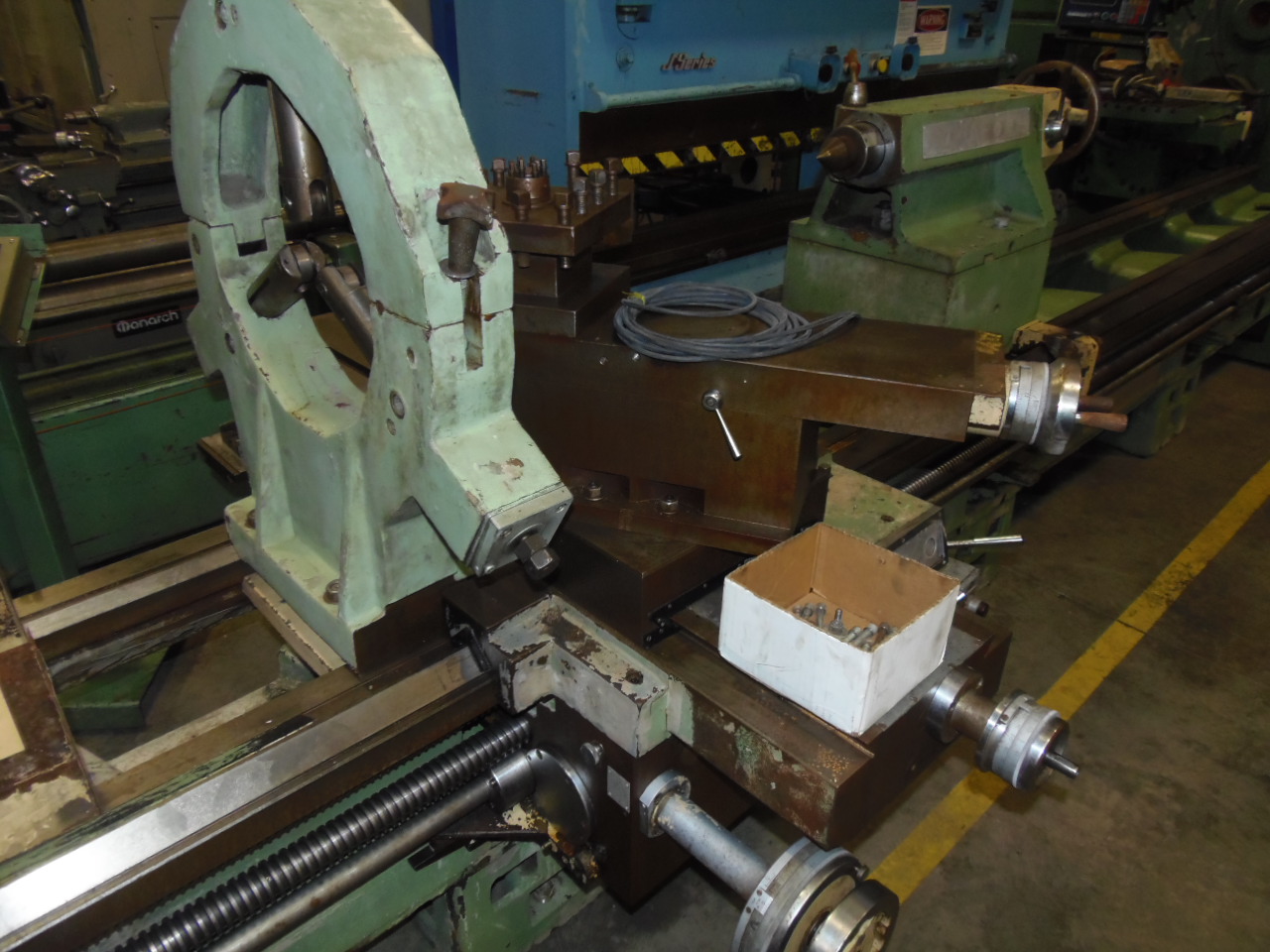

16" STEADY REST

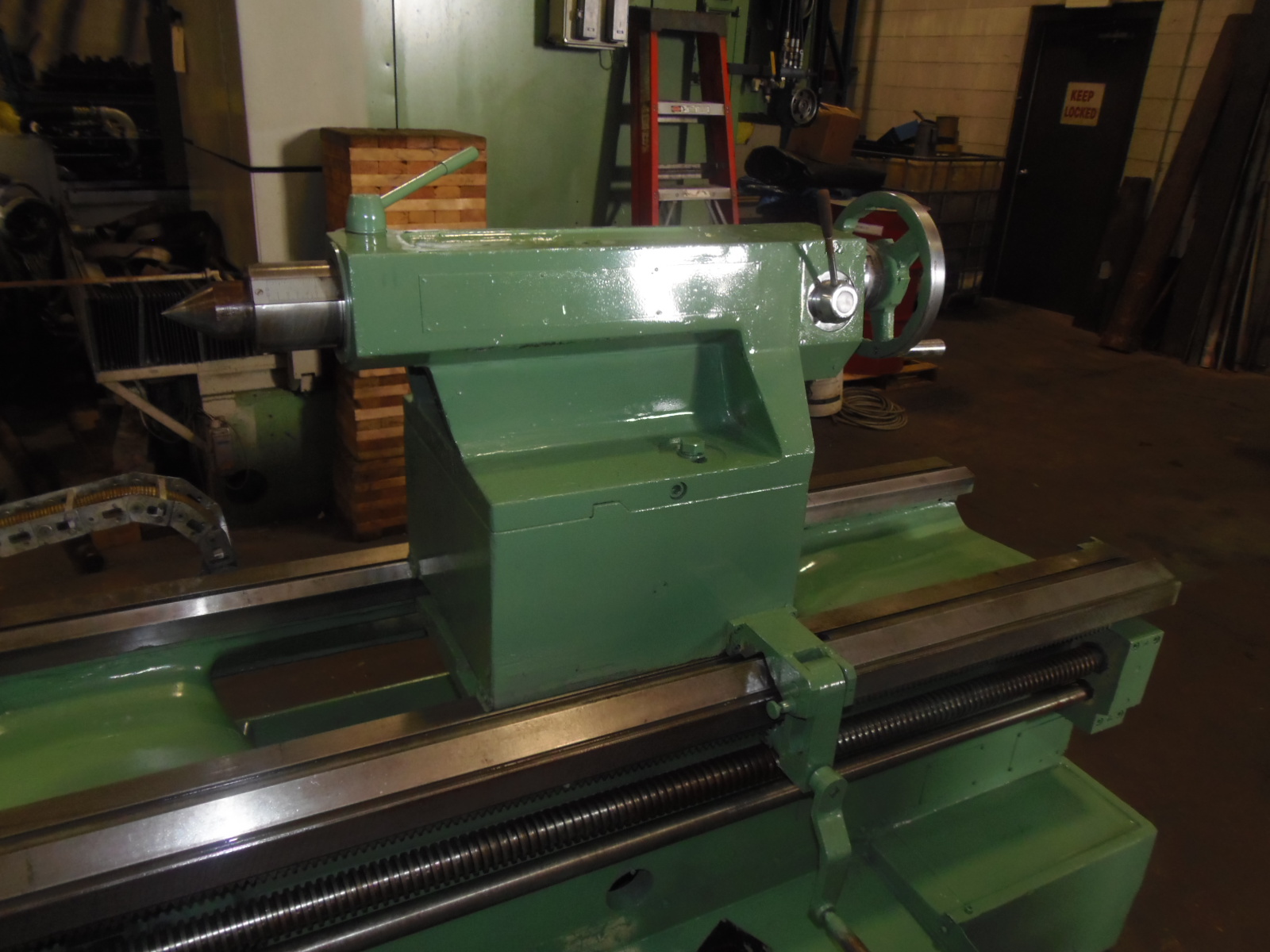

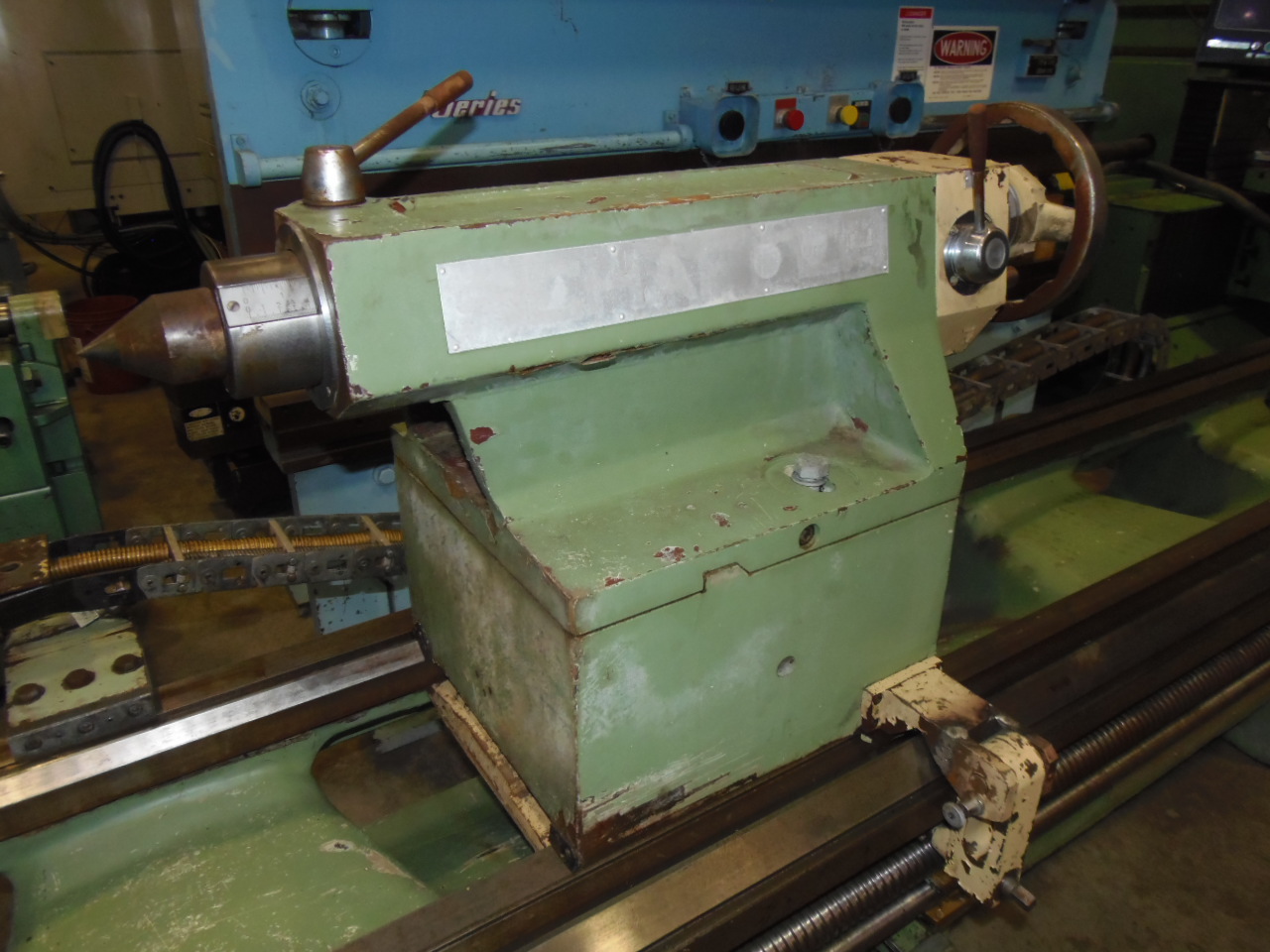

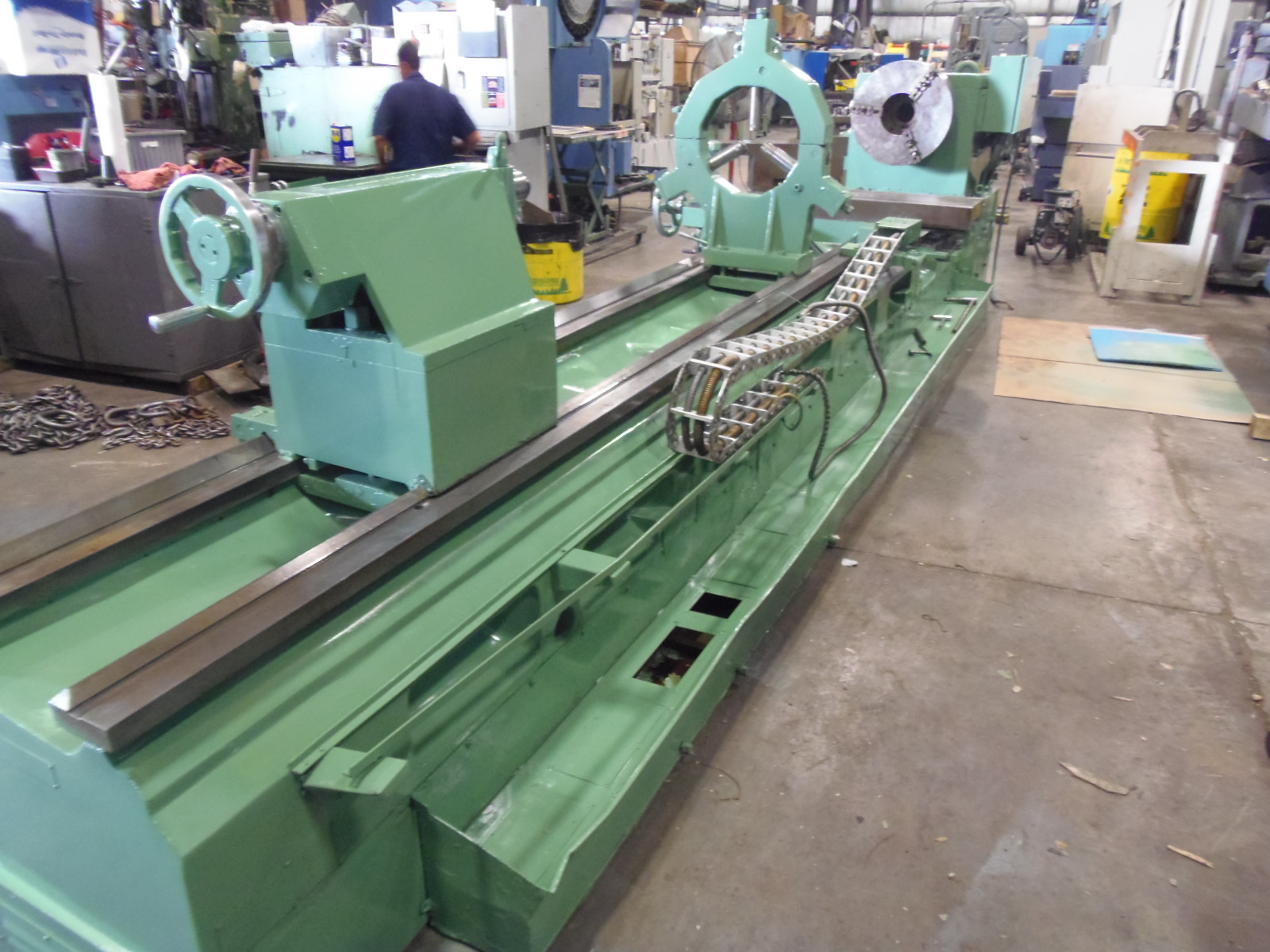

TAILSTOCK
TAPER ATTACHMENT
SPECIFICATIONS SUBJECT TO VERIFICATION
