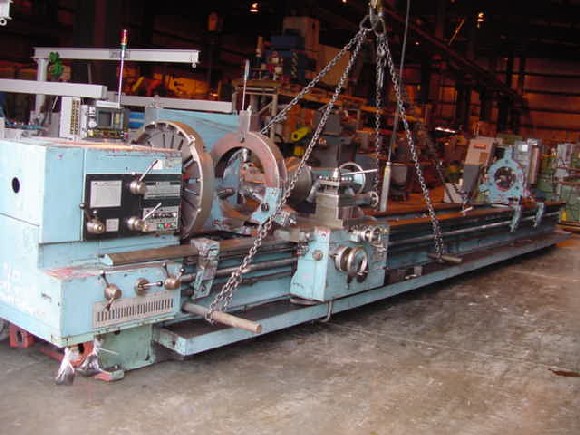

38" X 320" TOS, MDL SUS80, 3-1/2 HOLE, 30 HP, 33" 4-JAW CHK, 1969, TAILSTOCK, 4-WAY RAPIDS

GENERAL SPECIFICATIONS:
MANUFACTURER TOS
MODEL SUS80
SERIAL # 0450157
NEW (APPROX.) 1969
MAX. SWING OVER BED 38"
MAX. SWING OVER CROSS SLIDE 21"
MAX. DIST. BETWEEN CENTERS 320"
HOLE THRU SPINDLE 3-1/2"
SPINDLE SPEEDS (22 STEPS) 7.1 - 900 RPM
MAIN MOTOR 30 HP
ELECTRICS 220V/3 PH
DIMENSIONS (APPROX.) 33'L x 6'W x 6'H
WEIGHT (APPROX.) 27,000 LBS

EQUIPPED WITH:
33" 4-JAW CUSHMAN CHUCK
4 WAY TOOL POST
21" & 13" CAPACITY 3-POINT STEADY RESTS
TAILSTOCK
INCH/METRIC THREADING
CHANGE GEARS
4-WAY RAPIDS
