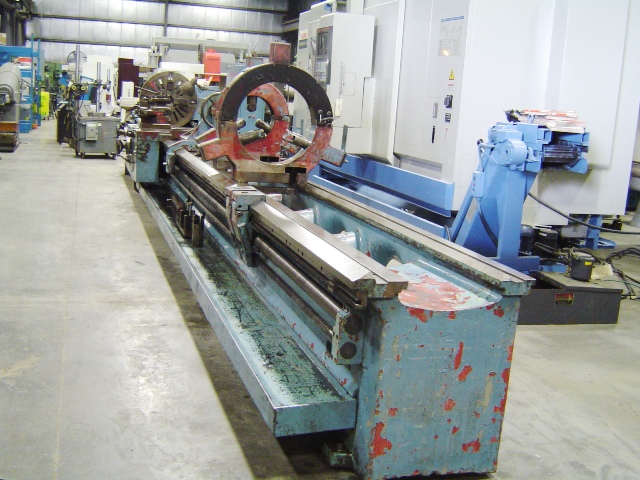

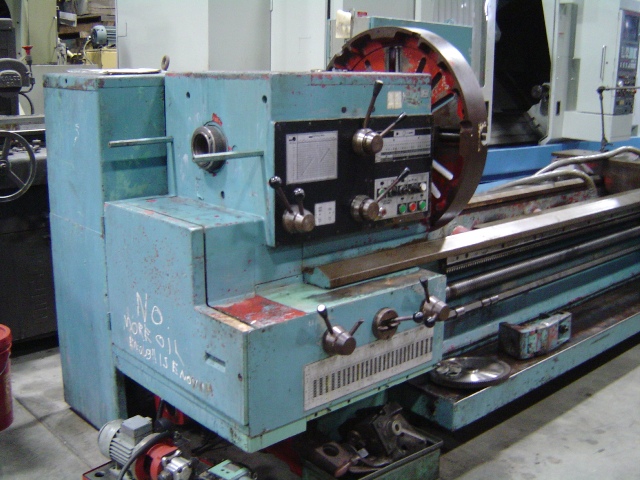

37"/33" X 320" TOS, MDL SUS80, 3-1/2 HOLE, 30 HP, 33" 4-JAW CHK, 1969, TAILSTOCK, 4-WAY RAPIDS

GENERAL SPECIFICATIONS:
MANUFACTURER TOS
MODEL SUS80
SERIAL # 0450157
NEW (APPROX.) 1969
MAX. SWING (IN SEMI GAP 9"
CHUCK FACE TO BED) 37"
MAX. SWING OVER BED 33"
MAX. SWING OVER CROSS SLIDE 21"
MAX. DIST. BETWEEN CENTERS 320"
HOLE THRU SPINDLE 3-1/2"
SPINDLE SPEEDS (22 STEPS) 7.1 - 900 RPM
MAIN MOTOR 30 HP
ELECTRICS 220V/3 PH
DIMENSIONS (APPROX.) 33'L x 6'W x 6'H
WEIGHT (APPROX.) 27,000 LBS

EQUIPPED WITH:

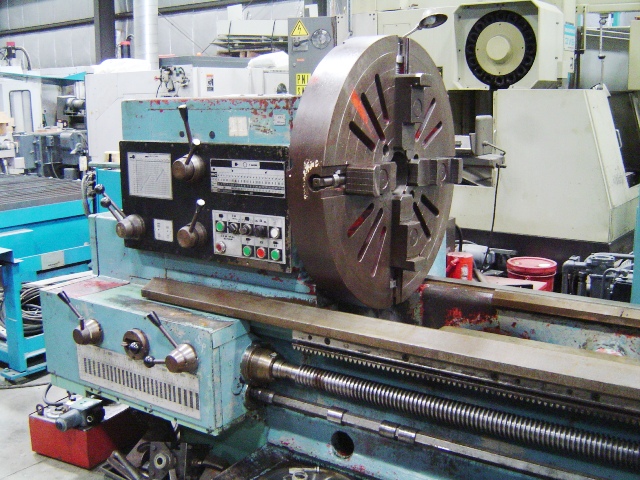

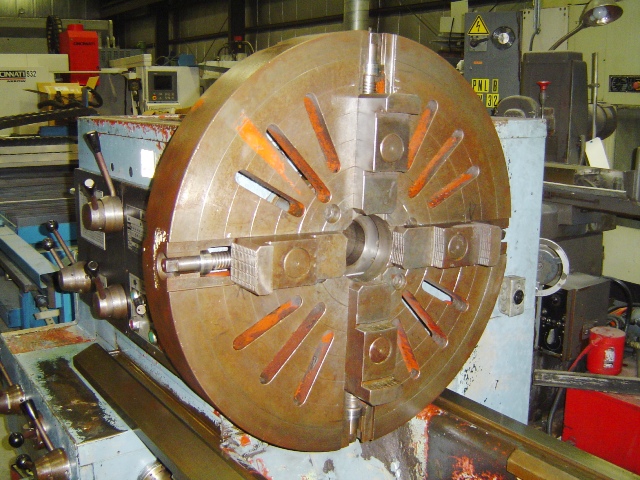

33" 4-JAW CUSHMAN CHUCK

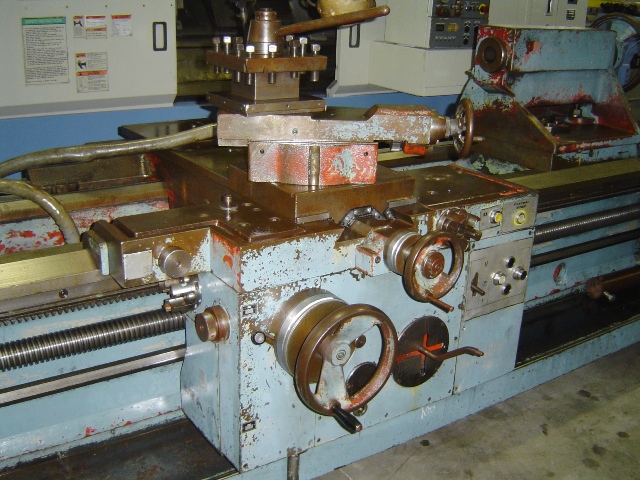

4 WAY TOOL POST

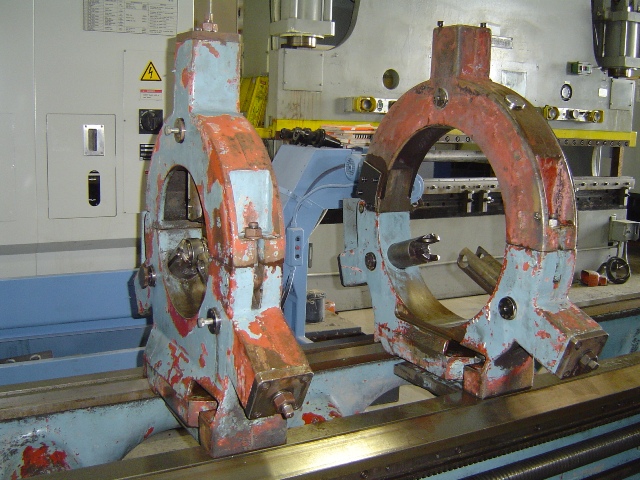

21" & 13" CAPACITY 3-POINT STEADY RESTS

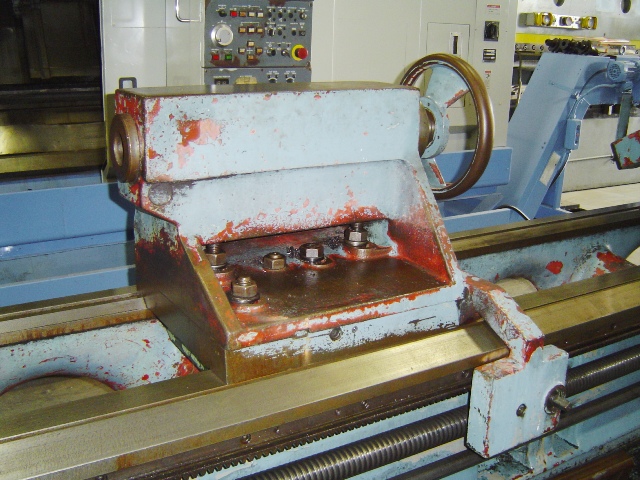

TAILSTOCK
INCH/METRIC THREADING
CHANGE GEARS
4-WAY RAPIDS
