36" x 240" THOMPSON, 20" WHL DIA., 3 HP, 252" LONG. TRVL, DRESSER, COOLANT

Model: PCXV
Inventory #: 11630
Serial #: 20PCXV646936
MFD: 1964

TABLE WORKING SURFACE: 36" X 240"
MAXIMUM GRINDING WIDTH CAPACITY: 36"
MAXIMUM GRINDING LENGTH CAPACITY: 240"
MAXIMUM HEIGHT UNDER GRINDING WHEEL: 48"
TABLE LONGITUDINAL TRAVEL: 252"
STANDARD GRINDING WHEEL DIAMETER: 20"
STANDARD GRINDING WHEEL WIDTH: 6"
GRINDING WHEEL HOLE DIAMETER: 12"
GRINDING WHEEL SPEED: 6,000 SFM
TABLE LONGITUDINAL FEED RANGE: 10 TO 100 FPM
TABLE CROSS IN-FEED RANGE: 1/32 TO 3 IPR
POWER DOWN FEED RATE: 15 IPM
POWER RAPID TRAVERSE RATE: 200 IPM
MOTOR: 30 HP
EQUIPPED WITH:
AUTOMATIC POWER DOWN FEED

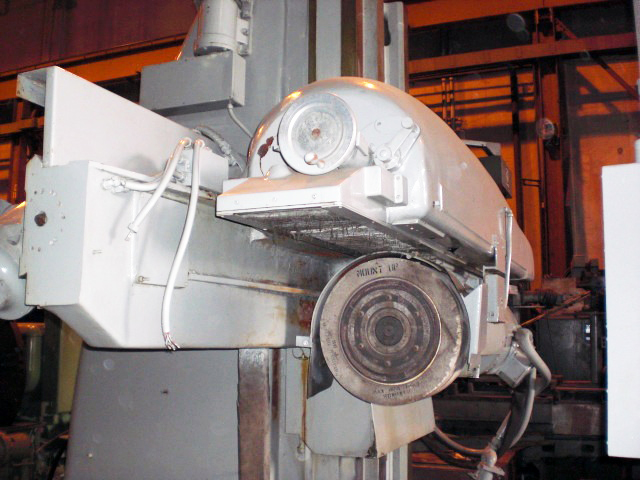

WHEEL DRESSER
COOLANT
OAD: 38'6" L-R X 10'8" F-B X 11'8" HIGH
APPROXIMATE WEIGHT: 90,000 LBS.


Equipped With:

Full length electro mag chuck: 5 segment 36" x 48"

PRICE: FOB Houston, Texas Sommermeyer Warehouse
