Specifications
Equipped With
GENERAL SPECIFICATIONS:

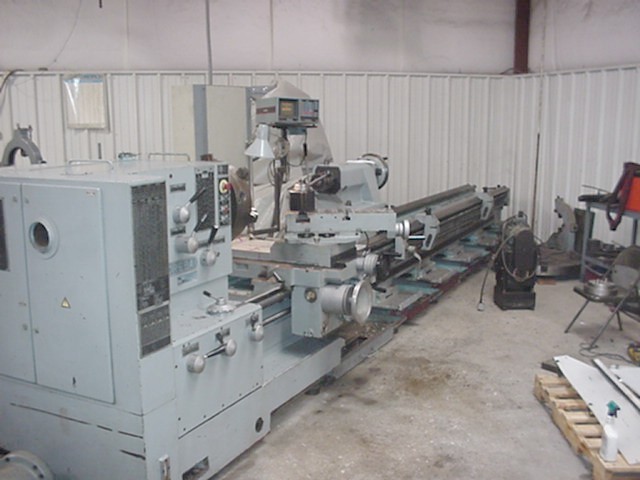

MANUFACTURER........................... POREBA
MODEL.................................. TPK-90 AI/5M
NEW APPROXIMATELY...................... 1991
SWING: OVER BED...................... 36"
OVER GAP...................... 45"
OVER CROSS SLIDE.............. 25"
CENTERS................................ 200"
SPINDLE: SPEED......................... 8 - 800 RPM
HOLE.......................... 3-3/4"
MOTOR ........................ .36
MAX WEIGHT BETWEEN CENTERS.............13,500 LBS
WITH TWO STEADIES...........20,000 LBS
SPINDLE NOSE...........................A1-11
NUMBER OF SPINDLE SPEEDS (36)..........9-900 RPM
Equipped with:
Inch and metric threading, tool post, rapid traverse, two (2)

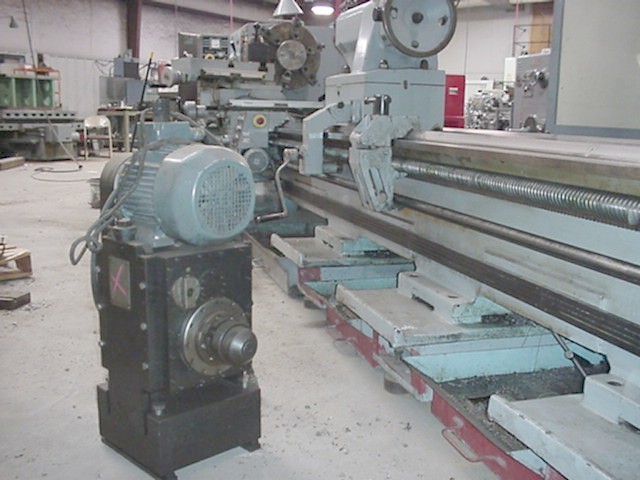

roller type steady rests and one (1) roller type follow rest, 39" 4-jaw, 18" 6 jaw Buck chuck, 3 axis dro, live center, powered compound, and 5 hp milling attachment (you can turn a shaft, lock the spindle in place and mill a keyway between centers).
This machine has a footprint of 4'4" F-B and 24'6" in length.
