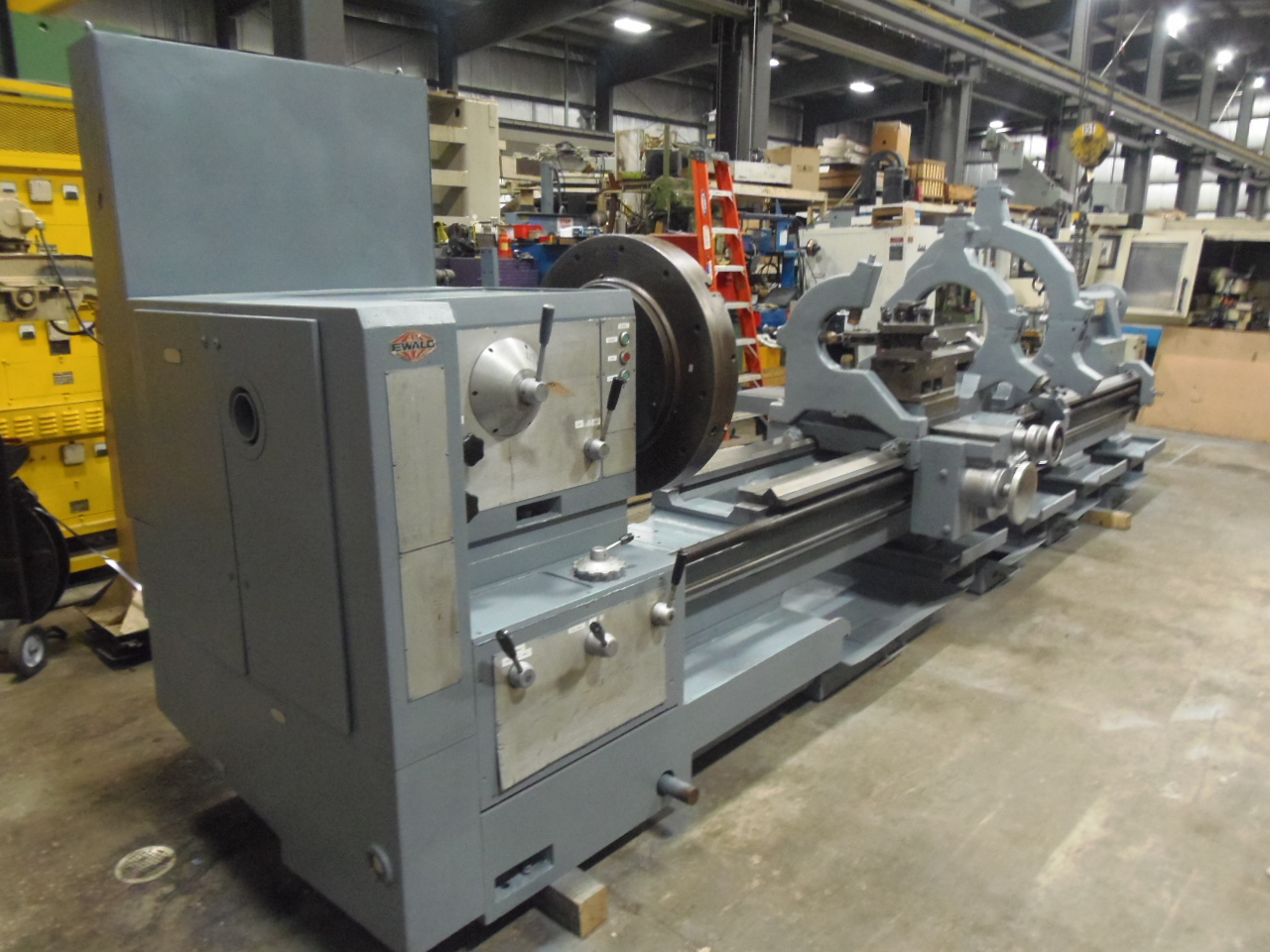

GENERAL SPECIFICATIONS:
MANUFACTURER......................... POREBA
MODEL................................ TPK-90/4M

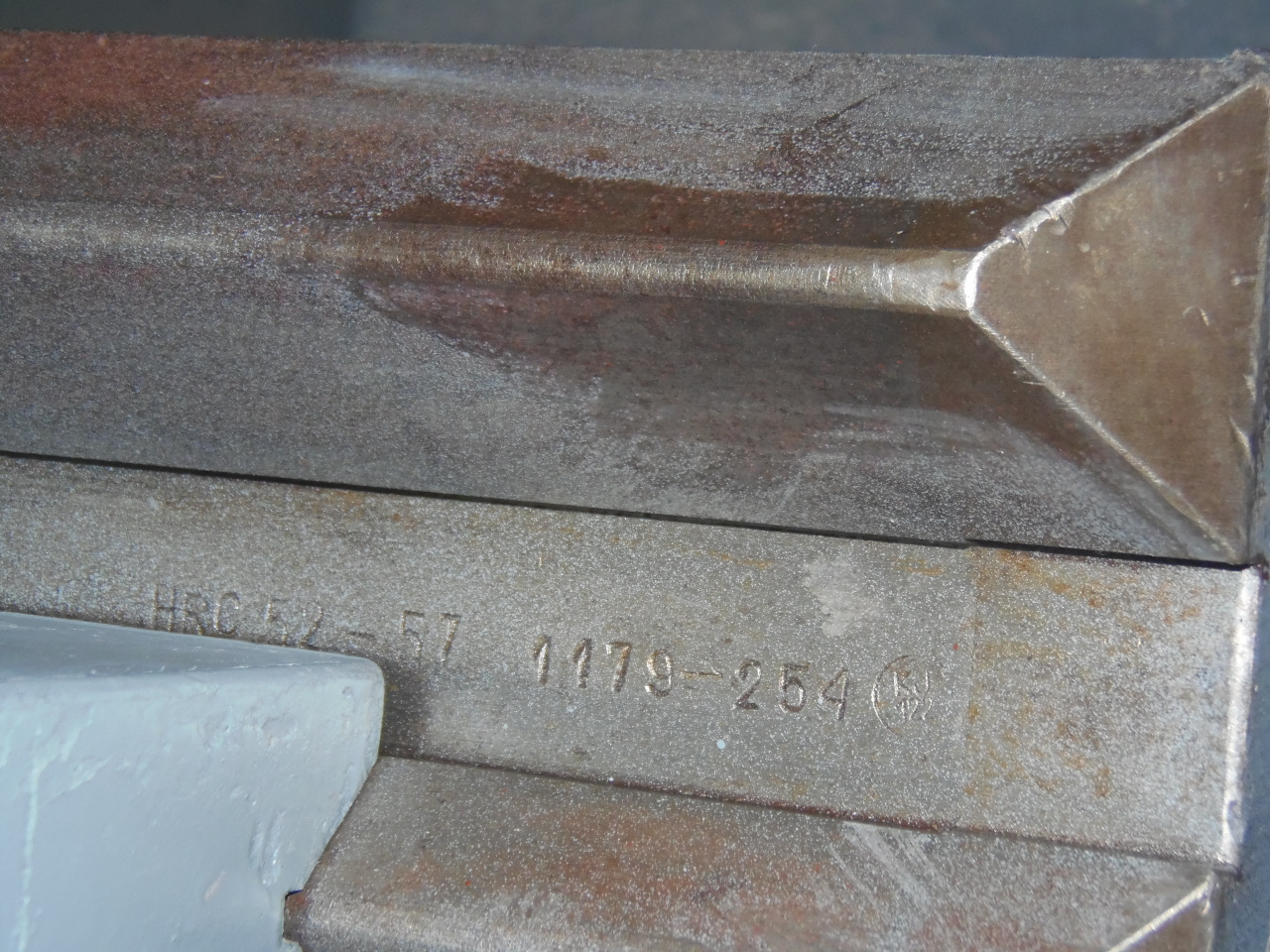

SERIAL #............................. 1179-254
NEW.................................. 1976
SWING OVER BED....................... 36.2"
SWING OVER GAP....................... 47.2"
GAP LENGTH........................... 16"
SWING OVER CROSS SLIDE............... 25.5"
CENTERS.............................. 157.4"
SPINDLE SPEED........................ 15 - 1500 RPM
SPINDLE HOLE......................... 3-3/4"

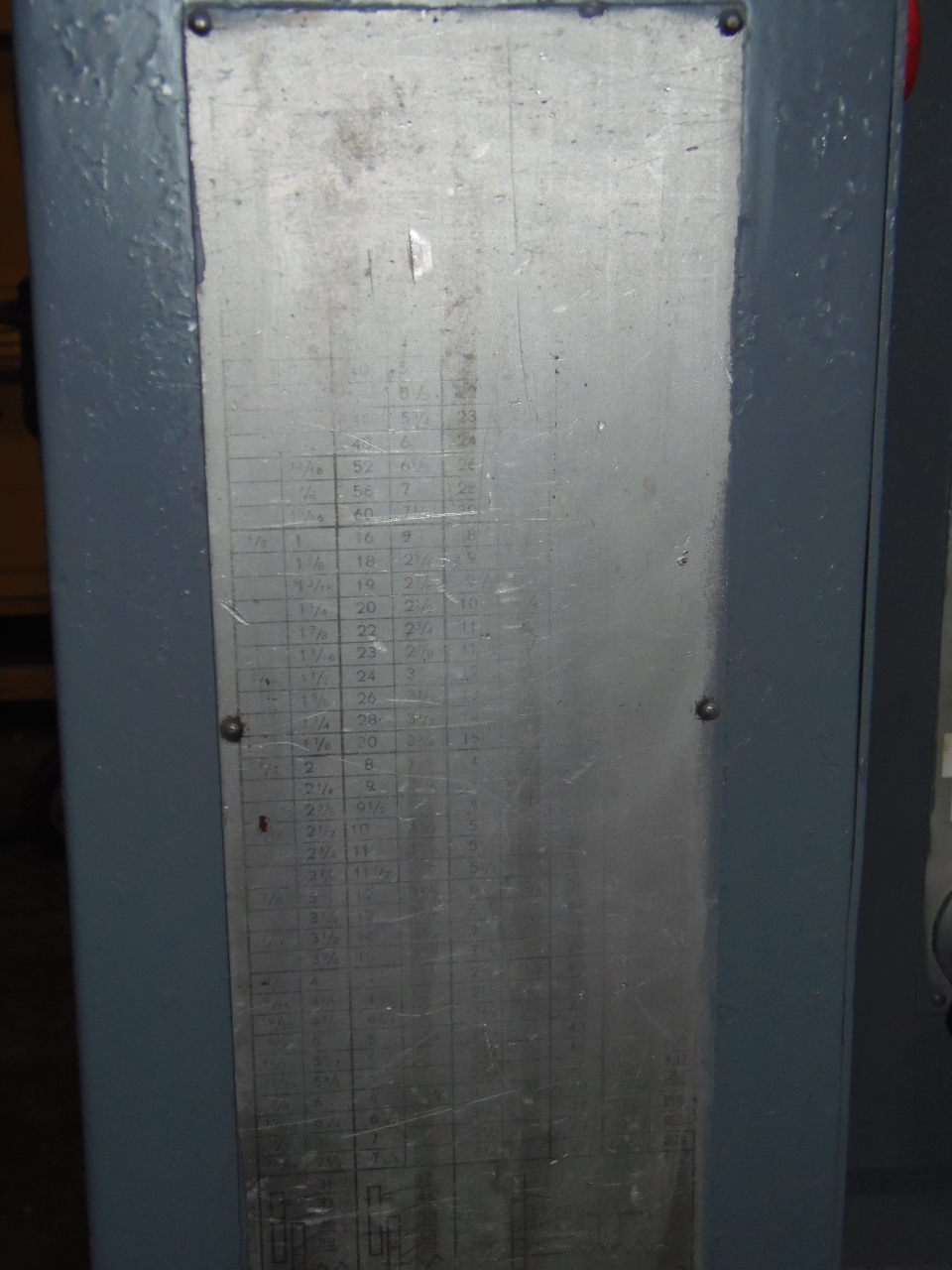

THREADING
INCH (60)......................... .25-30 TPI
METRIC (62)....................... 1-120 MM
MODULE (44)....................... .025-30

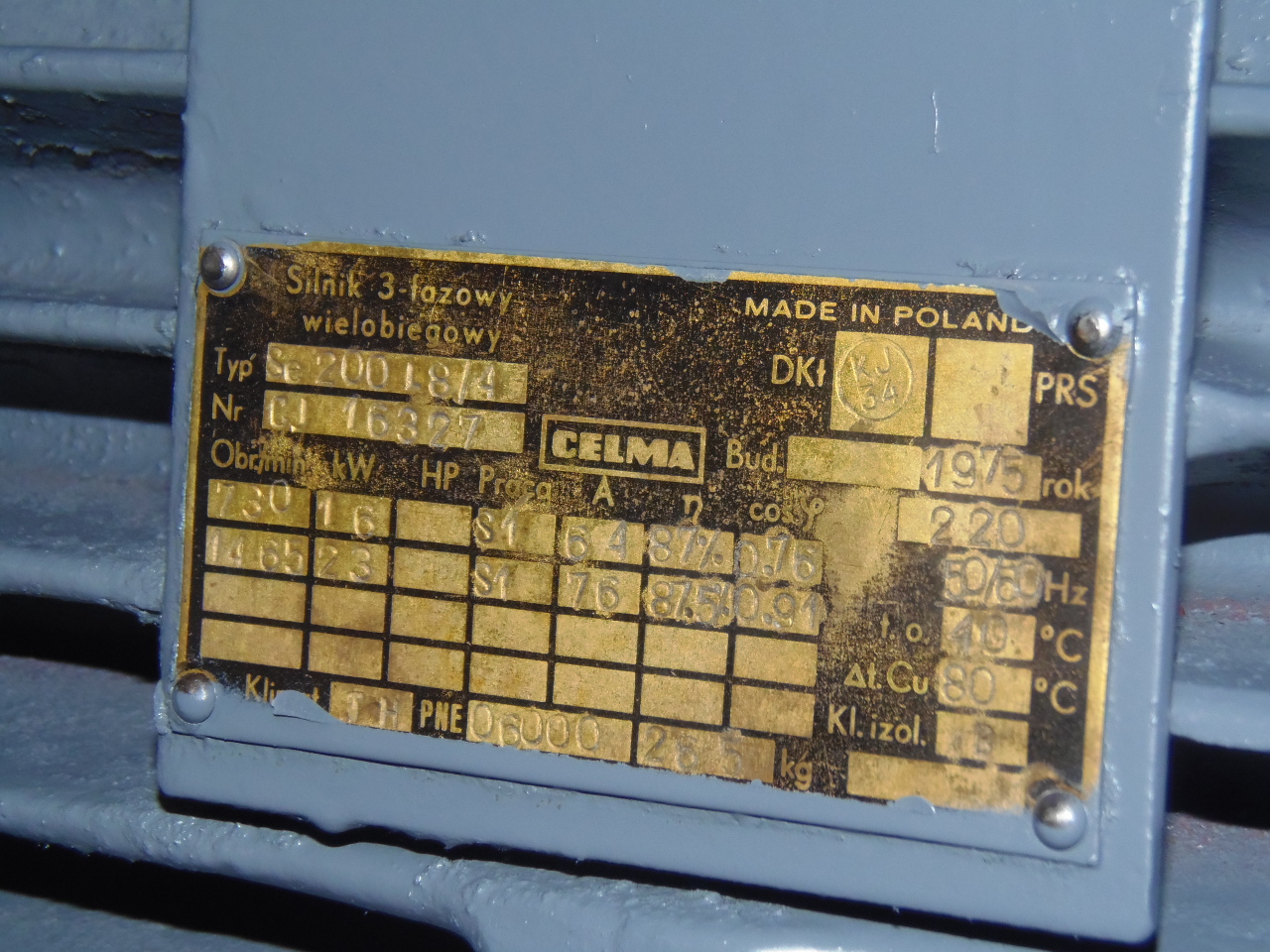

MOTOR................................ 30 HP
WORK WEIGHT BETWEEN CENTERS.......... 13,500 LBS
WORK WEIGHT (2 STEADY RESTS)......... 20,000 LBS
SHIPPING WEIGHT...................... 19,500 LBS
EQUIPPED WITH:

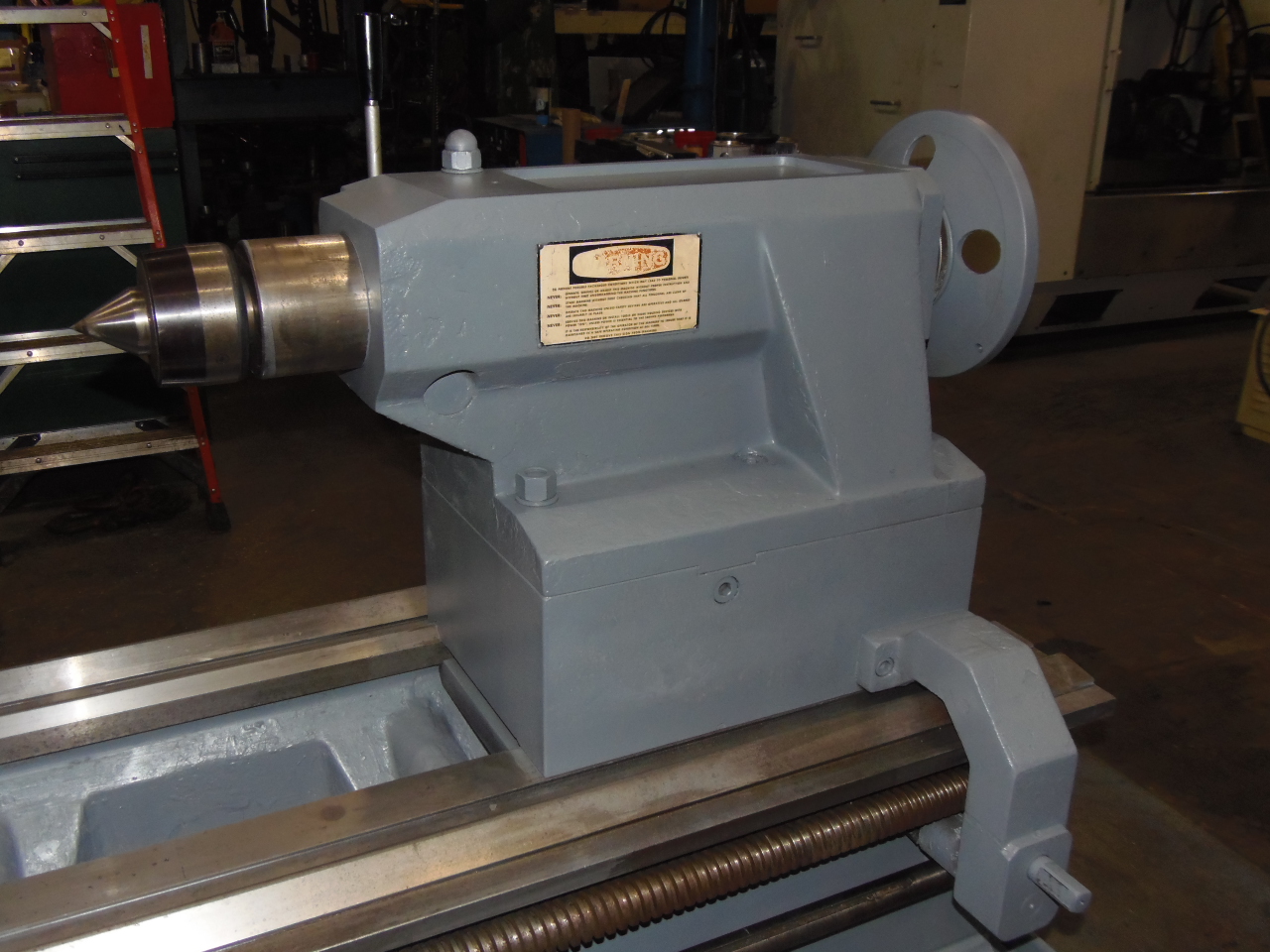

TAIL STOCK

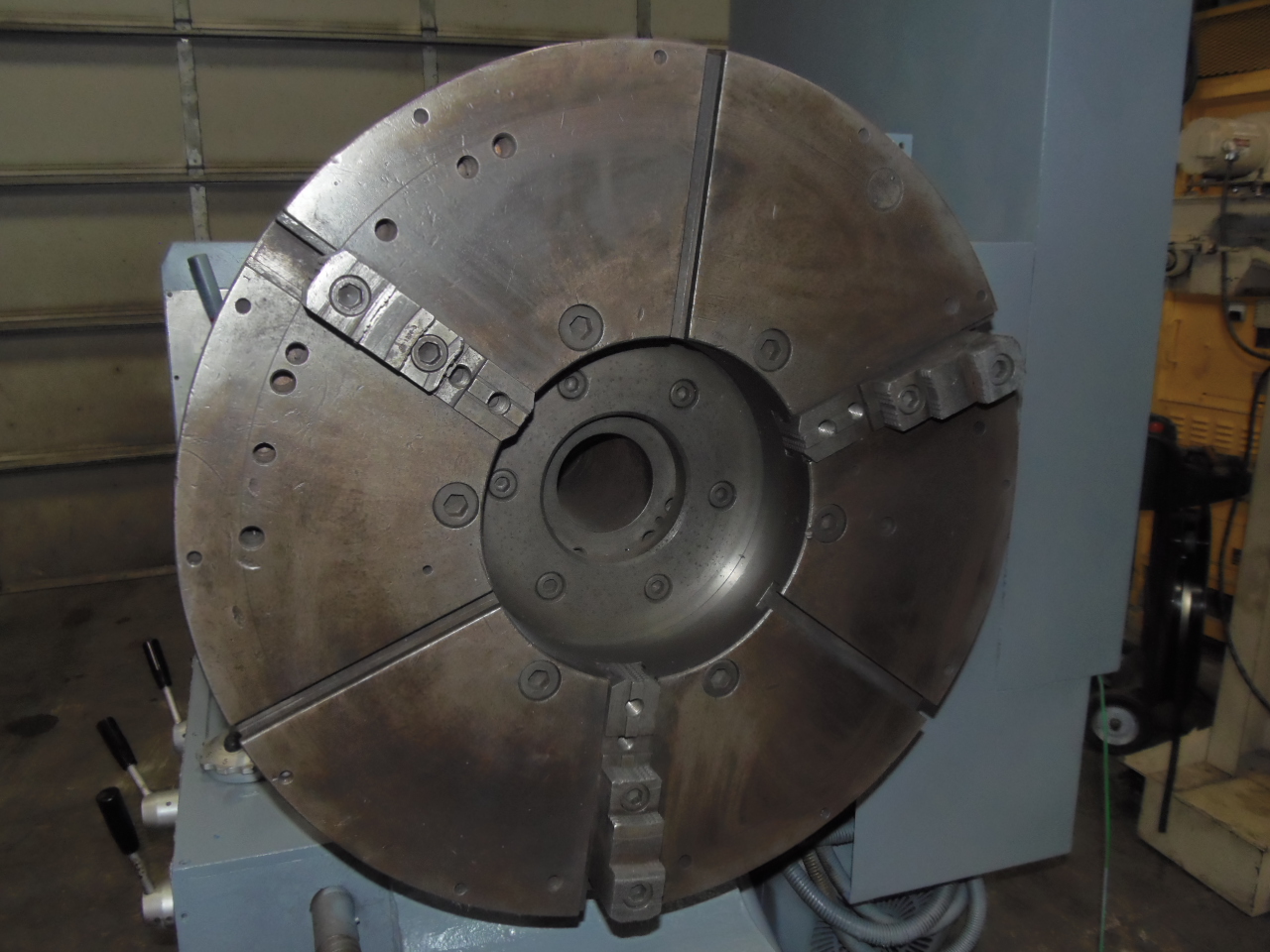

32" 3-JAW CHUCK
INCH/METRIC THREADING
POWER RAPID TRAVERSE
4-WAY TOOL POST

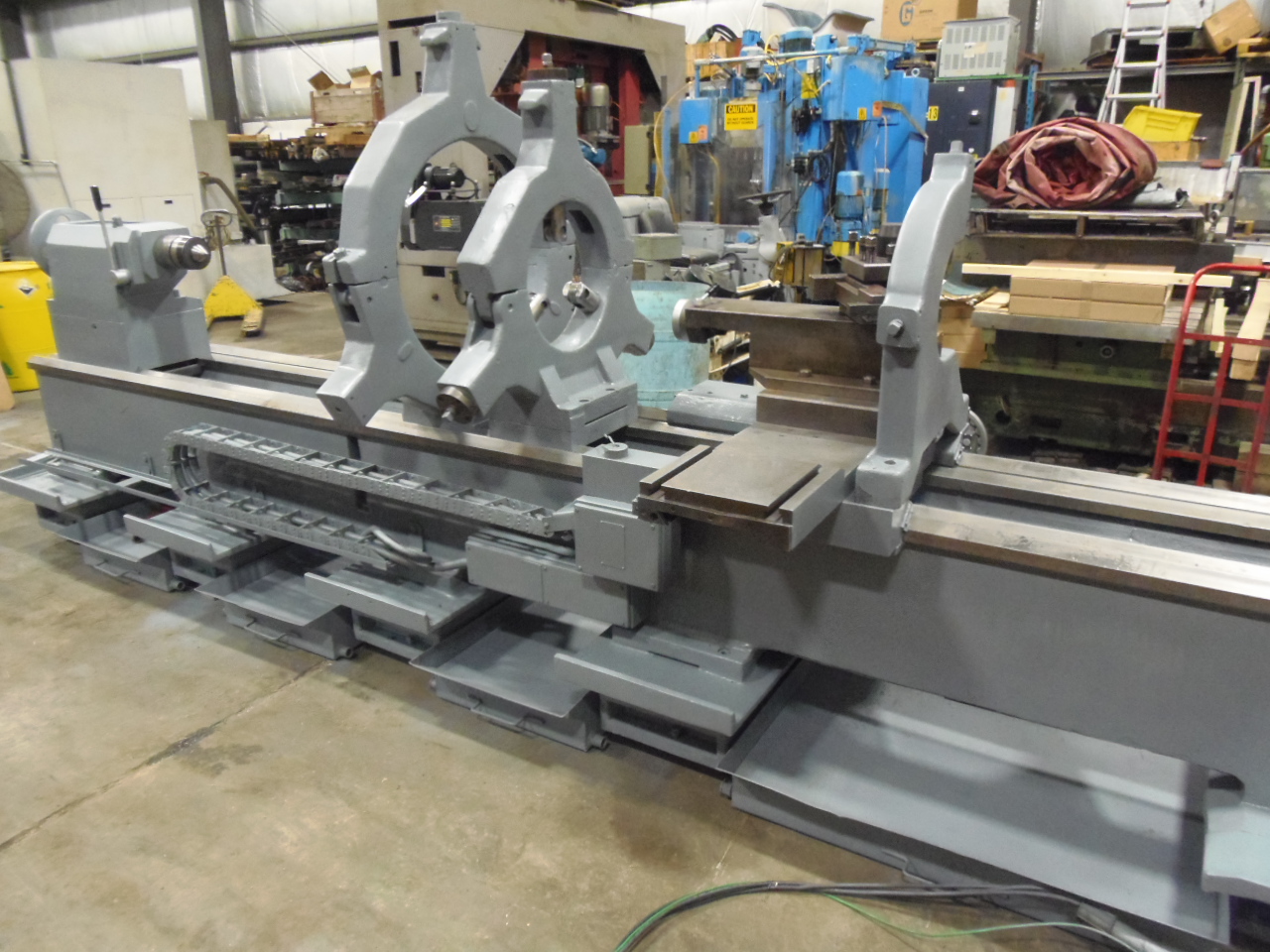

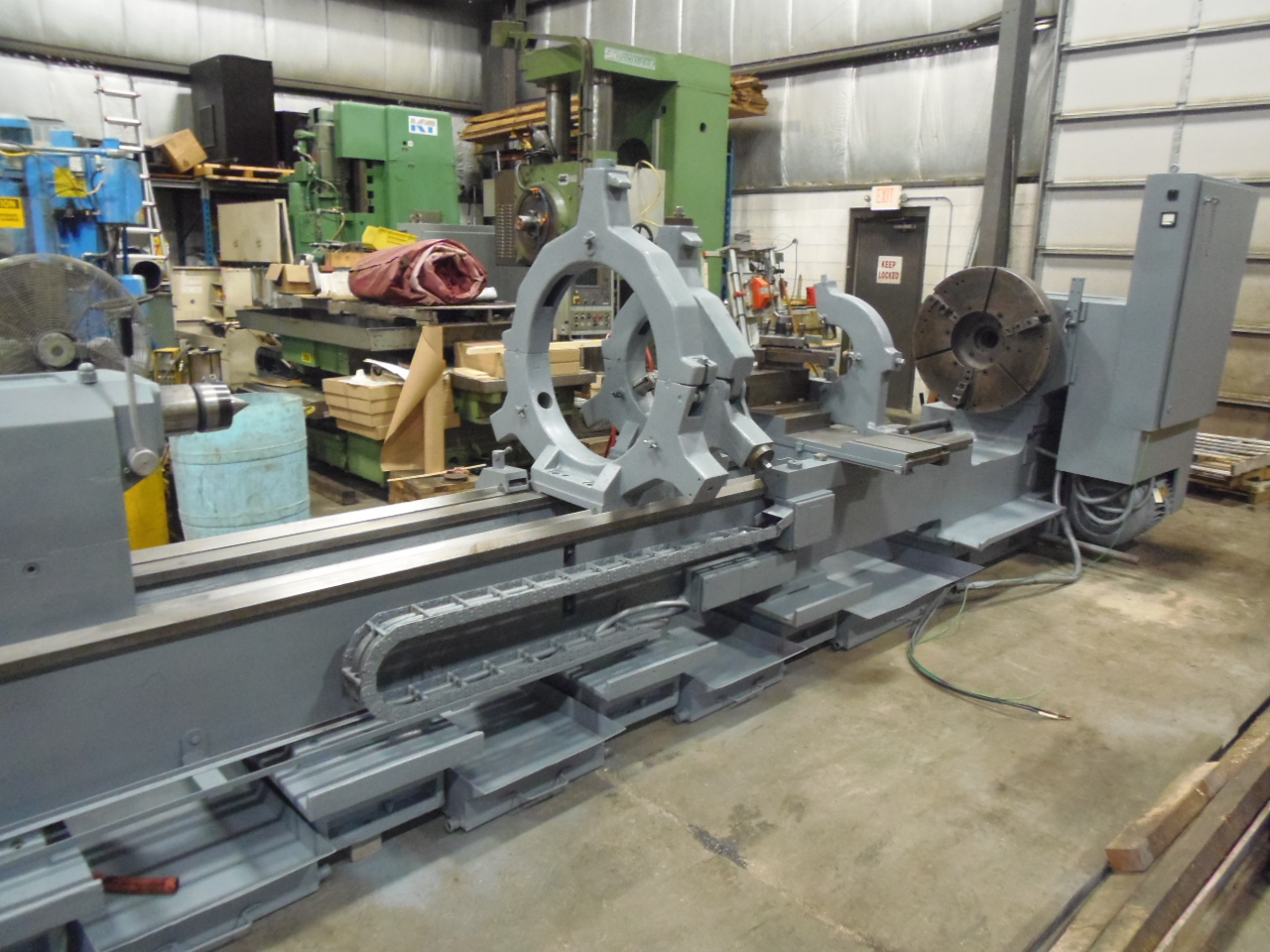

16" ROLLER STEADY REST

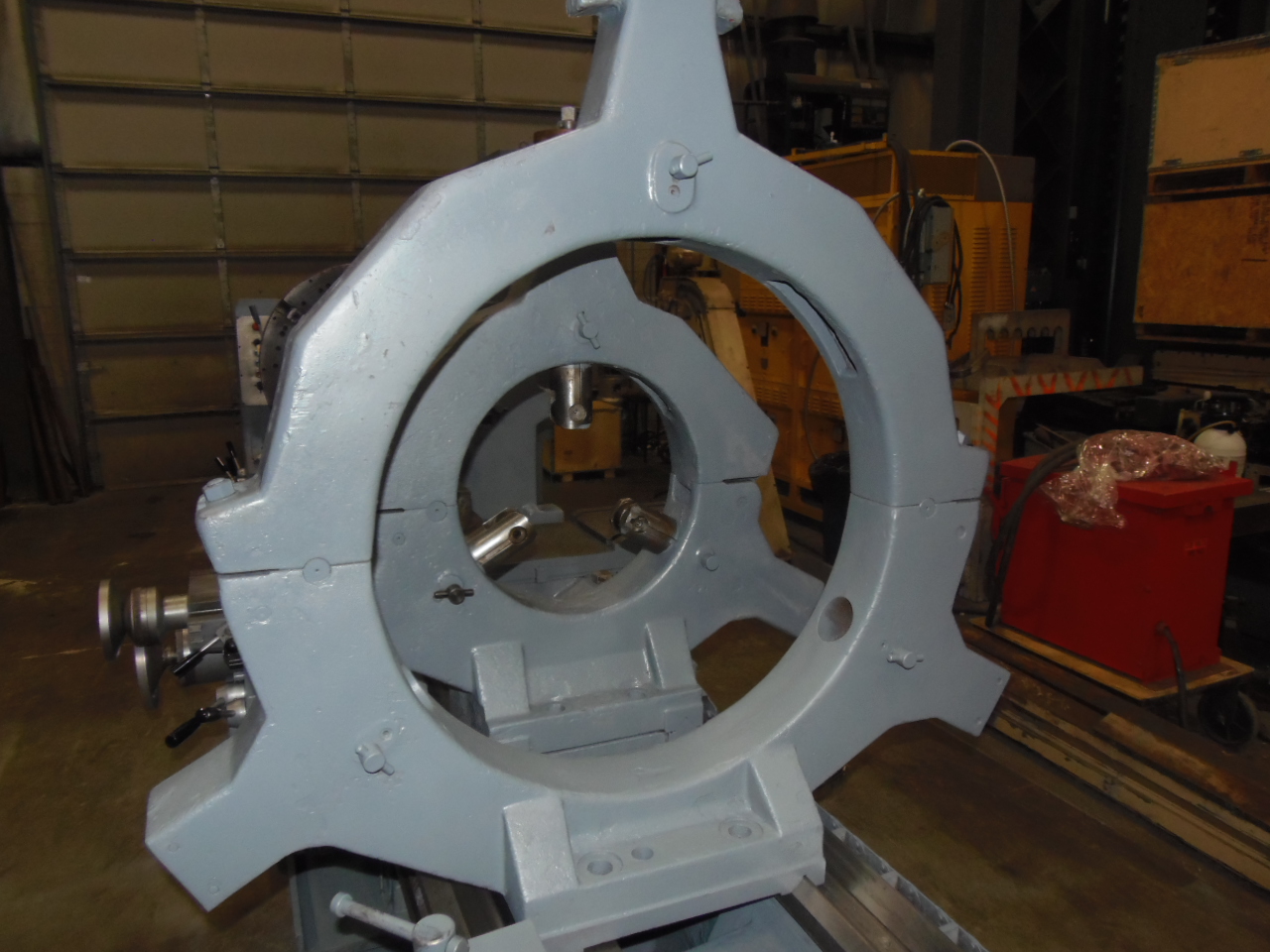

28" STEADY REST WITHOUT ROLLERS OR ARMS

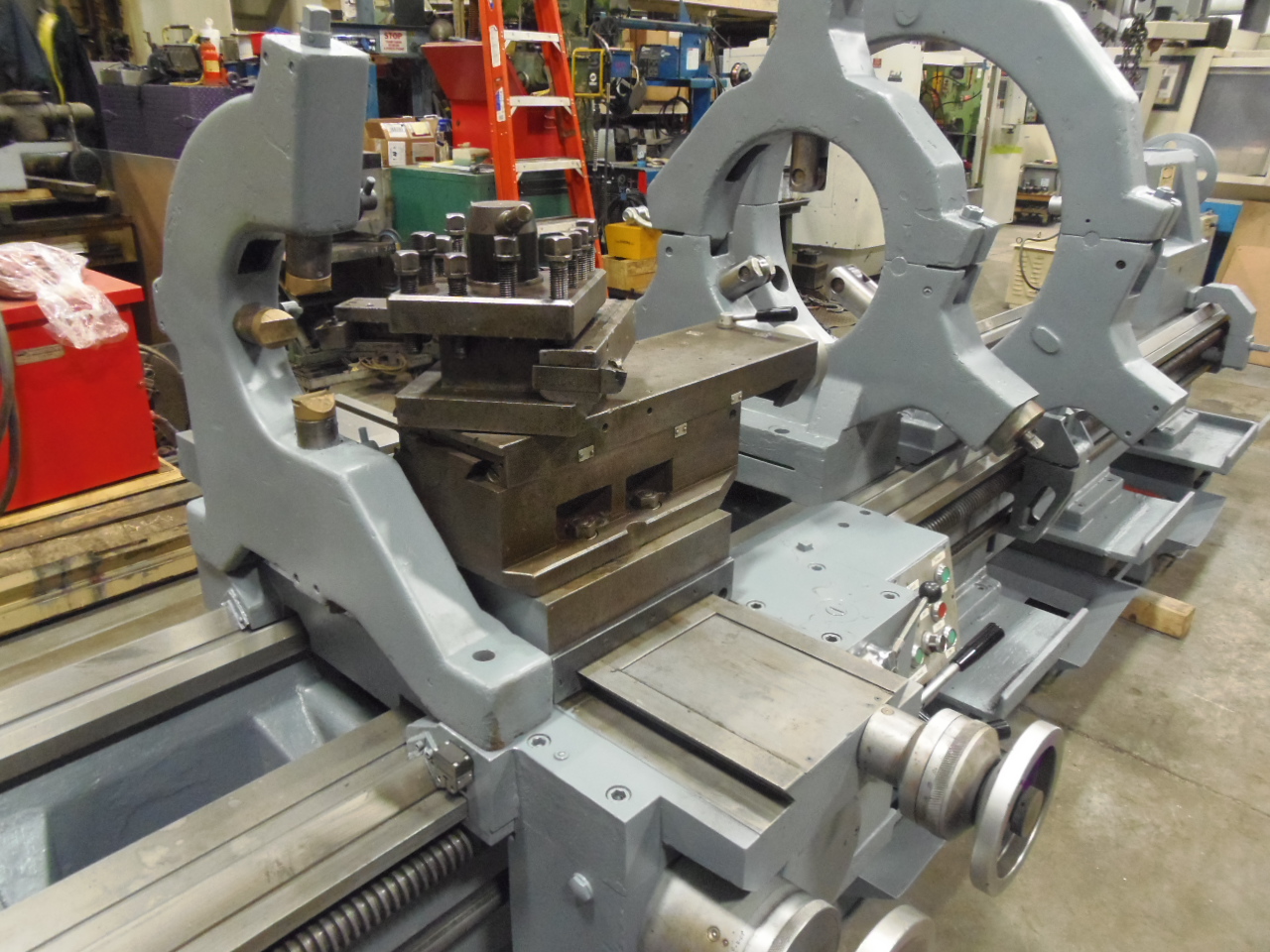

FOLLOW REST
