Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL # TS1376-04
MODEL MCSB2-900
NEW APPROXIMATELY 1991

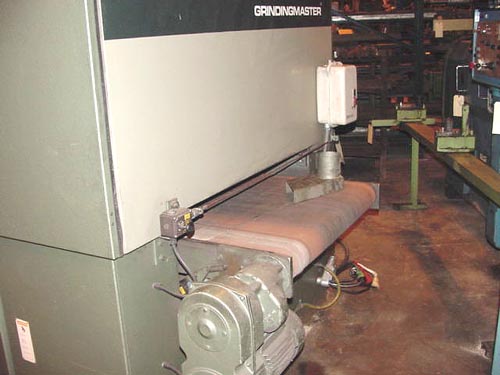

WIDTH OF THRU FEED CONVEYOR BELT 35-3/8"
WIDTH OF PLATEN 36"
LOWER RUBBER CONTACT WHEEL 10" DIA. X 37-1/2" L
CONVEYOR BELT TRAVERSE SPEED 2 SPEEDS
DIST. CONVEYOR TO CONTACT WHEEL 7" MAX.
EQUIPPED WITH:
ADJUSTABLE AIR PRESSURE BELT TENSION AND TRACKING SYSTEM
RUBBER CONVEYOR BELT IS IN FAIR CONDITION
EMERGENCY STOP BAR AND CABLE SYSTEM
POWER ELEVATION ADJUSTMENT OF THRU FEED CONVEYOR
DUST COLLECTOR ATTACHMENT PORT ON TOP OF MACHINE
MOTOR LOAD PRECENTER METER (3)
3 HP 2-SPEED CONVEYOR BELT MOTOR

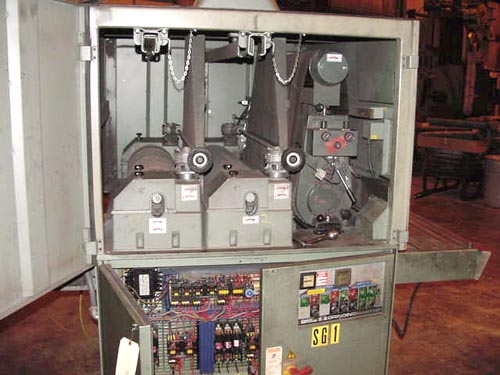

25 HP MOTOR 1ST GRINDING HEAD
25 HP MOTOR 2ND PLISHING BRUSH
25 HP MOTOR 3RD POLISHING BRUSH
OSCILLATING BRUSH HEAD II
