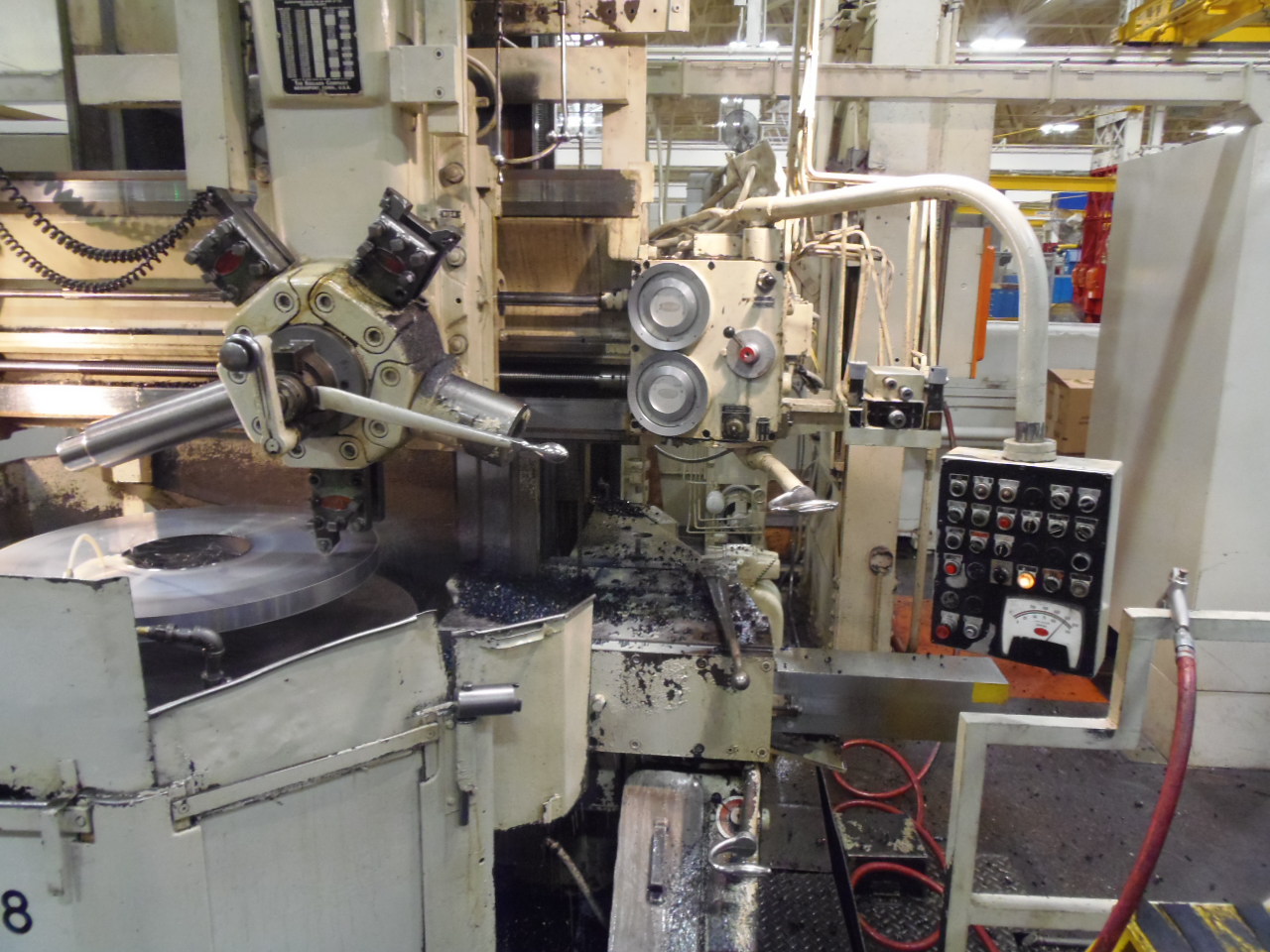

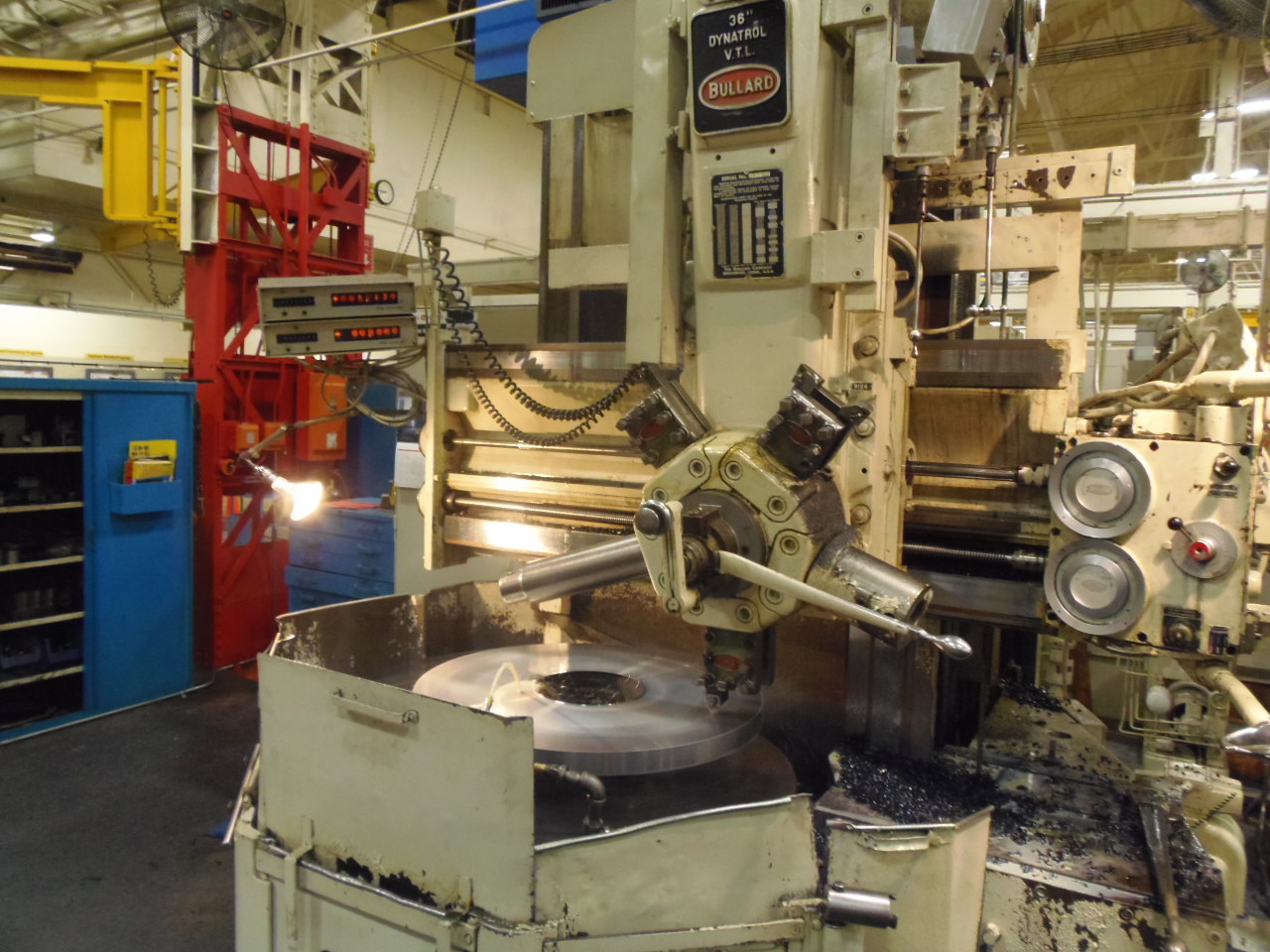

36" BULLARD DYNATROL, TURRET/SIDEHEAD, TRACER, DRO, 3 JAW HYD CHUCK, 40" VERT,

Brand
BULLARD

Model
DYNATROL

Type
Boring Mills, Vertical

Stock #
9225

Condition
Used

Year
1974

Request a Quote

Specifications

Equipped With
SWING WITH SIDE HEAD ABOVE TABLE ---------- 39"
SWING WITH SIDE HEAD BELOW TABLE ---------- 46"
HEIGHT UNDER CROSS RAIL ------------------- 30"
CROSS RAIL TRAVEL ------------------------- 20"
HEIGHT UNDER TURRET FACE ------------------ 40-3/8"
VERTICAL TRAVEL OF TURRET HEAD ------------ 26"
HORIZONTAL TRAVEL OF TURRET HEAD ---------- 43-3/4"
TURRET HEAD TOOL POST HOLES --------------- 2-3/4"
VERTICAL TRAVEL OF SIDE HEAD -------------- 28-3/4"
HORIZONTAL TRAVEL OF SIDE HEAD ------------ 23-3/4"
SPEEDS ---------- ( 20 ) ------------------ 13 TO 468 RPM
FEEDS INFINITELY VARIABLE ----------------- .001" TO .250"/REV.
HEAD COMBINATIONS:
POWER INDEXING FIVE SIDED TURRET
POWER INDEXING FOUR SIDED SIDE HEAD
APPROXIMATE MACHINE WEIGHT ---------------- 34,050 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 92"(LR) X 104"(FB) X 137"(H)

EQUIPPED WITH:
36" 3 JAW HYDRAULIC CHUCK
AUTOMATIC LUBRICATION
PENDANT CONTROL
50 HP MAIN MOTOR
5 HP RAIL ELEVATION
2 AXIS DIGITAL READOUT
2 AXIS SCAN-O-MATIC TRACER
MISCELLANEOUS TURRET TOOLING
HARDENED AND GROUND WAYS ON CROSS RAIL, COLUMN AND SWIVEL
