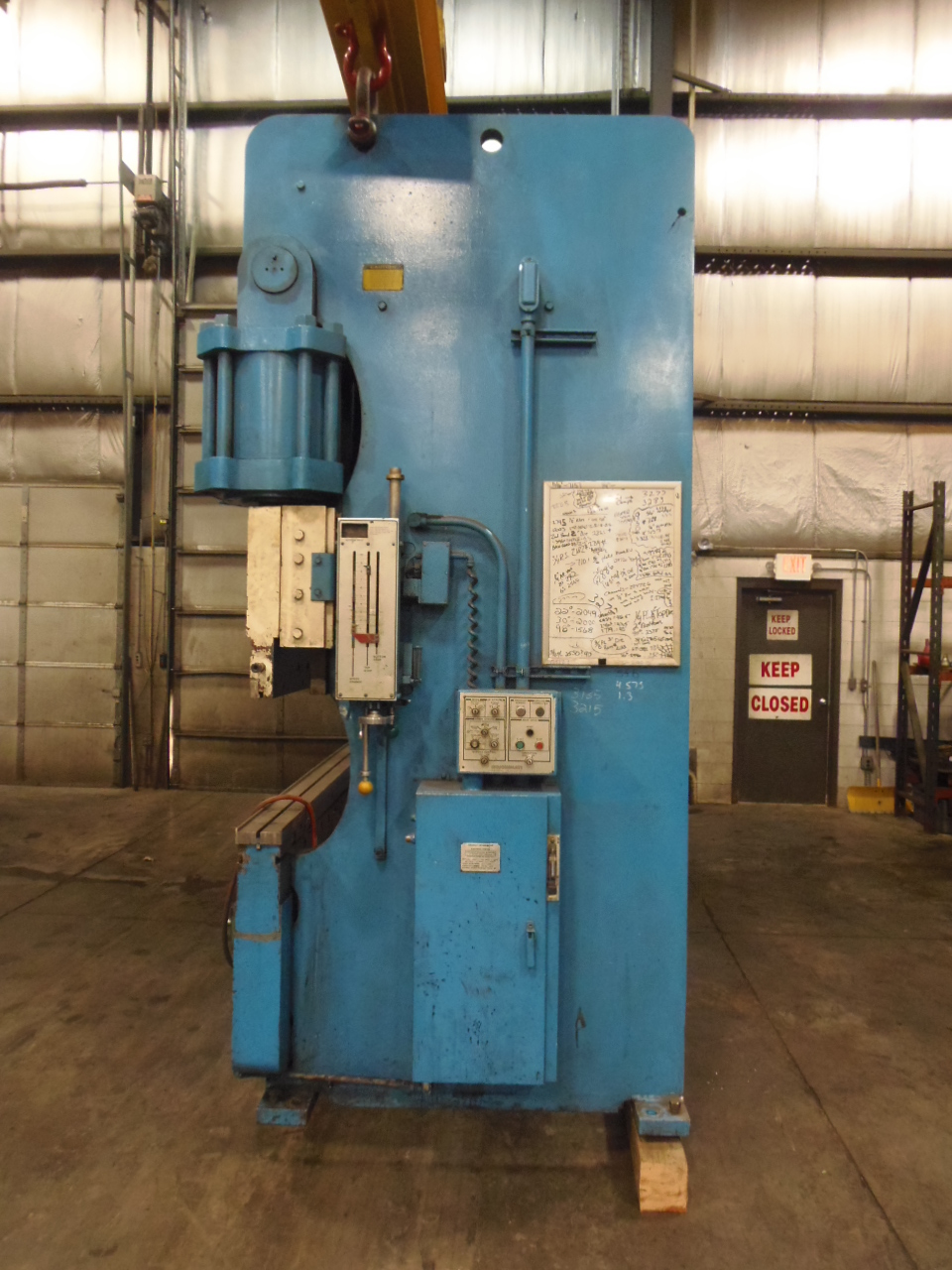

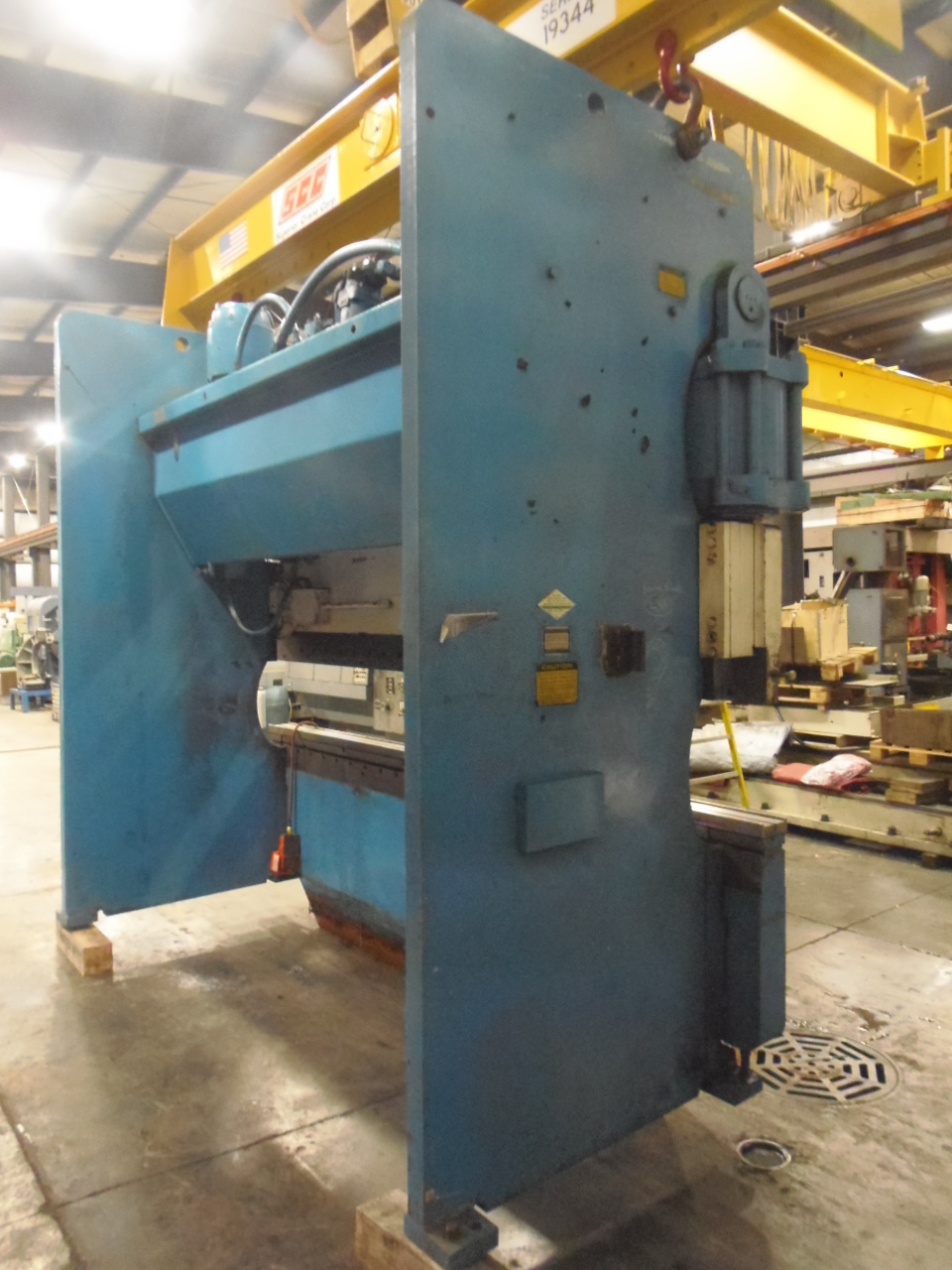

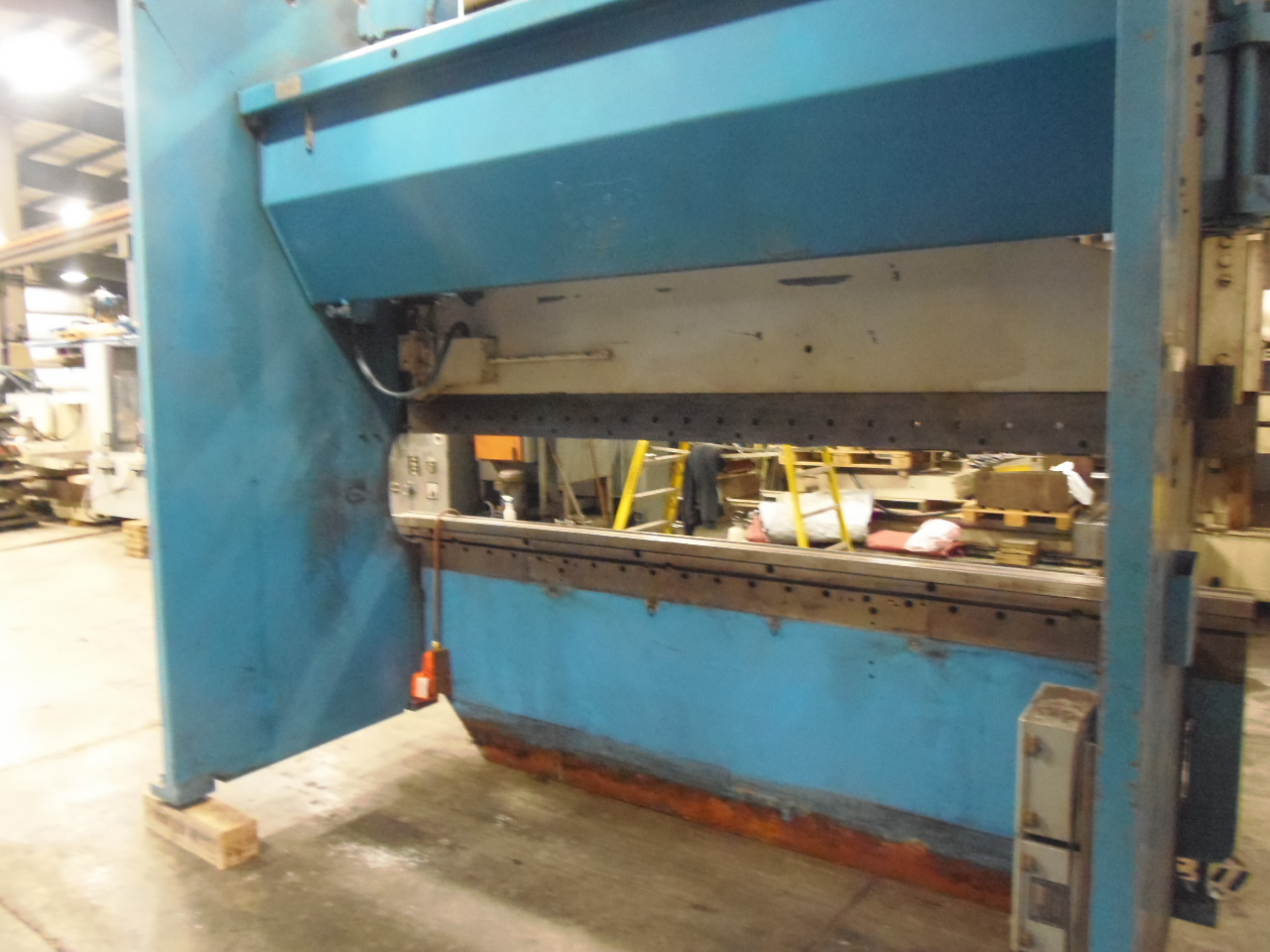

GENERAL SPECIFICATIONS:

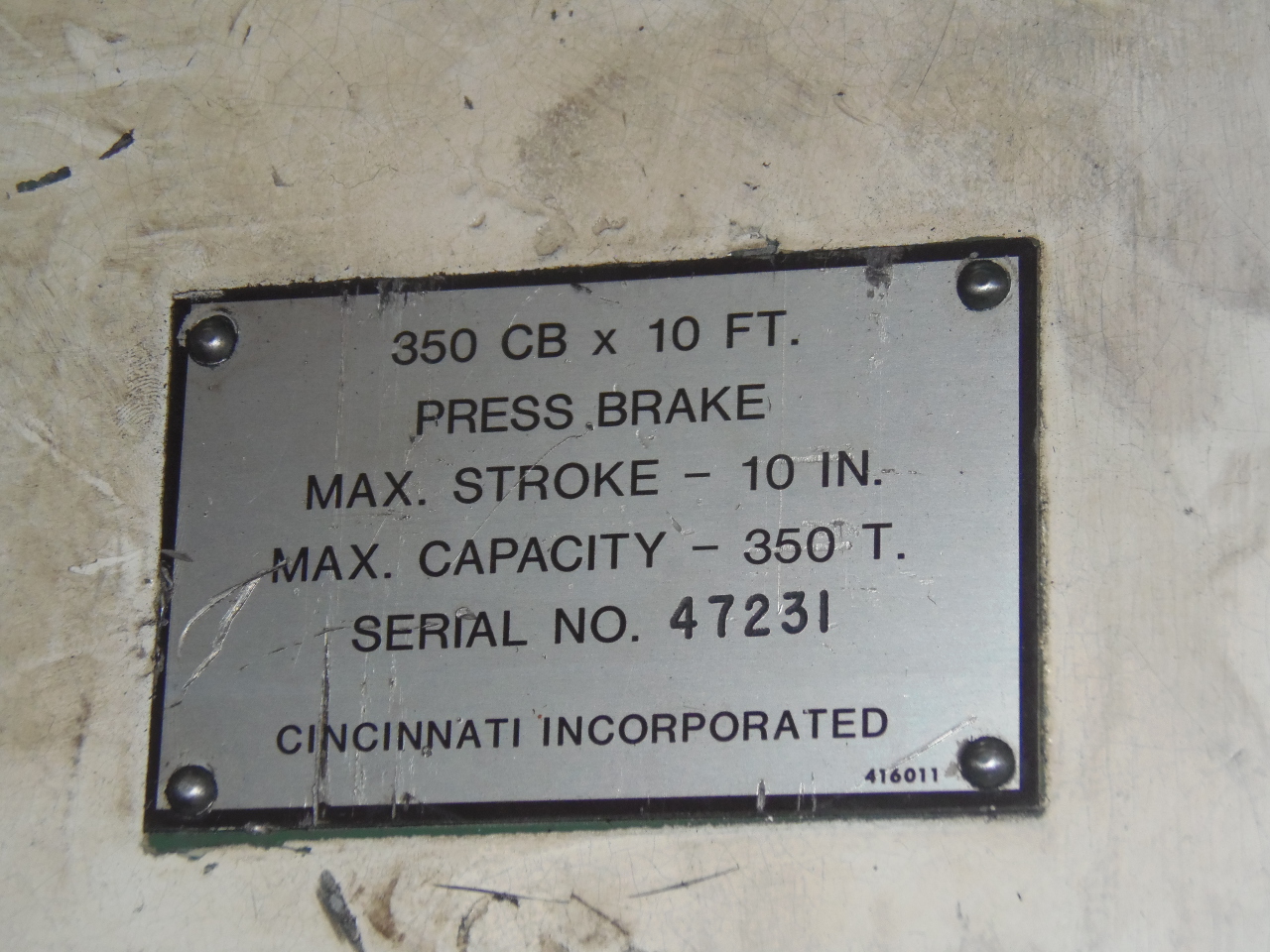

MAKE..................... CINCINNATI
MODEL.................... 350-CB-10
SERIAL NUMBER............ 47231
AGE (YEAR)............... 1994
OVERALL BED LENGTH....... 144"
DIST. BTWN. HOUSINGS..... 10' 6"
BENDING CAPACITY......... 350 TONS
STROKE................... 10"
OPEN HEIGHT.............. 18"
CLOSED HEIGHT............ 8"
THROAT DEPTH............. 10"
RAM RETURN SPEED......... 67 IPM
RAM SPEED PRESSING....... 9/33/65 IPM
RAM SPEED RETURN......... 1-290 IPM

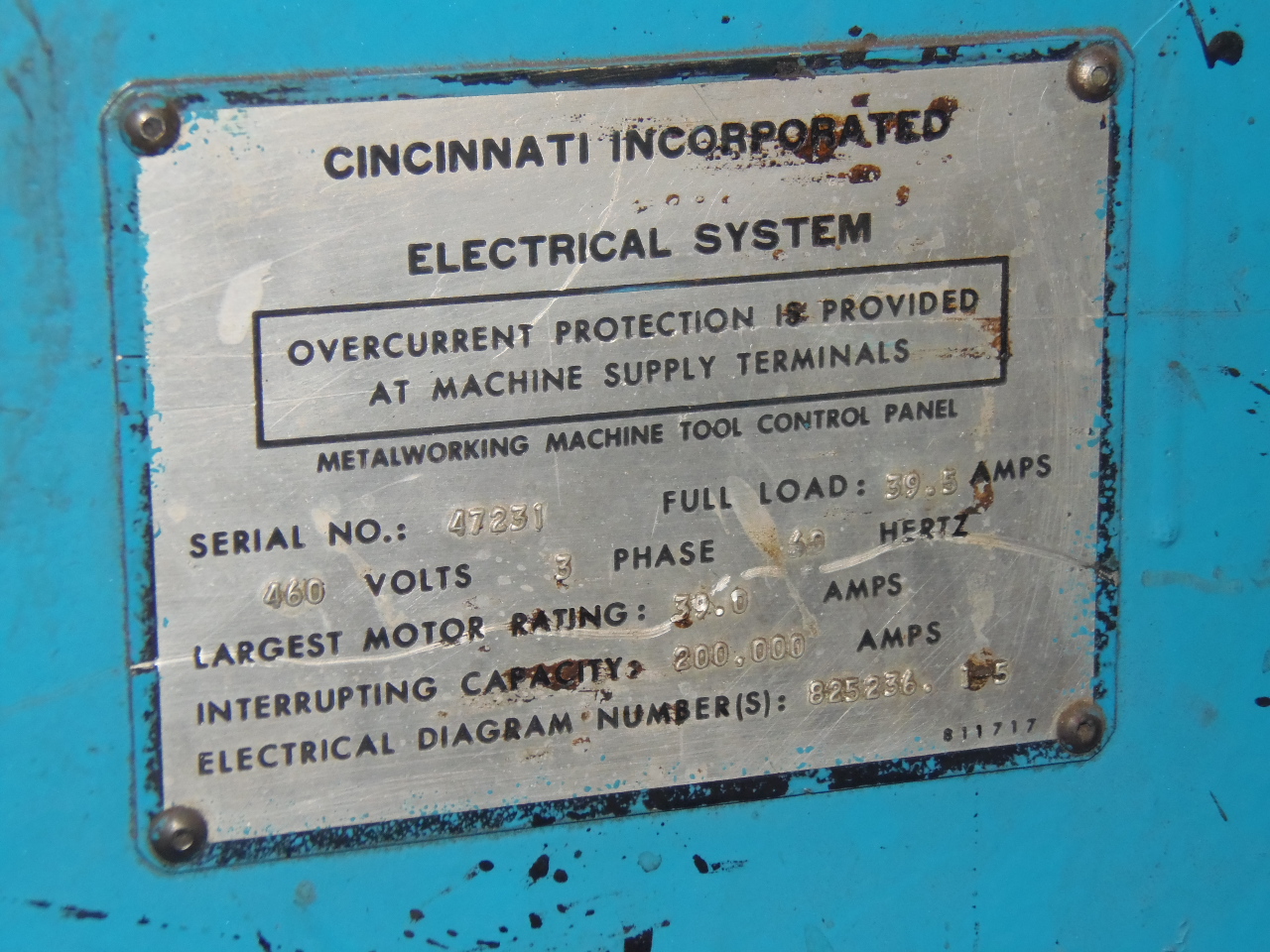

MAIN MOTOR............... 30 HP
DIMENSIONS............... 176" X 112" X 134" H
WEIGHT APPROX............ 38,000 LBS.
EQUIPPED WITH:
AUTOGAUGE 9X9 CONTROL WITH 24 BACK GAUGE

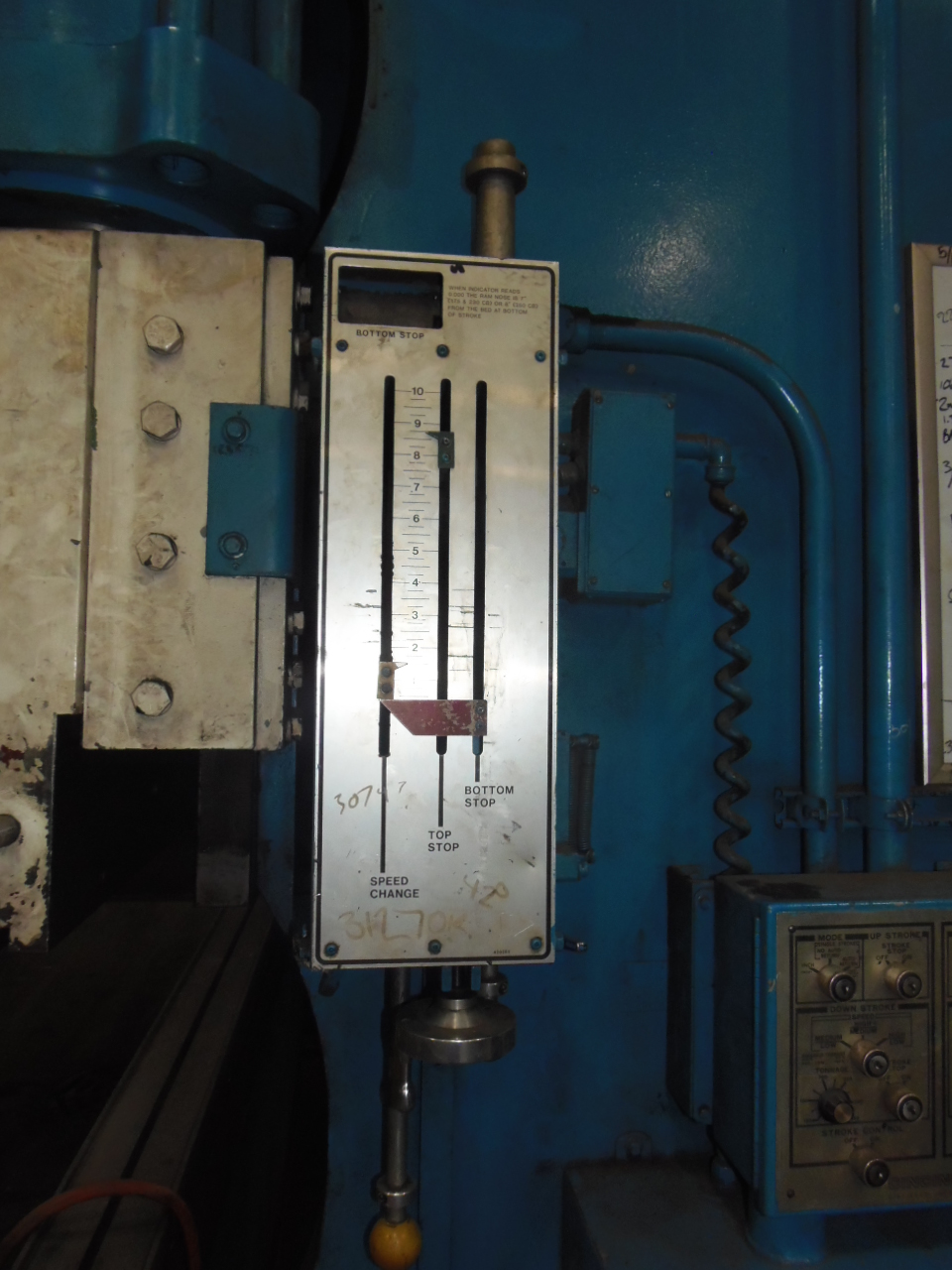

ADJUSTABLE DEPTH CONTROL

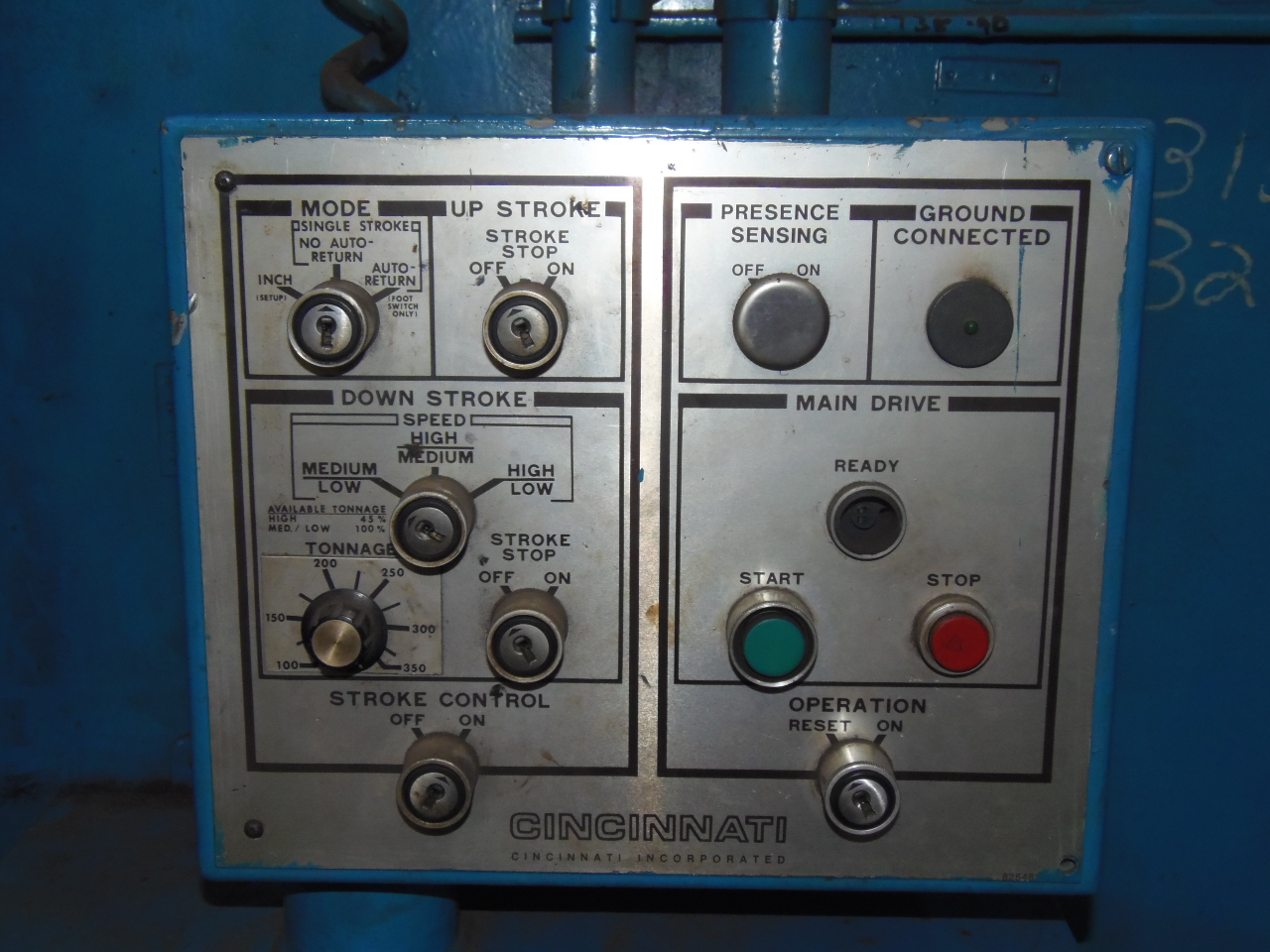

MEDIUM LOW/HIGH,MEDIUM/HIGH,LOW SPEED CONTROLS
TONNAGE CONTROL
10" X 10" X 116" FRONT SLOT REQUIRED
SPECIFICATIONS SUBJECT TO VERIFICATION
