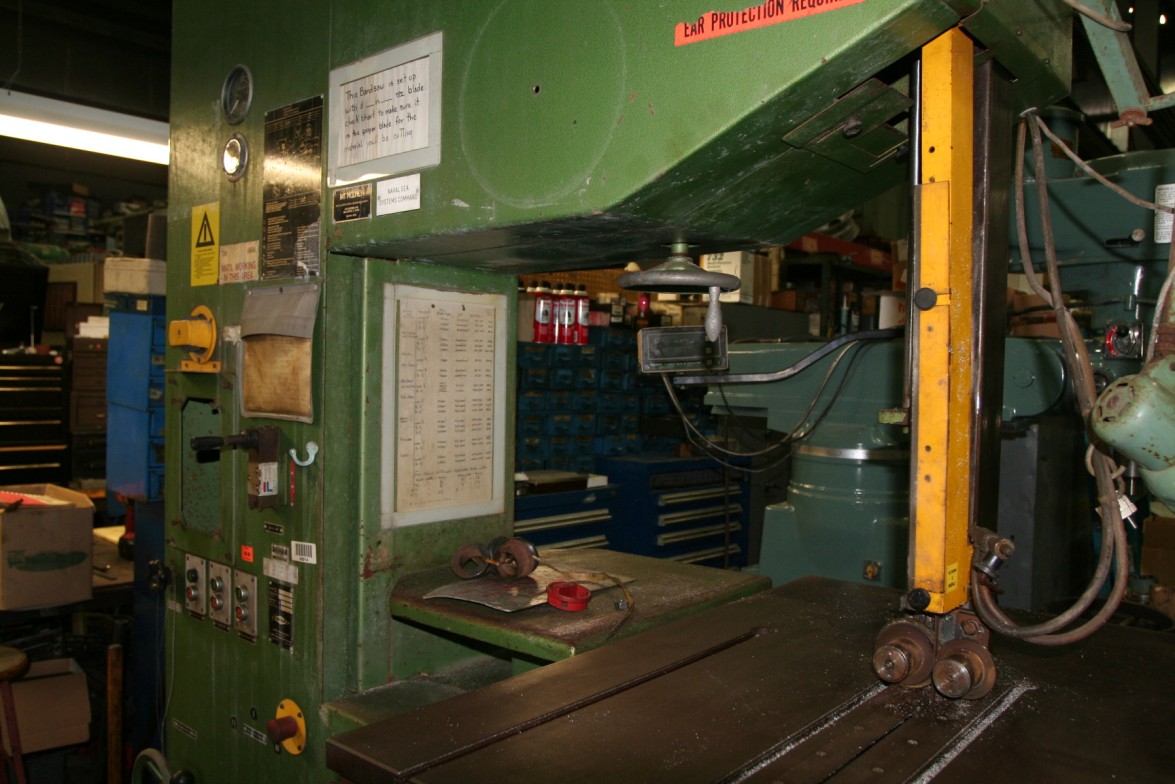

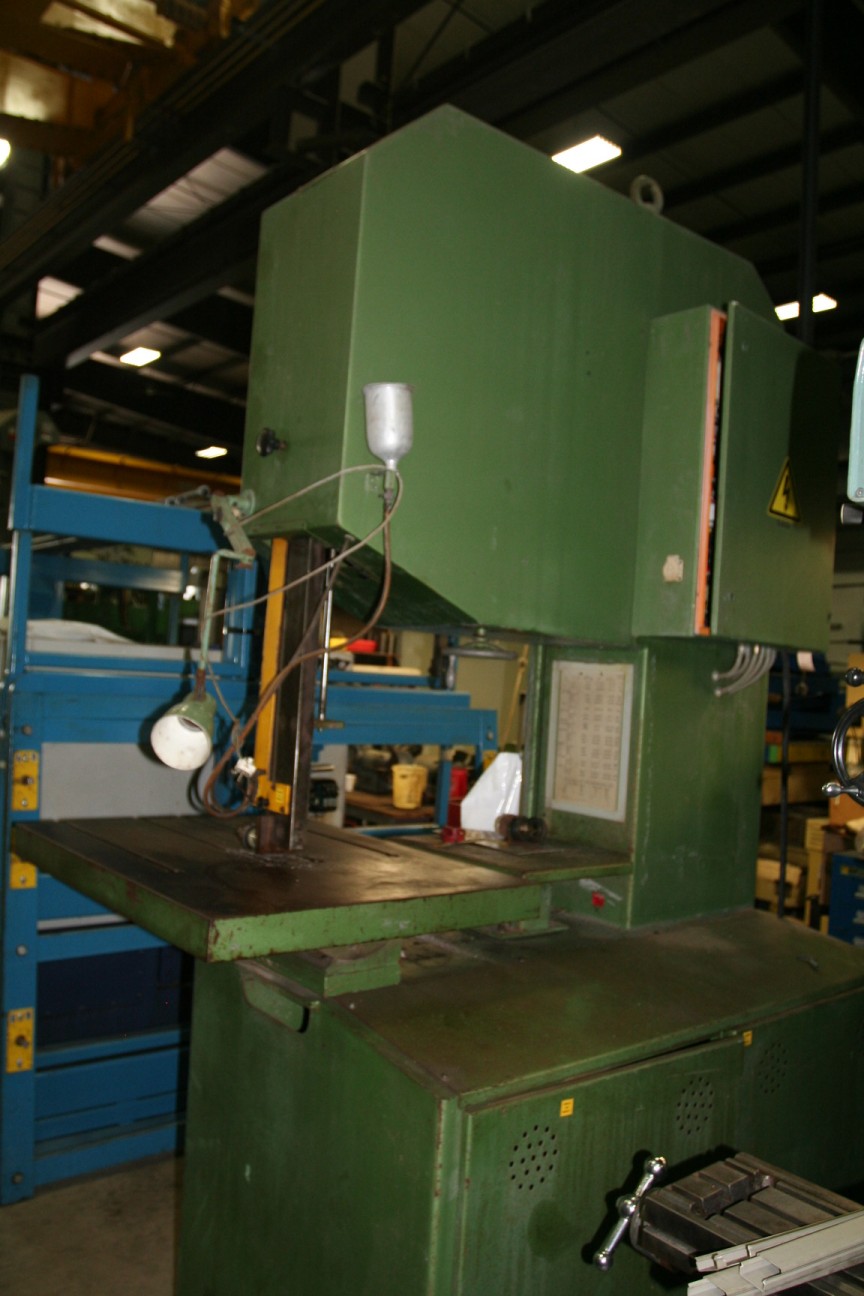

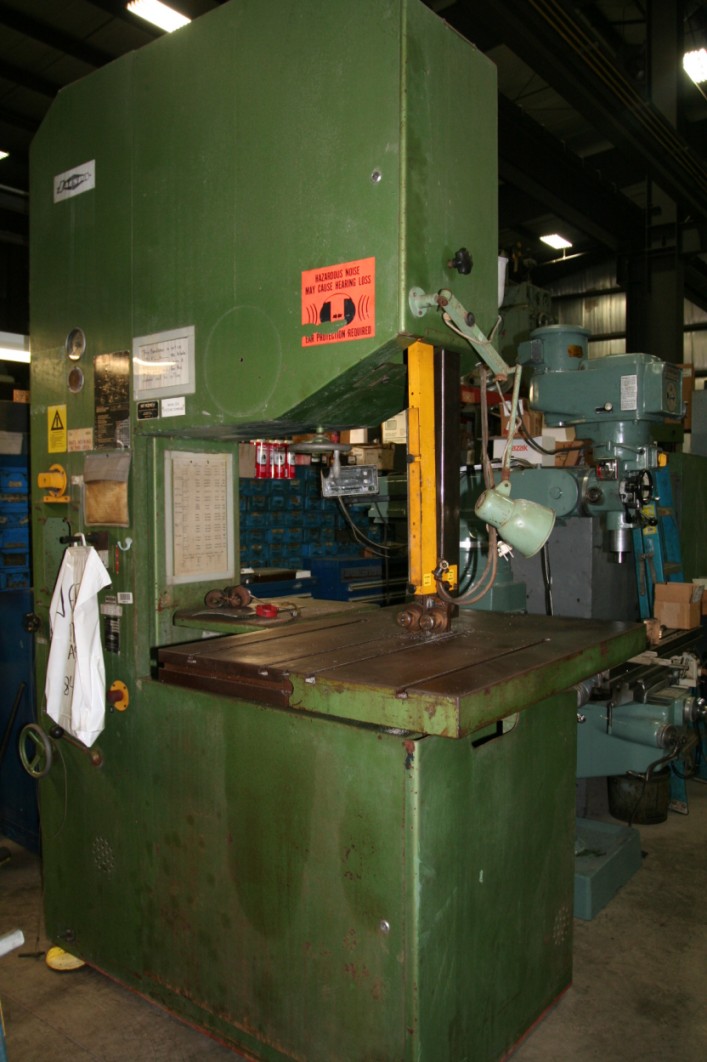

35" x 20" JAESPA ASH 9 VERTICAL BANDSAWING MACHINE, GOV'T SURPLUS

SPECIFICATIONS:

Wheel Diameter ...................... 900mm - 35.44"
Cutting Height ...................... 520mm - 20.48"
Throat Depth ........................ 880mm - 34.65"
Sawband Speed - m/min ............... 16/3200
Saw Motor ........................... 7.5 kW
Table Size .......................... 750 x 950mm - 29.53" x 37.40"
Tiltable ......................... 15 Degrees / 30 Degrees
Table Movement, Feed ................ 410mm - 16.14"
Material Support Height ............. 950mm - 37.40"
Sawband Dimensions - min/max ........ 5960/6160mm - 234.65"/242.52"
Overall Dimensions
Length ........................... 2075mm - 81.69"
Width ............................ 1950mm - 76.77"
Height ........................... 2860mm - 112.60"
Net Weight ....................... 1900kg
