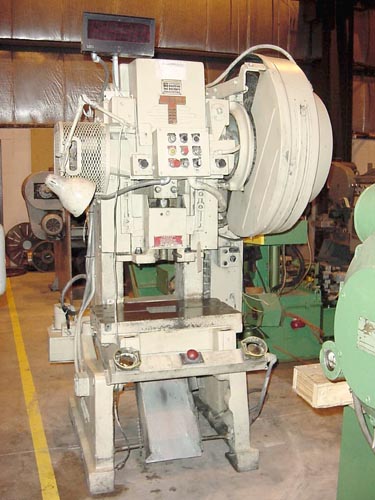

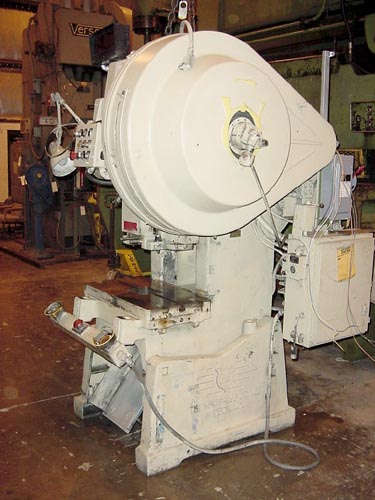

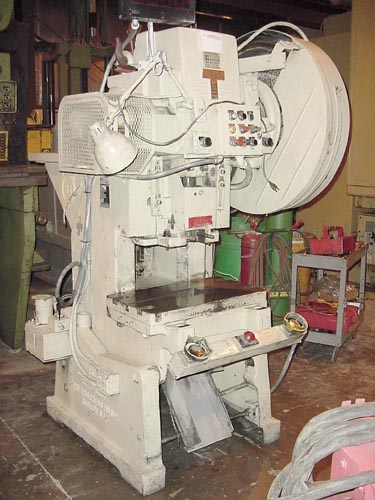

35 TON V & O ,3" STK, 10" SH, 16" X 29" BED, 130 SPM, AIR CLUTCH/BRAKE, 1972

GENERAL SPECIFICATIONS:
MODEL SUPER-T
SERIAL # 35ST-184
NEW APPROXIMATELY 1972
CAPACITY/FORCE 35 TON
BED SIZE 16" F-B X 29" L-R
RAM SIZE 6" F-B X 7" L-R
STROKE LENGTH 3"
SHUT HEIGHT 10"
SLIDE ADJUSTMENT 3"
SPEED 130 SPM
MAIN MOTOR 3 HP
DIMENSIONS (APPROX.) 58"L X 63"W X 93"H
WEIGHT (APPROX.) 5,700 LBS.
ELECTRICS 220/440/3/60

EQUIPPED WITH:
AIR CLUTCH & BRAKE
DUAL PALM BUTTONS
INCH/CONTINOUS CONTROL
BIJUR AUTO-OILER
VORNE DIGITAL COUNTER
2.25" THICK BOLSTER W/12.5" X 10" KNOCKOUT OPENING
P.S.I. PRESSURE GAUGE
WORK LAMP
