Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER TOS
SERIAL# 0450316
MODEL SUS 80
YEAR OF MFG 1982
SWING OVER BED 33" (840 MM)
SWING OVER CARRIAGE 20.75" (530 MM)
HEIGHT OF CENTERS OVER BED 15.5" (395 MM)
MAX. WEIGHT OF WORK 6000/7.1 (KGS/RPM)
WIDTH X HEIGHT OF BED 28" X 30" (710/765 MM)
DISTANCE BETWEEN CENTERS 80" (2000 MM)

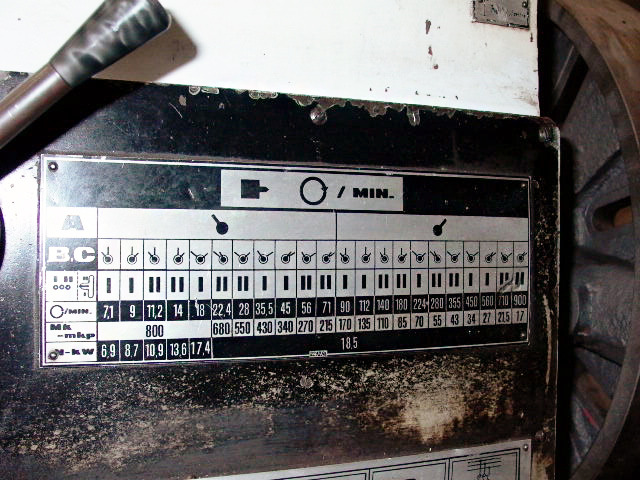

NUMBER OF SPINDLE SPEEDS 22
SPINDLE SPEED 1- 960 RPM
HOLE THROUGH SPINDLE 3.25" (82 MM)
MAIN SPINDLE MORSE NO. 6
DIAMETER IN FRONT BEARING 6.33" (160 MM)
TAPER IN SPINDLE 4" (100 MM)

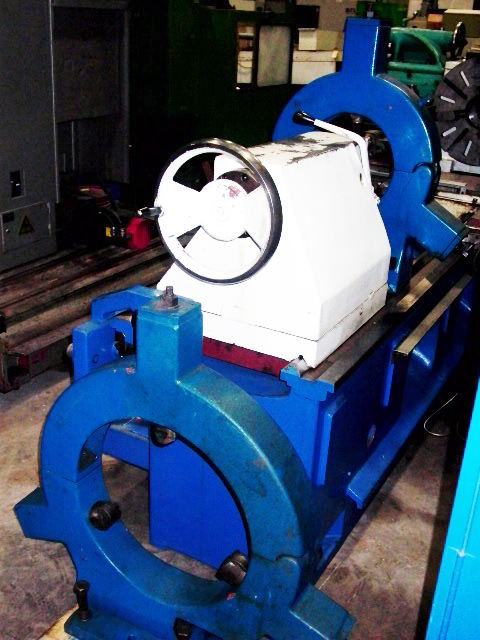

TAILSTOCK MORSE NO. 6
WORKING TRAVEL OF CROSS SLIDE 18.33" (465 MM)
WORKING TRAVEL OF TOOL SLIDE 7.66" (195 MM)
OVERALL LENGHT OF MACHINE: 169.25" (4300 MM)
OVERALL WEIGHT OF MACHINE: 14000 LBS (6200 KG)
EQUIPPED WITH:

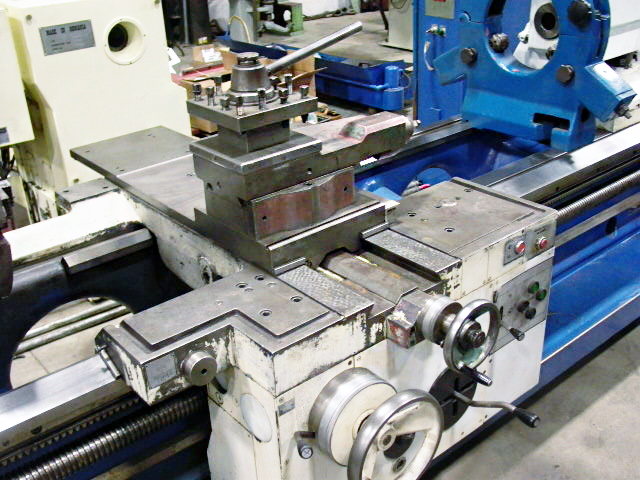

FOUR WAY TOOL POST 8.5" X 8.5" (214 X 214 MM)
INCH/METRIC THREADING

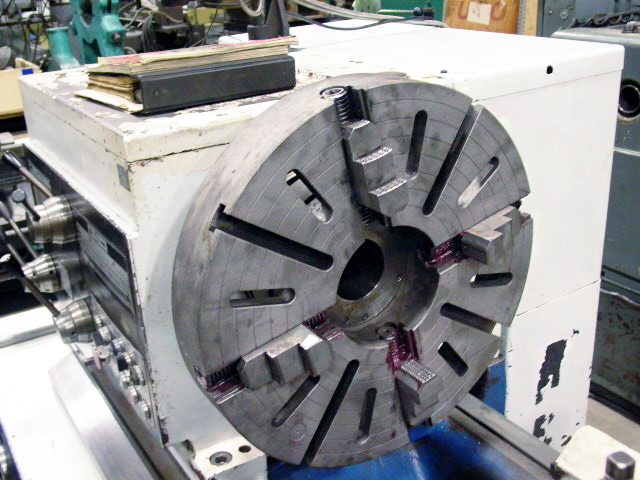

23.5" 4-JAW CHUCK
SONY DIGITAL READOUT

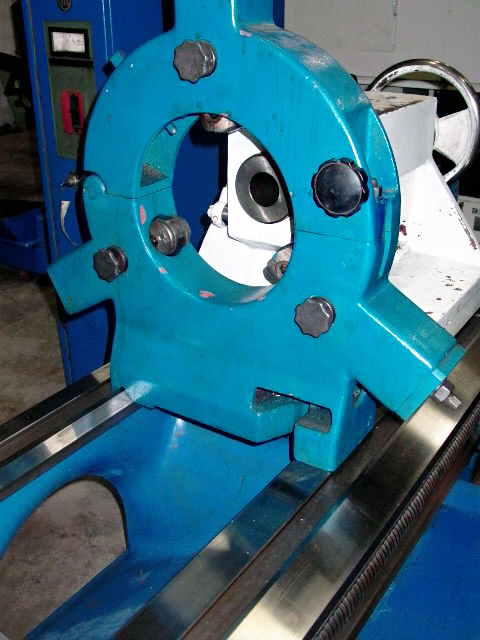

(2) STEADY RESTS
