Specifications
Equipped With

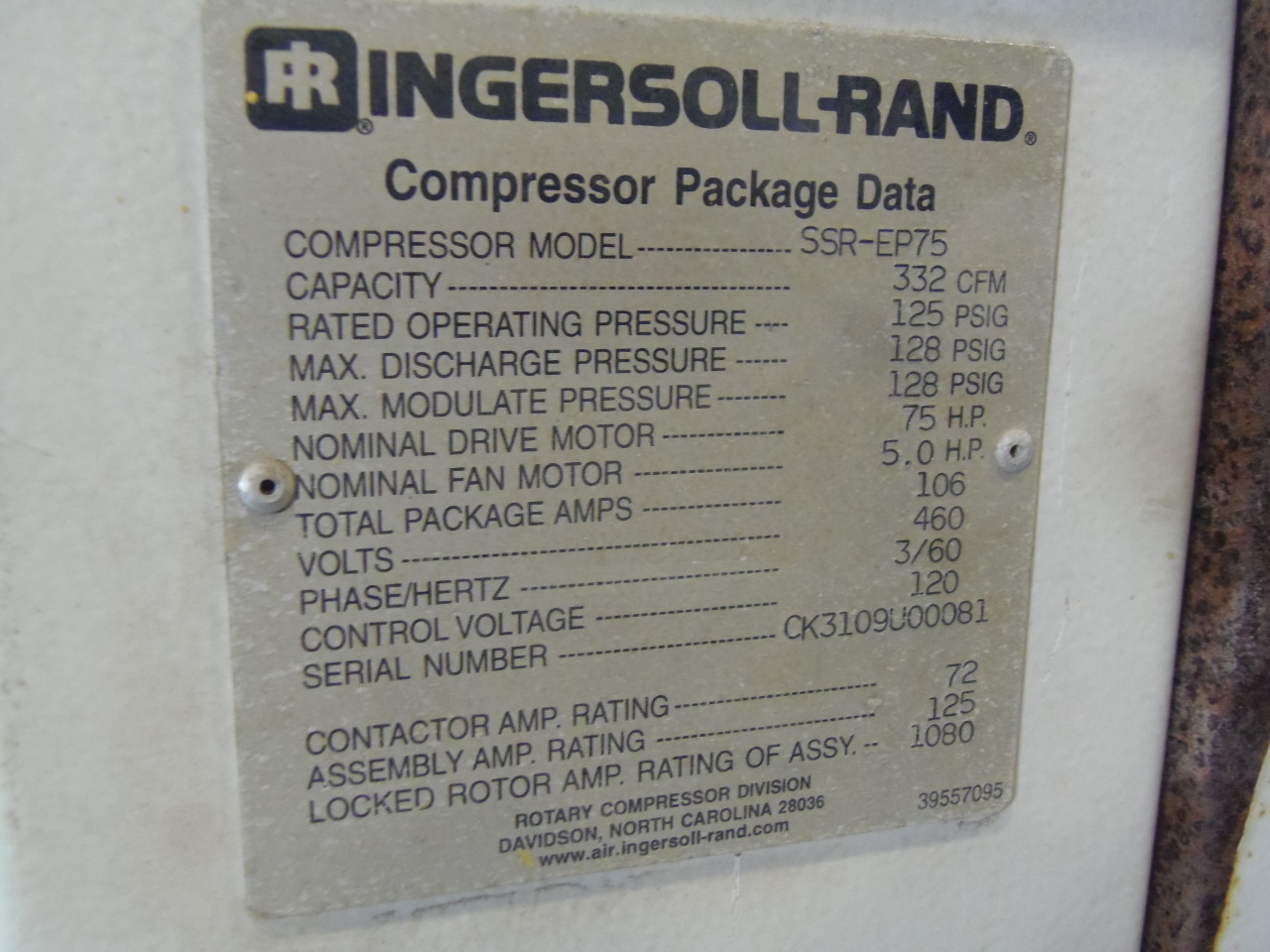

GENERAL SPECIFICATIONS:

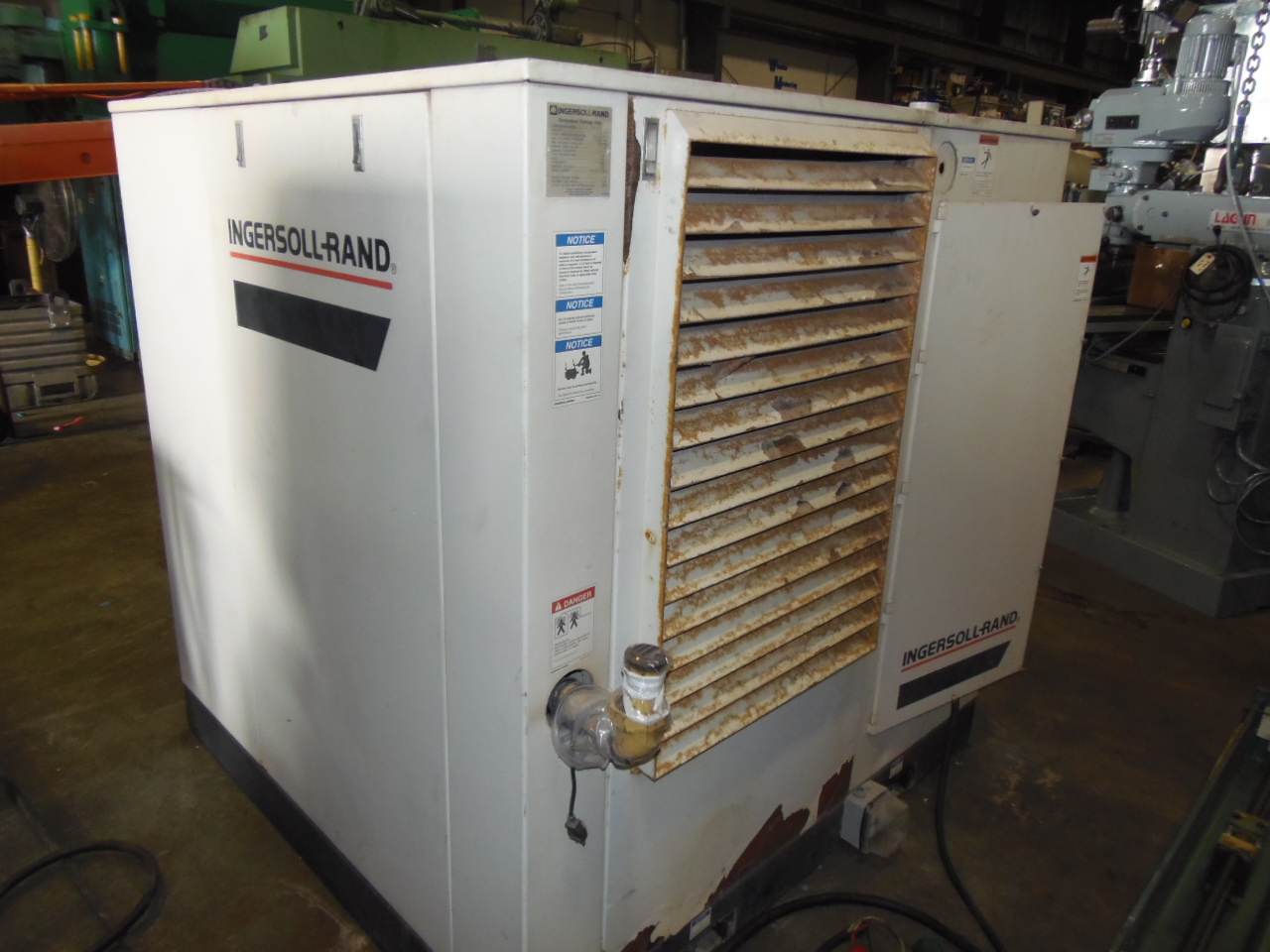

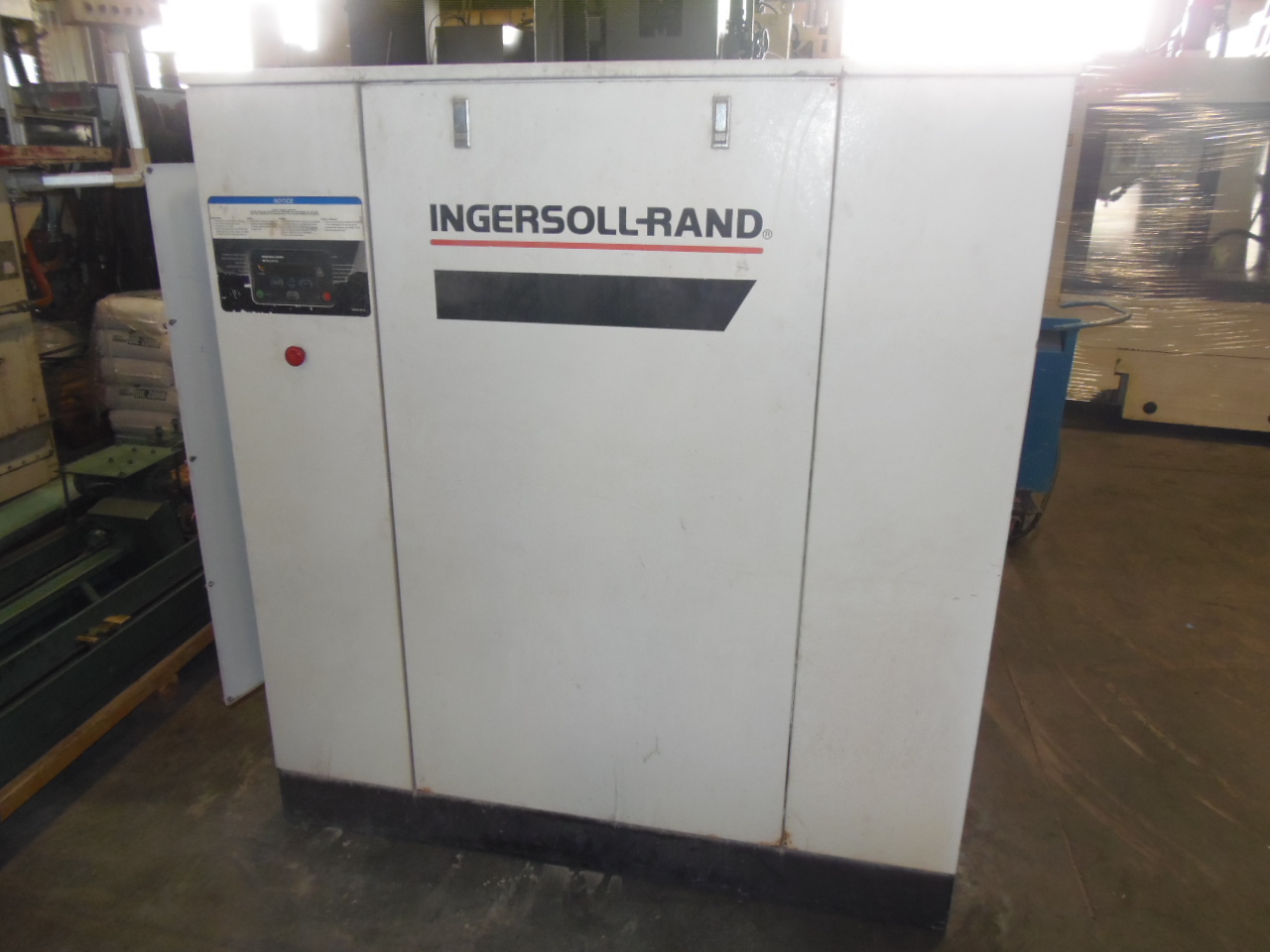

MAKE........................ INGERSOLL-RAND
MODEL....................... SSR-EP75
SERIAL NUMBER............... CK3109U00081
CAPACITY.................... 332 CFM
RATED OPERATING PRESSURE.... 125 PSIG
MAX. DISCHARGE PRESSURE..... 128 PSIG
MAX. MODULATE PRESSURE...... 128 PSIG
NOMINAL DRIVE MOTOR......... 75 HP
NOMINAL FAN MOTOR........... 5 HP
TOTAL PACKAGE AMPS.......... 106
VOLTS....................... 460V
PHASE/HERTZ................. 3/60
CONTROL VOLTAGE............. 120
CONTACTOR AMP. RATING....... 72
ASSEMBLY AMP. RATING........ 125
LOCKED ROTOR AMP.
RATING OF ASSY.............. 1080
SPECIFICATIONS SUBJECT TO VERIFICATION
