Specifications
Equipped With

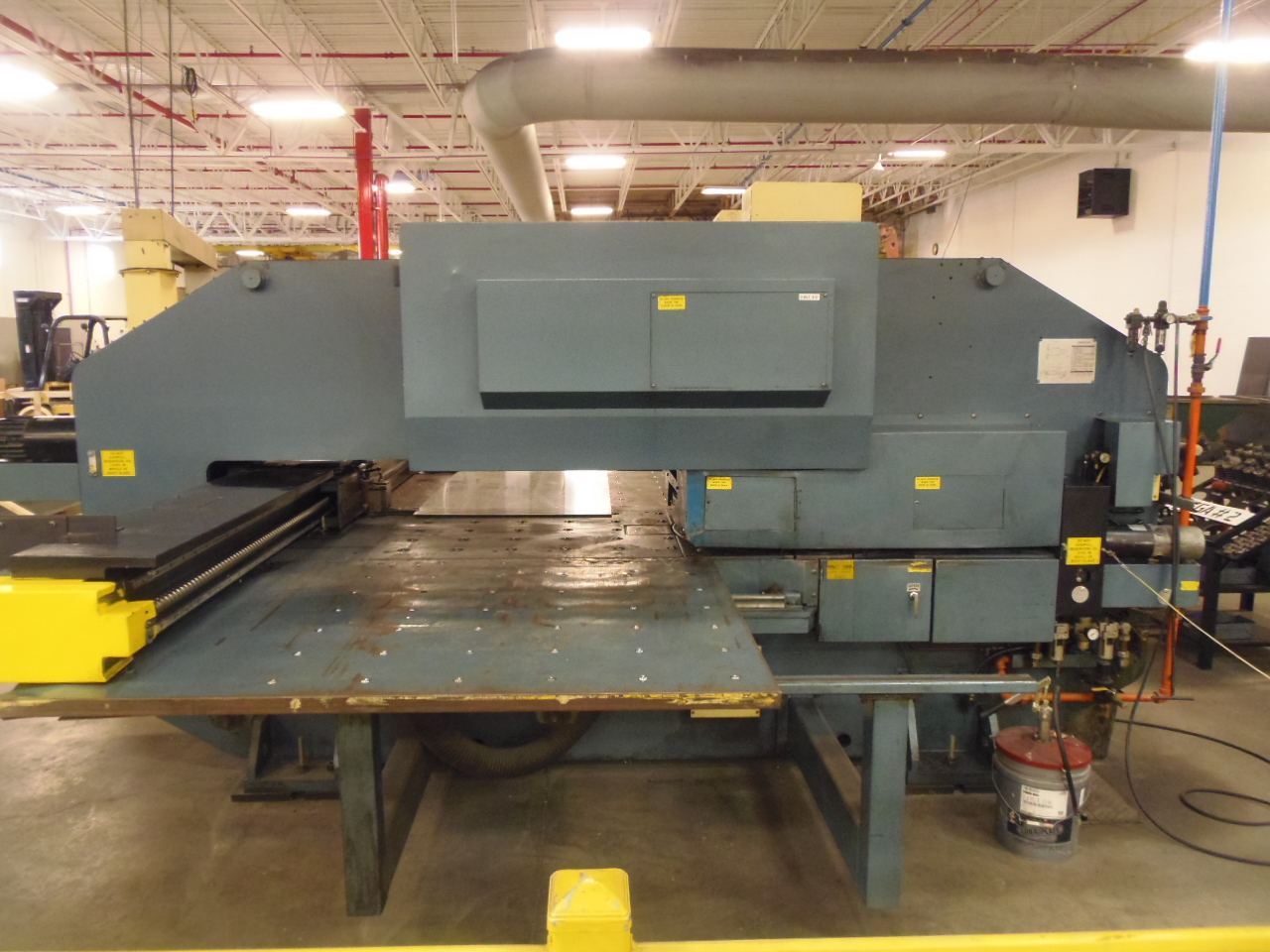

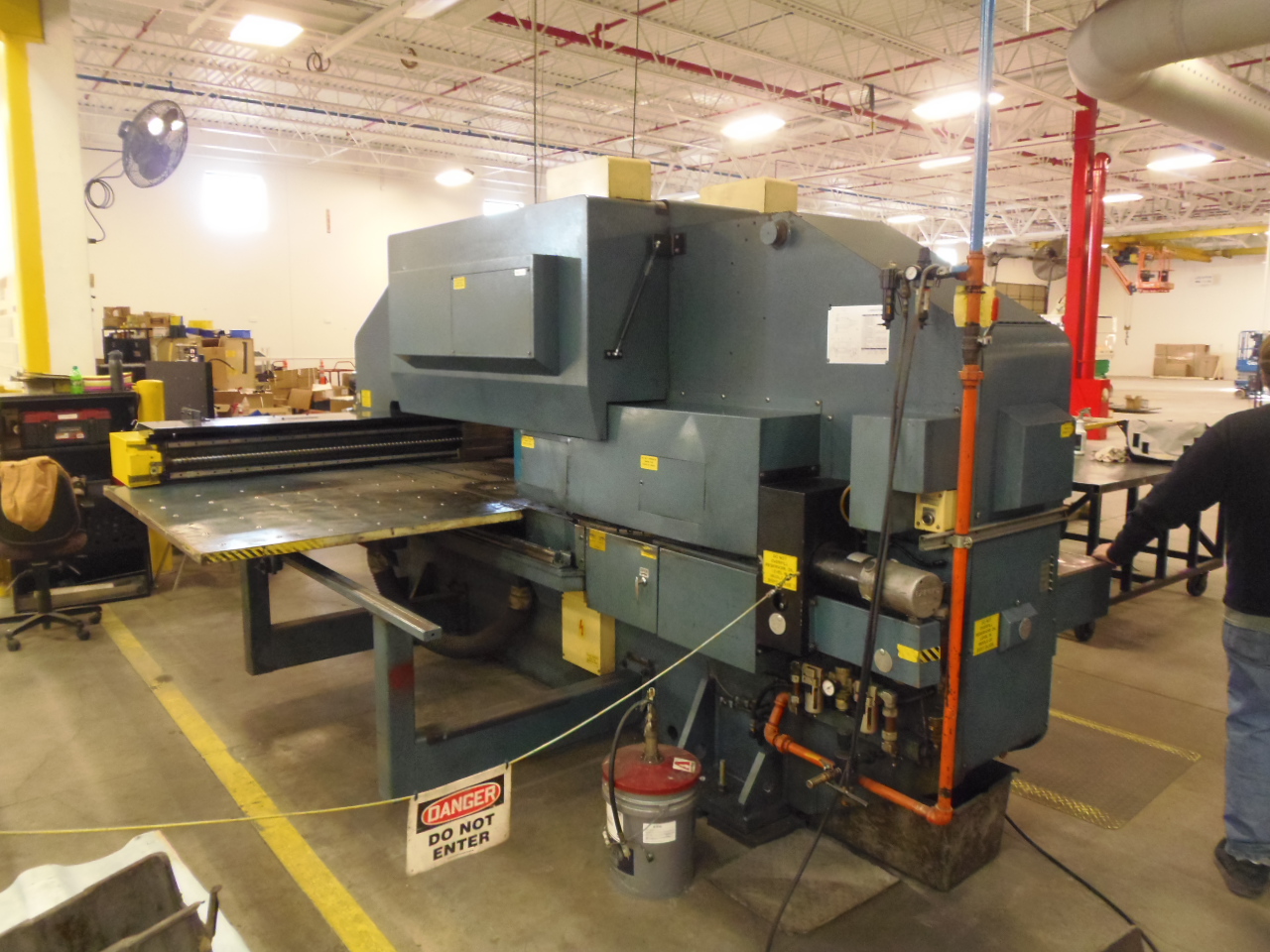

Machine Specifications

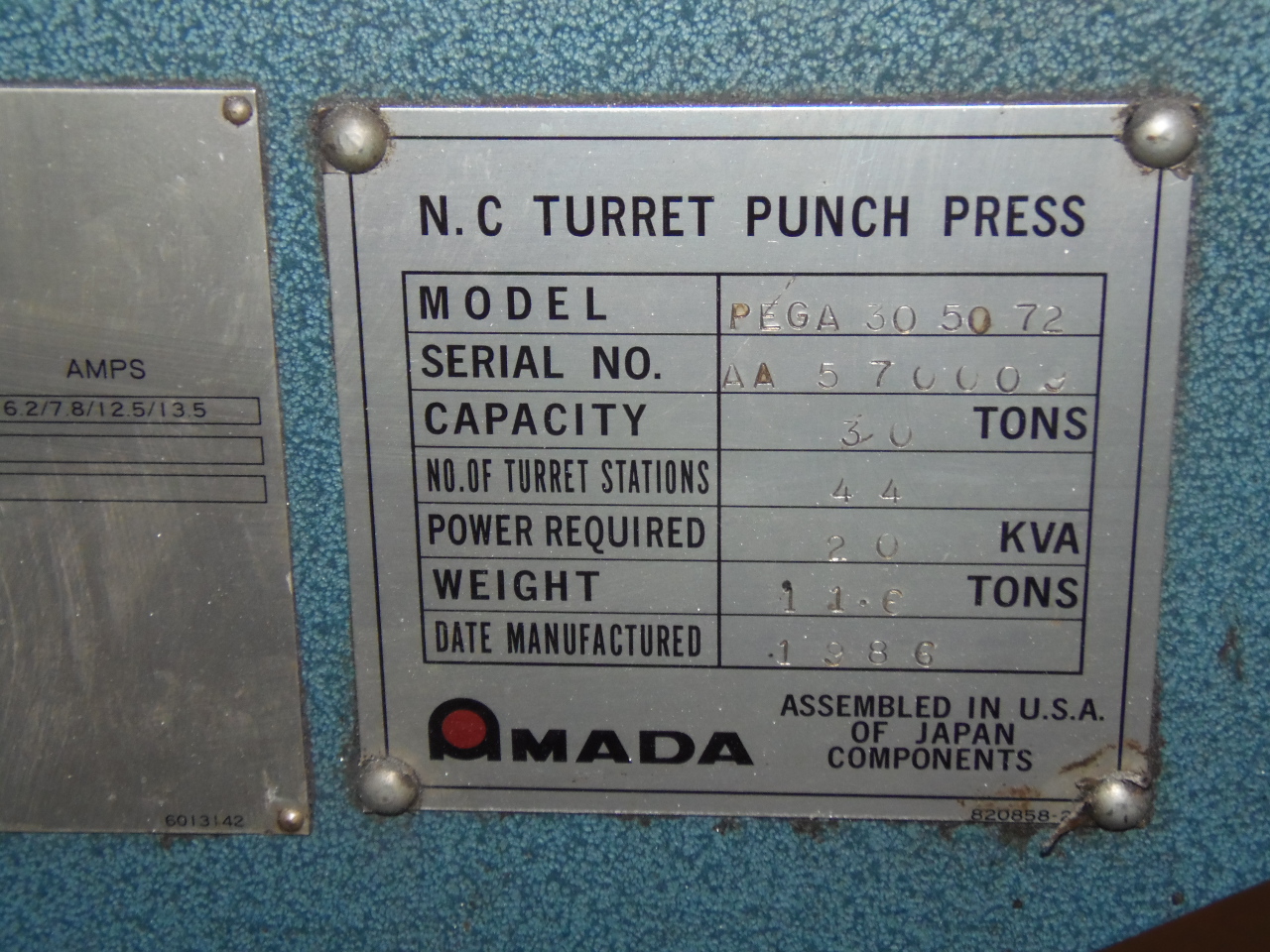

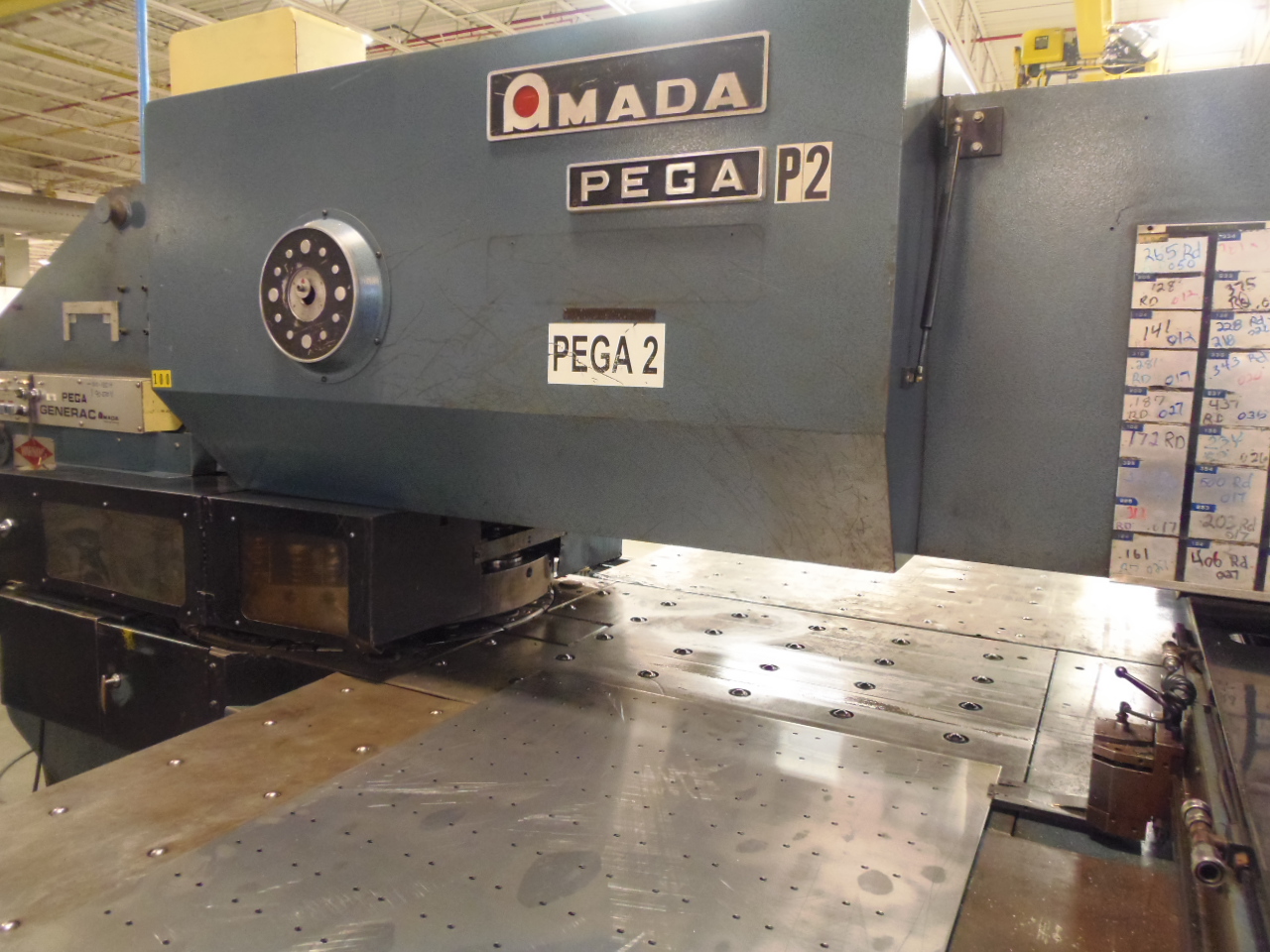

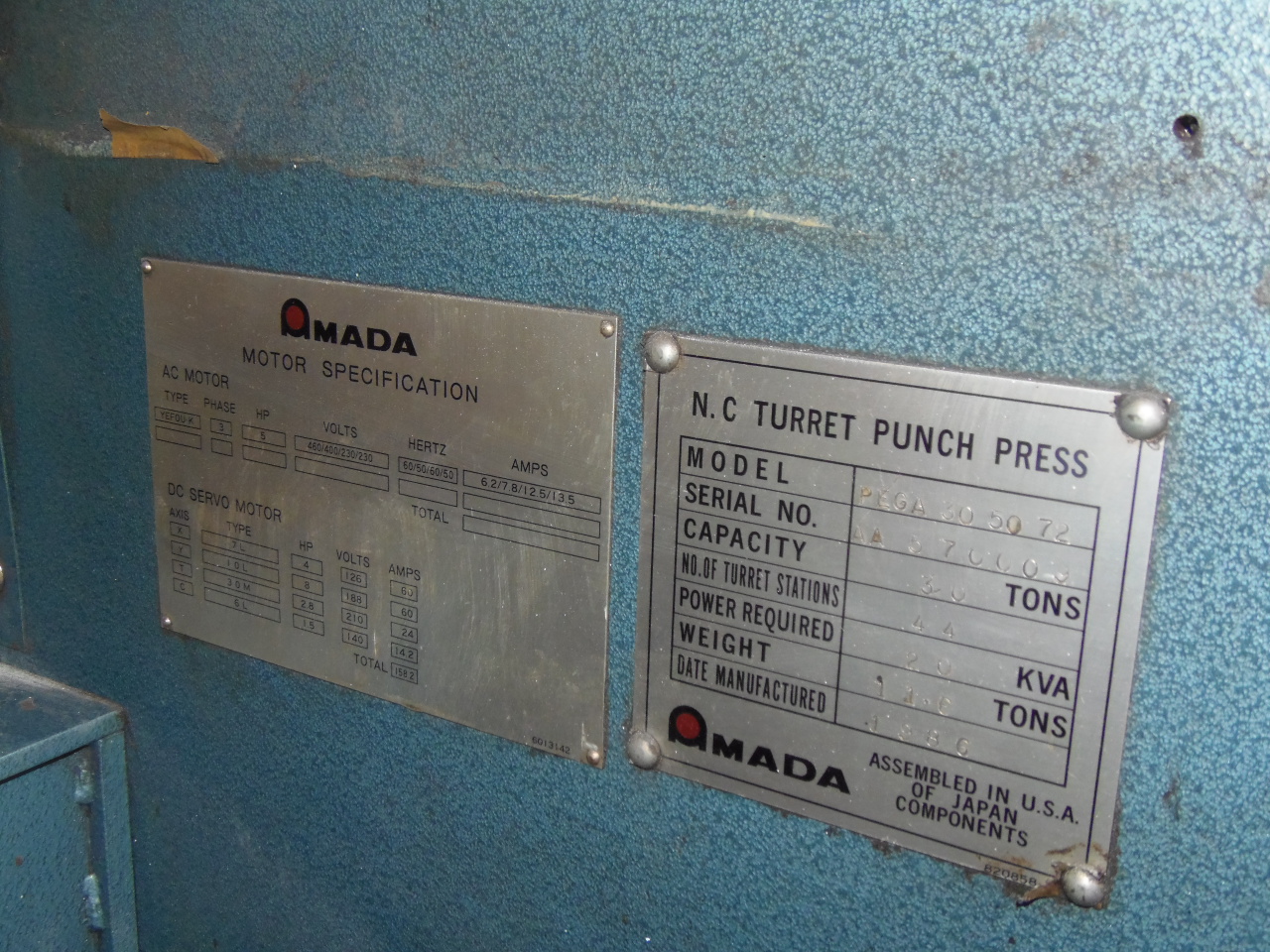

Manufacturer.................... Amada
Model........................... Pega II

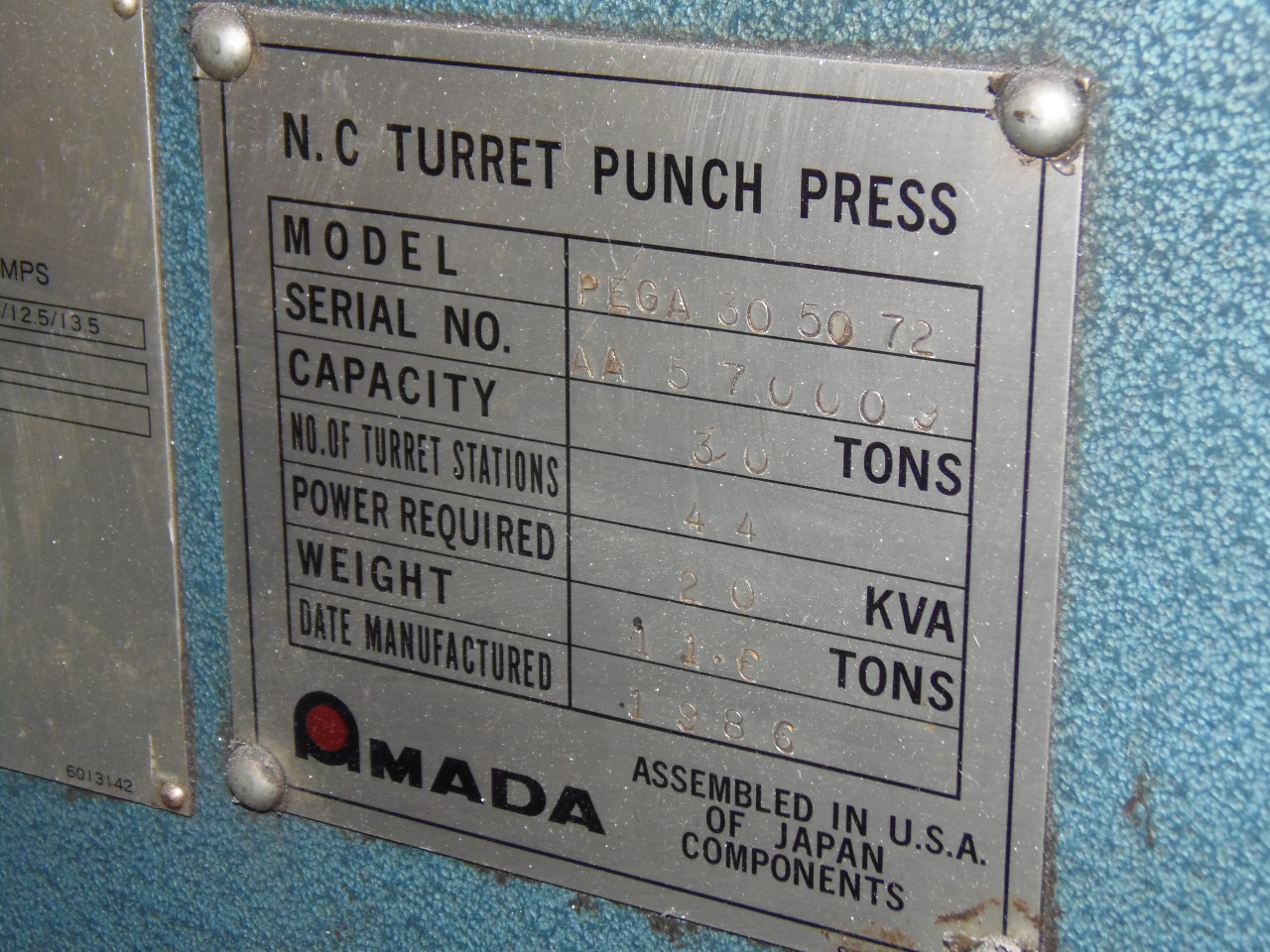

Serial Number................... AA570009

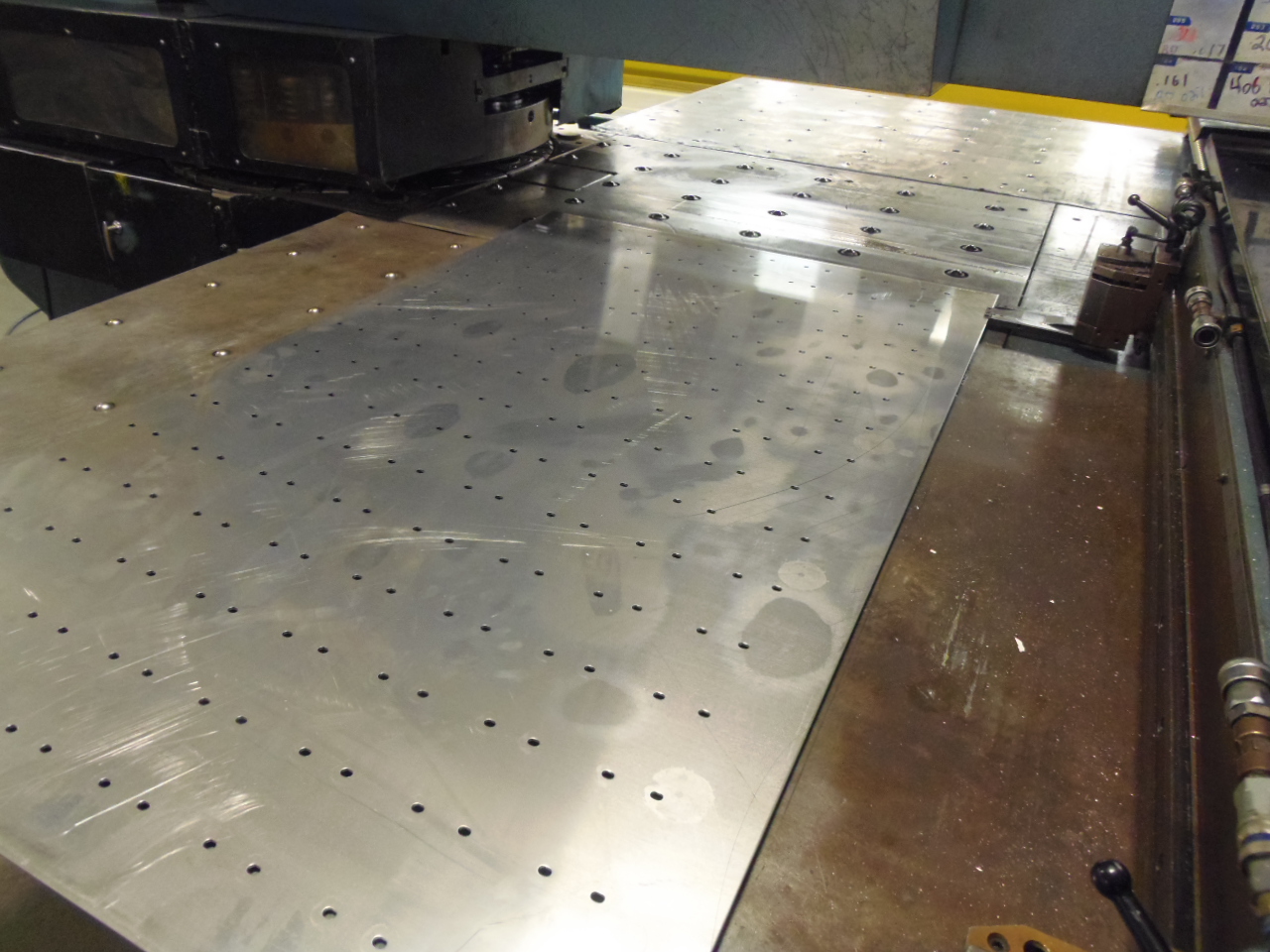

Table Size...................... 50” x 72”
Max Sheet Size.................. 50” x 144” (with repositioning)
Max Traverse.................... 50" x 72"
Max Material Thickness.......... 1/4”
Max Material Weight............. 220 lbs
Number Of Stations.............. 58
1/2" Diameter stations....... 36
1-1/4" Diameter stations..... 12
2" Diameter stations......... 4
3-1/2" Diameter stations..... 2
4-1/2" Diameter stations..... 2
1-1/4" auto index stations... 4
Hit Rate (1" movements)......... 200 HPM
Turret index speed.............. 30 rpm (bi-directional)
Max Ram Stroke.................. 1.57”
Max Feed Speed.................. 2000 ipm

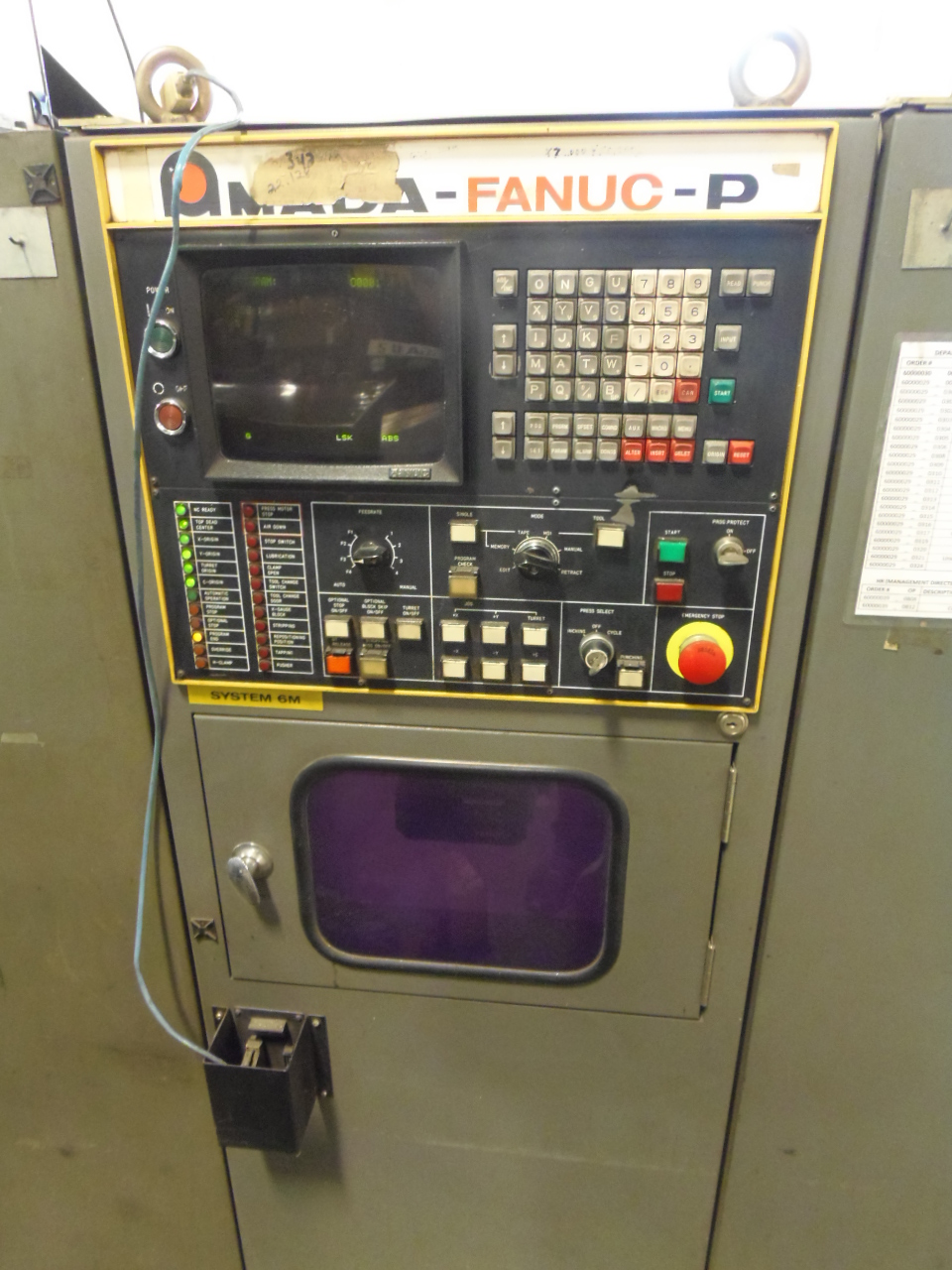

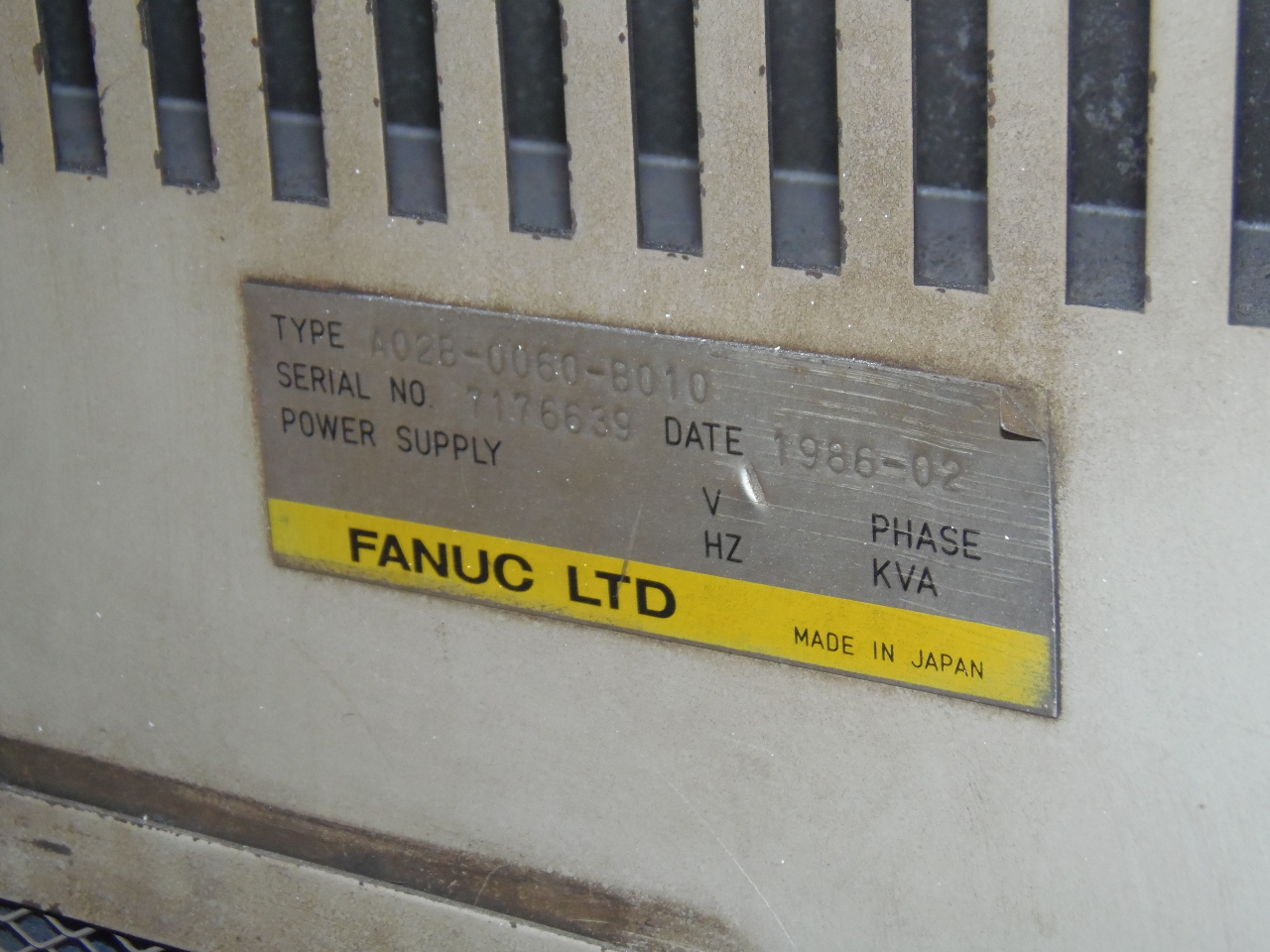

CNC Control..................... Fanuc-P (6M)
Power Req ...................... 230/3/60 Hz
Equipped with:
2 auto index stations
Misc tool holders
Automatic Repositioning

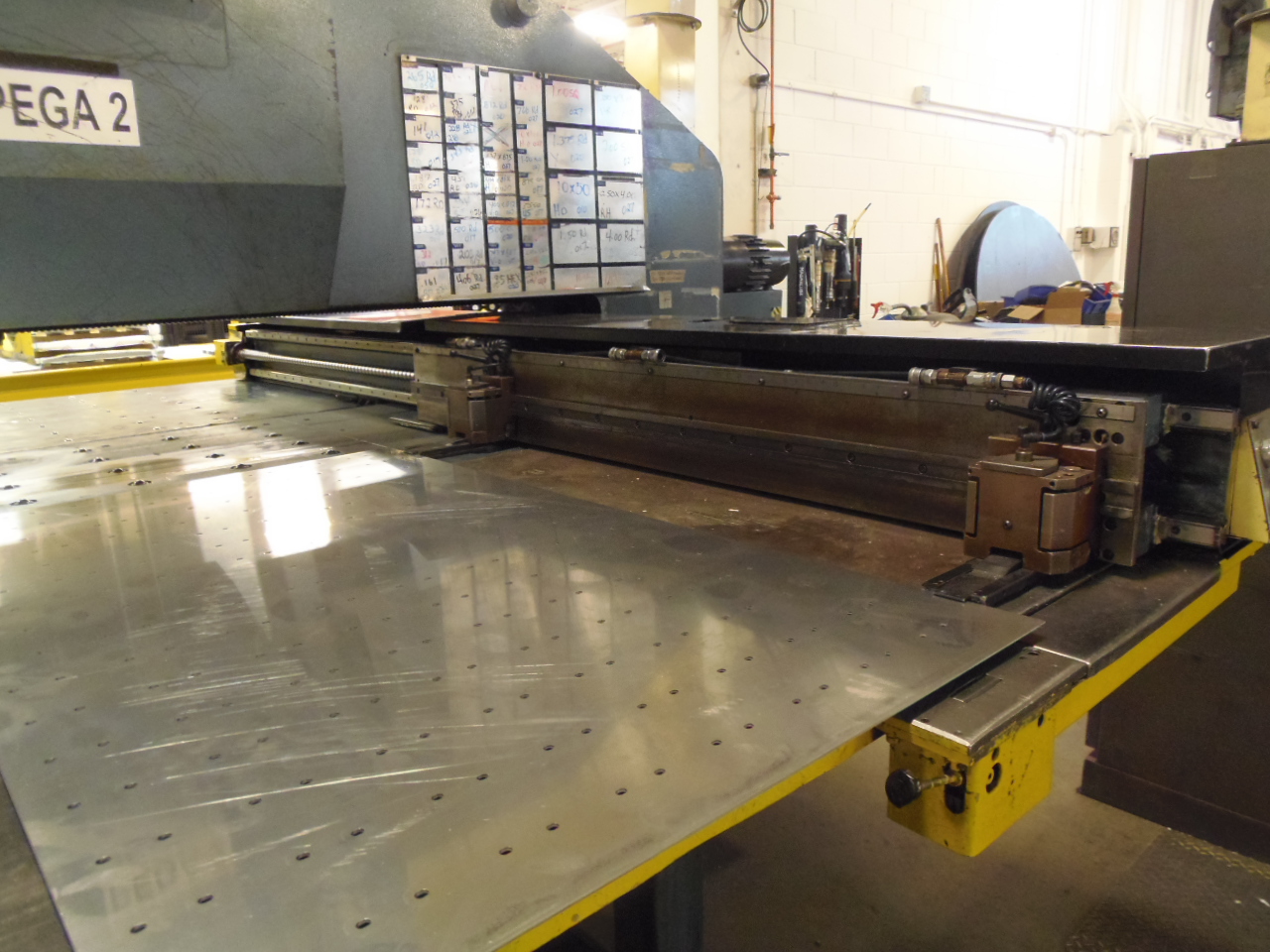

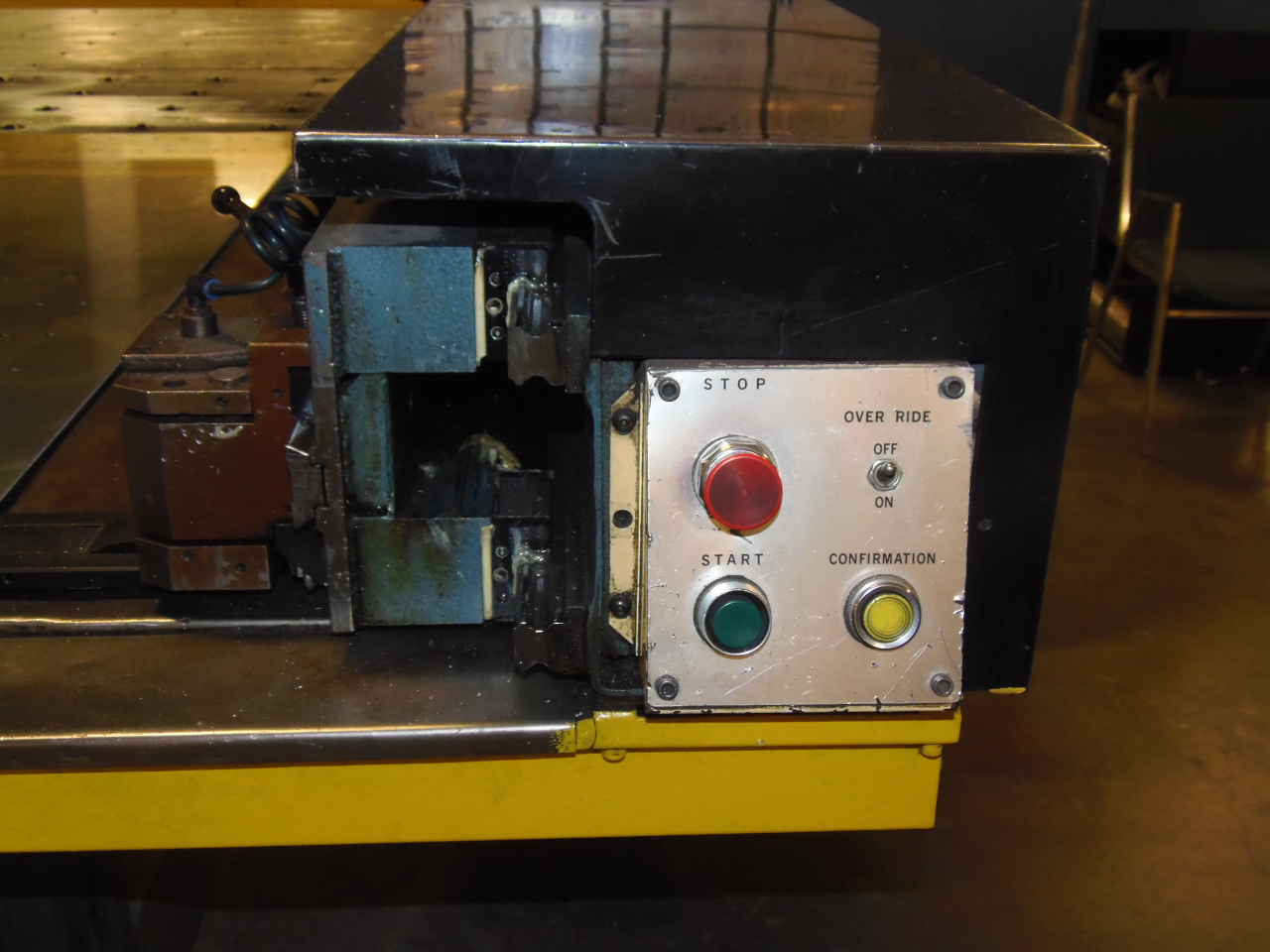

Pneumatic work clamping
air clutch and brake
new 1986
