Specifications
Equipped With
General specifications:

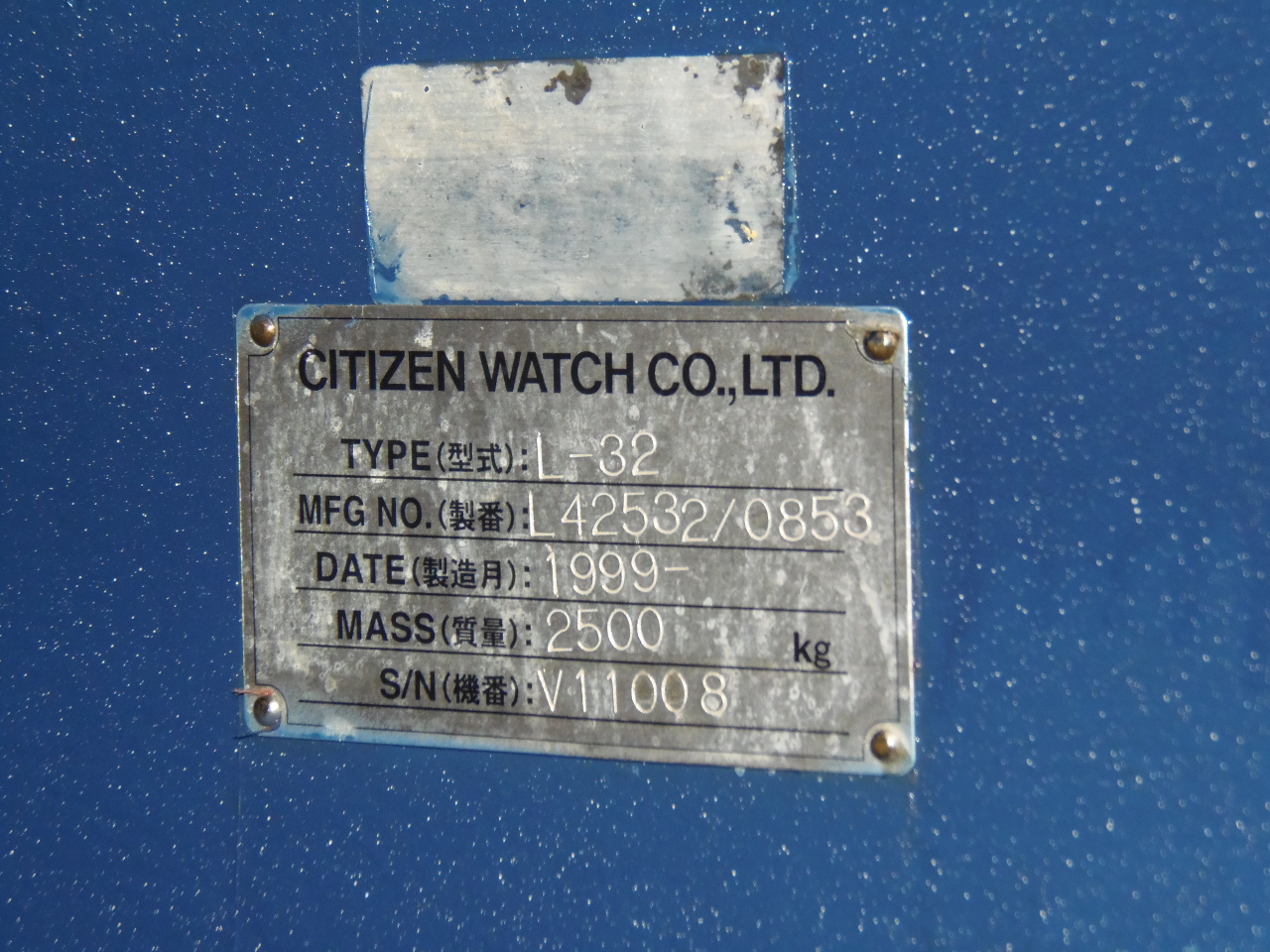

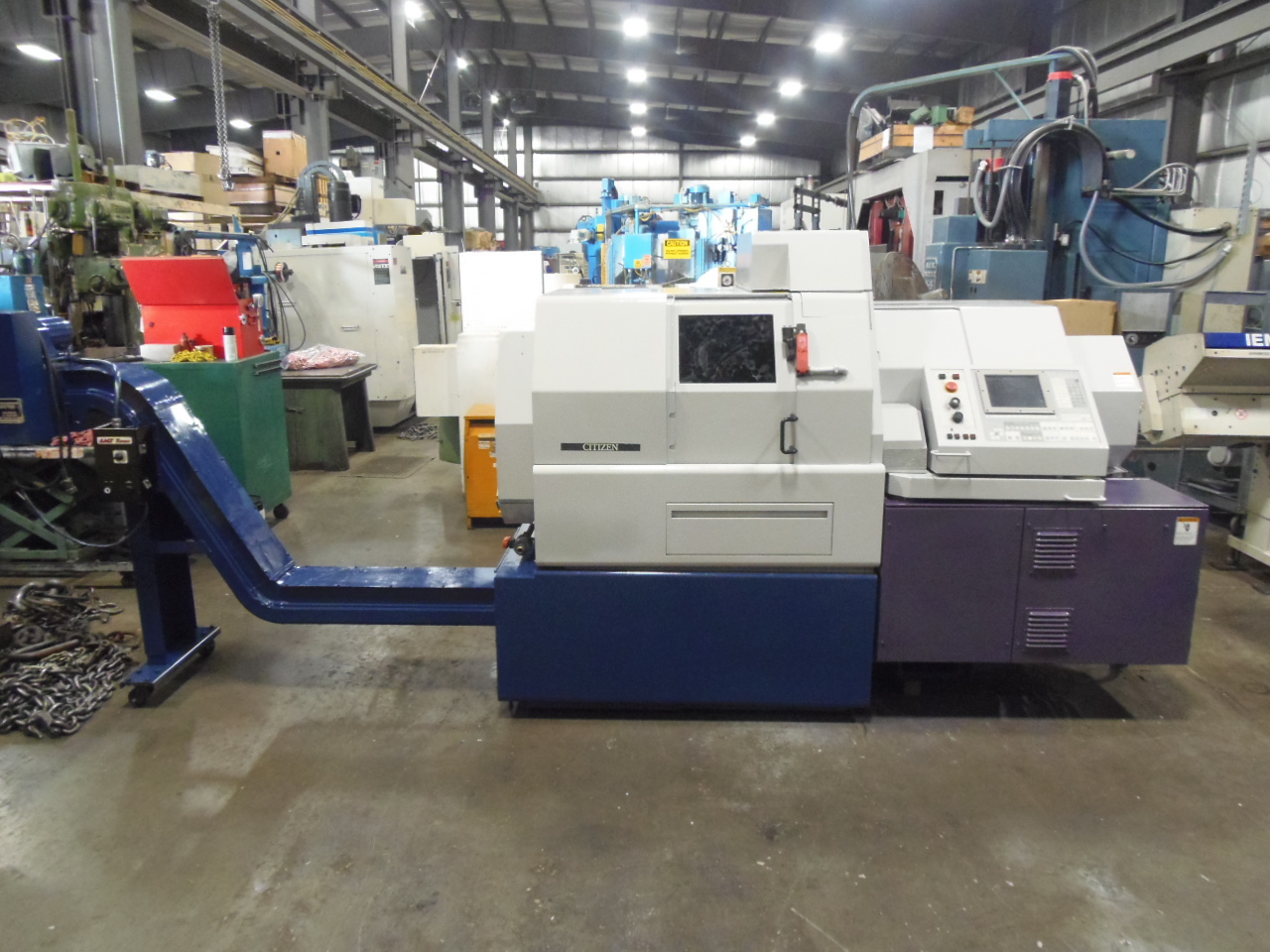

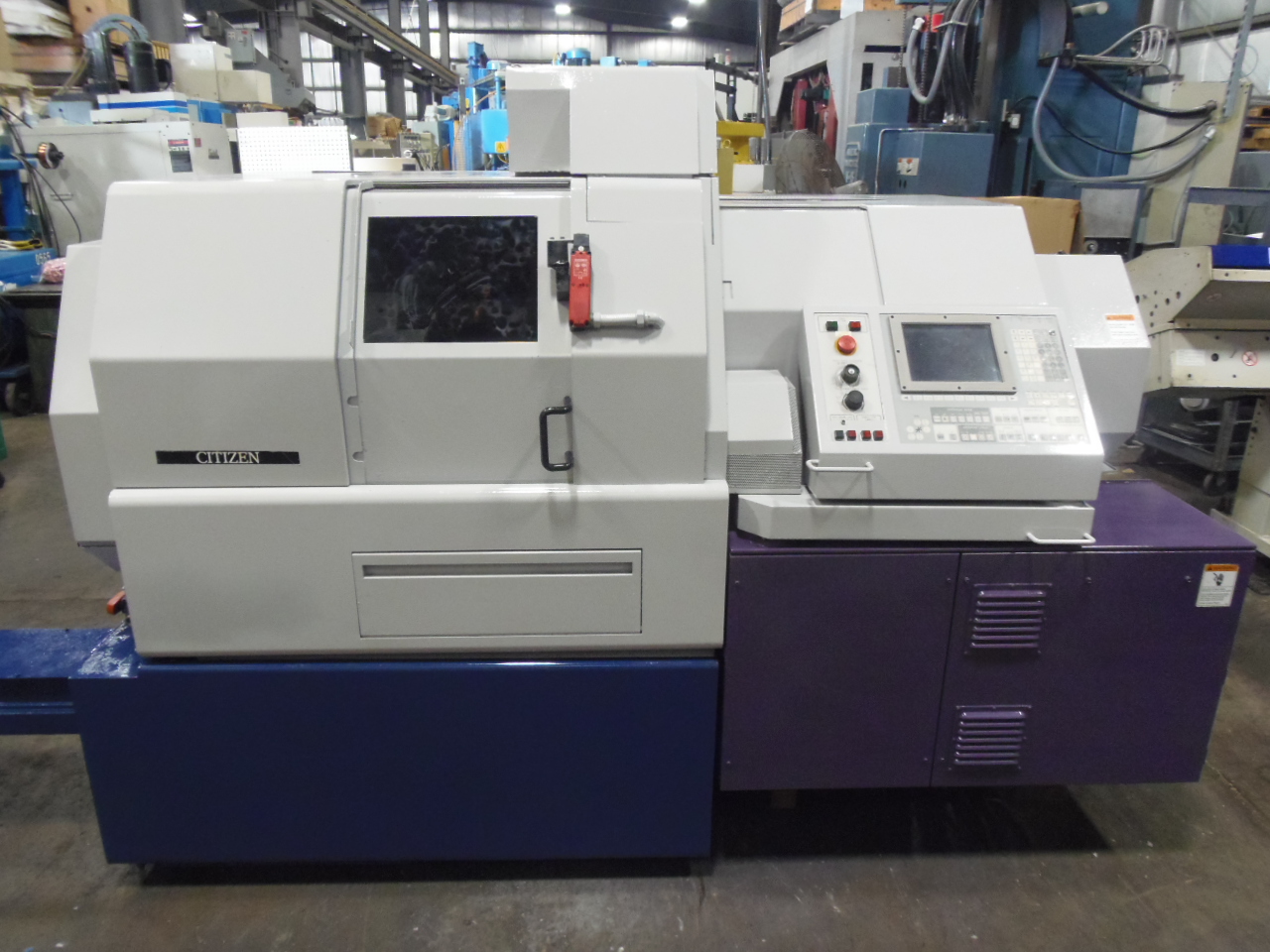

Manufacturer..................... Citizen
Model............................ L32
Serial Number.................... V11008
Age.............................. 1999
Max. Stock Diameter.............. 1-1/4"
Max. Length per Chucking......... 10"
Max. Drilling Diameter .......... .394" ER16 collet
Main Spindle Speed............... 200-8000 RPM

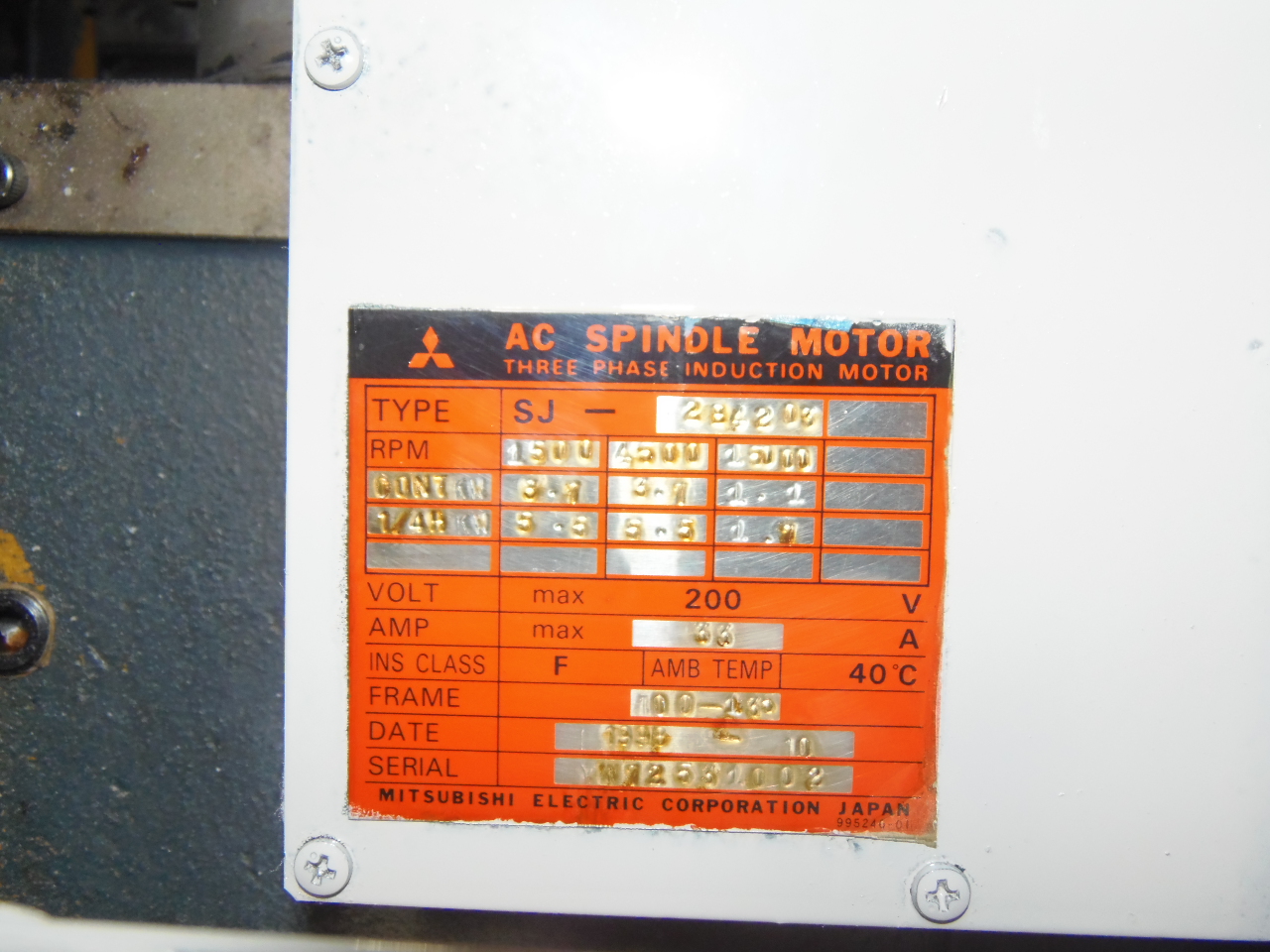

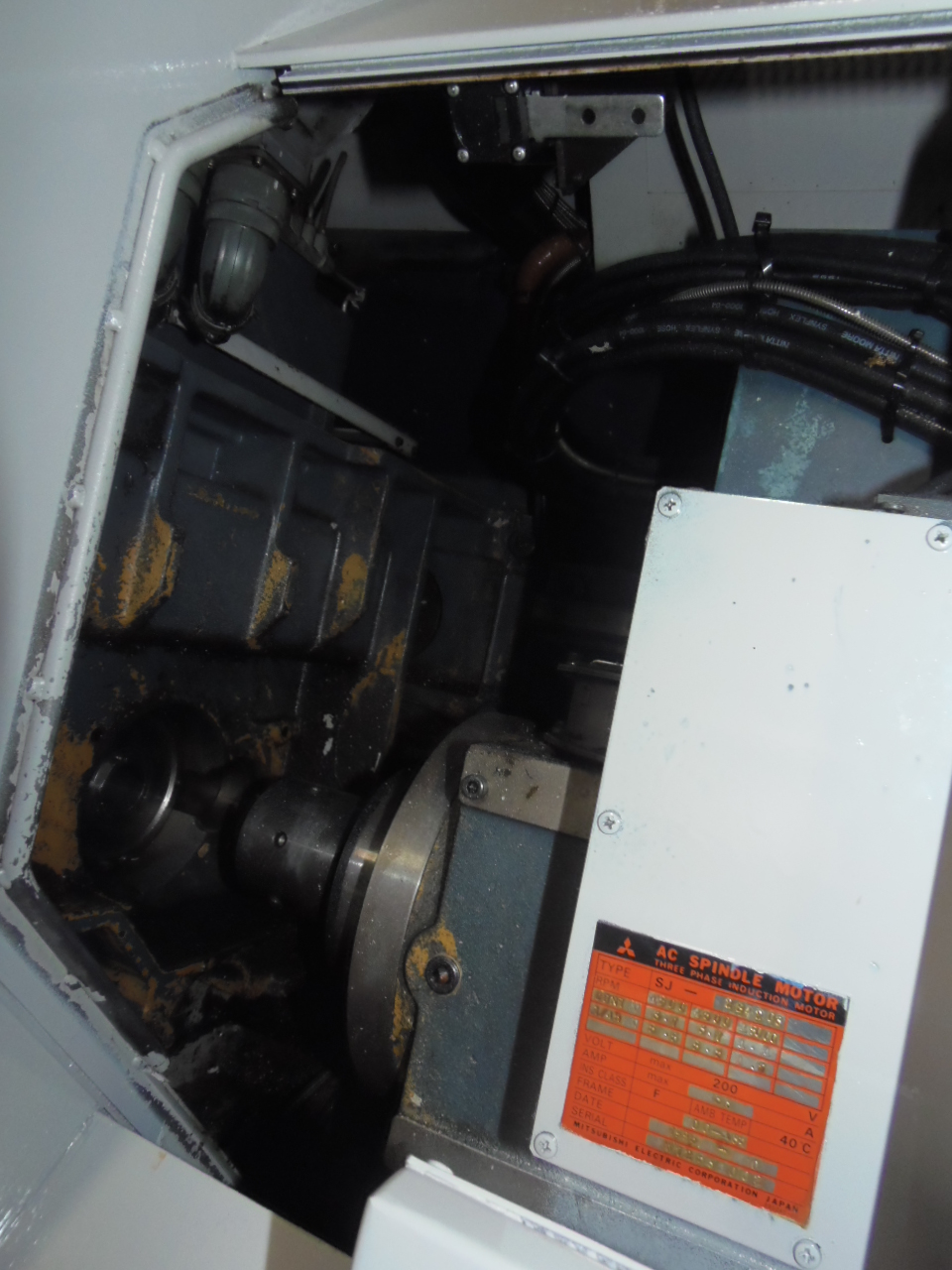

Main Spindle Motor............... 5 HP; 15 min. rating: 5 HP
Maximum Chucking Diameter........ 1.25"

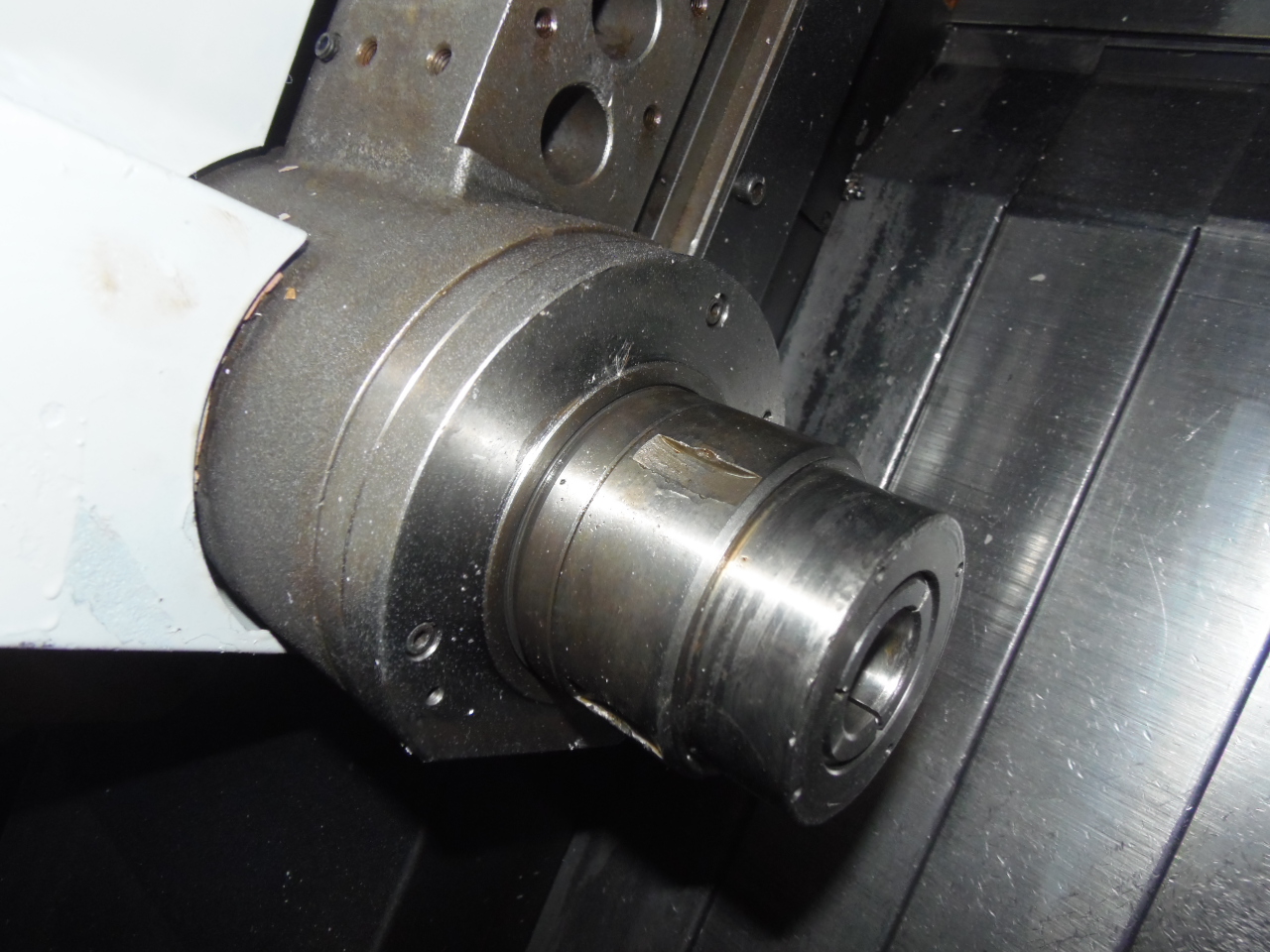

Pick-Off Spindle Speed........... 200-6000 RPM
Pick-Off Spindle Motor........... 3 HP
Main Spindle Index:.............. .01 Degrees
Sub-Spindle Index................ 15 Degrees (Optional 1 Deg)
Rotary Tool Spindle Speed........ 200-5000 RPM
Rotary Tool Motor................ .5 HP

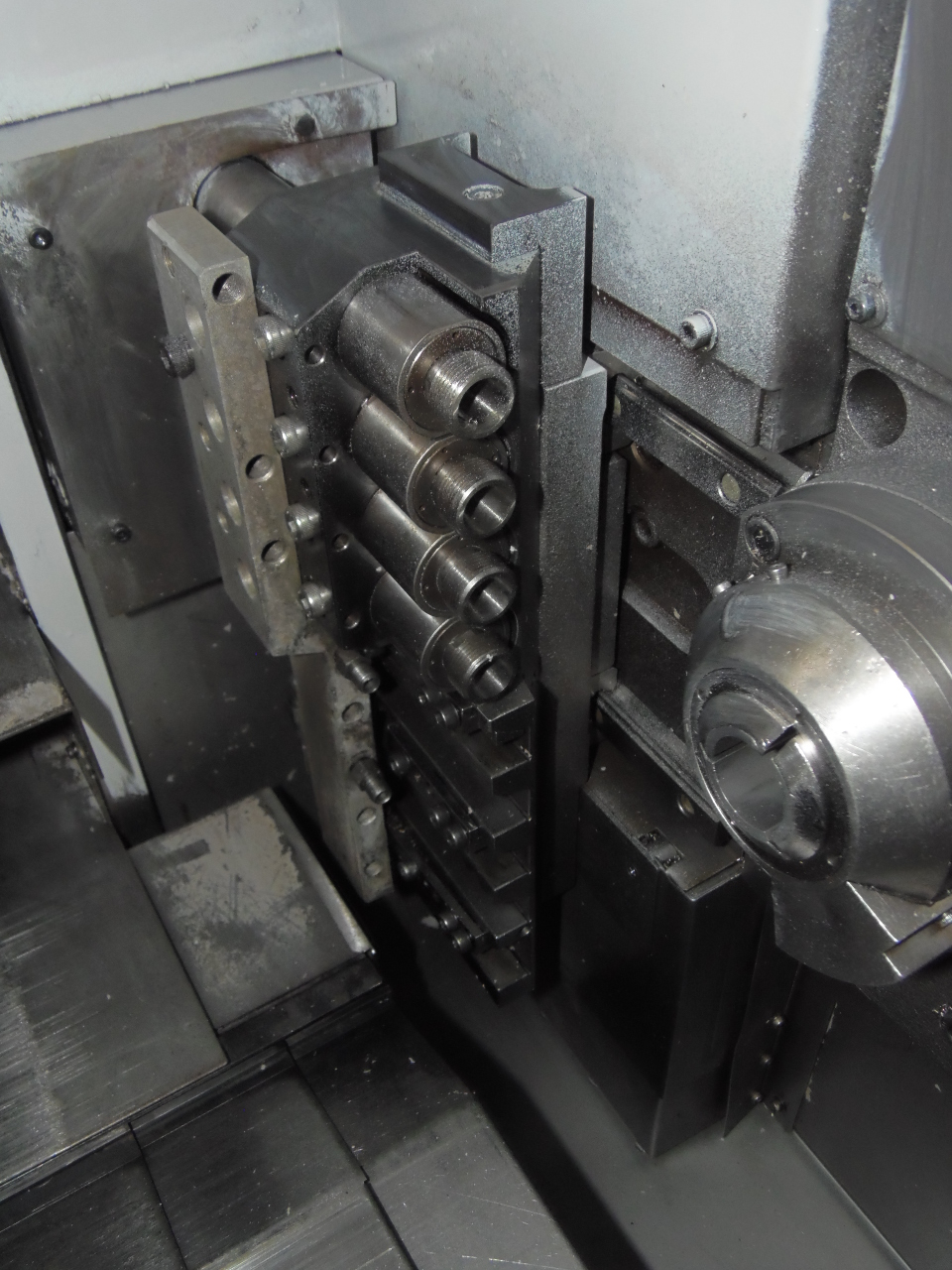

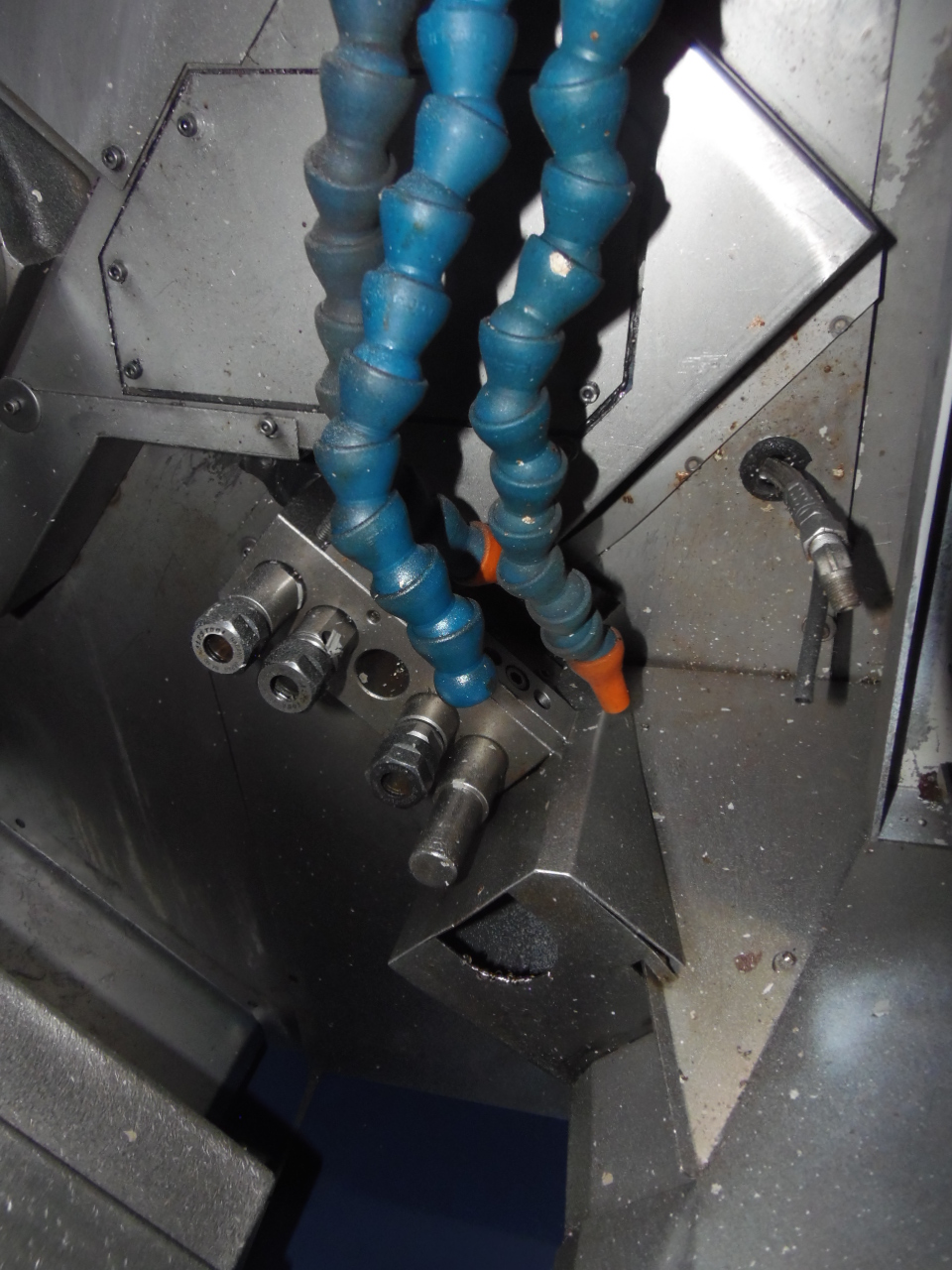

Number of Tools to be Mounted.... 17
Turning Tools.................... 5
Front Work ID Tools.............. 3
Back Work ID Tools............... 5
Live Tools....................... 4
Tool Size
Square Shank.................. 5/8"
ID Sleeve..................... 1"
Power Consumption................ 11 KVA
Weight (approx.)................. 5,512 lbs.
Equipped with:

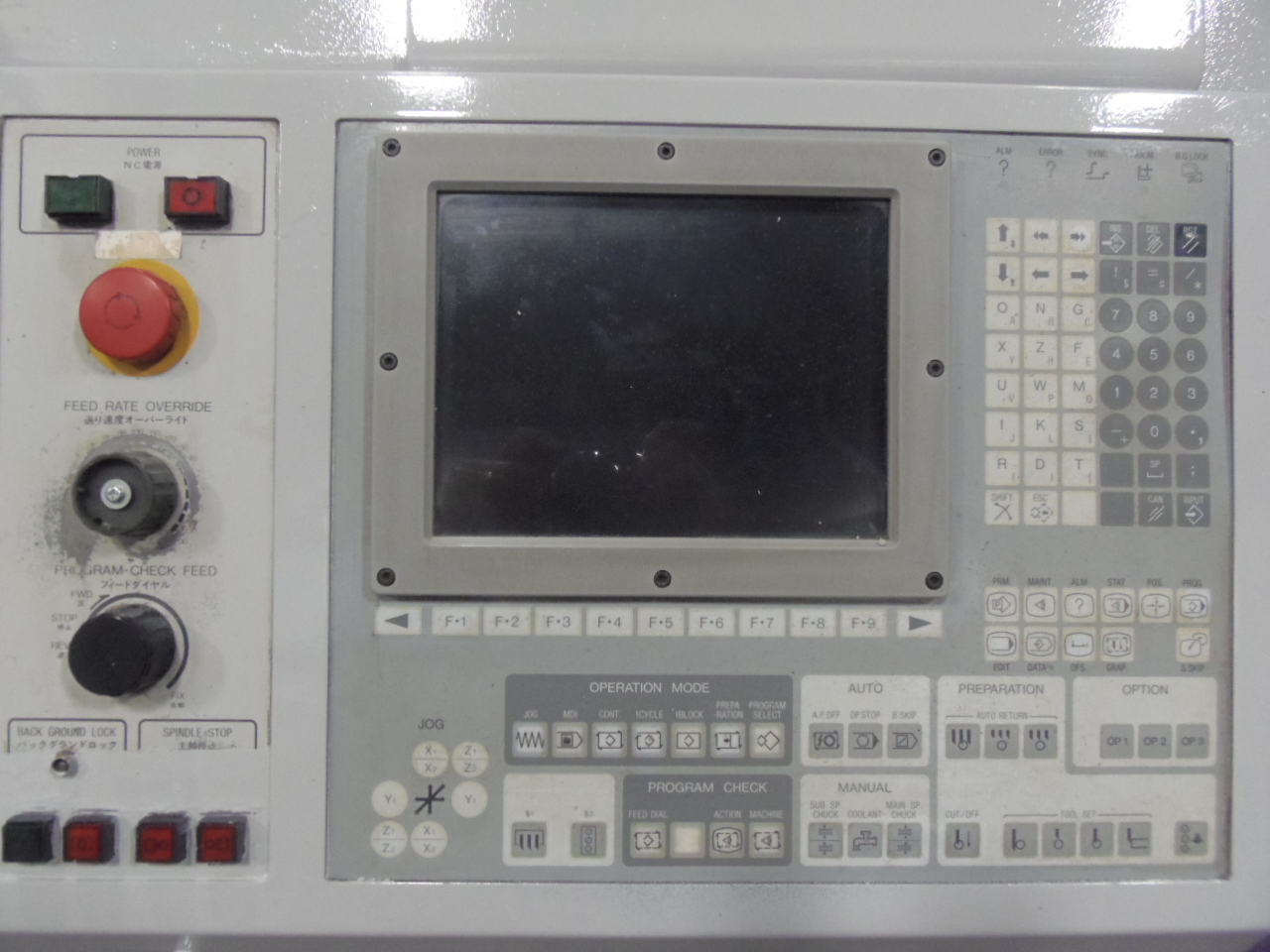

Cincon System IVC CNC Control

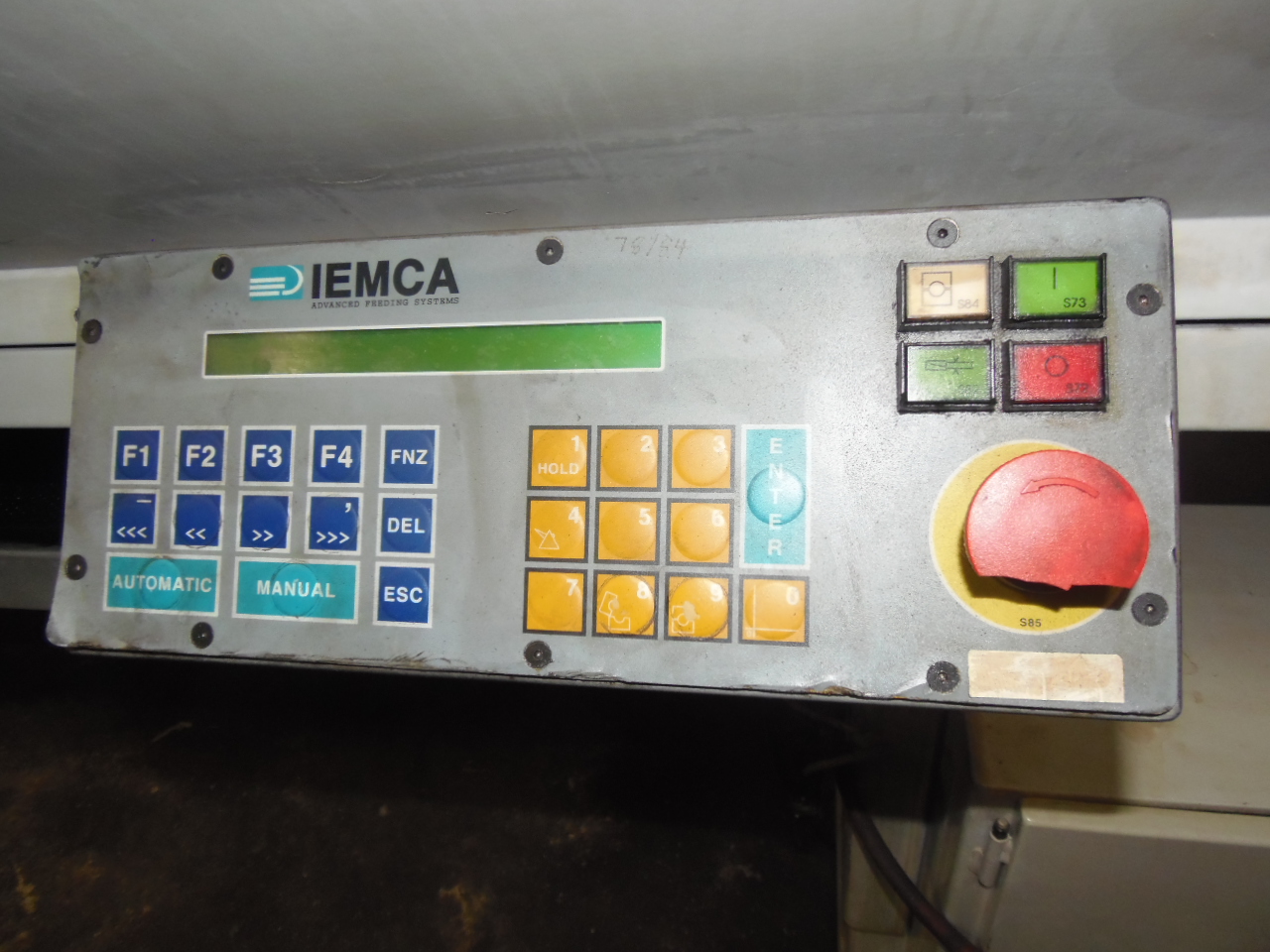

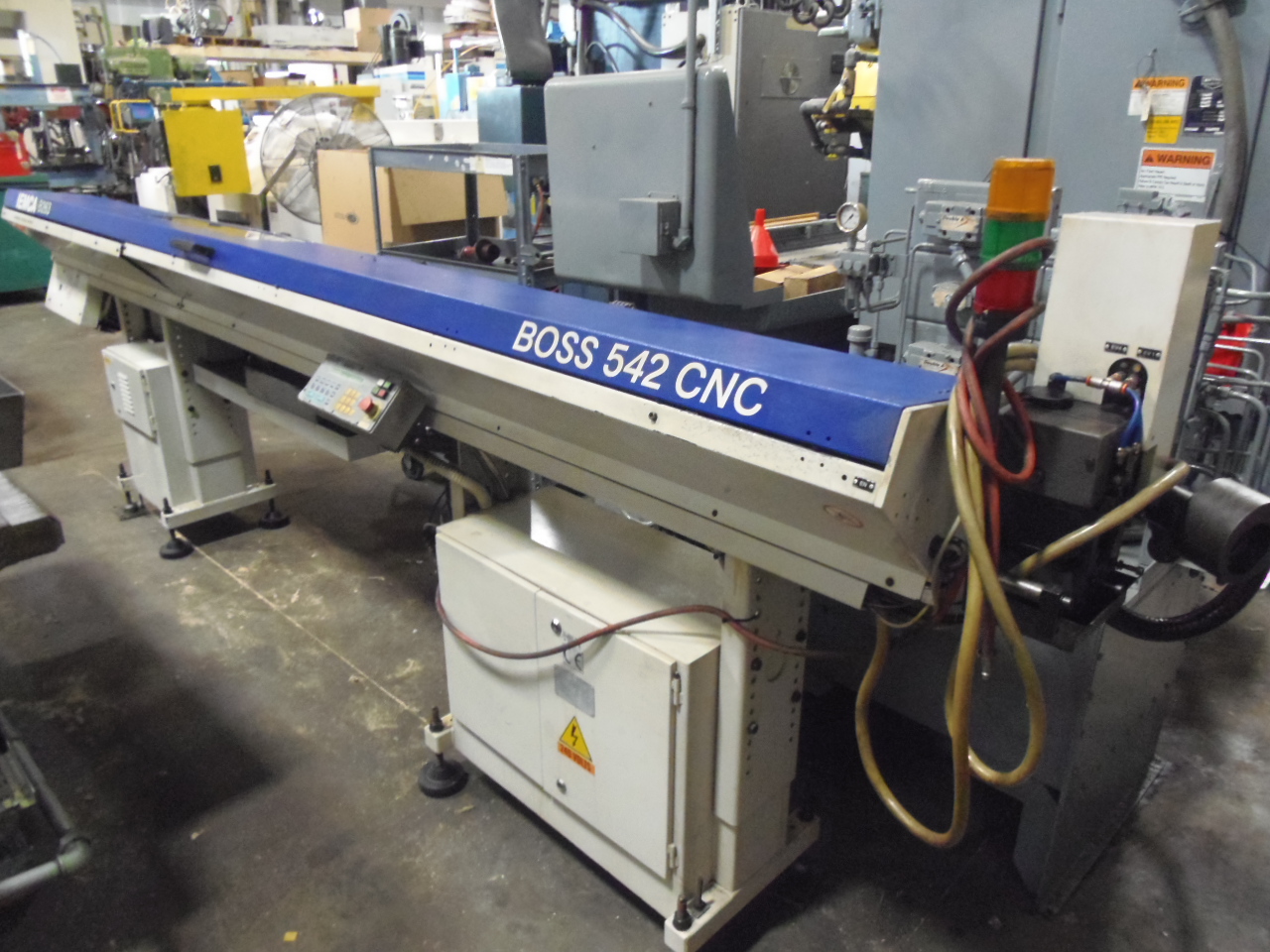

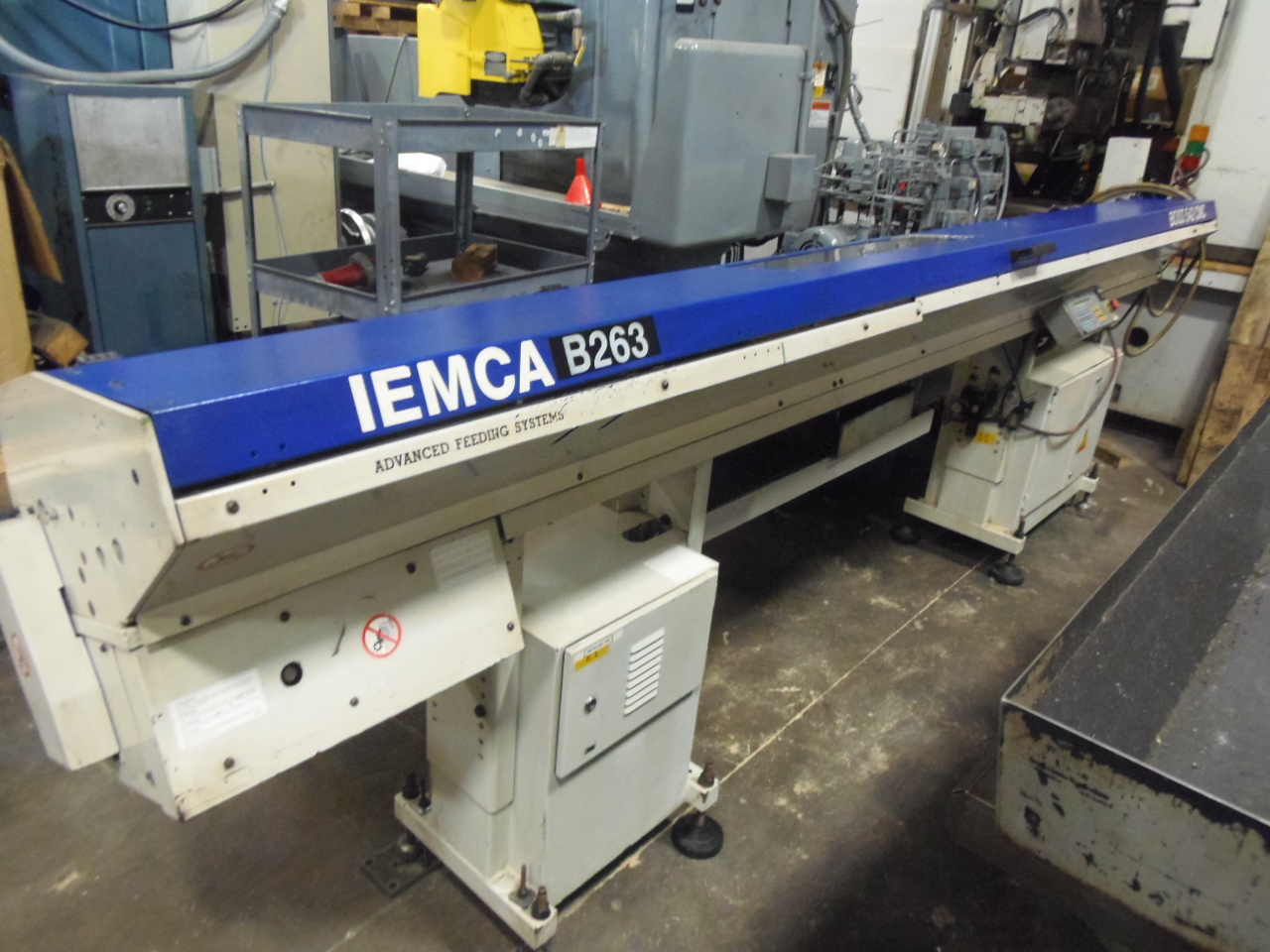

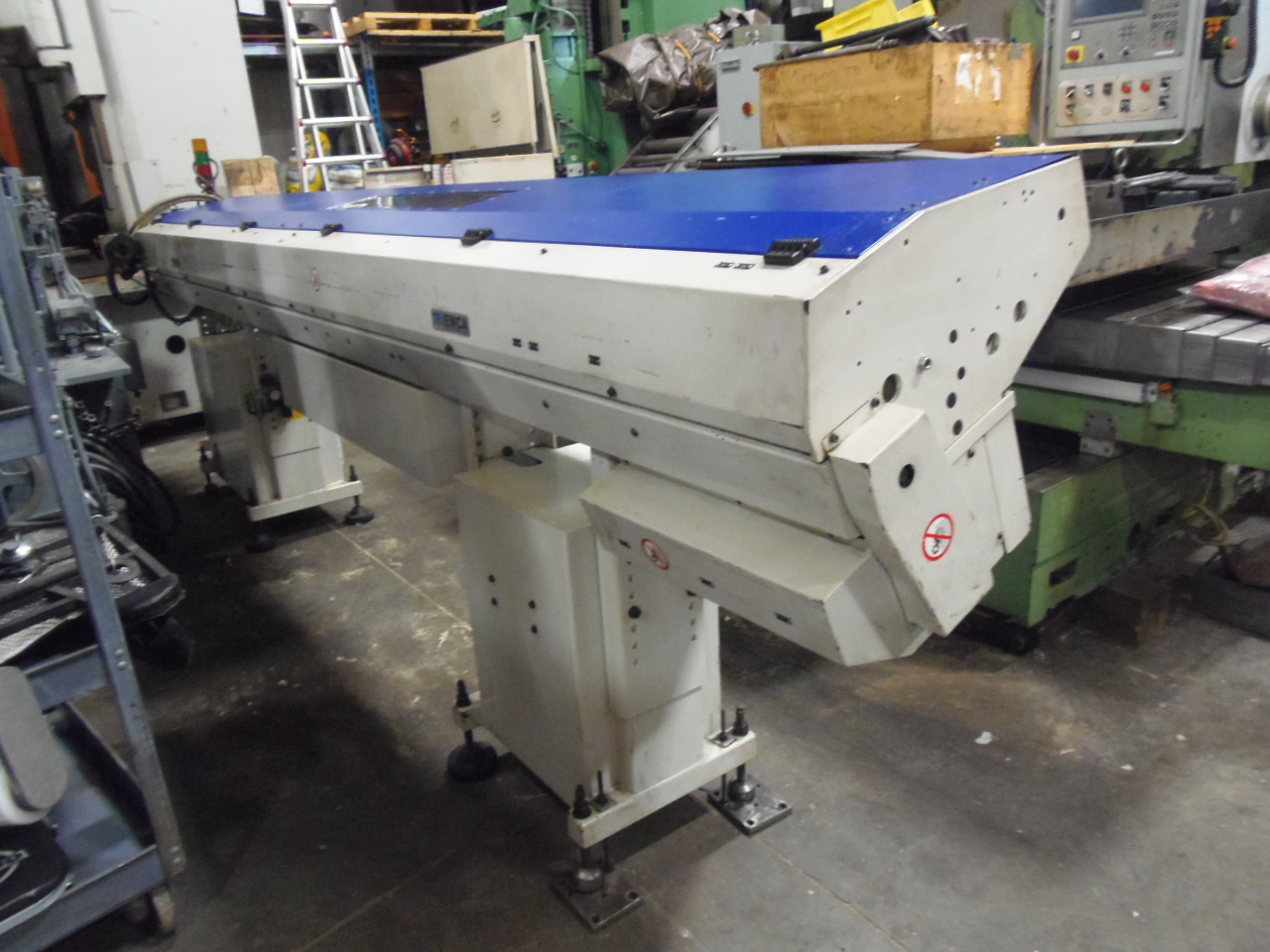

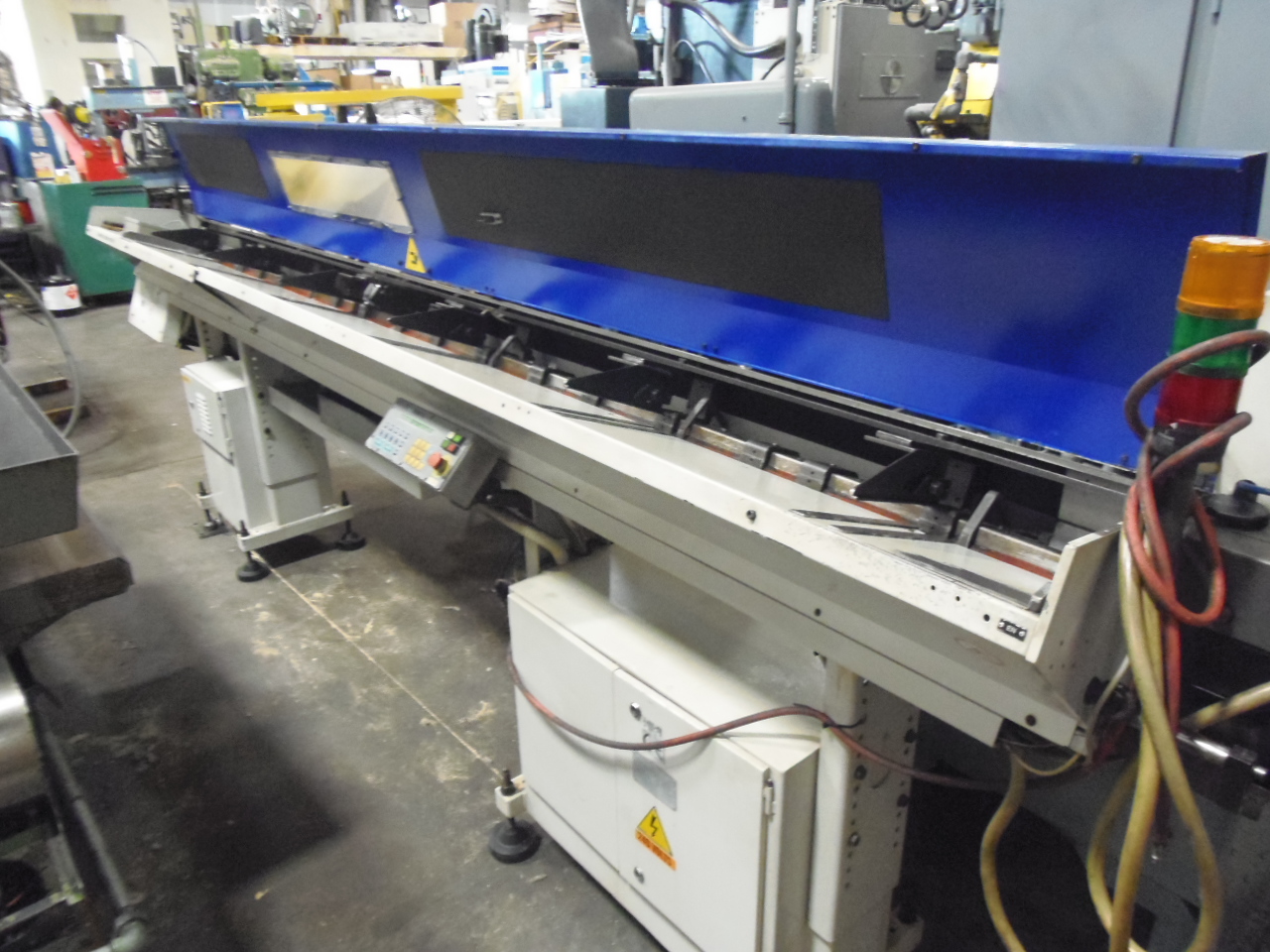

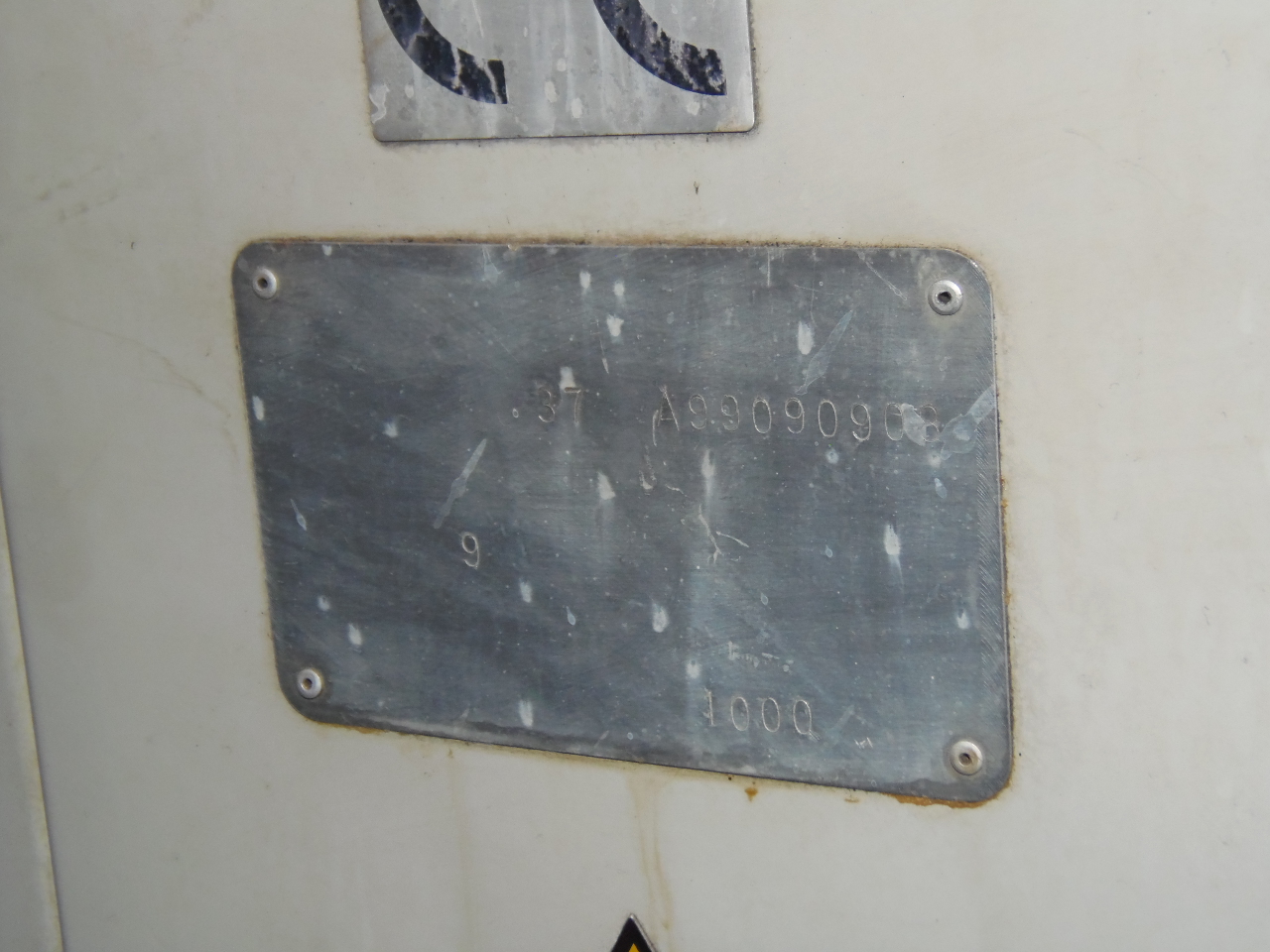

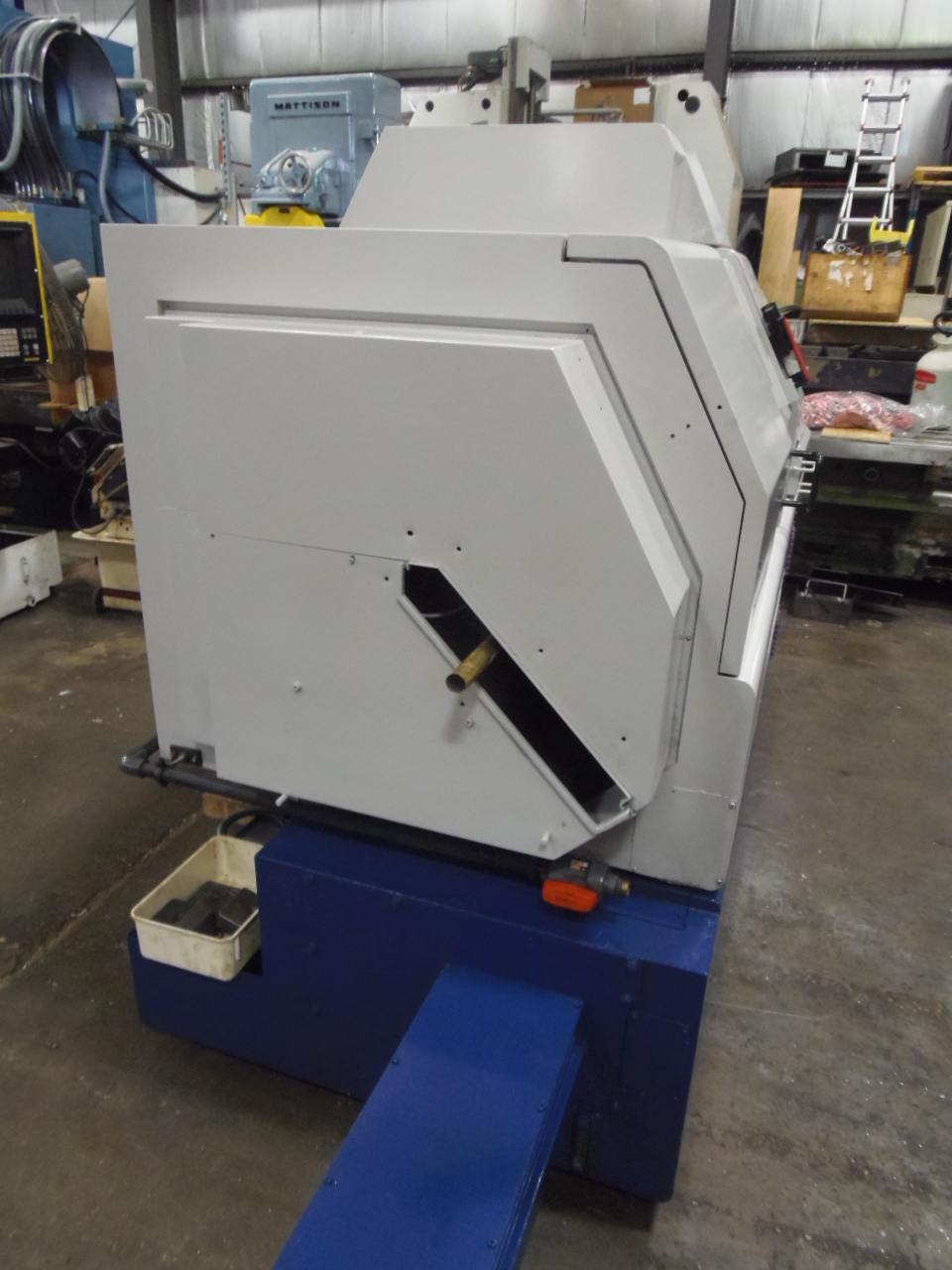

IEMCA Boss 542 CNC Magazine Type Bar Feed with LL Pusher #A99090908
C-Axis Control for Main Spindle
1 Deg Indexing for Sub-Spindle
All Available Manuals
Canned Cycle for Drilling
Main/Back Spindle Synchronous Rotation Function
Synchronous Tapping
Milling Interpolation

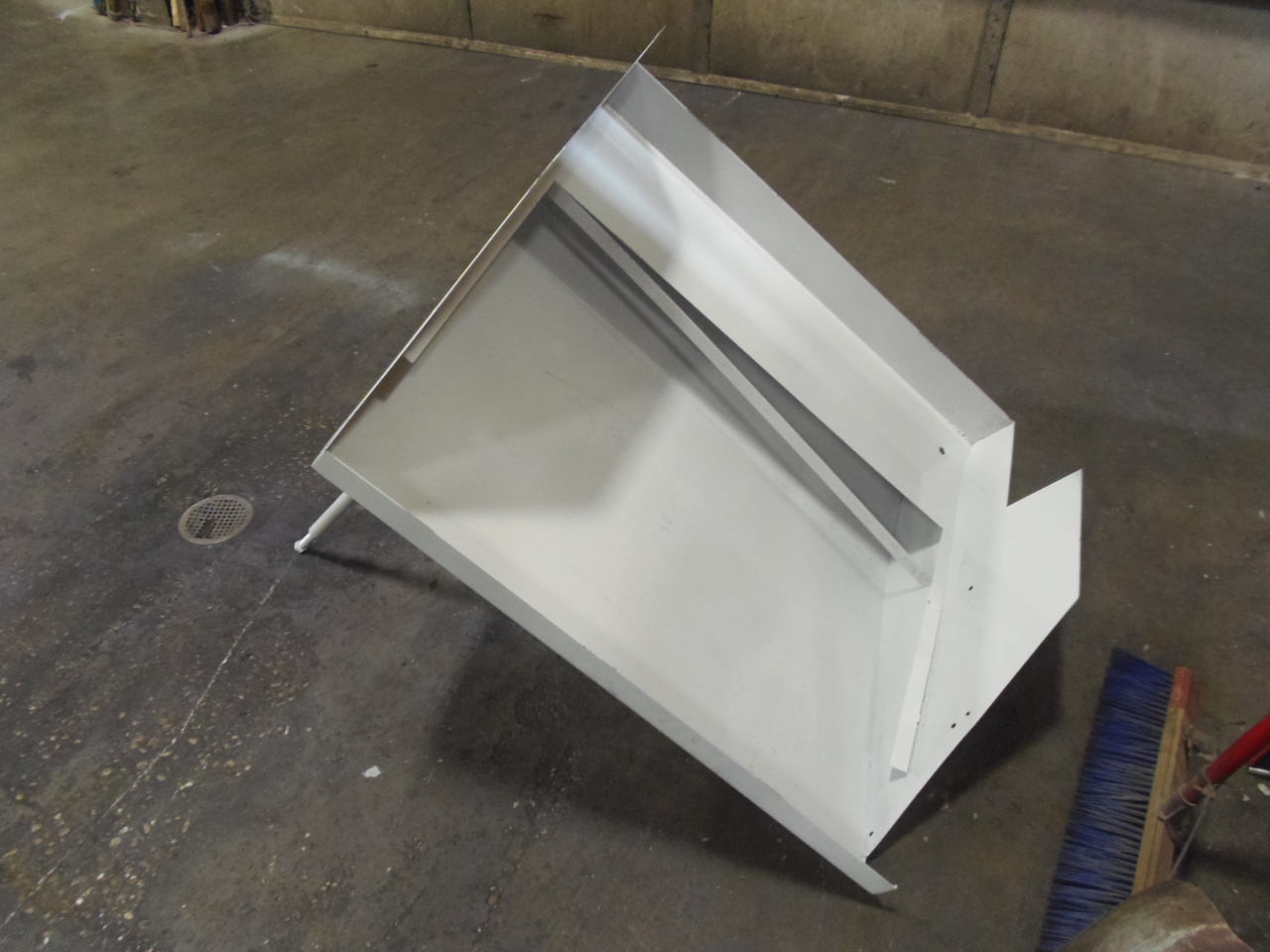

Parts Catcher Tray

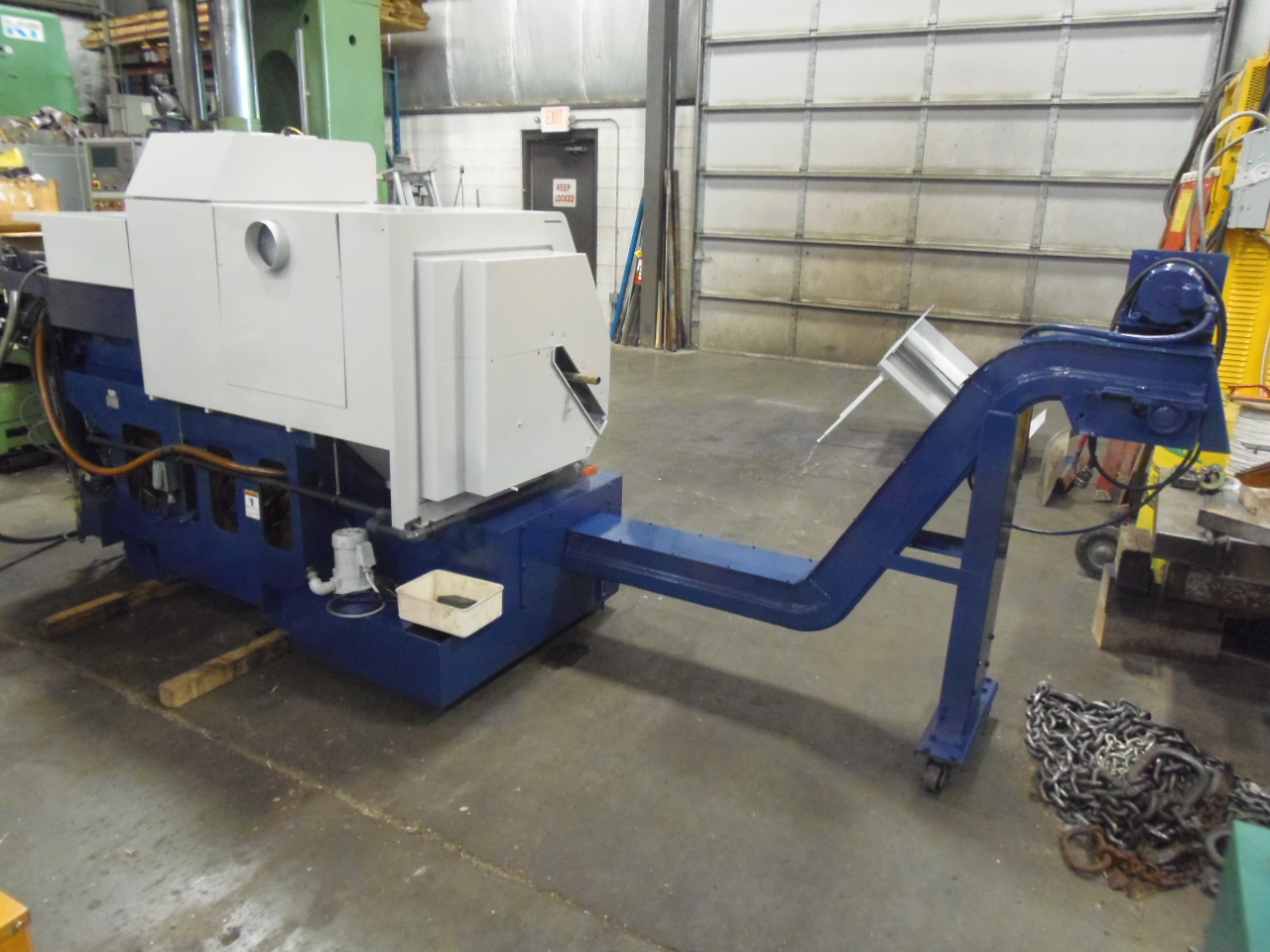

Chip conveyor
