Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER BOEHRINGER VDF
MODEL V800K
SERIAL # 1049.000.460
SWING OVER BED 32"
IN GAP 41"
OVER CROSS SLIDE 22 5/8"
GAP LENGTH FROM SPINDLE 20"
FROM CHUCK FACE 15"
DISTANCE BETWEEN CENTERS 200"
WEIGHT OF WORKPIECE
WITHOUT STEADIES 6170
ONE STEADY 7830
TWO STEADIES 9920
FEED RATES
36 LONG. FEEDS .002-.110 IN/REV
36 TRANSVERSE FEEDS .0009-.055 IN/REV
THREADING
METRIC .25-560
T.P.I. 112-1/20
MODULE .065-140
D.P. 448-1/5
SPINDLE NOSE D1-8
SPINDLE SPEED 5.6-1120 RPM
SPINDLE BORE 5"
MAIN MOTOR 33 HP
WEIGHT (APPROX) 18,000 LBS
OUTSIDE DIMENSIONS 84"F-B X 270"LONG X 66"H
EQUIPPED WITH:

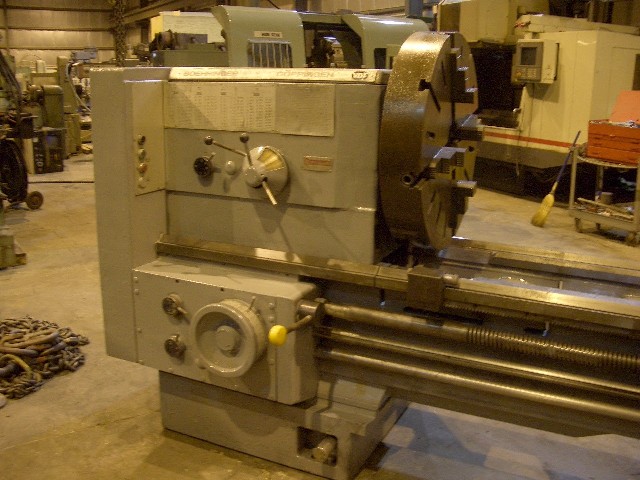

28" 4-JAW CHUCK

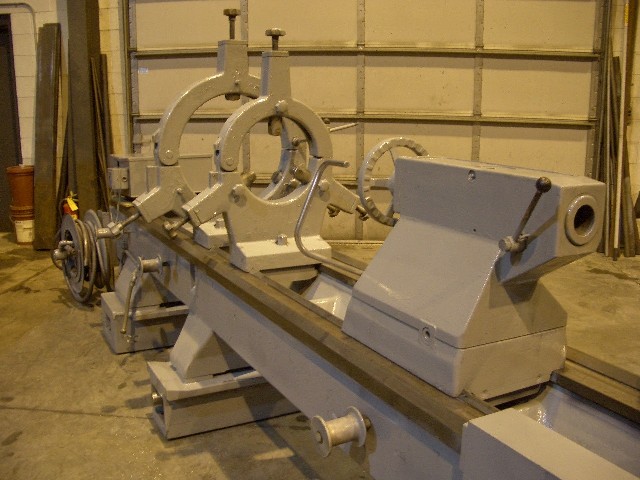

12" STEADY REST
20" STEADY REST
IN/MM/MODUL/DP THREADING
RAPID TRAVERSE
2 SCREW SUPPORTS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
